Component Location Index
>>
Engine Block Assembly (2016 2017 2018 2019 2020 2021 2022)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

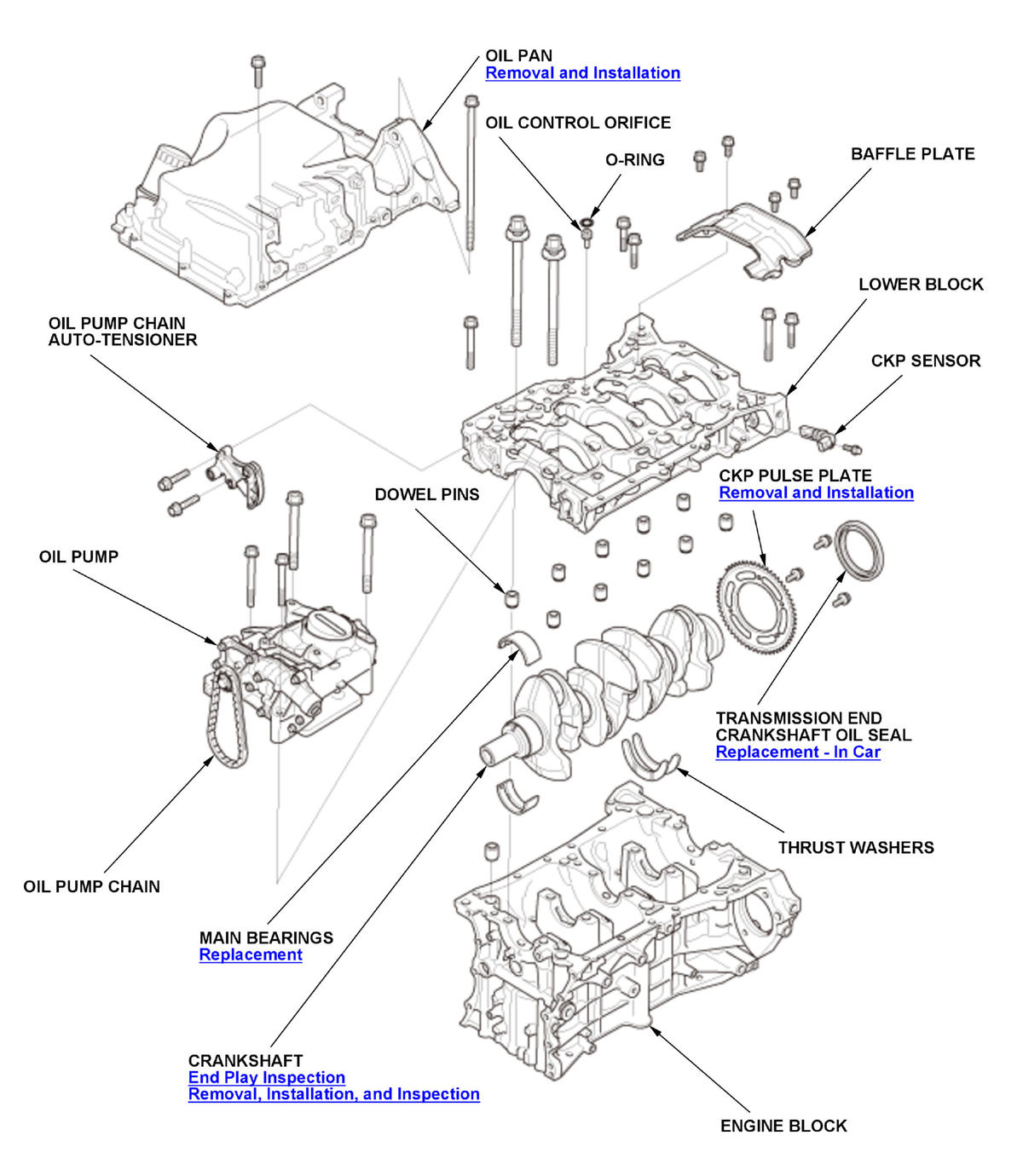

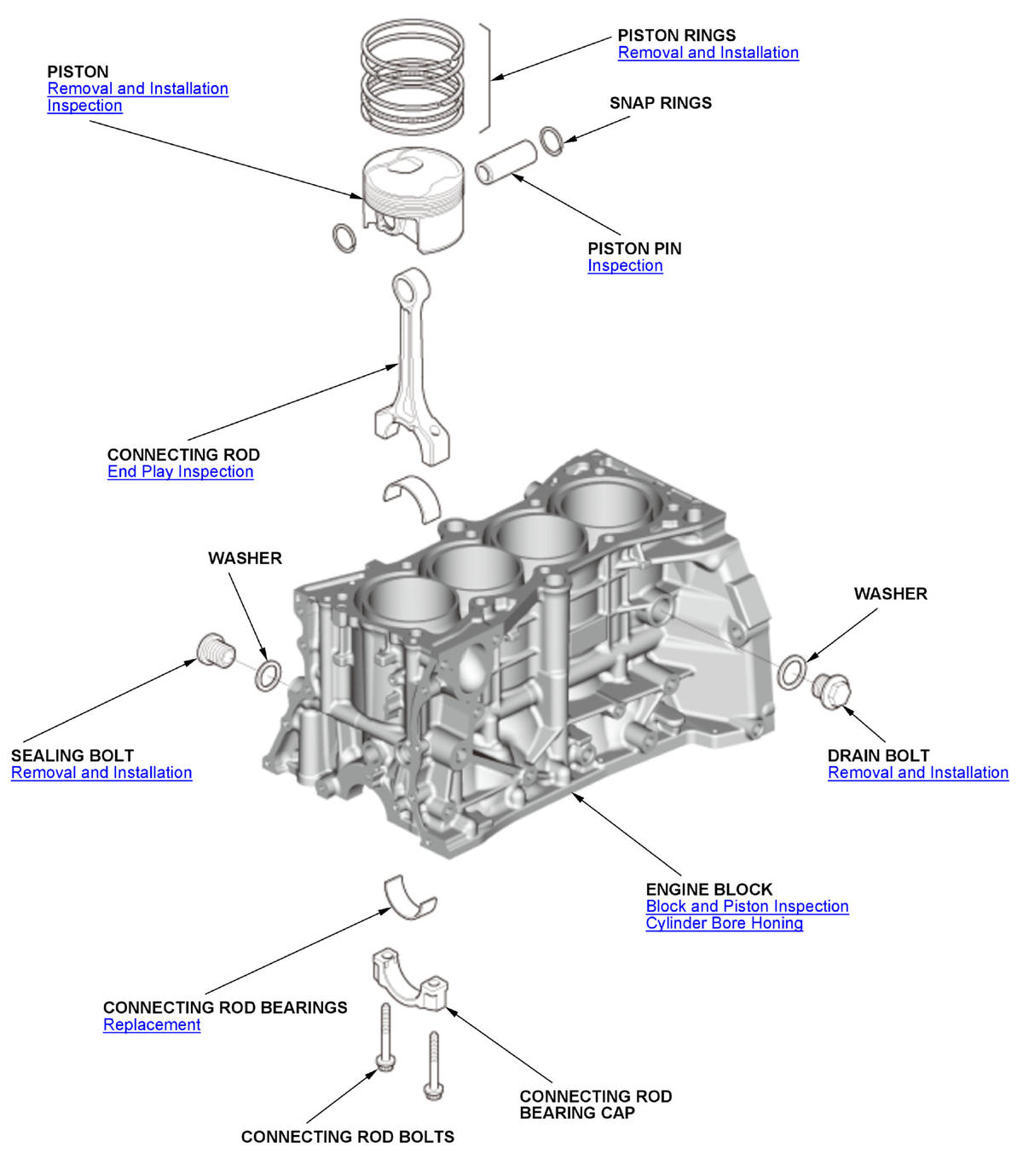

Engine Block Assembly (2016 2017 2018 2019 2020 2021 2022)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
