PCM Removal and Installation (2014 2015): Installation

NOTE:

If you are removing the PCM, skip the procedures of using the HDS.
If you are substituting the PCM, skip the procedures of WRITE DATA.

PCM - Install

Courtesy of HONDA, U.S.A., INC.

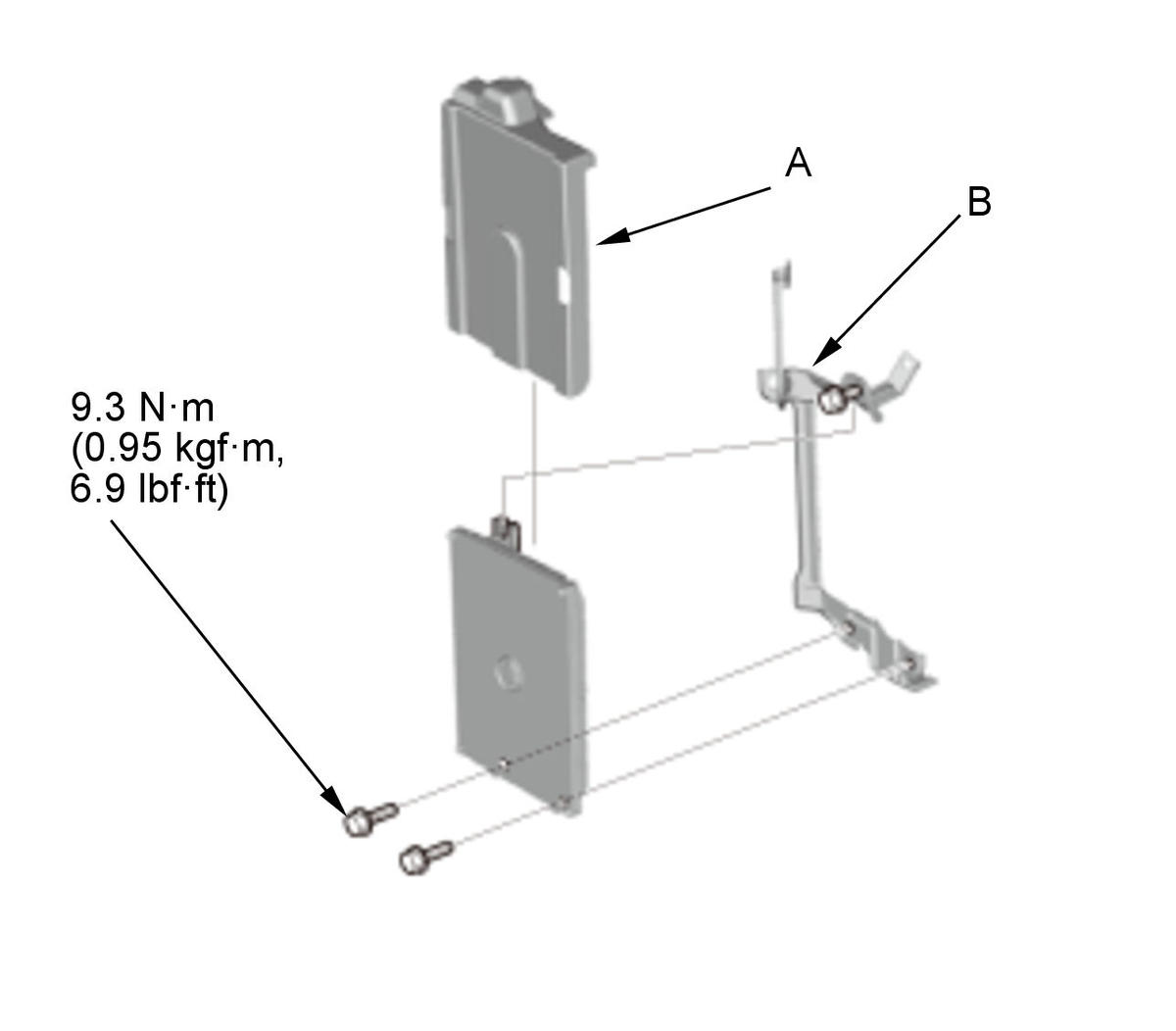

1. Install the cover (A) and the bracket (B).

Courtesy of HONDA, U.S.A., INC.

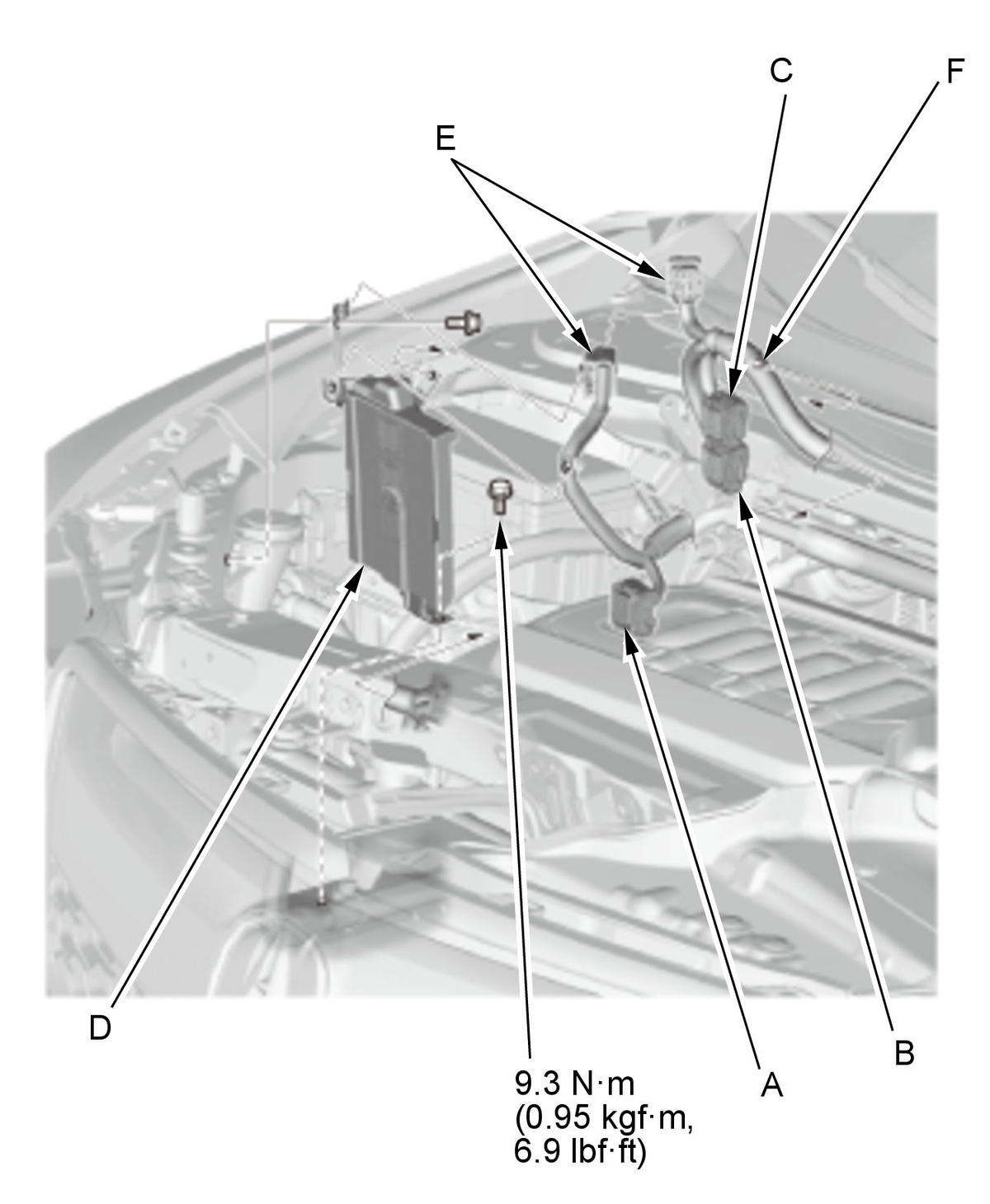

2. Install the PCM assembly (D).

3. Connect PCM connectors A, B, and C.

NOTE: PCM connectors A, B, and C have symbols (A=□, B=Δ, C=◦) embossed on them for identification.

4. Install the connector (E), and the harness holder (F).

VIN - Input

1. Turn the vehicle to the ON mode.

NOTE: DTC P0630 VIN Not Programmed or Mismatch may be stored because the VIN has not been programmed into the PCM; ignore it, and continue this procedure.

2. Manually input the VIN to the PCM with the HDS.

WRITE DATA (Engine Oil Life) - Select

NOTE: If the READ DATA (engine oil life) failed in "READ DATA (Engine Oil Life) - Select", skip this procedure.

1. Select the REPLACE PCM MENU, then select WRITE DATA, and follow the screen prompts.

WRITE DATA (ATF Life) - Select (USA and Canada models)

NOTE: If the READ DATA (ATF life) failed in "READ DATA (ATF Life) - Select", skip this procedure.

1. Select the A/T system with the HDS.

2. Select the REPLACE TCM/PCM MENU, then select WRITE DATA, and follow the screen prompts.

Other Procedures for PCM Replacement - Do

1. If the READ DATA (engine oil life) failed in "READ DATA (Engine Oil Life) - Select", replace the engine oil and the engine oil filter .
2. If the READ DATA (ATF life) failed in "READ DATA (ATF Life) - Select", replace the ATF - Refer to: ATF Replacement (2014 2015) .

IMMOBI SYSTEM - Registration - Refer to: Keyless Access System Registration (2014 2015)
DTC - Clear
Clear the Pending or Confirmed DTCs with the HDS.
PCM - Update
PCM - Idle Learn
CKP Pattern - Clear/Learn
