Adaptive Cruise Control (ACC) System Description - Overview
>>
Function
>>
Control Block Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

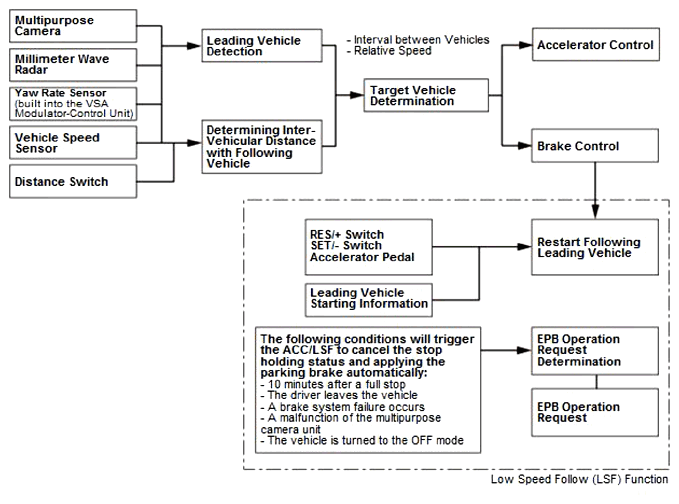

Control Block Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
