Audio System Component Location Index (Without Navigation (2014 2015 2016))

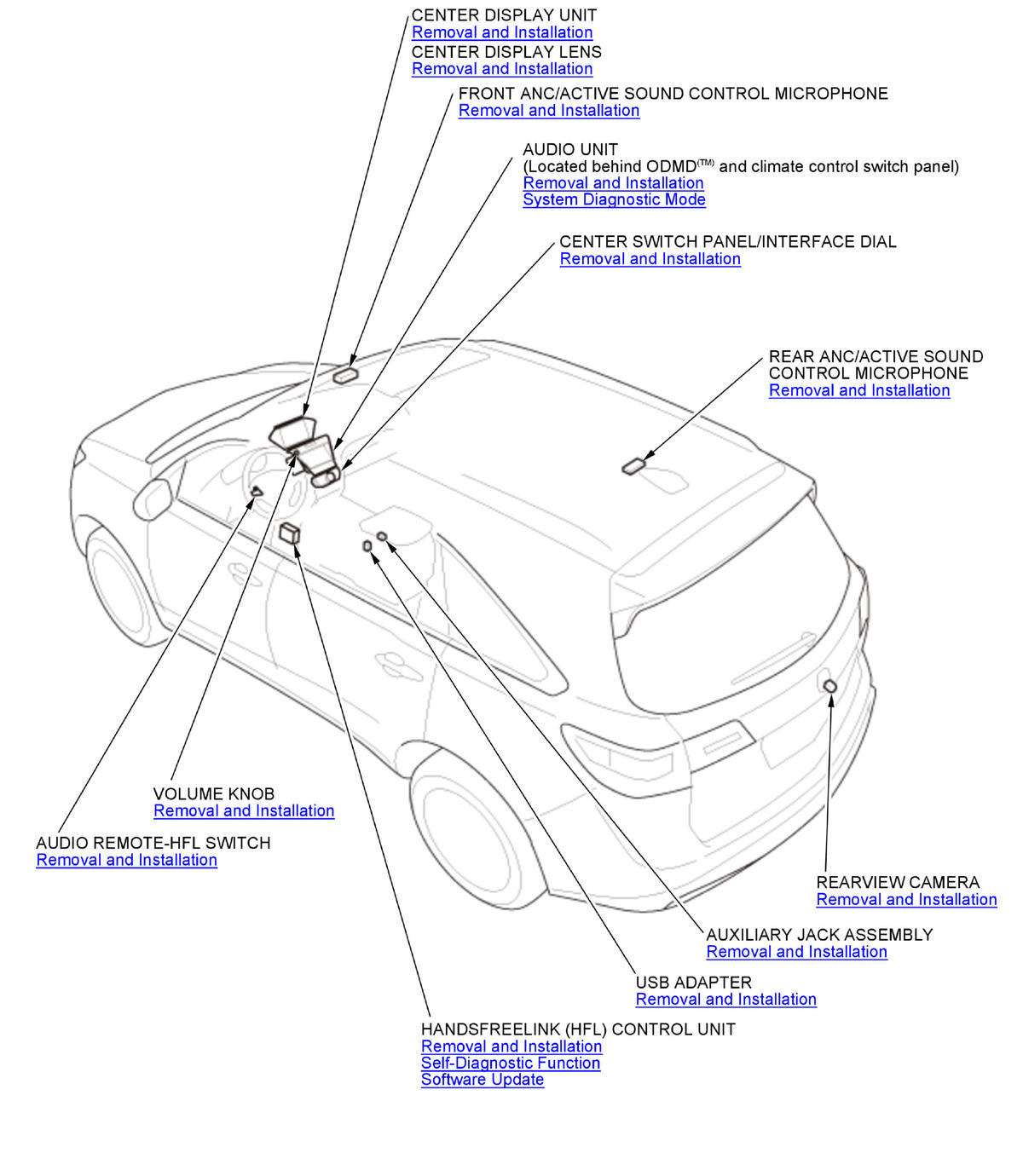

GHH314080Courtesy of HONDA, U.S.A., INC.

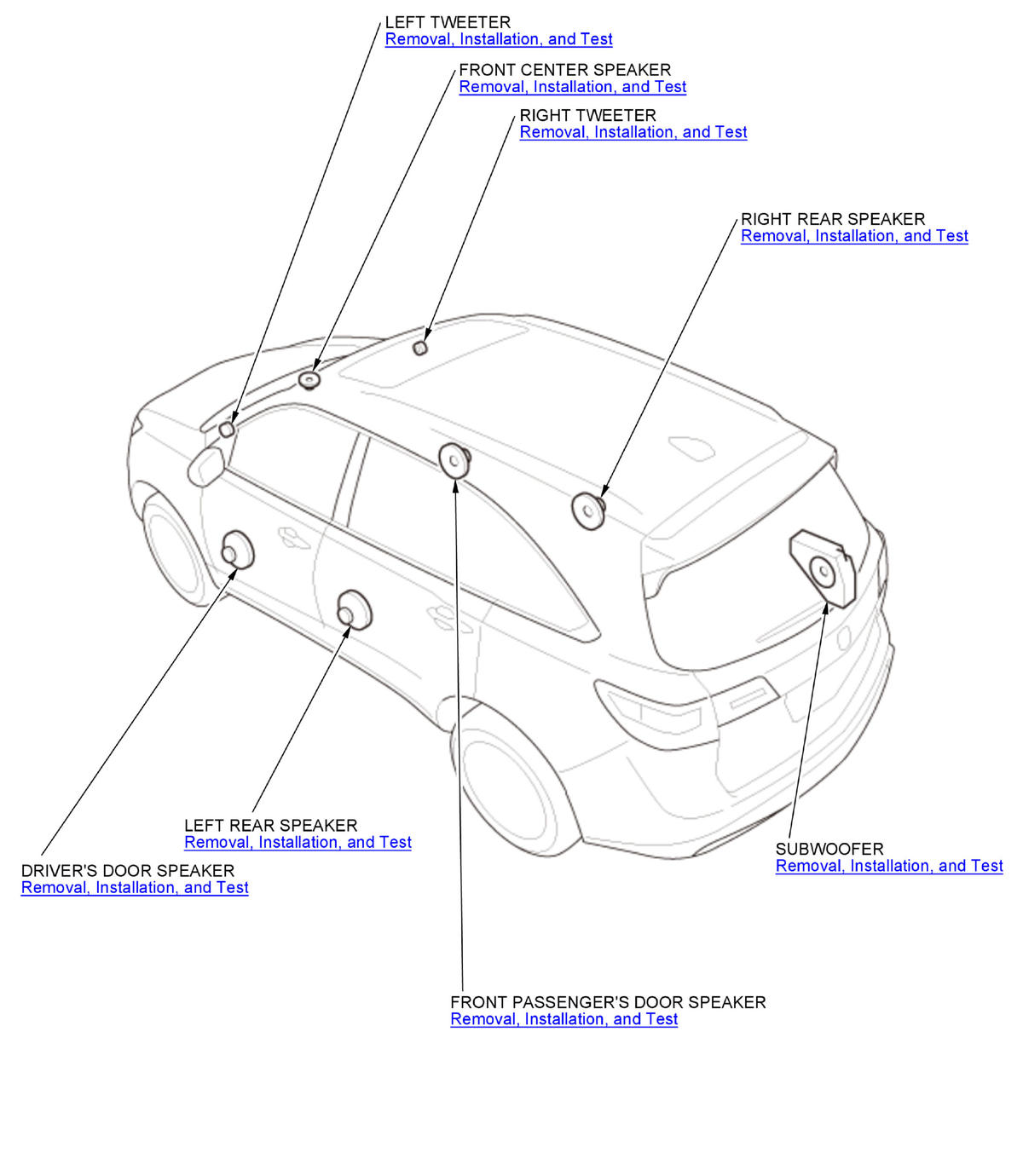

GHH314081Courtesy of HONDA, U.S.A., INC.

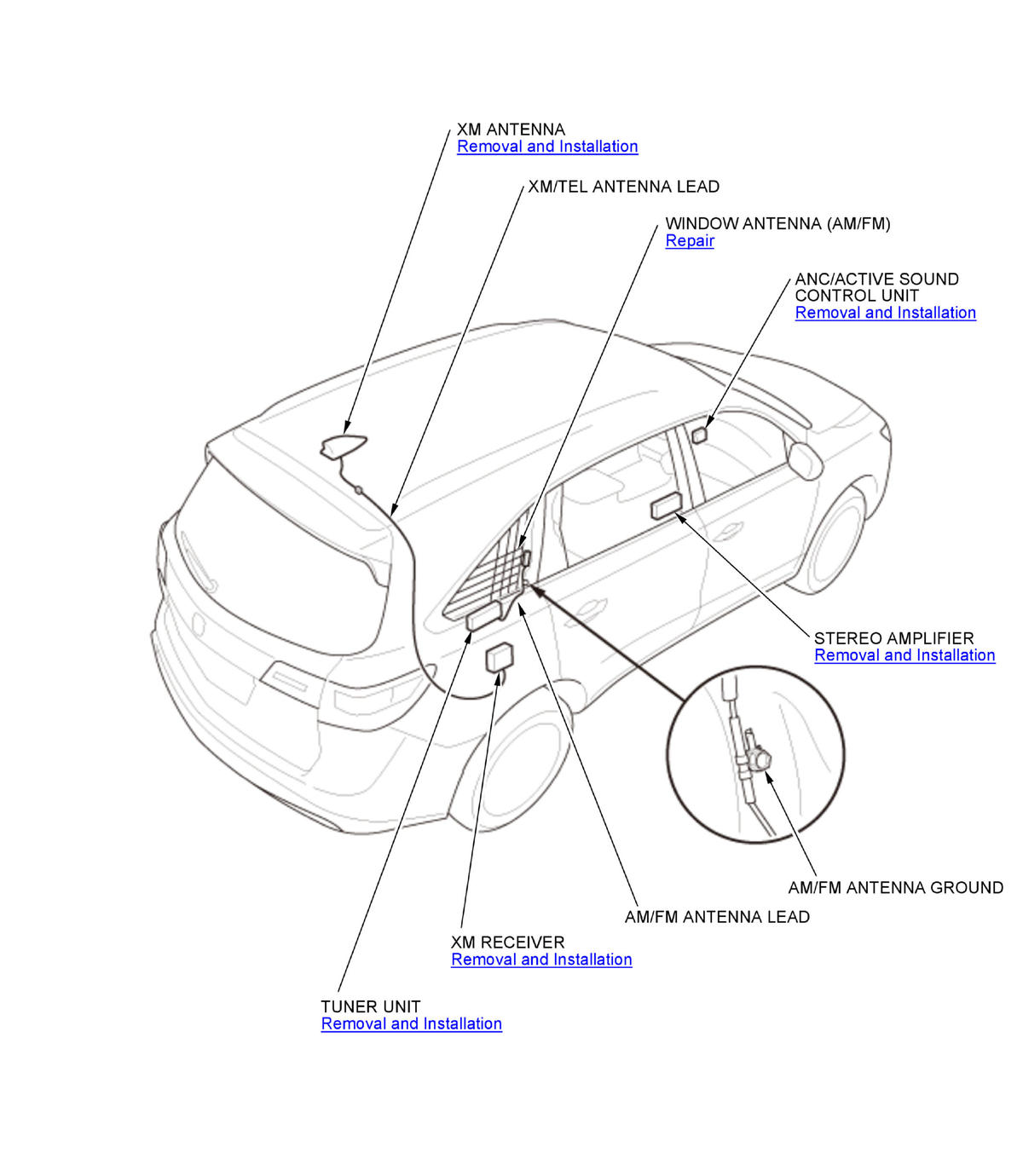

GHH314082Courtesy of HONDA, U.S.A., INC.
