Navigation System Component Location Index (2014 2015 2016)

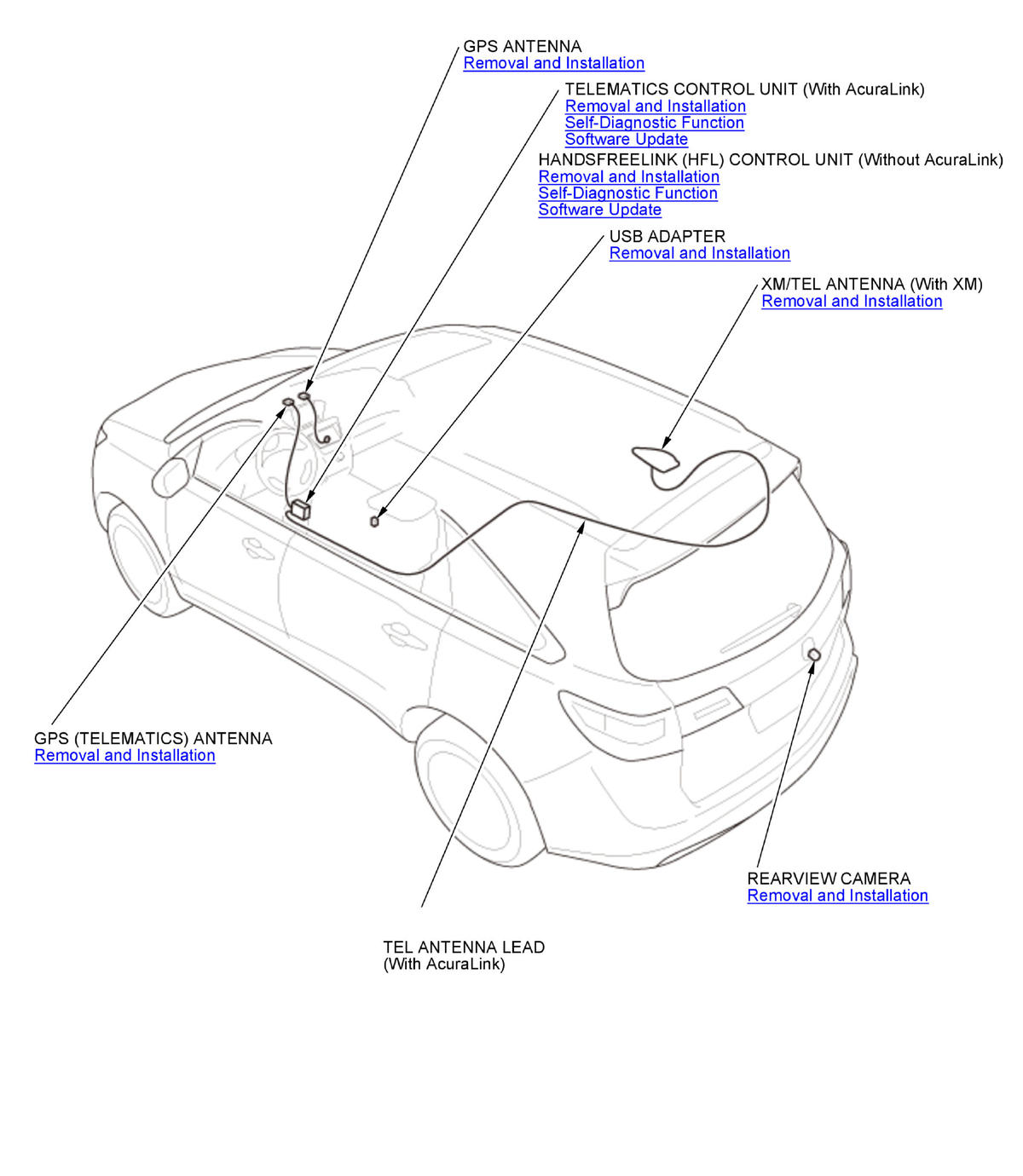

GHH324547Courtesy of HONDA, U.S.A., INC.

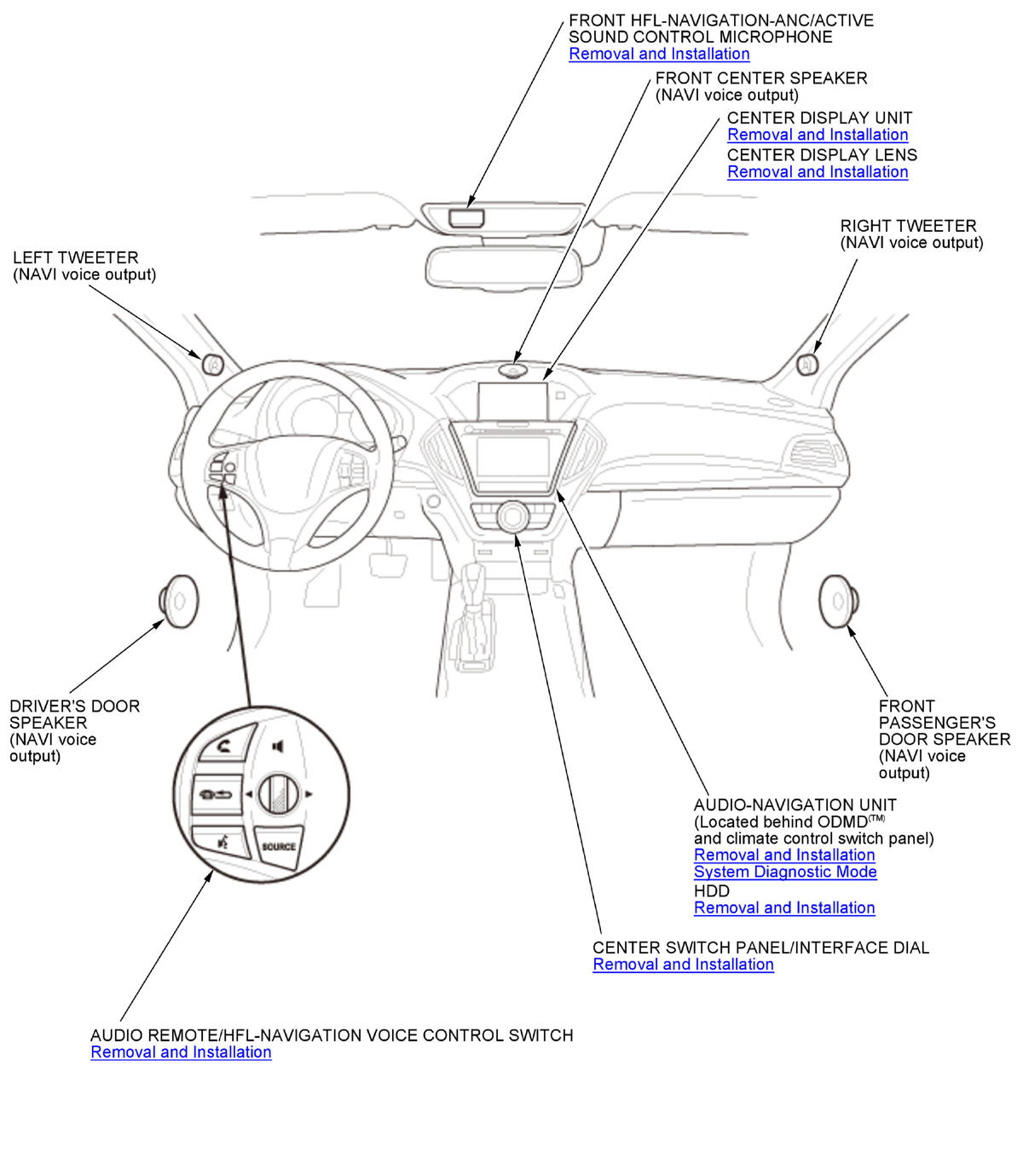

GHH324548Courtesy of HONDA, U.S.A., INC.
