Removal and Installation

NOTE:  If the keyless access/TPMS control unit is replaced, do the keyless access registration and memorizing the tire pressure sensor ID . If the original keyless access/TPMS control unit is installed, confirm that all systems work properly.

1. Driver's Dashboard Lower Cover - Remove
2. Keyless Access/TPMS Control Unit - Remove

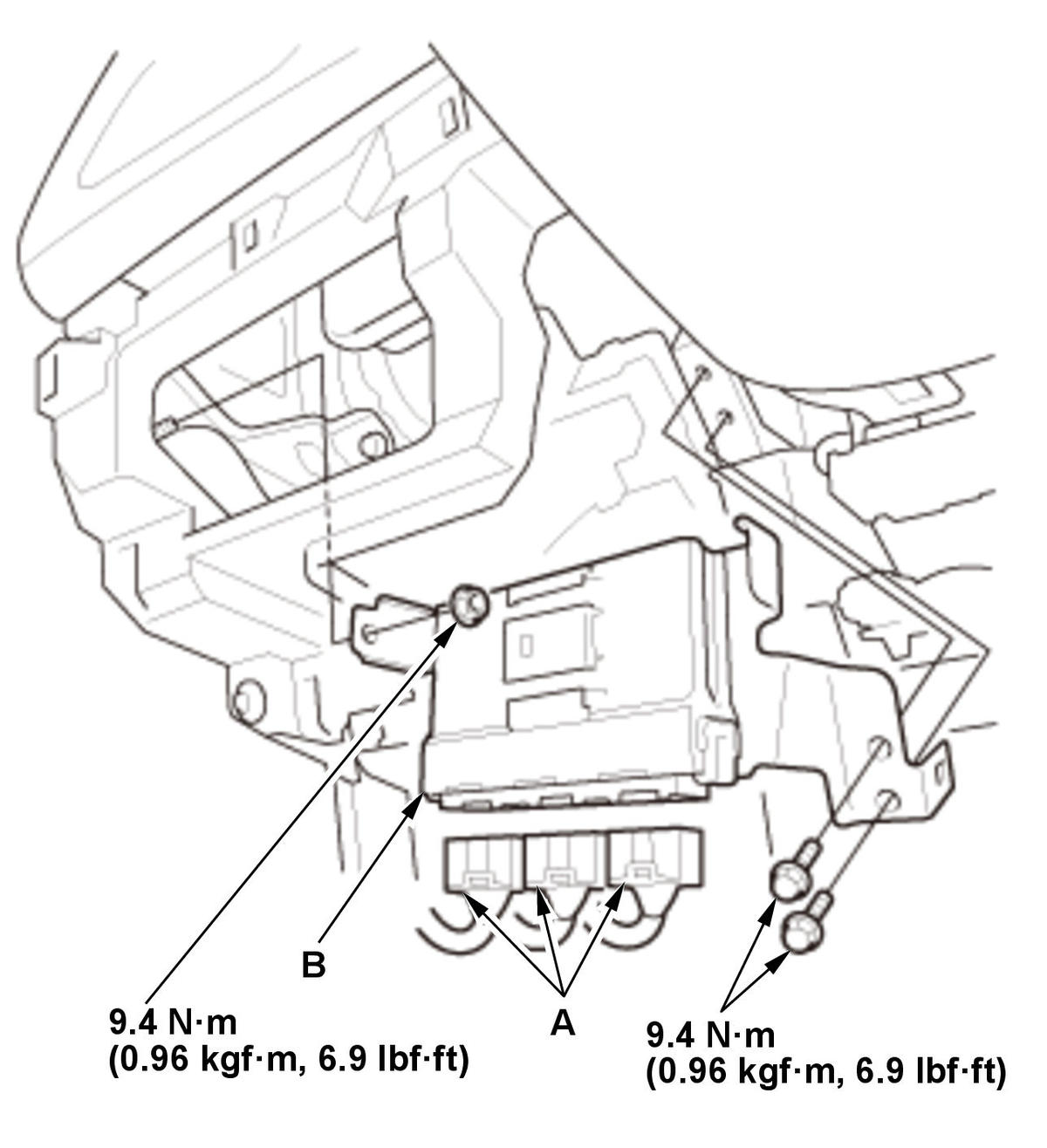

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the keyless access/TPMS control unit connectors (A). 2. Remove the keyless access/TPMS control unit (B).

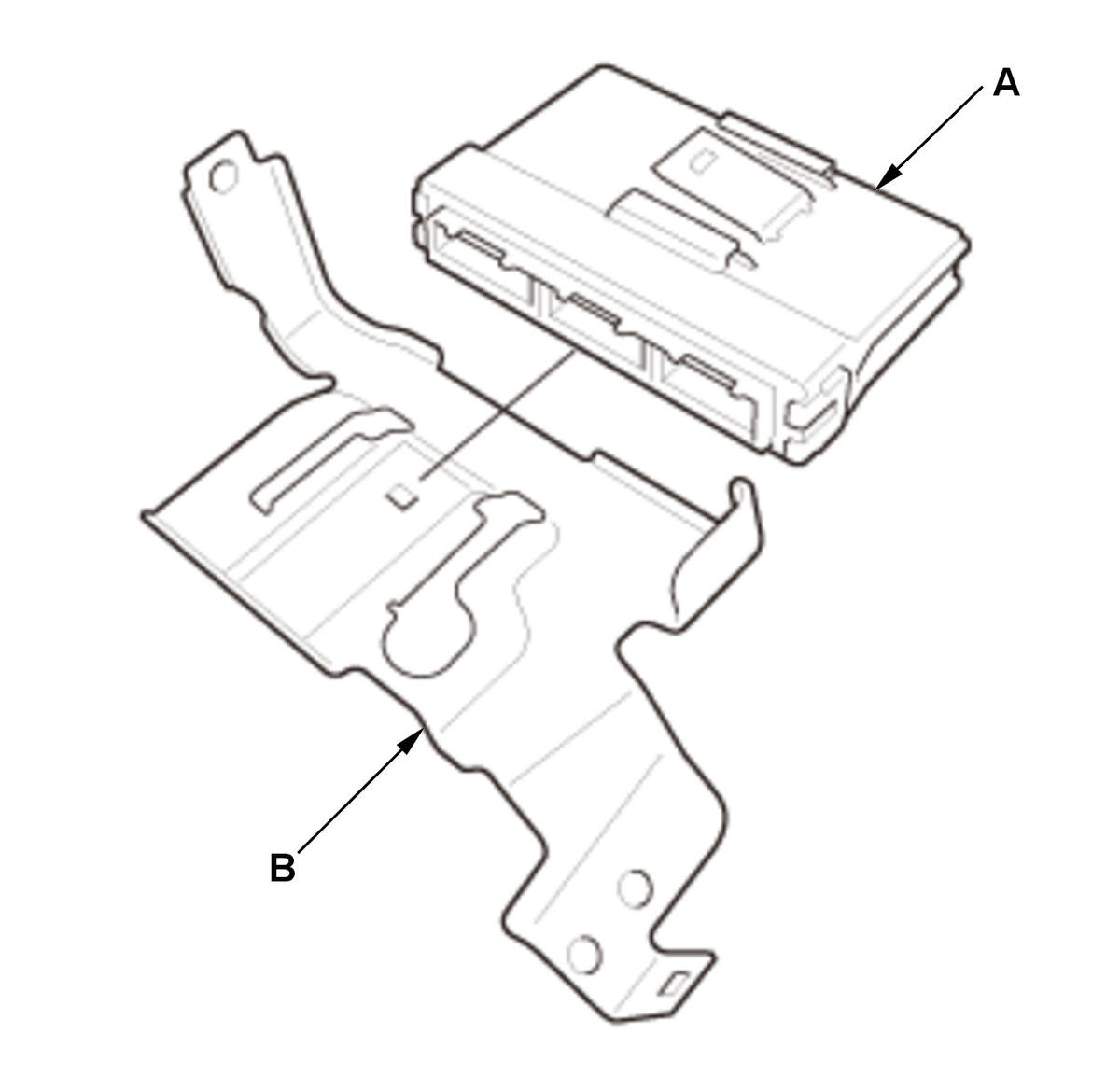

   Courtesy of HONDA, U.S.A., INC.

   3. Remove the keyless access/TPMS control unit (A) from the bracket (B).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

4. Keyless Access System - Register
5. Tire Pressure Sensor ID - Memorize
