Engine Configuration

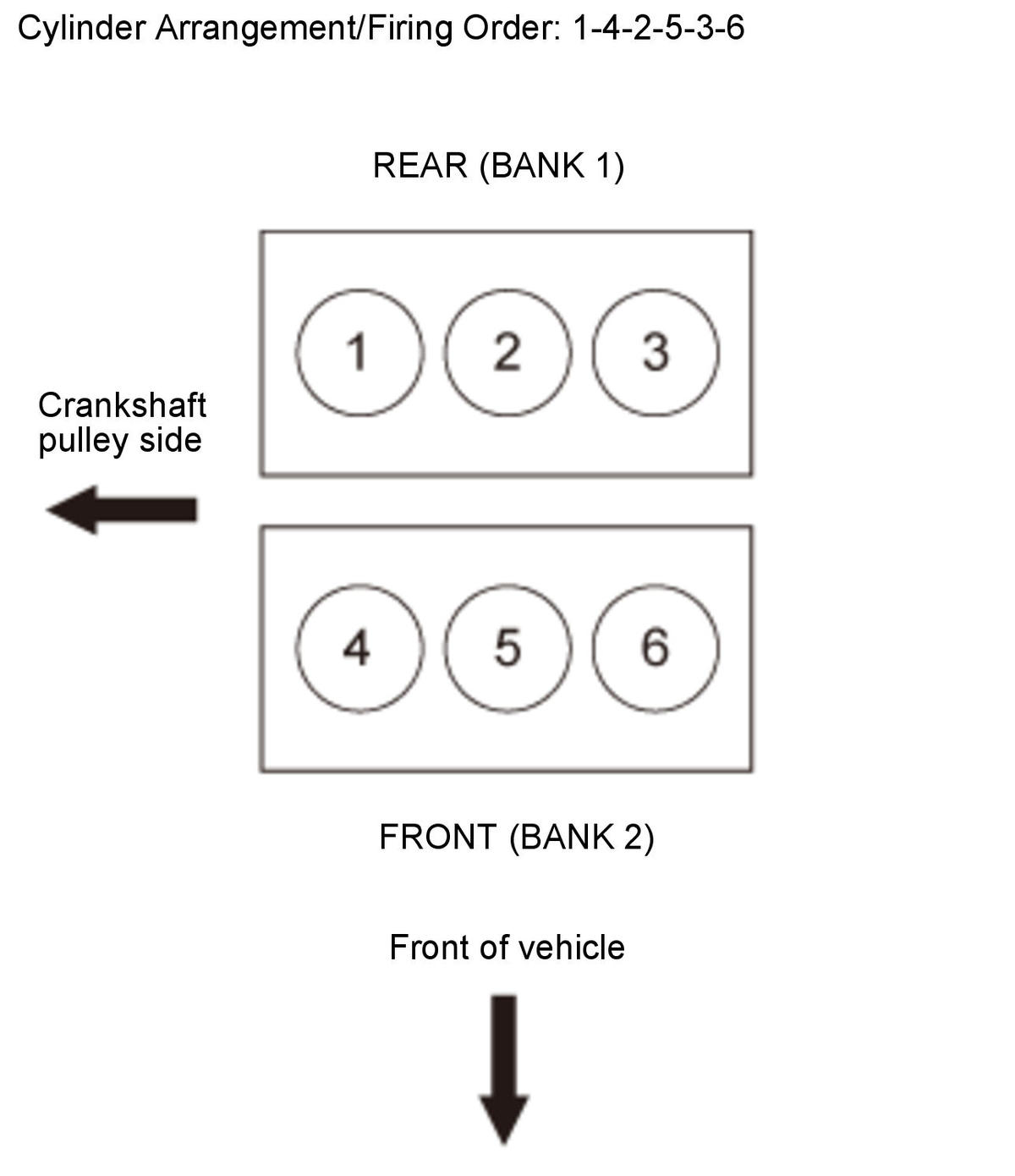

GHH345663Courtesy of HONDA, U.S.A., INC.

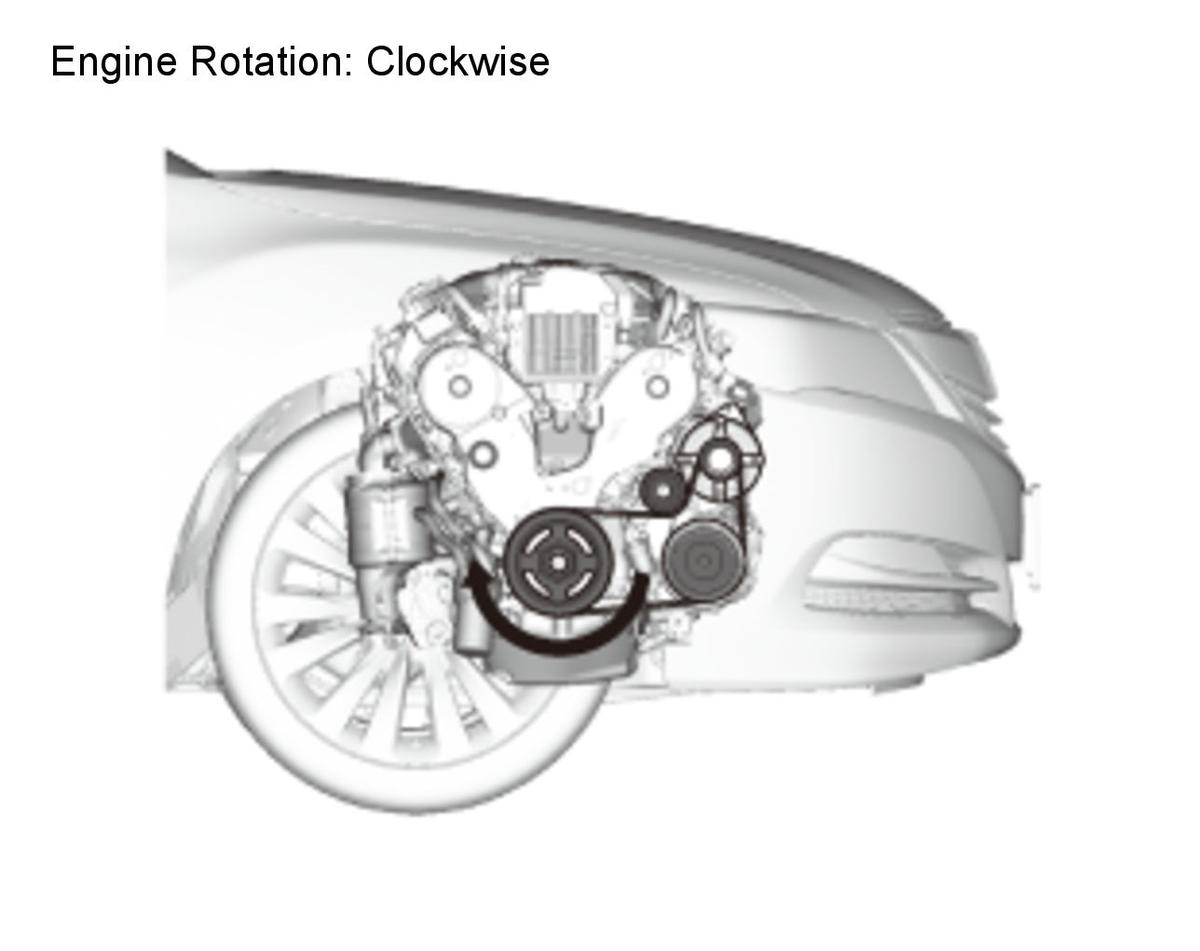

GHH345664Courtesy of HONDA, U.S.A., INC.
