EVAP System

EVAP System Troubleshooting

Special Tools Required

Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available

Vacuum/Pressure Gauge, 0-4 inHg 07JAZ-001000B

1. EVAP canister purge valve check (open stuck)

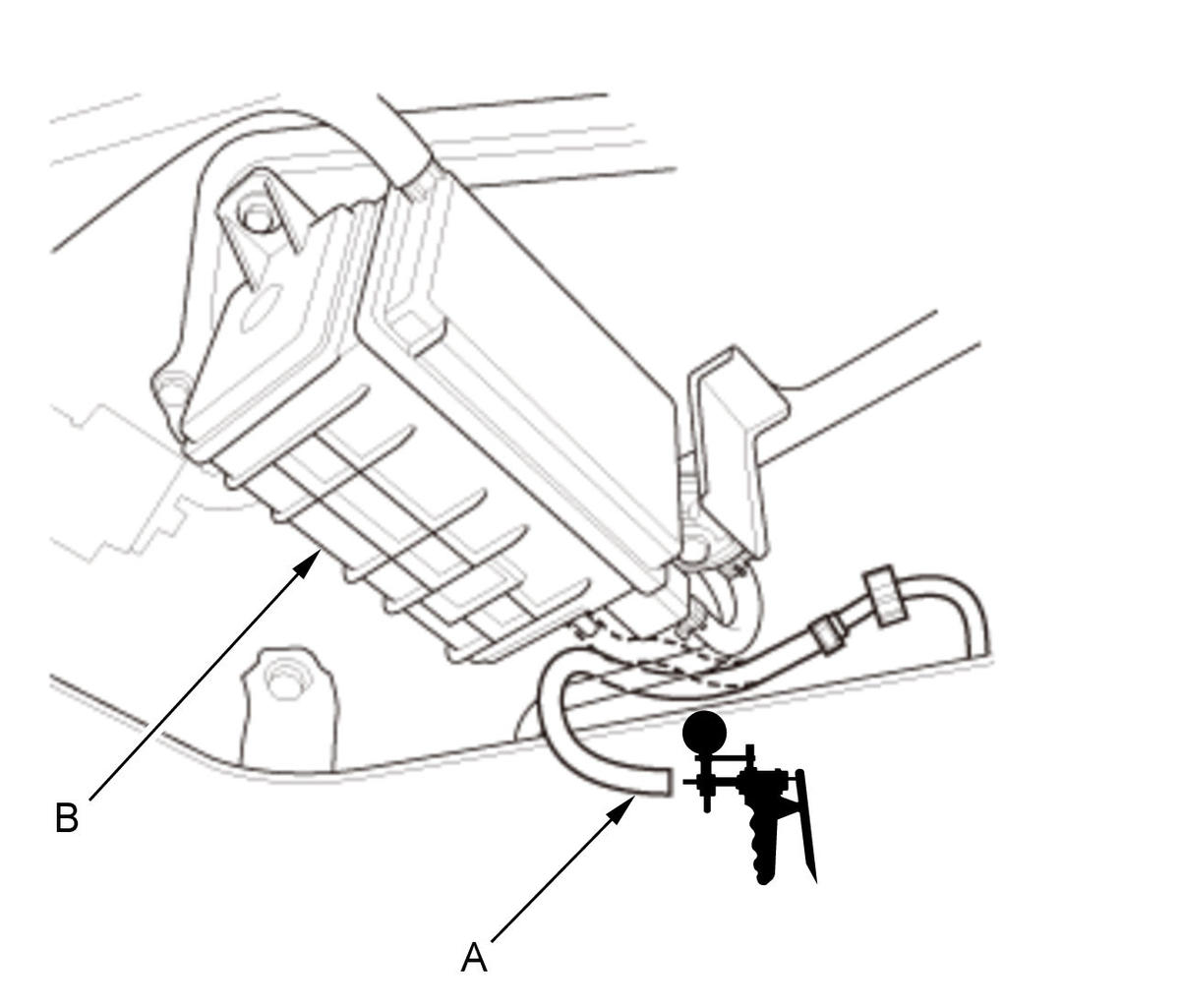

   -1. Disconnect the vacuum hose (A) from the EVAP canister (B), and connect a vacuum pump/gauge, 0-30 inHg, to the hose.

   Courtesy of HONDA, U.S.A., INC.

   -2. Start the engine, and let it idle.

   NOTE: The engine coolant temperature must be at least 149 deg.F (65 deg.C).

   Signal	Current conditions
   	Values	Unit
   ECT SENSOR 1

   Is there vacuum?

   YES

   Inspect the vacuum hose routing. If OK, replace the EVAP canister purge valve .

   NO

   Go to step 2.

2. EVAP canister purge valve check (closed stuck)

   -1. Hold the engine speed at 3000 RPM without load (in P or N) until the radiator fan comes on, then continue to hold the engine speed at 3000 RPM.

   Is there vacuum?

   YES

   Go to step 3.

   NO

   Inspect the vacuum hose routing. If OK, replace the EVAP canister purge valve .

3. EVAP canister check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Reconnect the vacuum hose to the EVAP canister.

   -3. Insert the emergency fuel funnel into the fuel filler neck .

   NOTE: The emergency fuel funnel is stored in the trunk tools box.

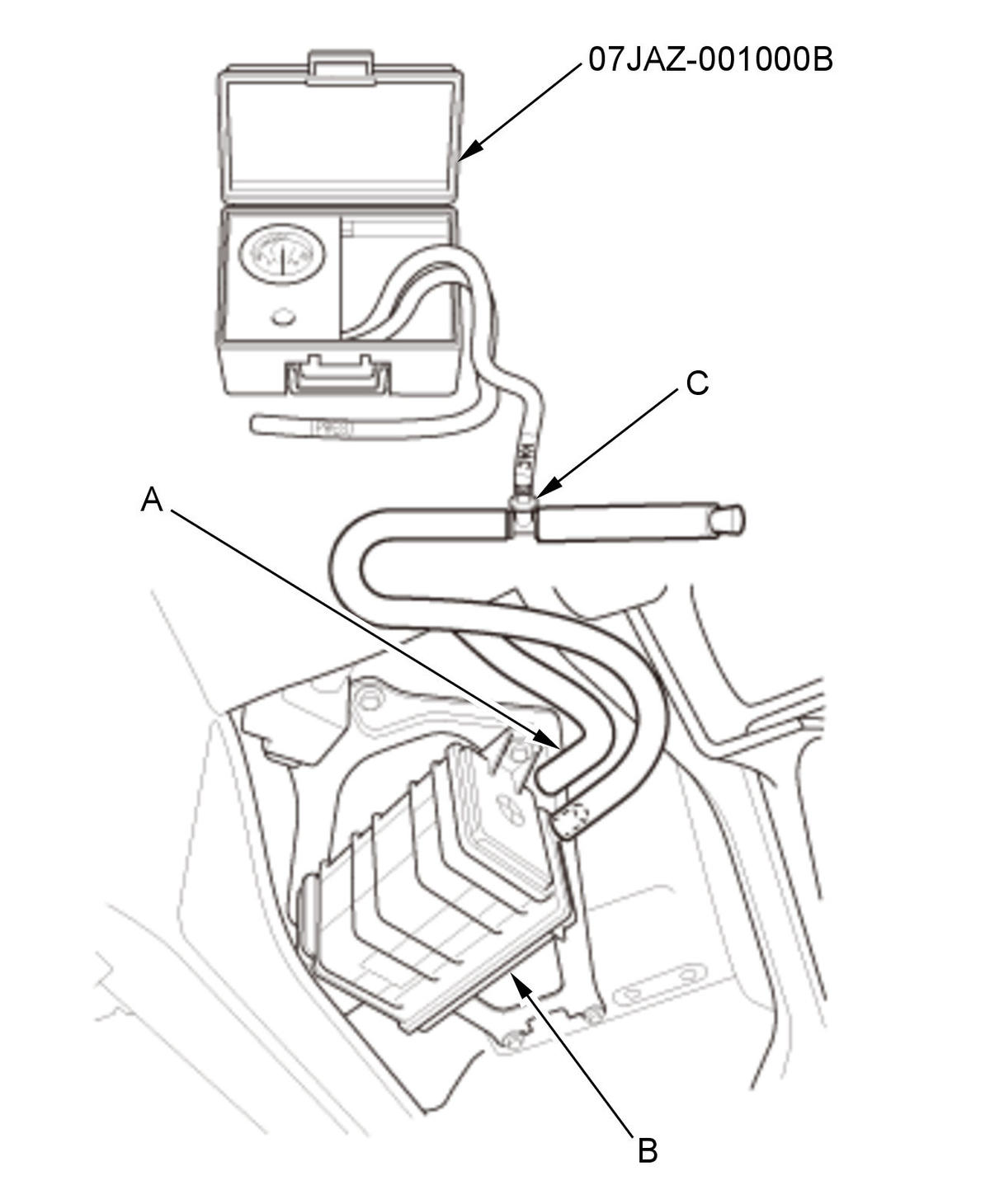

   -4. Disconnect the purge air hose (A) from the EVAP canister (B), and connect a T-fitting (C) and a vacuum gauge to the hose as shown.

   Courtesy of HONDA, U.S.A., INC.

   -5. Start the engine and raise the engine speed to 3000 RPM.

   Does vacuum appear on gauge within 1 minute?

   YES

   Do the EVAP two way valve test . If it is OK, the evaporative emission system is OK.

   NO

   Replace the EVAP canister .
