Canada Models

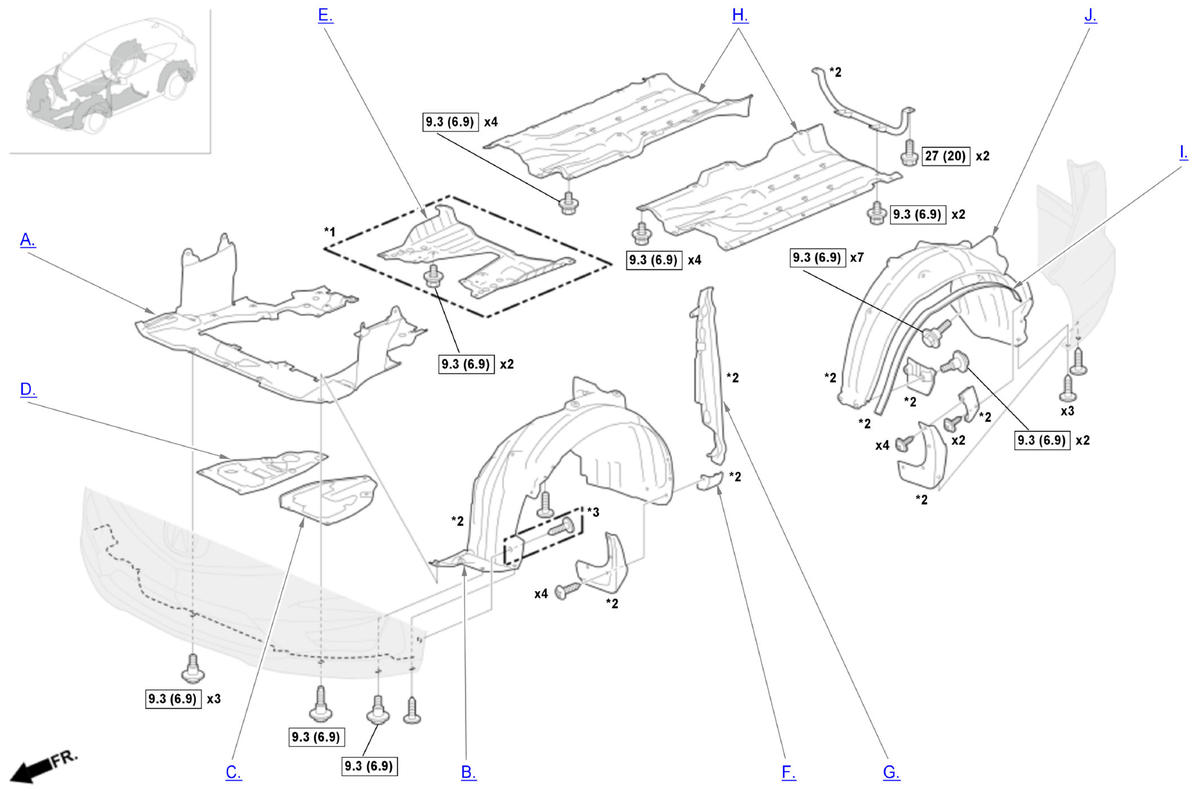

Fig 1: Undercover Area Replacement Components With Torque Specifications (Canada Models)
GHH558186Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
*1: With rear engine undercover
*2: Part(s) are shown for one side only as the procedure is the same for both sides.
*3: '22-23
