Security System / Keyless Entry System - Testing & Troubleshooting (Except Hybrid)
>>
Component Location Index
>>
Keyless/Power Door Locks/Security System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

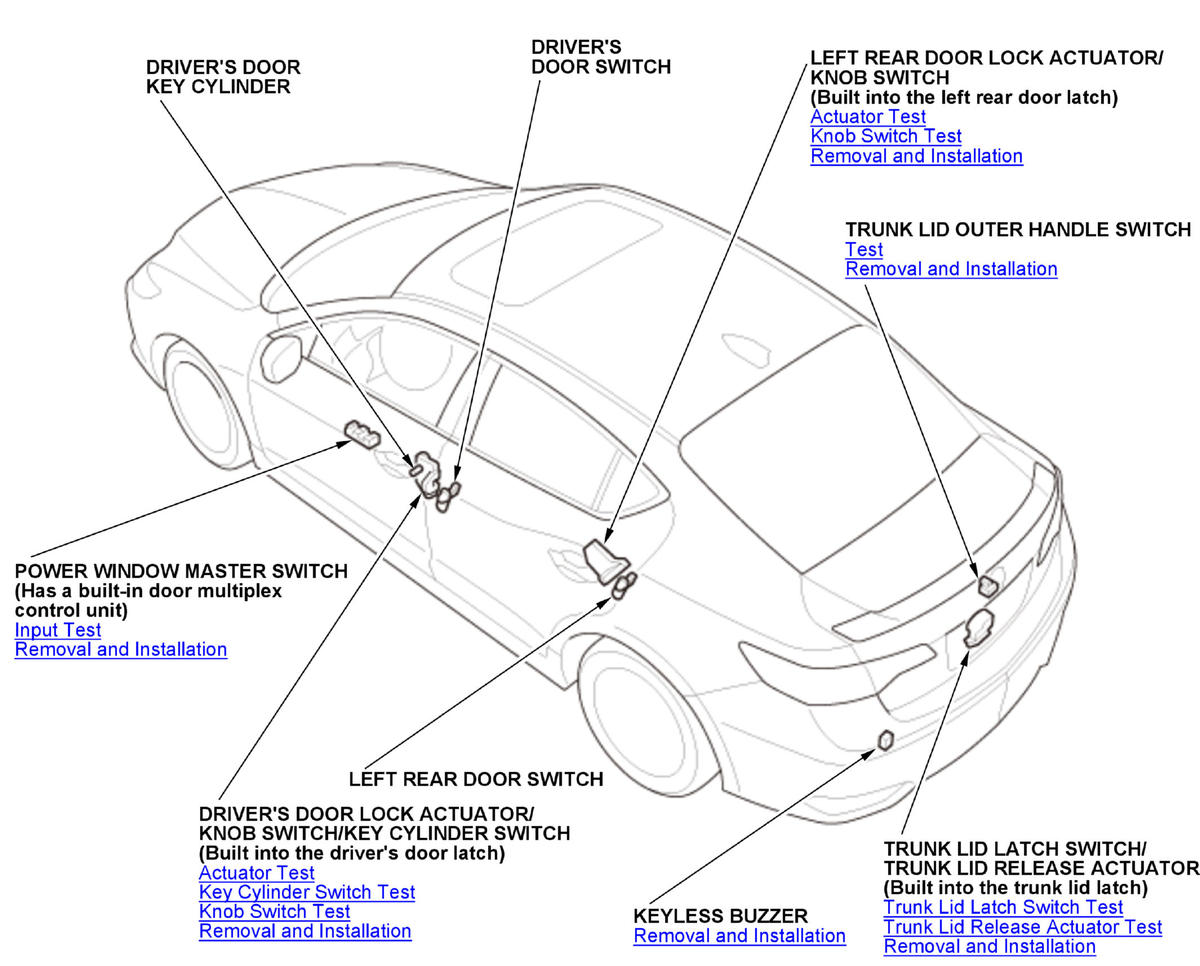

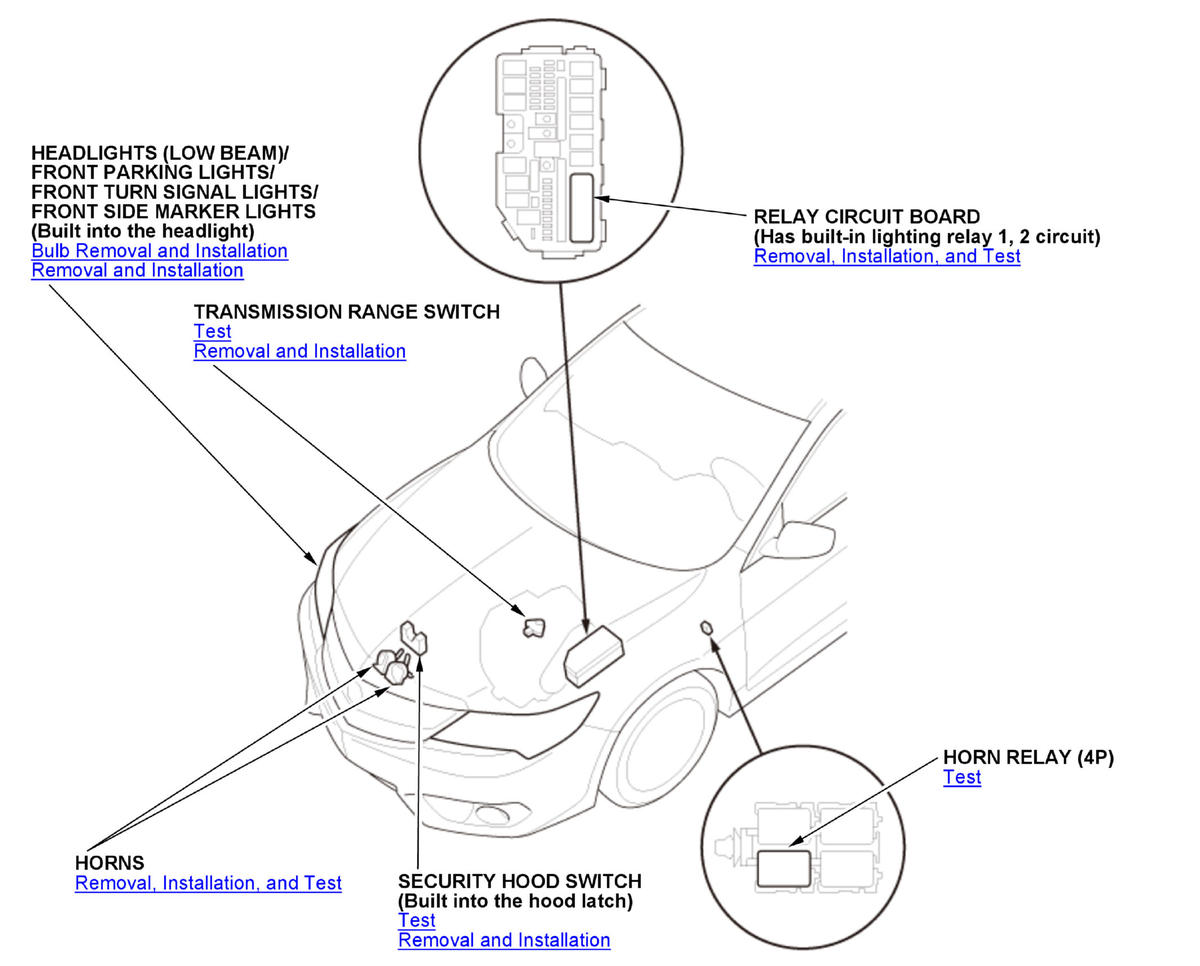

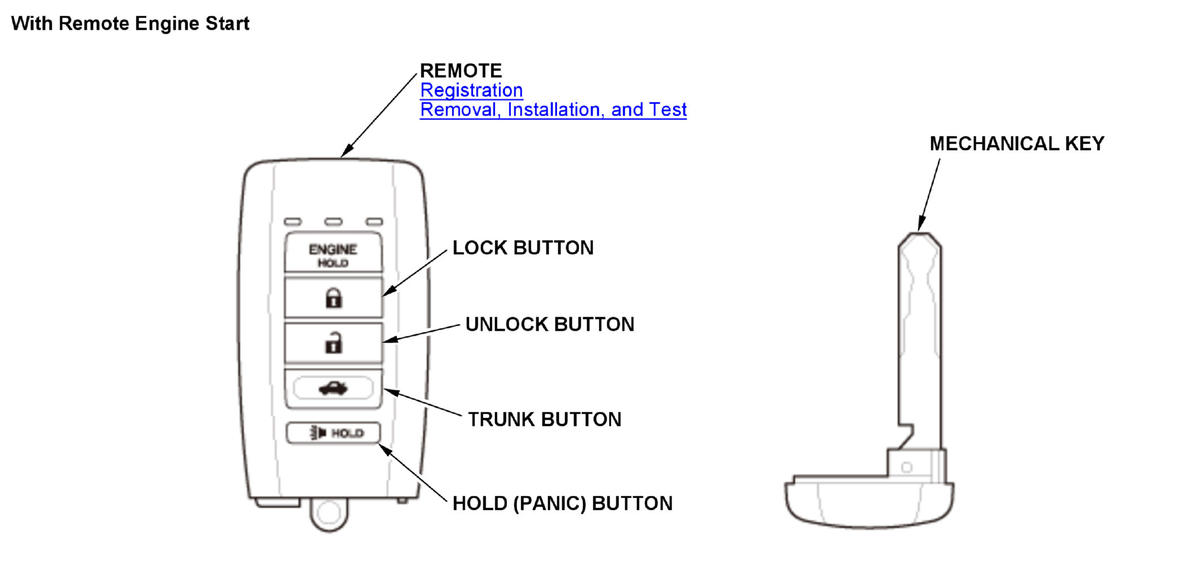

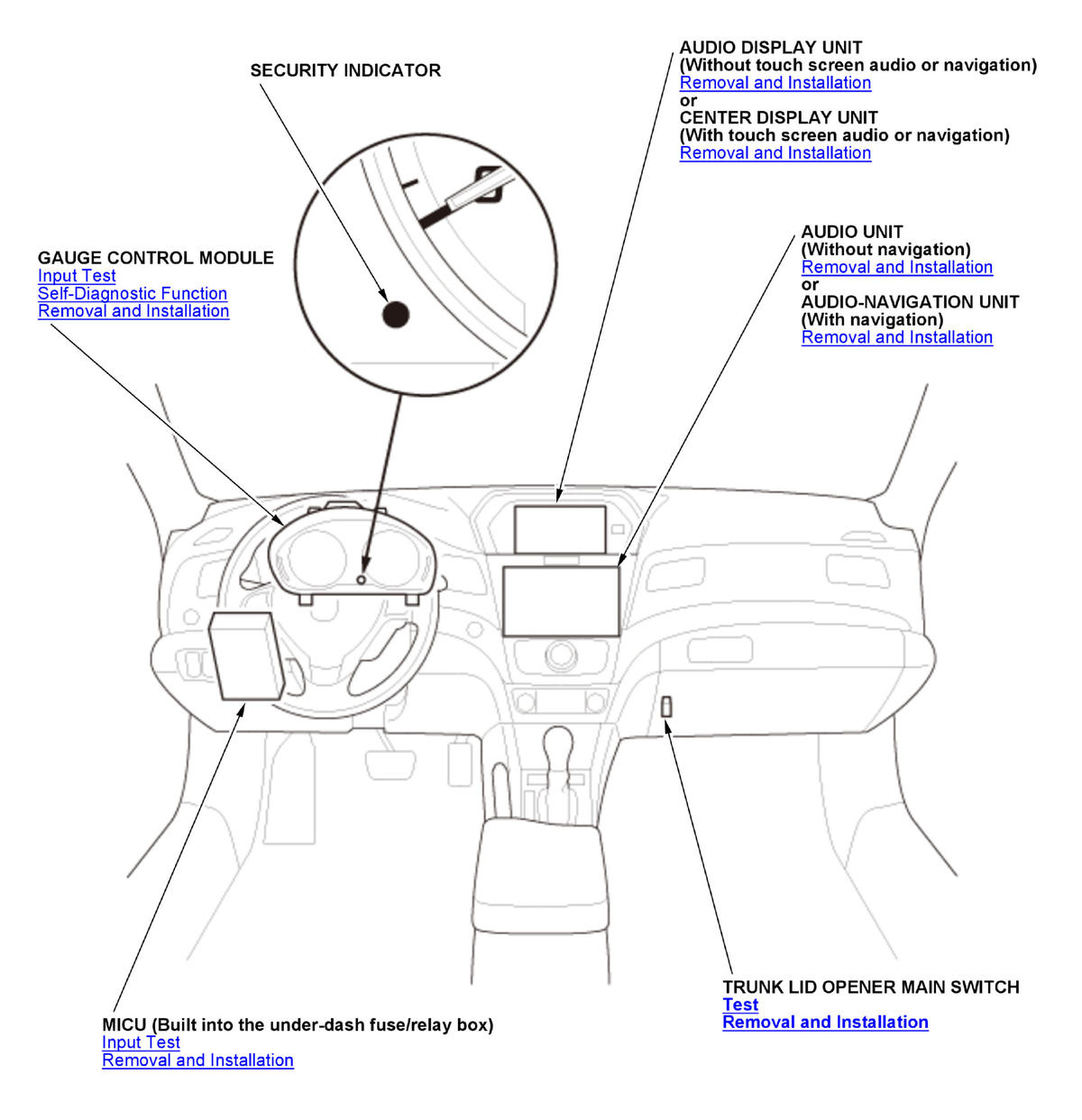

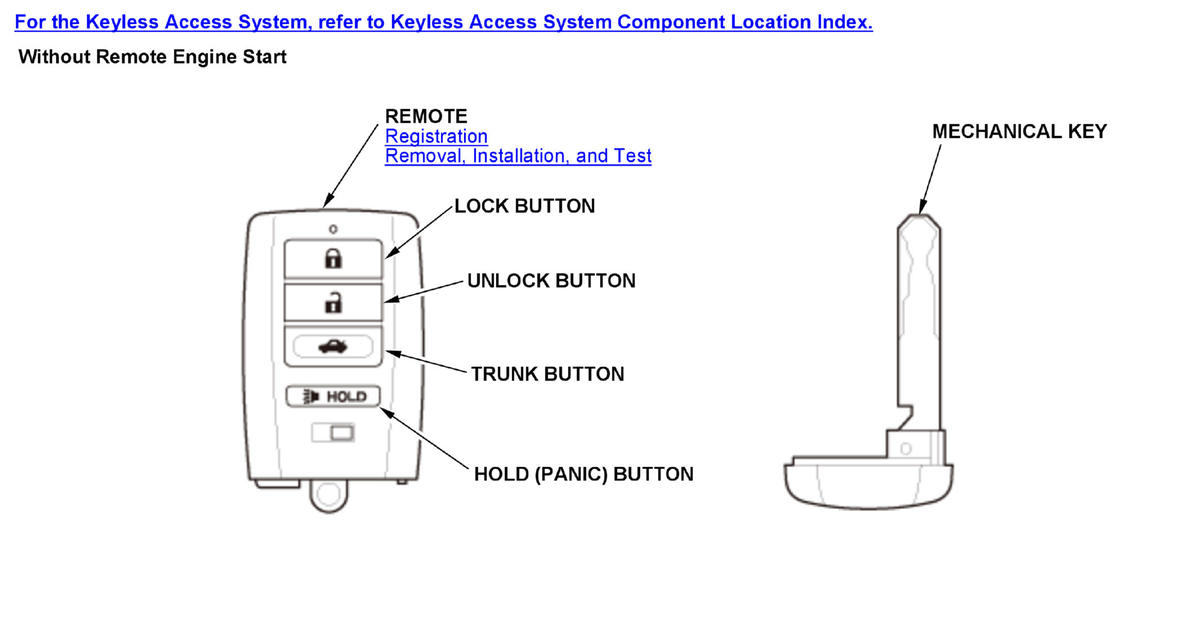

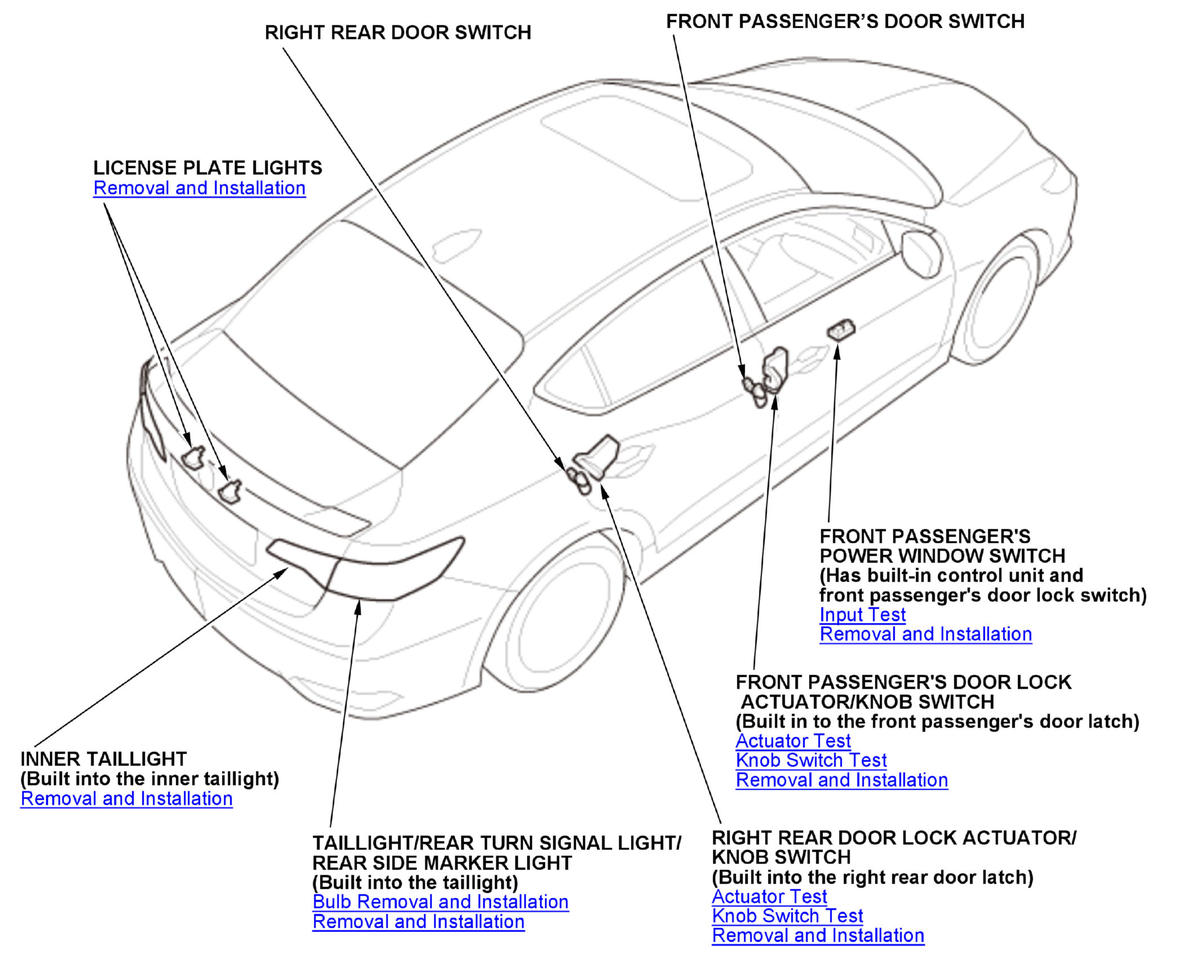

Keyless/Power Door Locks/Security System
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
