Driving Position Memory System (DPMS) (2016)

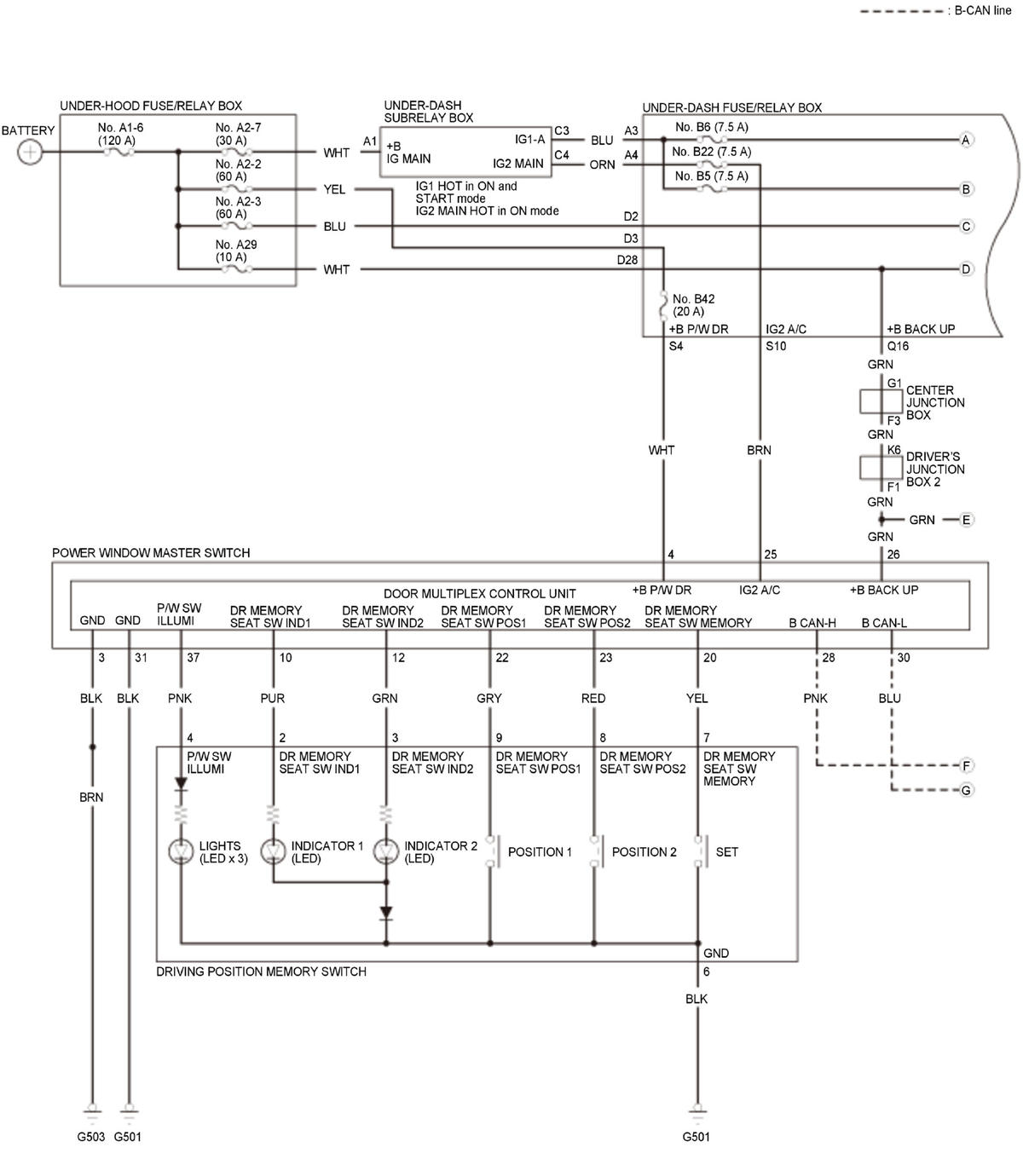

GHH471557Courtesy of HONDA, U.S.A., INC.

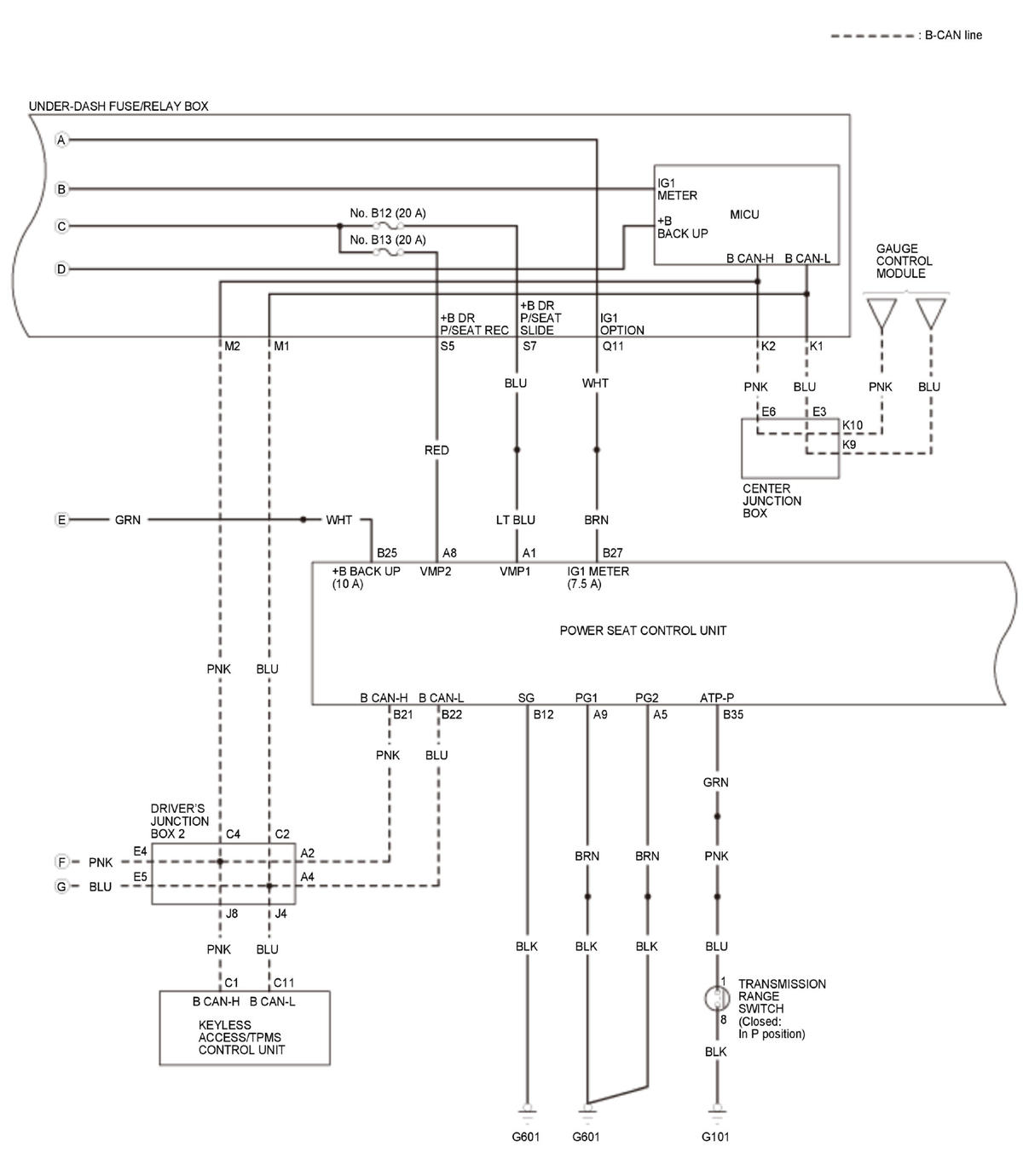

GHH471558Courtesy of HONDA, U.S.A., INC.

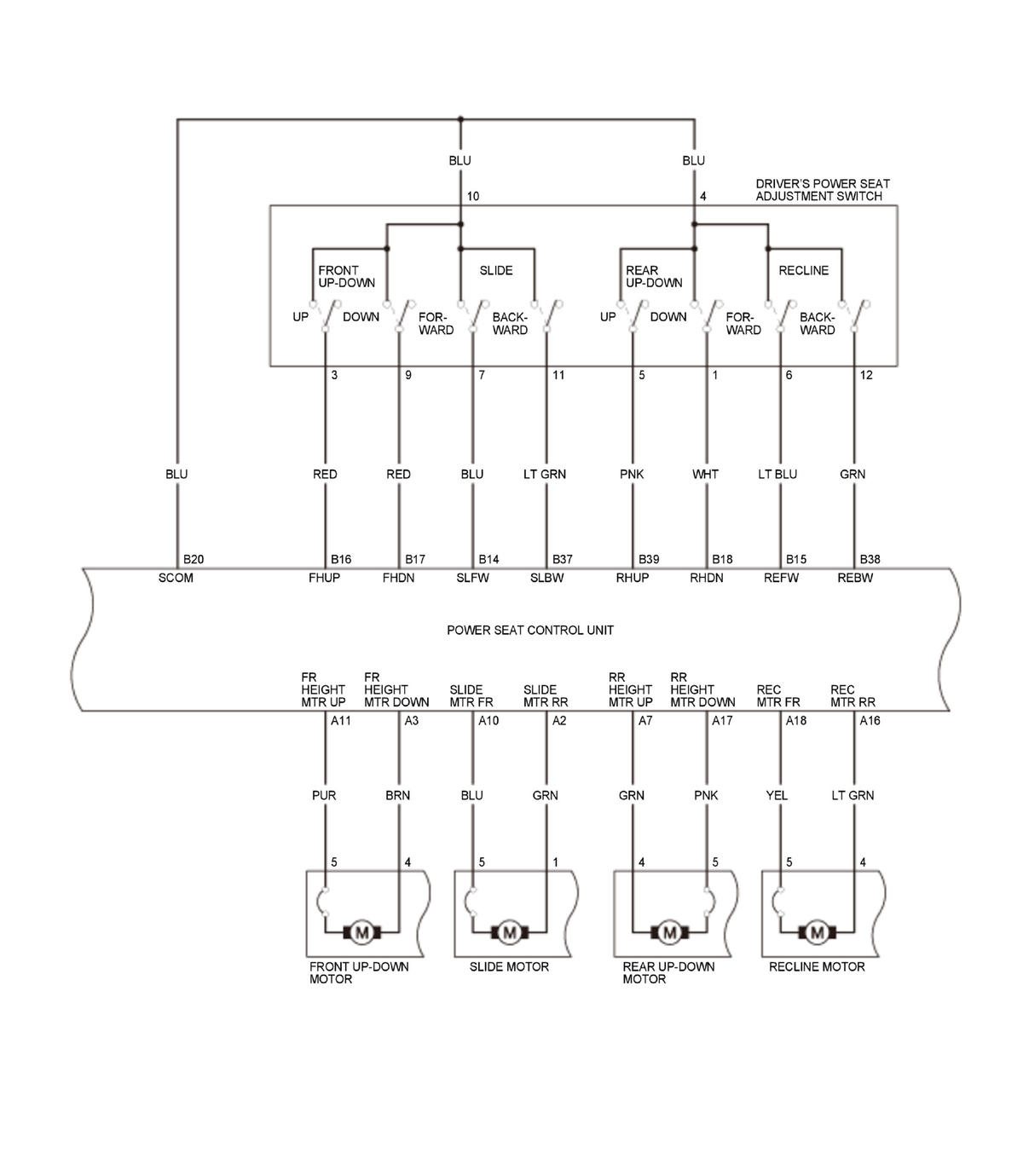

GHH471559Courtesy of HONDA, U.S.A., INC.

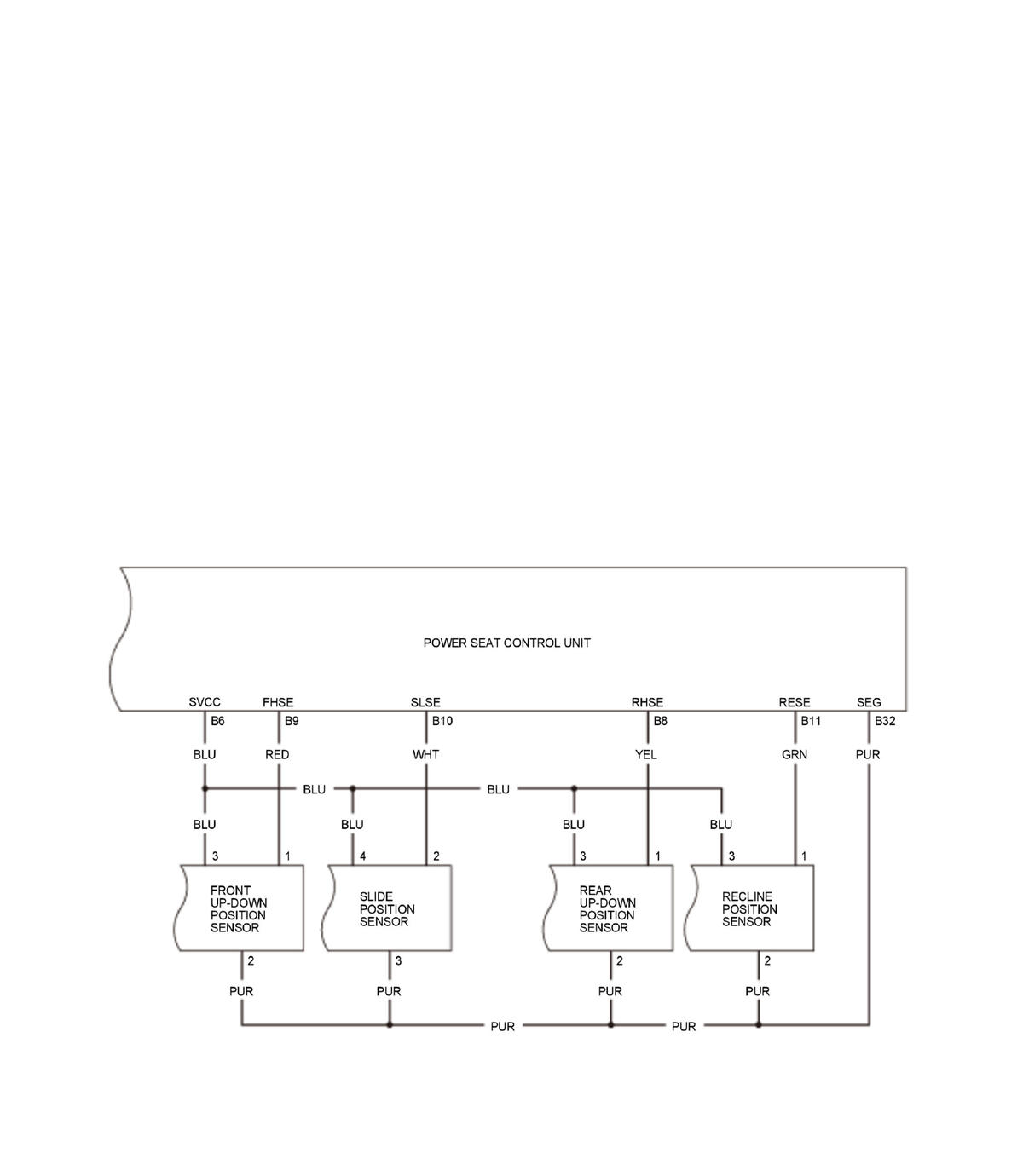

GHH471560Courtesy of HONDA, U.S.A., INC.
