Driving Position Memory System (DPMS) (2017 2018)

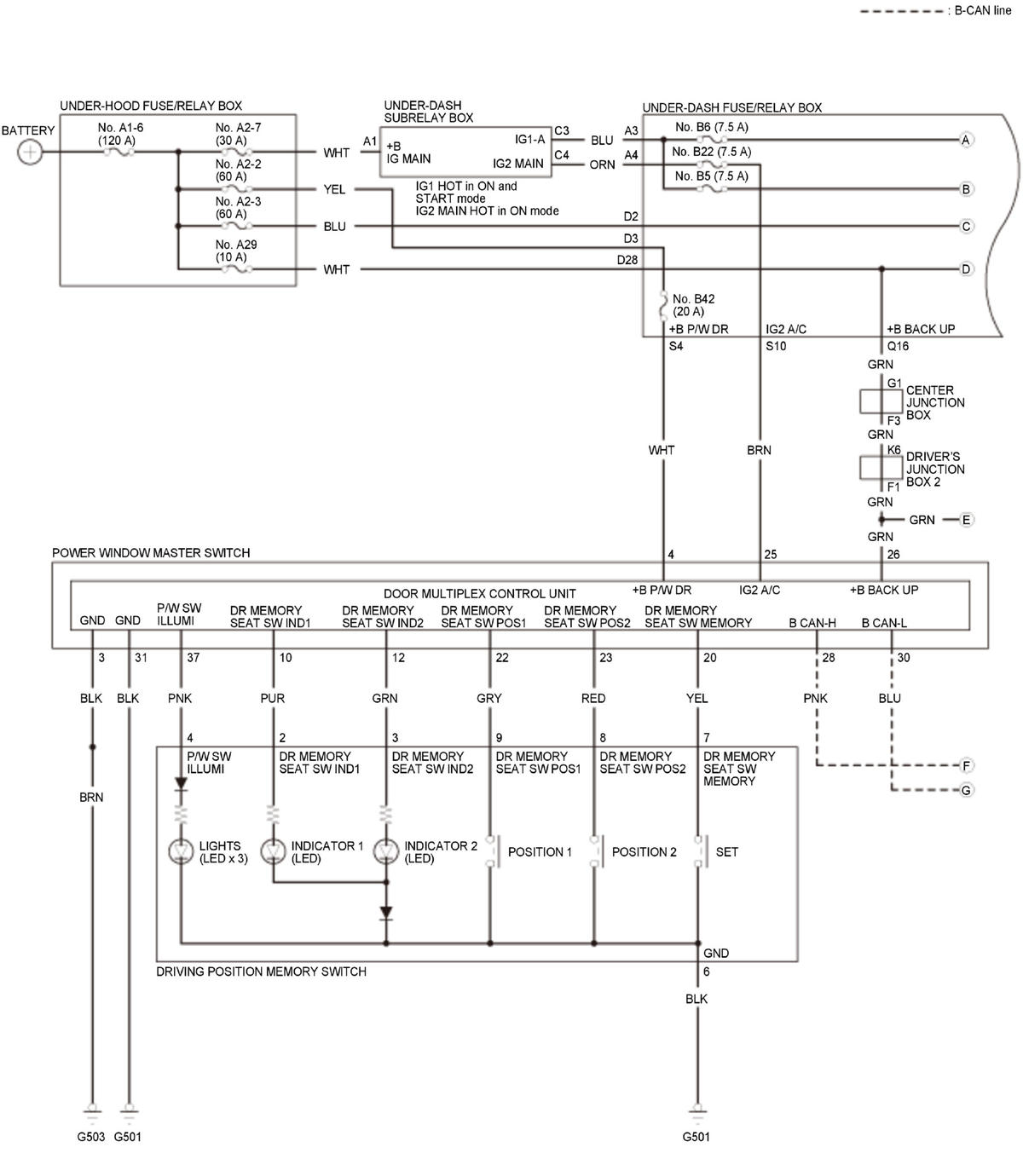

GHH471561Courtesy of HONDA, U.S.A., INC.

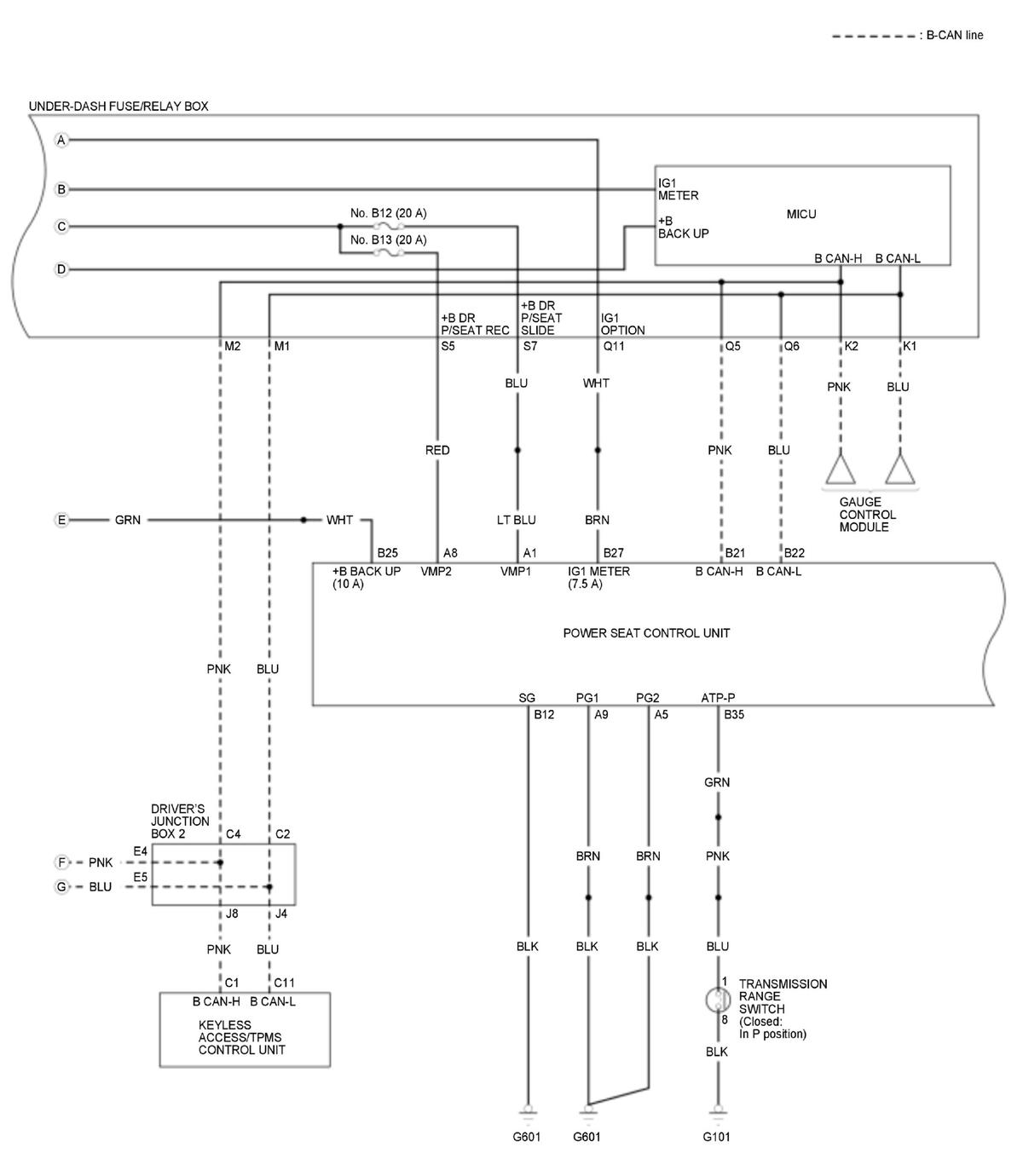

GHH471562Courtesy of HONDA, U.S.A., INC.

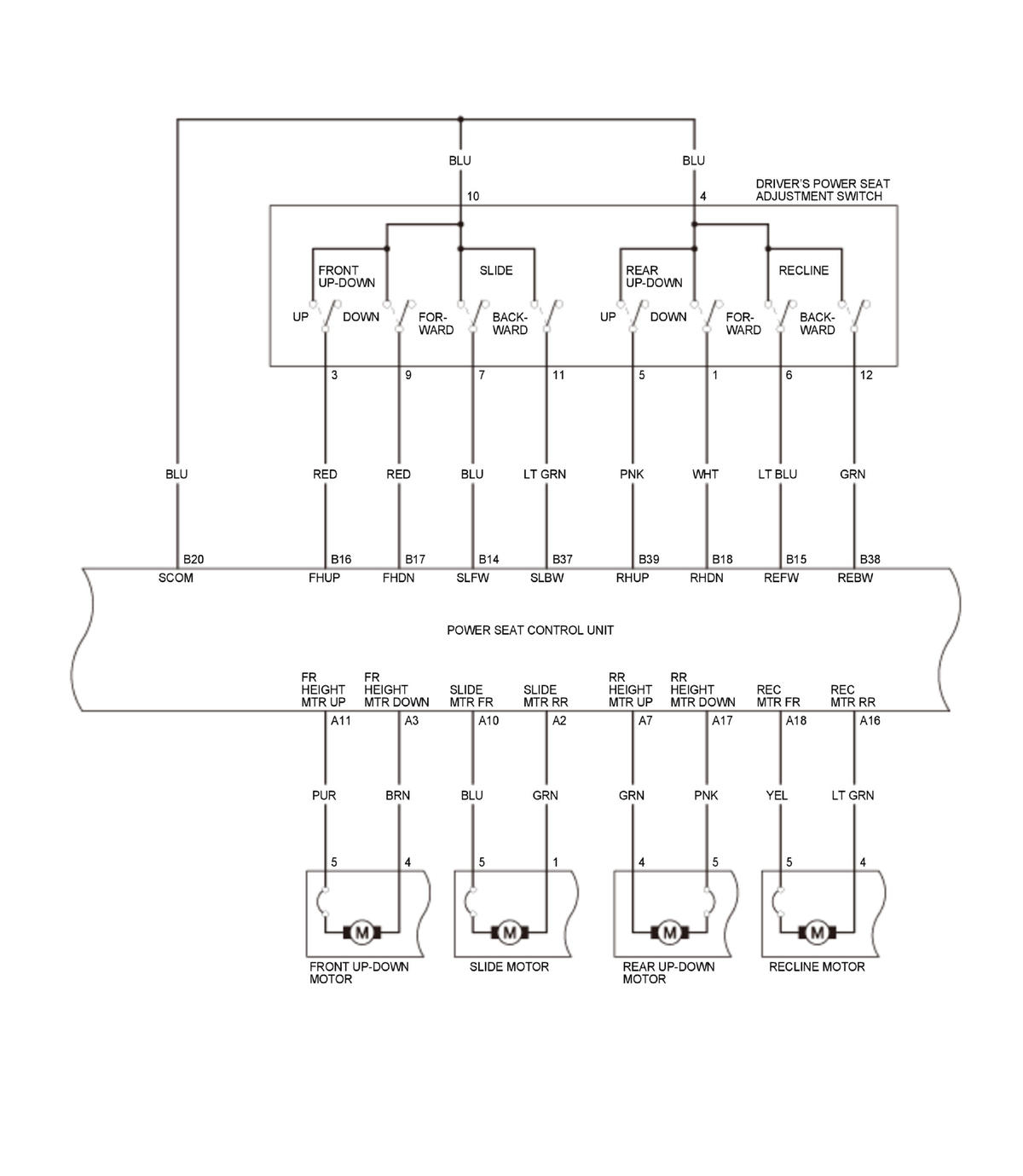

GHH471563Courtesy of HONDA, U.S.A., INC.

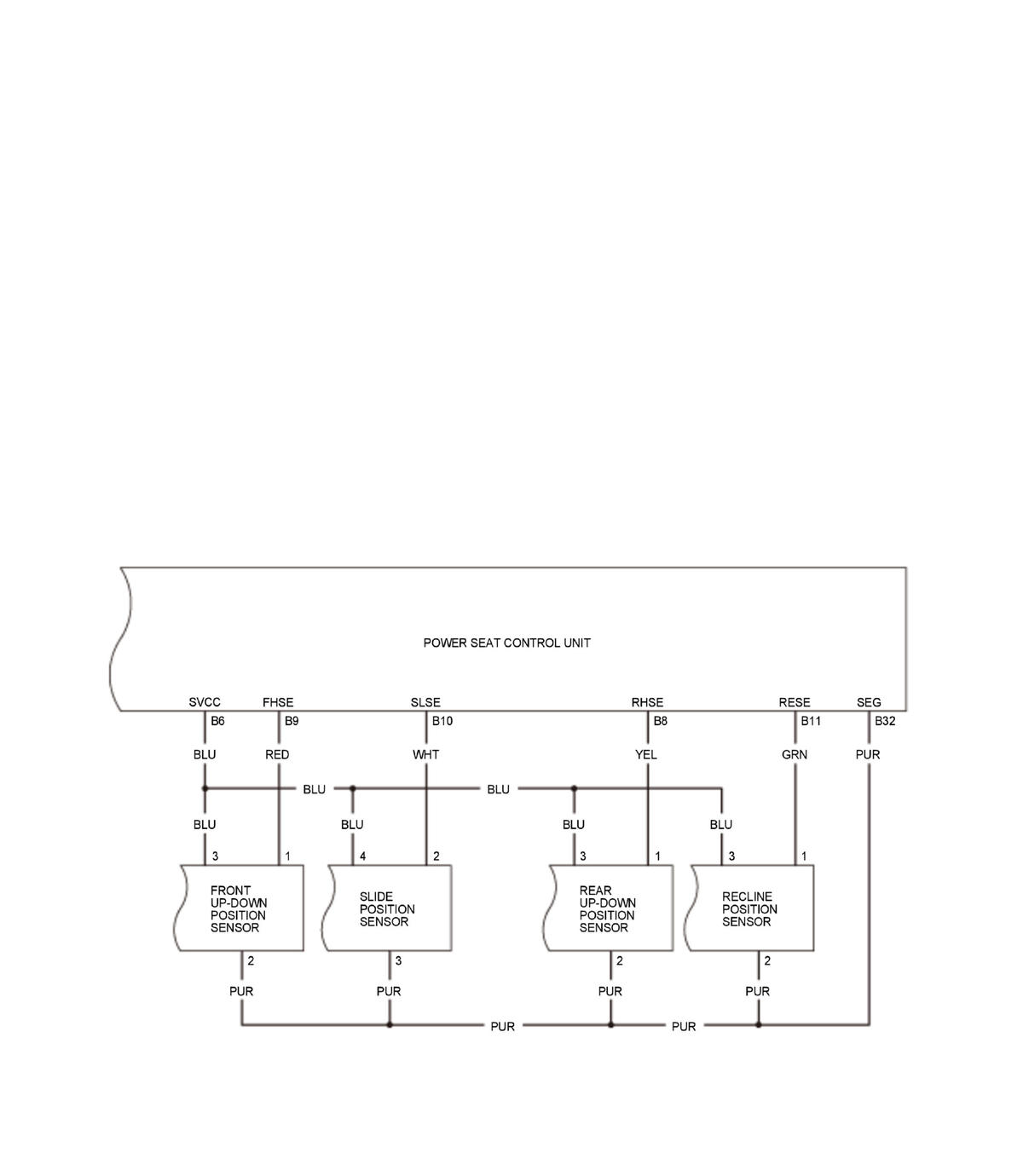

GHH471564Courtesy of HONDA, U.S.A., INC.
