Driving Position Memory System (DPMS) Component Location Index (2016 2017 2018

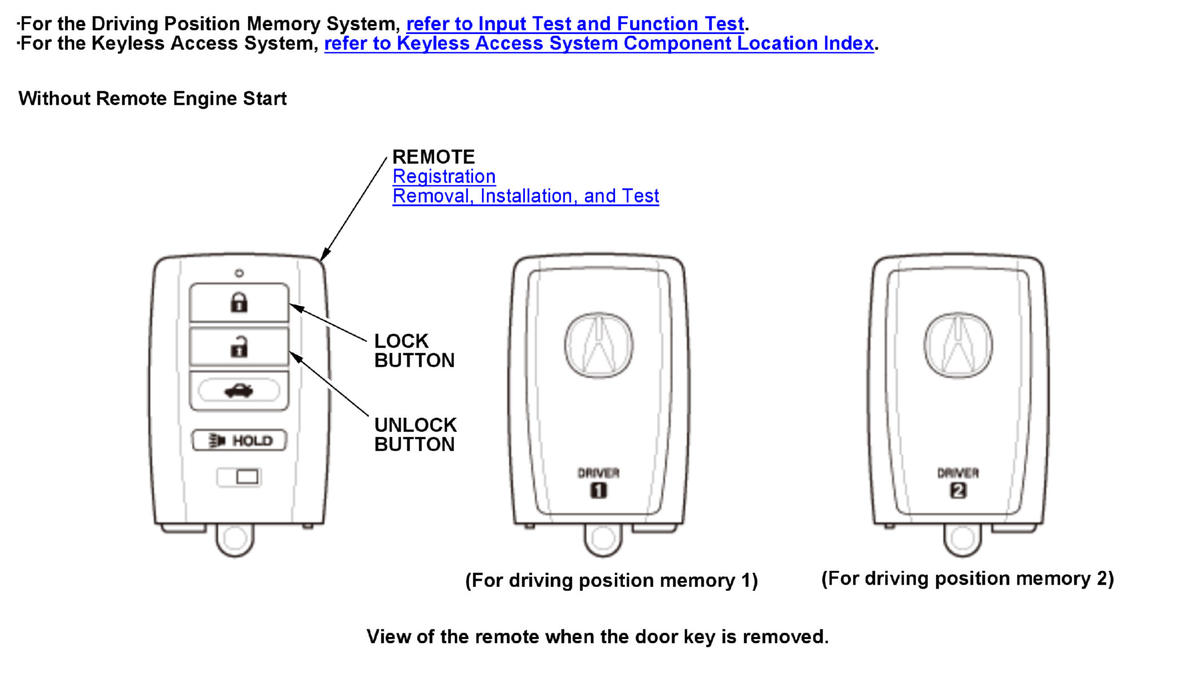

GHH471603Courtesy of HONDA, U.S.A., INC.

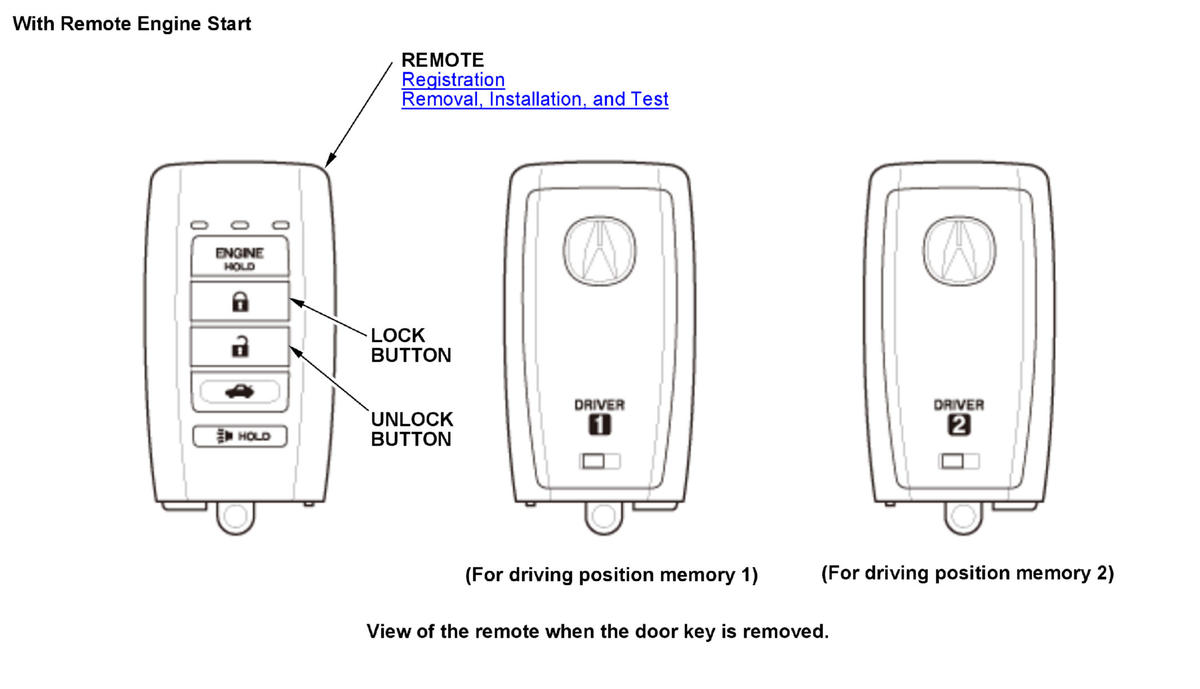

GHH471604Courtesy of HONDA, U.S.A., INC.

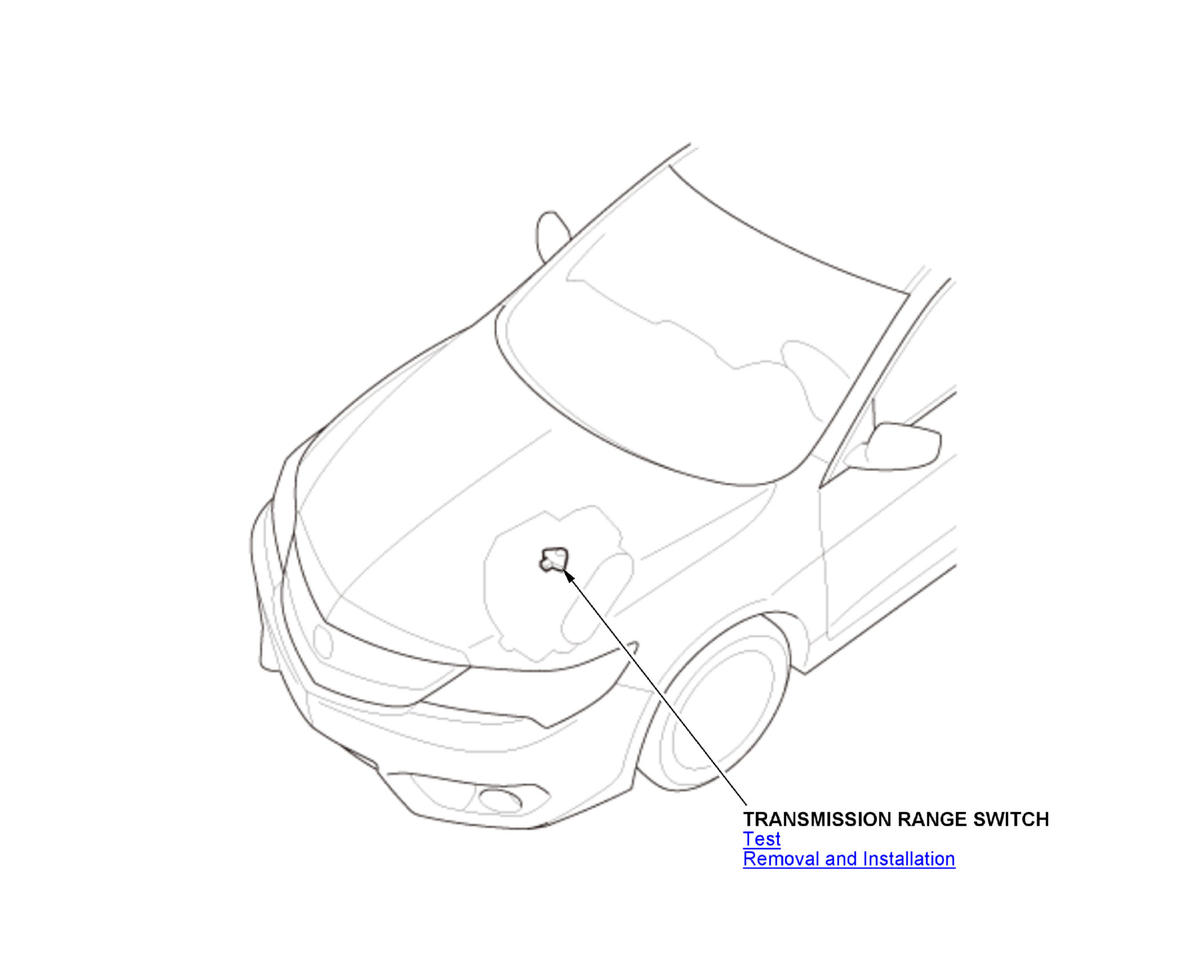

GHH471605Courtesy of HONDA, U.S.A., INC.

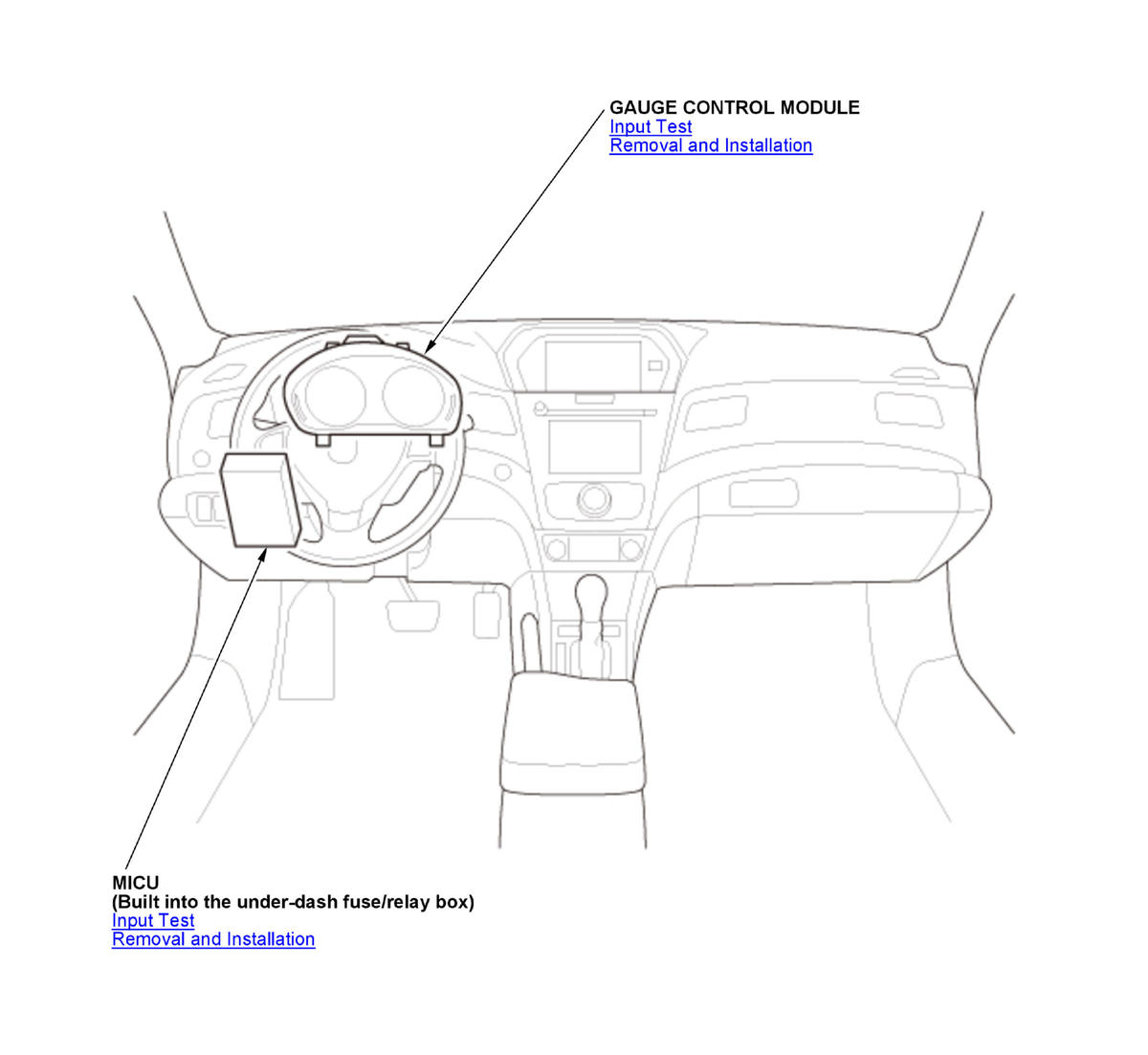

GHH471606Courtesy of HONDA, U.S.A., INC.

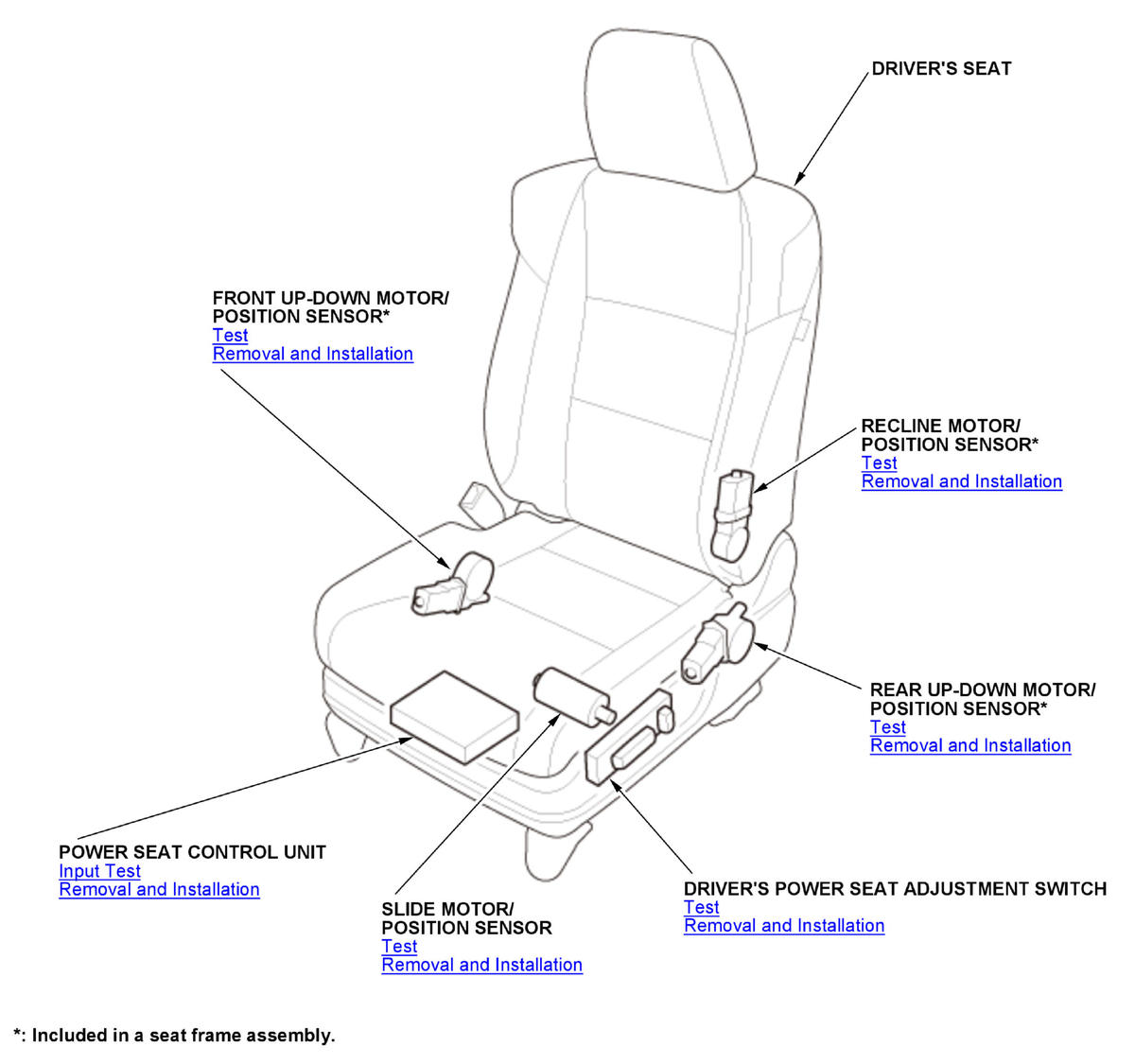

GHH471607Courtesy of HONDA, U.S.A., INC.

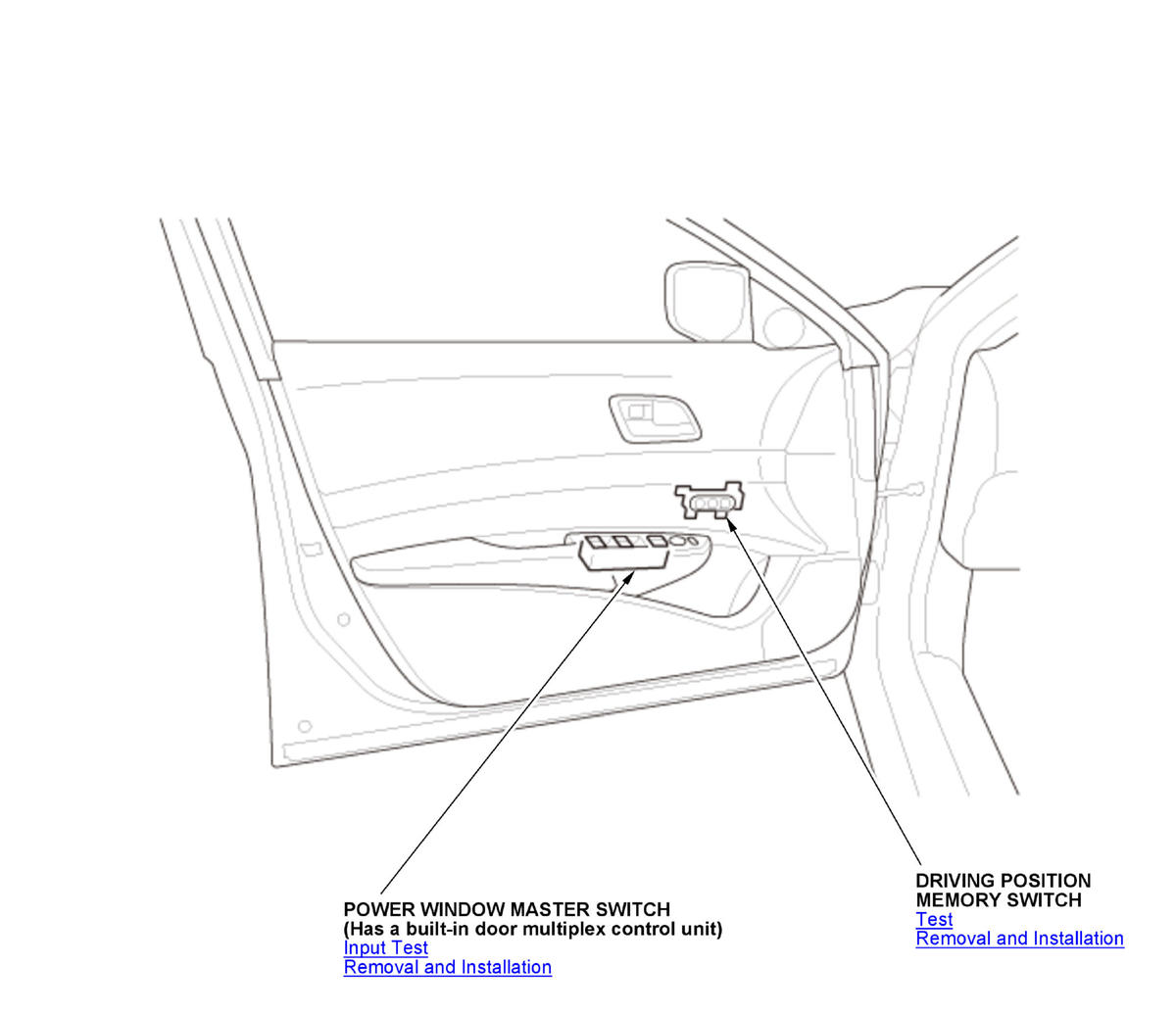

GHH471608Courtesy of HONDA, U.S.A., INC.
