Driving Position Memory System (DPMS) Component Location Index (2019 2020 2021 2022)

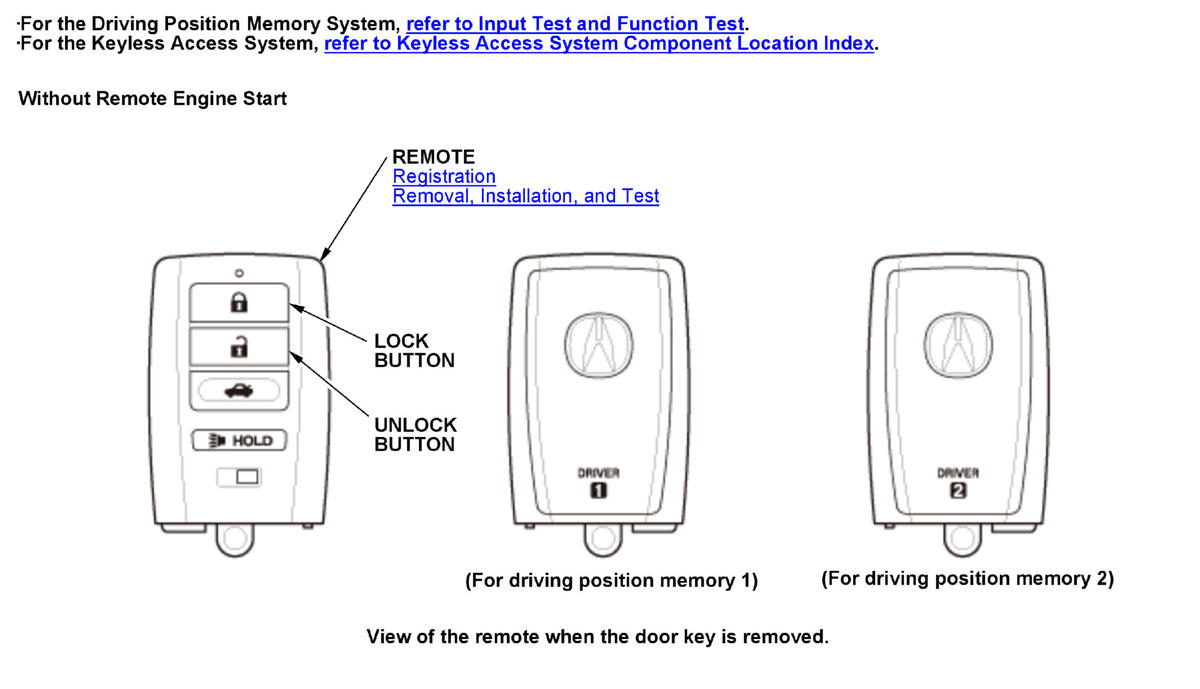

GHH471609Courtesy of HONDA, U.S.A., INC.

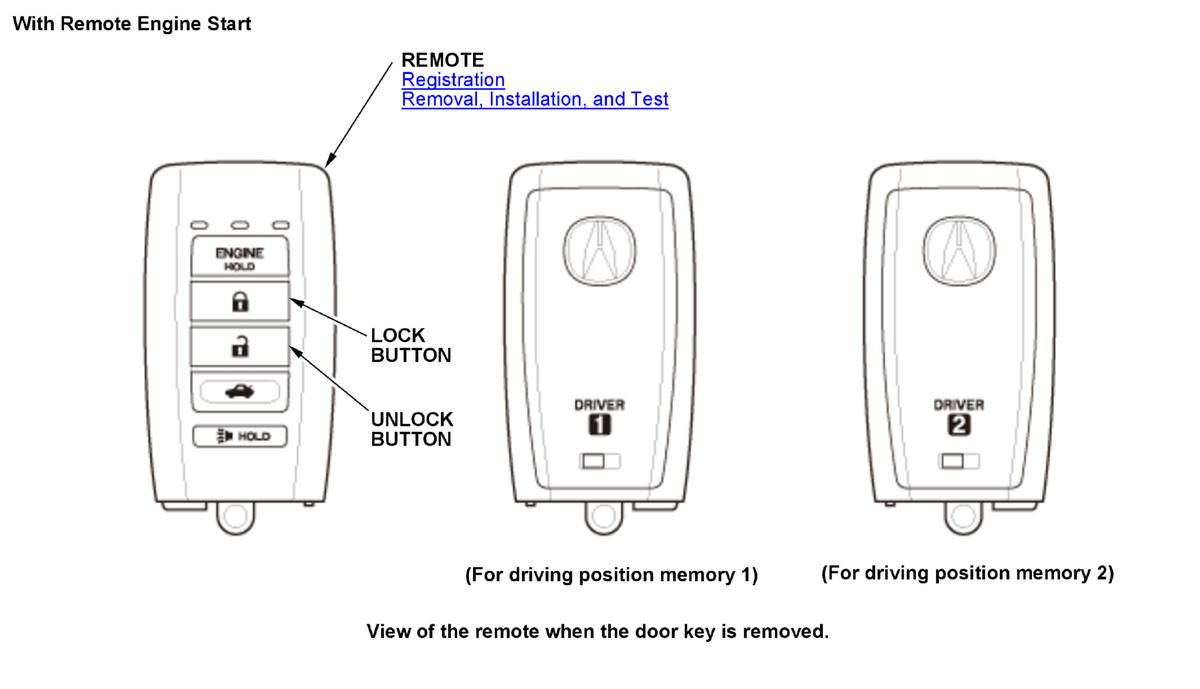

GHH471610Courtesy of HONDA, U.S.A., INC.

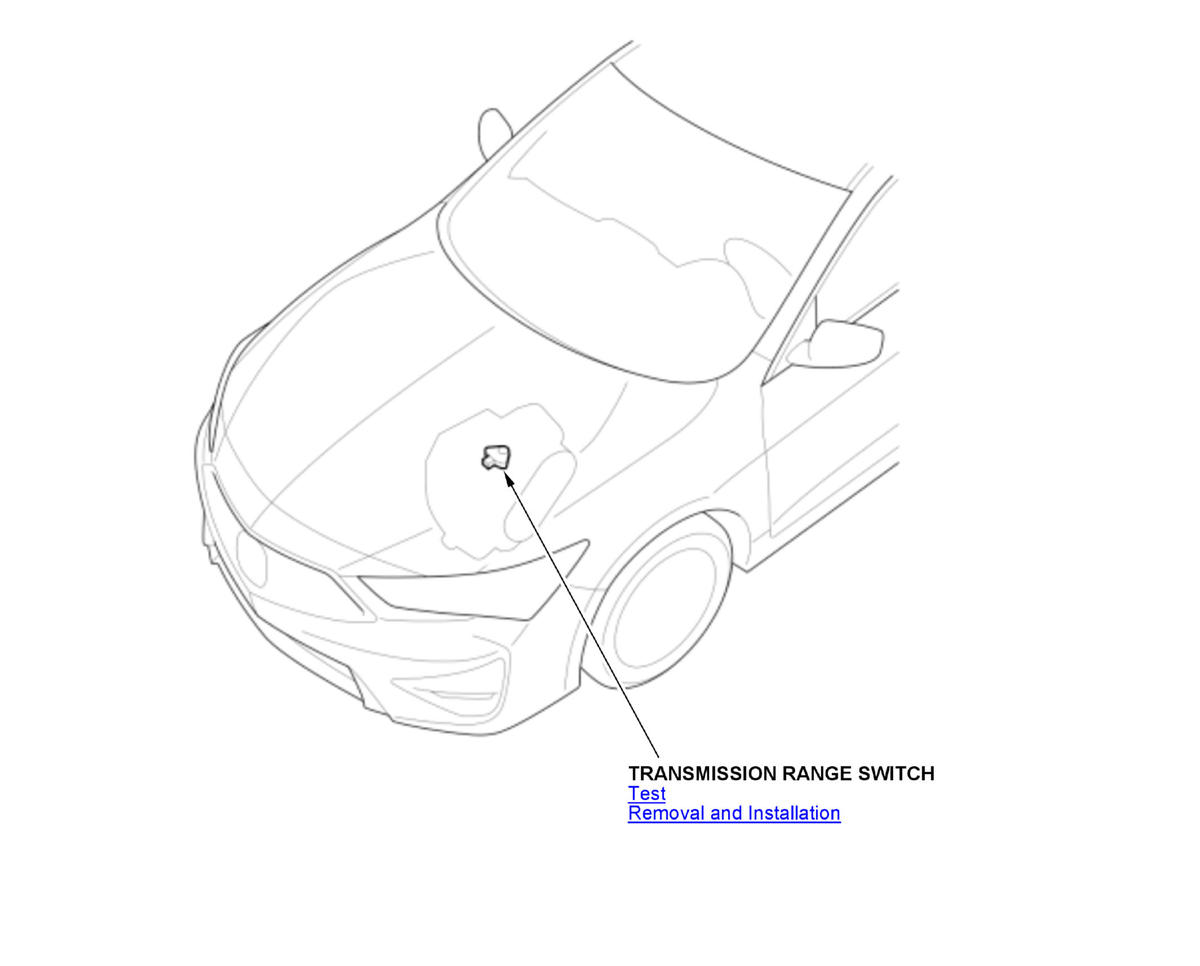

GHH471611Courtesy of HONDA, U.S.A., INC.

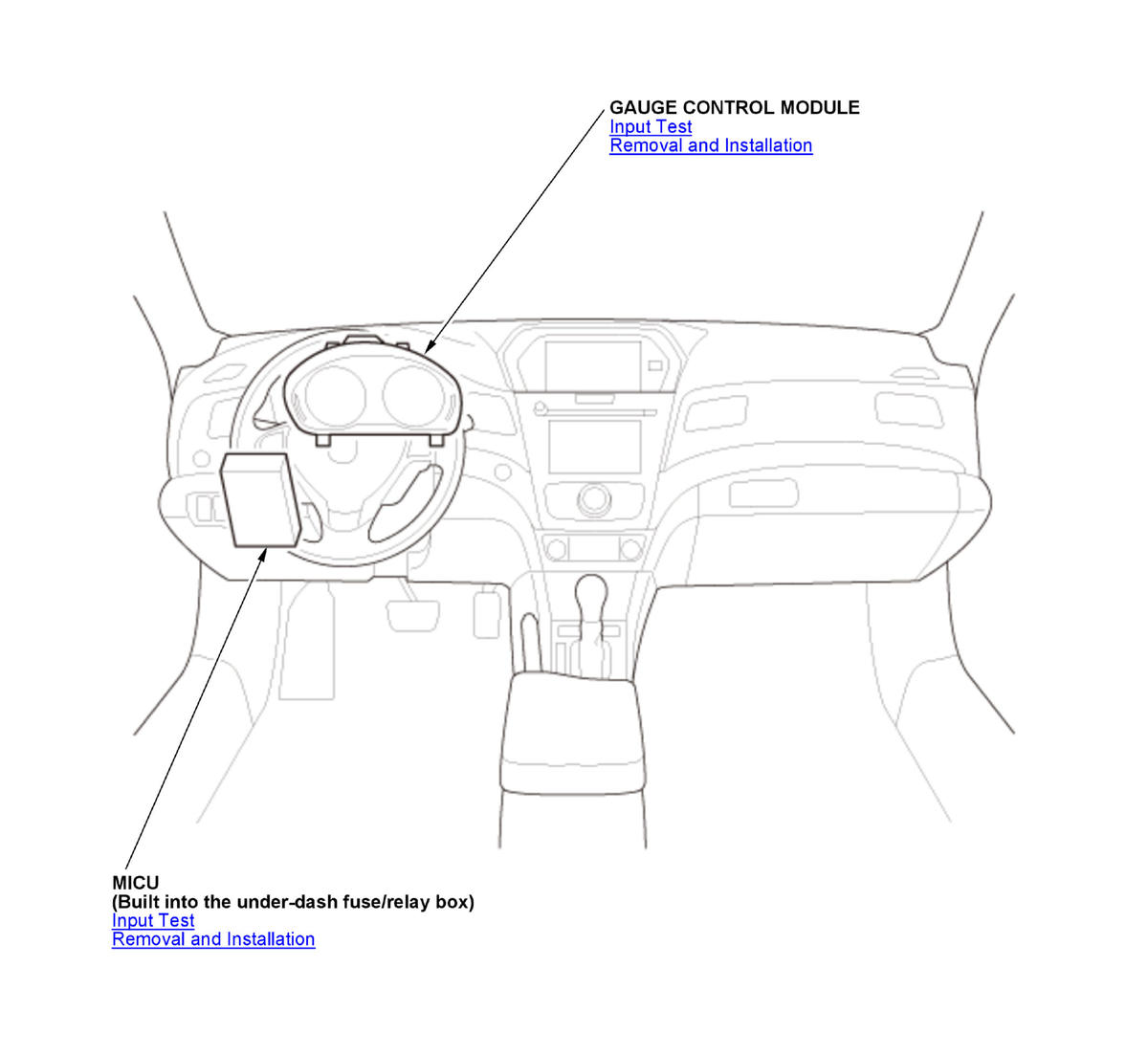

GHH471612Courtesy of HONDA, U.S.A., INC.

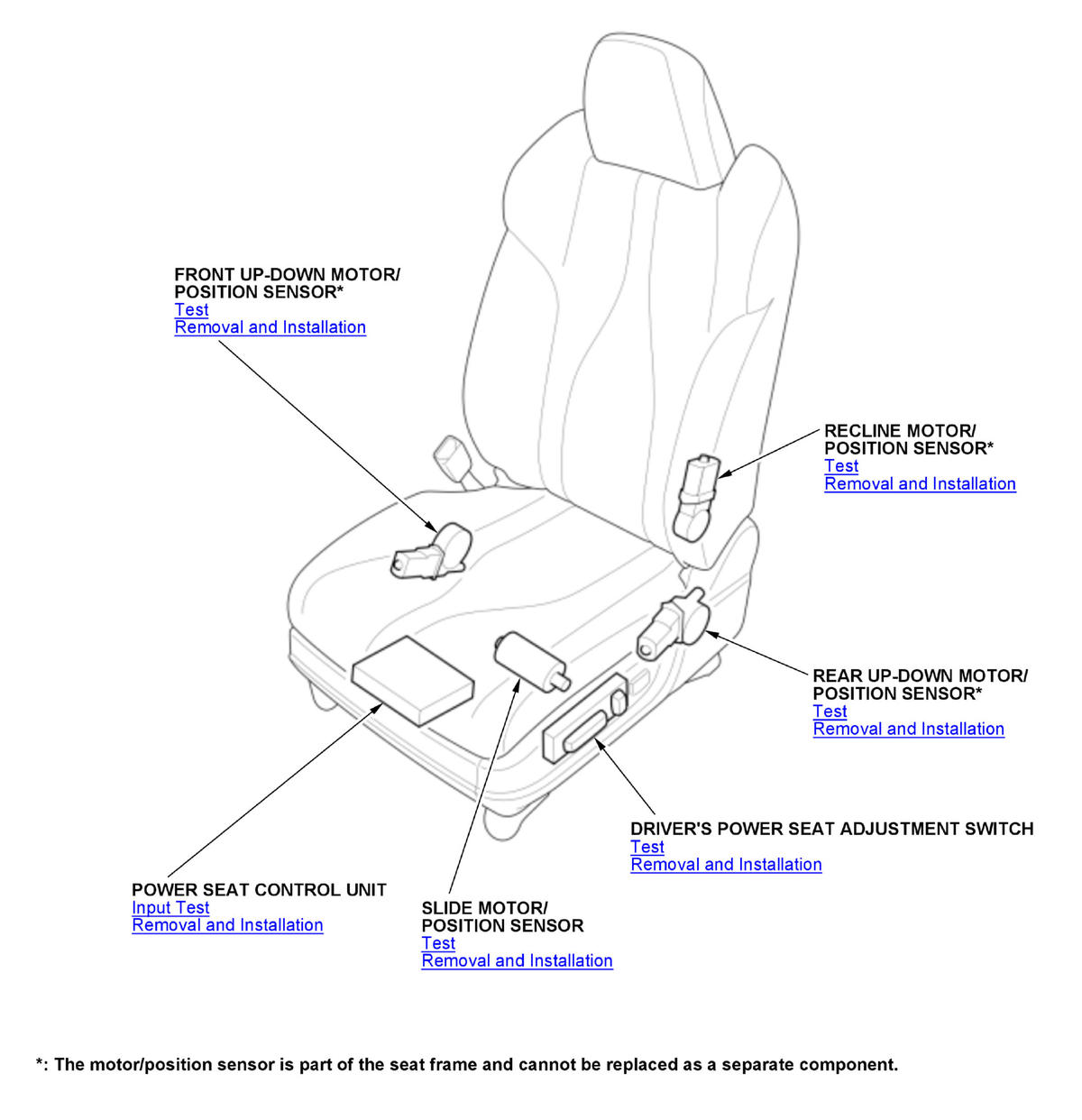

Driver's Seat

GHH471613Courtesy of HONDA, U.S.A., INC.

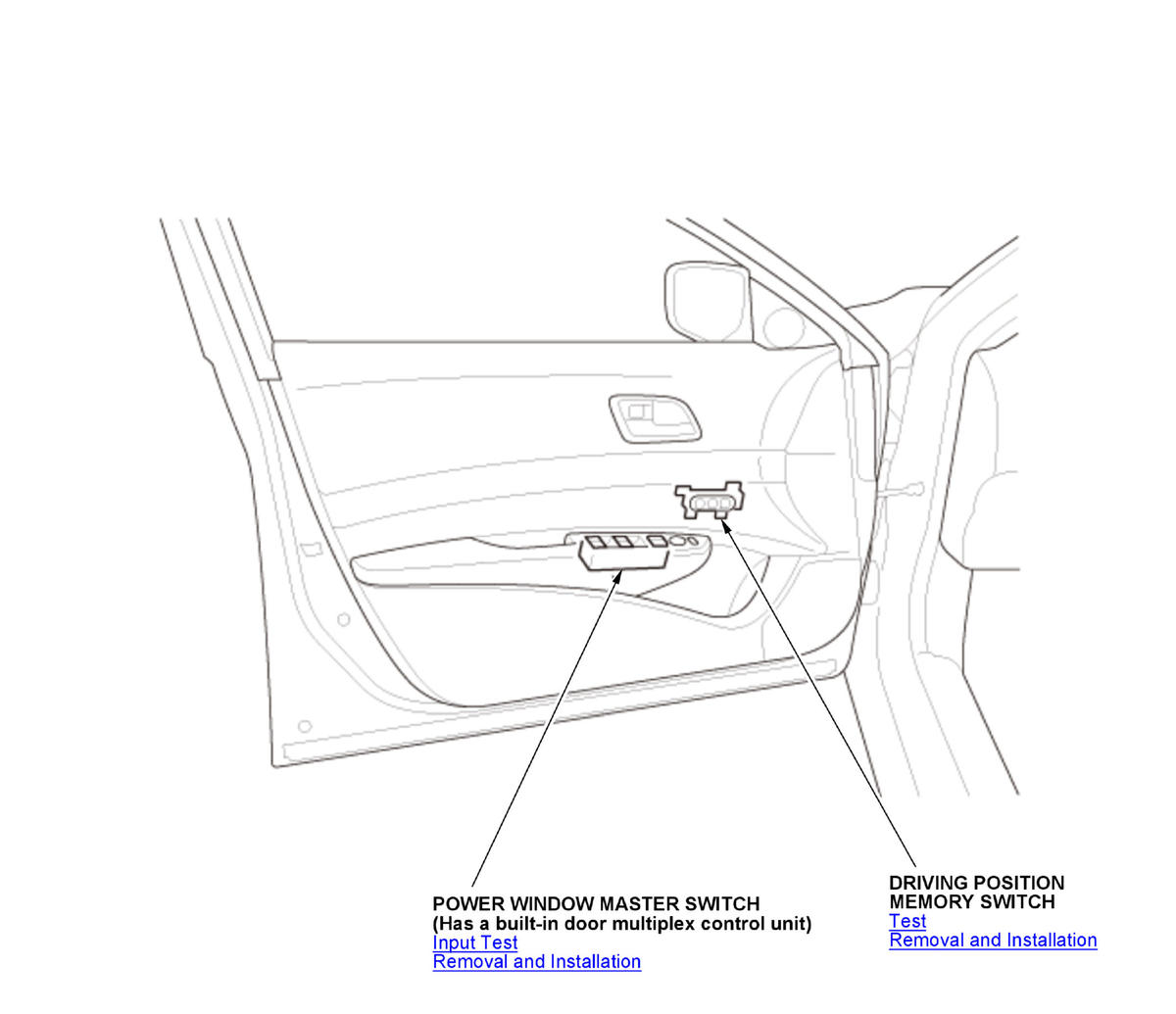

GHH471614Courtesy of HONDA, U.S.A., INC.
