PCM Connector for Inputs and Outputs (2016 2017 2018)
PCM Connector for Inputs and Outputs
| Connector Index |
|---|
| PCM Connector A (51P) |
| PCM Connector B (51P) |
| PCM Connector C (51P) |

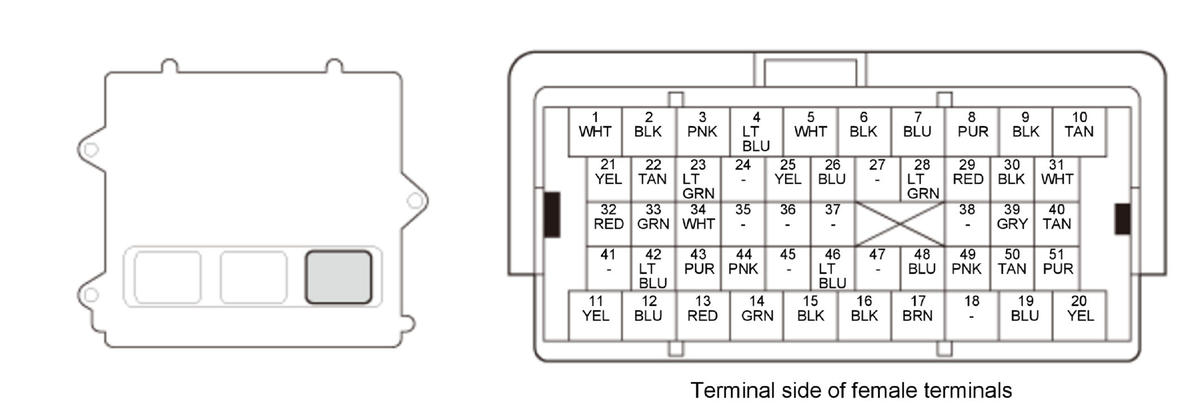

PCM Inputs and Outputs at PCM Connector A (?) (51P)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | INJ RLY CL- (INJECTOR RELAY) | Drives injector relay |
| 2 | F CAN-H (F-CAN COMMUNICATION SIGNAL HIGH) | Sends and receives communication signal |
| 3 | F CAN-L (F-CAN COMMUNICATION SIGNAL LOW) | Sends and receives communication signal |
| 4 | Not used | |
| 5 | Not used | |
| 6 | S-NET (SERIAL COMMUNICATION FOR IMMOBILIZER) | Sends and receives communication signal |
| 7 | FUEL PUMP RLY CL- (PGM-FI MAIN RELAY 2) | Drives PGM-FI main relay 2 |
| 8 | FI MAIN RLY CL- (PGMFI MAIN RELAY 1/IGNITION COIL RELAY) | Drives PGM-FI main relay 1 and ignition coil relay |
| 9 | ST CUT RLY1 CL- (STARTER CUT RELAY 1) | Drives starter cut relay 1 |
| 10 | IG1 FUEL PUMP (IGNITION SIGNAL) | Detects ignition signal |
| 11 | IG1 MISS SOL (POWER SOURCE FOR SOLENOID VALVES) | Power source for solenoid valves |
| 12 | NEP (ENGINE SPEED PULSE) | Outputs engine speed pulse |
| 13 *2 | VSP (VEHICLE SPEED SIGNAL OUTPUT) | Sends vehicle speed signal |
| 14 *1 | VSV (EVAPORATIVE EMISSION (EVAP) CANISTER VENT SHUT VALVE) | Drives EVAP canister vent shut valve |
| 15 | FAN HI SIGNAL (A/C CONDENSER FAN RELAY/FAN CONTROL RELAY) | Drives A/C condenser fan relay and fan control relay |
| 16 | FAN LO SIGNAL (RADIATOR FAN RELAY) | Drives radiator fan relay |
| 17 | SHIFT LOCK SOL (SHIFT LOCK SOLENOID) | Drives shift lock solenoid |
| 18 | DBW RLY CL- (ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY) | Drives electronic throttle control system (ETCS) control relay |
| 19 | INJ RLY OUT (INJECTOR POWER SOURCE) | Power source for PCM (injector driver) |
| 20 | INJ RLY OUT (INJECTOR POWER SOURCE) | Power source for PCM (injector driver) |
| 21 | VCC6 (SENSOR VOLTAGE) | Provides sensor reference voltage |
| 22 | SG6 (SENSOR GROUND) | Sensor ground |
| 23 | STRLD (STARTER SIGNAL LOAD) | Detects starter cut relay signal |
| 24 | PD SENSOR (A/C PRESSURE SENSOR) | Detects A/C pressure sensor signal |
| 25 | Not used | |
| 26 | SCS (SERVICE CHECK SIGNAL) | Detects service check signal |
*1: USA and Canada models*2: With navigation
| Terminal number | Terminal name | Description |
|---|---|---|
| 27 | STOP SW (BRAKE PEDAL POSITION SWITCH) | Detects brake pedal position switch signal |
| 28 | BKSWNC (BRAKE PEDAL POSITION SWITCH) | Detects brake pedal position switch signal |
| 29 | ATP-P (TRANSMISSION RANGE SWITCH P POSITION) | Detects transmission range switch P position signal |
| 30 | Not used | |
| 31 | ST CUT RLY2 CL- (STARTER CUT RELAY 2) | Drives starter cut relay 2 |
| 32 | VCC4 (SENSOR VOLTAGE) | Provides sensor reference voltage |
| 33 | SG4 (SENSOR GROUND) | Sensor ground |
| 34 | APS1 (ACCELERATOR PEDAL POSITION (APP) SENSOR A) | Detects APP sensor A signal |
| 35 *1 | PTANK (FUEL TANK PRESSURE (FTP) SENSOR) | Detects FTP sensor signal |
| 36 | ELD (ELECTRICAL LOAD DETECTOR (ELD)) | Detects ELD signal |
| 37 | Not used | |
| 38 | Not used | |
| 39 | STS (STARTER SWITCH SIGNAL) | Detects starter switch signal |
| 40 | Not used | |
| 41 | VCC5 (SENSOR VOLTAGE) | Provides sensor reference voltage |
| 42 | SG5 (SENSOR GROUND) | Sensor ground |
| 43 | APS2 (ACCELERATOR PEDAL POSITION (APP) SENSOR B) | Detects APP sensor B signal |
| 44 | TW2 SENSOR (ENGINE COOLANT TEMPERATURE (ECT) SENSOR 2) | Detects ECT sensor 2 signal |
| 45 | PADDLE SW UP (PADDLE SHIFTER + (UPSHIFT SWITCH)) | Detects paddle shifter + (upshift switch) signal |
| 46 | PADDLE SW DOWN (PADDLE SHIFTER - (DOWNSHIFT SWITCH)) | Detects paddle shifter - (downshift switch) signal |
| 47 | FI SUB RLY CL- (PGM-FI SUBRELAY) | Drives PGM-FI subrelay |
| 48 | A/C MG CLUTCH RLY CL- (A/C COMPRESSOR CLUTCH RELAY) | Drives A/C compressor clutch relay |
| 49 | Not used | |
| 50 | Not used | |
| 51 | Not used |
*1: USA and Canada models*2: With navigation

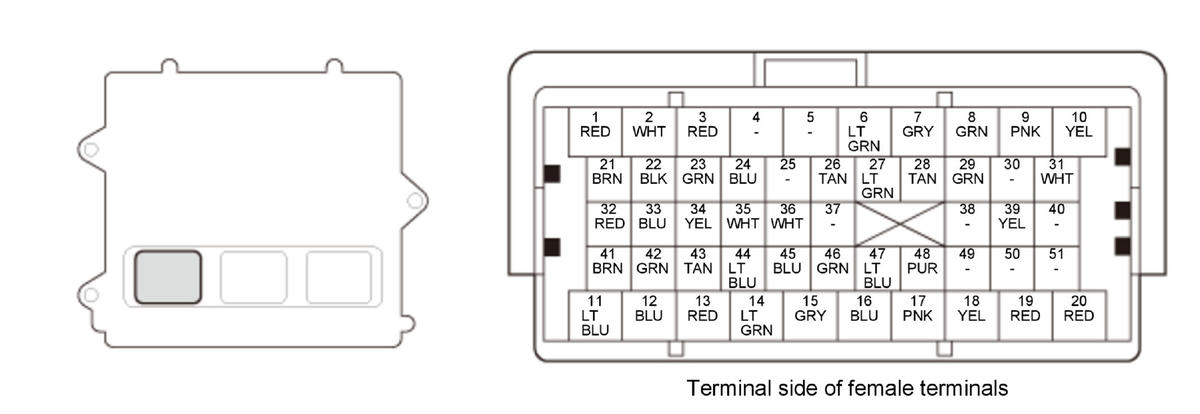

PCM Inputs and Outputs at PCM Connector B (?) (51P)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | PCS (EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE) | Drives EVAP canister purge valve |
| 2 | Not used | |
| 3 | SVSP (INTAKE MANIFOLD TUNING (IMT) ACTUATOR +SIDE) | Drives IMT actuator |
| 4 | SVSM (INTAKE MANIFOLD TUNING (IMT) ACTUATOR -SIDE) | Drives IMT actuator |
| 5 | SHA (SHIFT SOLENOID VALVE A) | Drives shift solenoid valve A |
| 6 | LSE (CLUTCH PRESSURE CONTROL SOLENOID VALVE E) | Drives clutch pressure control solenoid valve E |
| Terminal number | Terminal name | Description |
|---|---|---|
| 7 | LSA (CLUTCH PRESSURE CONTROL SOLENOID VALVE A) | Drives clutch pressure control solenoid valve A |
| 8 | LSC (CLUTCH PRESSURE CONTROL SOLENOID VALVE C) | Drives clutch pressure control solenoid valve C |
| 9 | IGP(ECU) (POWER SOURCE) | Power source for PCM |
| 10 | Not used | |
| 11 | SHB (SHIFT SOLENOID VALVE B) | Drives shift solenoid valve B |
| 12 | SHC (SHIFT SOLENOID VALVE C) | Drives shift solenoid valve C |
| 13 | SHE (SHIFT SOLENOID VALVE E) | Drives shift solenoid valve E |
| 14 | AFHT (AIR FUEL RATIO (A/F) SENSOR (SENSOR 1) HEATER CONTROL) | Drives A/F sensor (sensor 1) heater |
| 15 | SO2HT (SECONDARY HEATED OXYGEN SENSOR (SECONDARY HO2S (SENSOR 2) HEATER CONTROL) | Drives secondary HO2S (sensor 2) heater |
| 16 | HT GND (POWER GROUND) | Ground for PCM |
| 17 | LSB (CLUTCH PRESSURE CONTROL SOLENOID VALVE B) | Drives clutch pressure control solenoid valve B |
| 18 | LSD (CLUTCH PRESSURE CONTROL SOLENOID VALVE D) | Drives clutch pressure control solenoid valve D |
| 19 | LSPLA (LINE PRESSURE CONTROL SOLENOID VALVE) | Drives line pressure control solenoid valve |
| 20 | GND1 (POWER GROUND) | Ground for PCM |
| 21 | AFS- (AIR FUEL RATIO (A/F) SENSOR (SENSOR 1) -SIDE) | Detects A/F sensor (sensor 1) signal |
| 22 | AFS+ (AIR FUEL RATIO (A/F) SENSOR (SENSOR 1) +SIDE) | Detects A/F sensor (sensor 1) signal |
| 23 | PF (FUEL RAIL PRESSURE SENSOR) | Detects fuel rail pressure sensor signal |
| 24 | PB (MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR) | Detects MAP sensor signal |
| 25 | TW (ENGINE COOLANT TEMPERATURE SENSOR (ECT) SENSOR 1) | Detects ECT sensor 1 signal |
| 26 | TA (INTAKE AIR TEMPERATURE (IAT) SENSOR) | Detects IAT sensor signal |
| 27 | TATF (ATF TEMPERATURE SENSOR) | Detects ATF temperature sensor signal |
| 28 | SVM (INTAKE MANIFOLD TUNING (IMT) ACTUATOR SENSOR) | Detects IMT actuator sensor signal |
| 29 | Not used | |
| 30 | SG1 (SENSOR GROUND) | Sensor ground |
| 31 | VCC1 (SENSOR VOLTAGE) | Provides sensor reference voltage |
| 32 | NC (OUTPUT SHAFT SPEED SENSOR) | Detects output shaft speed sensor signal |
| 33 | NM (INPUT SHAFT SPEED SENSOR) | Detects input shaft speed sensor signal |
| 34 | STRKA (SHIFT FORK A POSITION SENSOR) | Detects shift fork A position sensor signal |
| 35 | STRKB (SHIFT FORK B POSITION SENSOR) | Detects shift fork B position sensor signal |
| 36 | STRKC (SHIFT FORK C POSITION SENSOR) | Detects shift fork C position sensor signal |
| 37 | PCL2 (EVEN CLUTCH PRESSURE SENSOR) | Detects EVEN clutch pressure sensor signal |
| 38 | PCL1 (ODD CLUTCH PRESSURE SENSOR) | Detects ODD clutch pressure sensor signal |
| 39 | SG2 (SENSOR GROUND) | Sensor ground |
| 40 | VCC2 (SENSOR VOLTAGE) | Provides sensor reference voltage |
| 41 | NEVEN (EVEN GEAR SHAFT SPEED SENSOR) | Detects even gear shaft speed sensor signal |
| 42 | NODD (ODD GEAR SHAFT SPEED SENSOR) | Detects odd gear shaft speed sensor signal |
| 43 | CAM (CAMSHAFT POSITION (CMP) SENSOR A) | Detects CMP sensor A signal |
| 44 | STRKD (SHIFT FORK D POSITION SENSOR) | Detects shift fork D position sensor signal |
| 45 | PCLR (REVERSE CLUTCH PRESSURE SENSOR) | Detects reverse clutch pressure sensor signal |
| 46 | SO2 (SECONDARY HEATED OXYGEN SENSOR (SECONDARY HO2S) (SENSOR 2)) | Detects secondary HO2S (sensor 2) signal |
| 47 | SO2SG (SECONDARY HEATED OXYGEN SENSOR (SECONDARY HO2S (SENSOR 2) SENSOR GROUND) | Sensor ground for secondary HO2S (sensor 2) |
| 48 | LIN (LOCAL INTERCONNECT NETWORK) | Sends and receives communication signal |
| 49 | SHD (SHIFT SOLENOID VALVE D) | Drives shift solenoid valve D |
| 50 | VGM (MASS AIR FLOW (MAF) SENSOR -SIDE) | Ground for MAF sensor signal |
| 51 | VGP (MASS AIR FLOW (MAF) SENSOR +SIDE) | Detects MAF sensor signal |

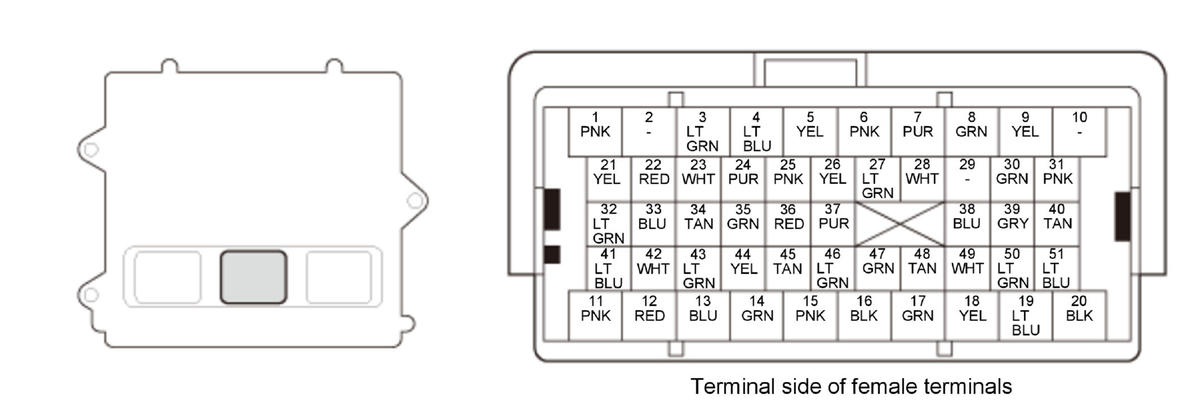

PCM Inputs and Outputs at PCM Connector C (o) (51P)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | INJ L1 (No. 1 INJECTOR -) | Drives No. 1 injector |
| 2 | INJ H1 (No. 1 INJECTOR +) | Drives No. 1 injector |
| 3 | INJ H4 (No. 4 INJECTOR +) | Drives No. 4 injector |
| 4 | INJ L4 (No. 4 INJECTOR -) | Drives No. 4 injector |
| 5 | HPUMP H (HIGH PRESSURE FUEL PUMP +) | Drives fuel control solenoid (built into high pressure fuel pump) |
| 6 | HPUMP L (HIGH PRESSURE FUEL PUMP -) | Drives fuel control solenoid (built into high pressure fuel pump) |
| 7 | MTR1 (THROTTLE ACTUATOR -SIDE) | Ground for throttle actuator |
| 8 | MTR2 (THROTTLE ACTUATOR +SIDE) | Drives throttle actuator |
| 9 | PGM (POWER GROUND) | Ground for PCM |
| 10 | VBDBW (IGNITION SIGNAL ETCS) | Detects ignition signal |
| 11 | INJ L2 (No. 2 INJECTOR -) | Drives No. 2 injector |
| 12 | INJ H2 (No. 2 INJECTOR +) | Drives No. 2 injector |
| 13 | INJ H3 (No. 3 INJECTOR +) | Drives No. 3 injector |
| 14 | INJ L3 (No. 3 INJECTOR -) | Drives No. 3 injector |
| 15 | INJ GND1 (INJECTOR GROUND) | Ground for PCM (injector driver) |
| 16 | INJ GND2 (INJECTOR GROUND) | Ground for PCM (injector driver) |
| 17 | GND2 (POWER GROUND) | Ground for PCM |
| 18 | Not used | |
| 19 | IGN02 (No. 2 IGNITION COIL PULSE) | Drives No. 2 ignition coil |
| 20 | IGN01 (No. 1 IGNITION COIL PULSE) | Drives No. 1 ignition coil |
| 21 | ATP-FWD1 (TRANSMISSION RANGE SWITCH FWD 1 POSITION) | Detects transmission range switch D position signal |
| 22 | ATP-RVS1 (TRANSMISSION RANGE SWITCH RVS 1 POSITION) | Detects transmission range switch R position signal |
| 23 | ATP-D (TRANSMISSION RANGE SWITCH D POSITION) | Detects transmission range switch D position signal |
| 24 | Not used | |
| 25 *1 | VTM (ROCKER ARM OIL PRESSURE SWITCH) | Detects rocker arm oil pressure switch signal |
| 26 | VTC (VTC OIL CONTROL SOLENOID VALVE) | Drives VTC oil control solenoid valve |
| 27 | Not used | |
| 28 | THL1 (THROTTLE POSITION (TP) SENSOR A) | Detects TP sensor A signal |
| 29 | THL2 (THROTTLE POSITION (TP) SENSOR B) | Detects TP sensor B signal |
| 30 | KS GND (KNOCK SENSOR GROUND) | Sensor ground for knock sensor |
| 31 | KNOCK (KNOCK SENSOR) | Detects knock sensor signal |
| 32 | ATP-FWD2 (TRANSMISSION RANGE SWITCH FWD 2 POSITION) | Detects transmission range switch D position signal |
| 33 | ATP-RVS2 (TRANSMISSION RANGE SWITCH RVS 2 POSITION) | Detects transmission range switch R position signal |
*1: USA and Canada models
| Terminal number | Terminal name | Description |
|---|---|---|
| 34 | ATP-R (TRANSMISSION RANGE SWITCH R POSITION) | Detects transmission range switch R position signal |
| 35 | Not used | |
| 36 | Not used | |
| 37 | Not used | |
| 38 | Not used | |
| 39 | SG3(DBW) (SENSOR GROUND) | Ground for PCM (TP sensor) |
| 40 | VCC3(DBW) (SENSOR VOLTAGE) | Provides sensor reference voltage (TP sensor) |
| 41 | Not used | |
| 42 | ATP-S (TRANSMISSION RANGE SWITCH N POSITION) | Detects transmission range switch S position signal |
| 43 | ATP-N (TRANSMISSION RANGE SWITCH N POSITION) | Detects transmission range switch N position signal |
| 44 | ENG OP SW (OIL PRESSURE SWITCH) | Detects engine oil pressure switch signal |
| 45 | Not used | |
| 46 | VTS (ROCKER ARM OIL CONTROL SOLENOID) | Drives rocker arm oil control solenoid |
| 47 | Not used | |
| 48 | CRKN (CRANKSHAFT POSITION (CKP) SENSOR) | Detects CKP sensor signal |
| 49 | TDC (CAMSHAFT POSITION (CMP) SENSOR B) | Detects CMP sensor B signal |
| 50 | IGN03 (No. 3 IGNITION COIL PULSE) | Drives No. 3 ignition coil |
| 51 | IGN04 (No. 4 IGNITION COIL PULSE) | Drives No. 4 ignition coil |
*1: USA and Canada models
