Keyless Access System Component Location Index

For relationships between signals in a system, refer to System Diagram - Refer to: Keyless Access System Description - System Diagram .

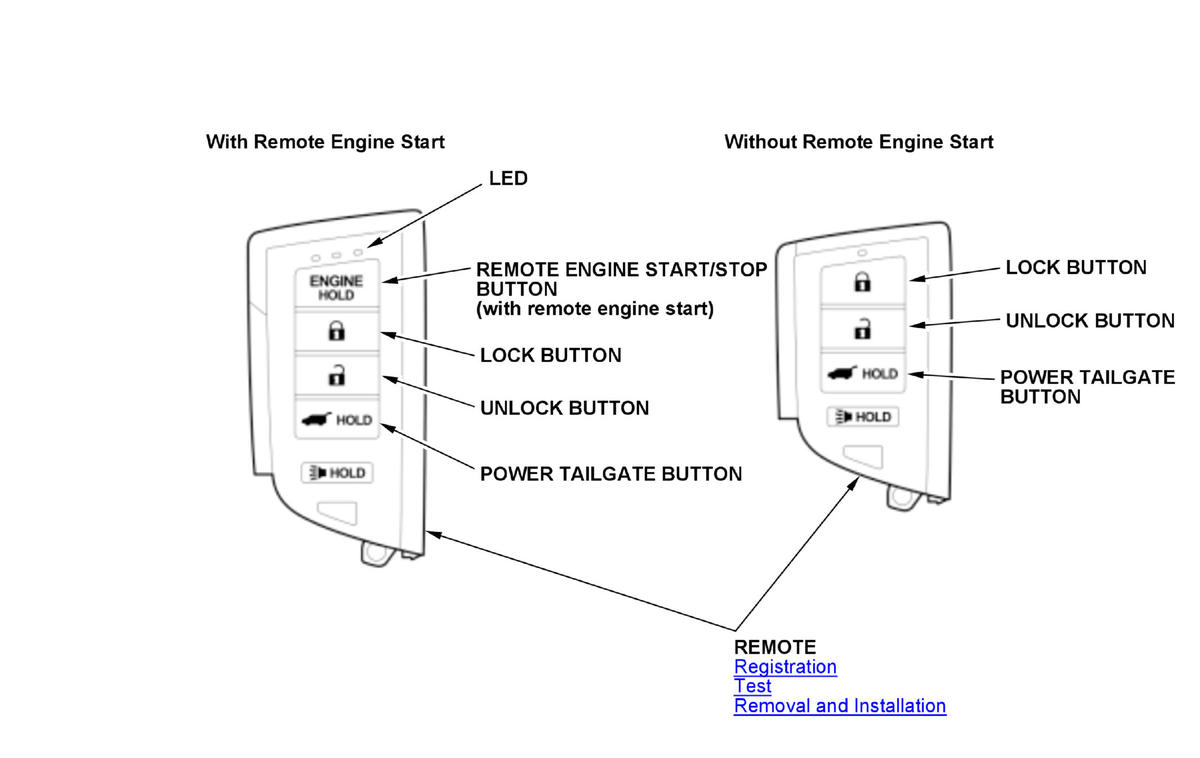

'19-21

Courtesy of HONDA, U.S.A., INC.

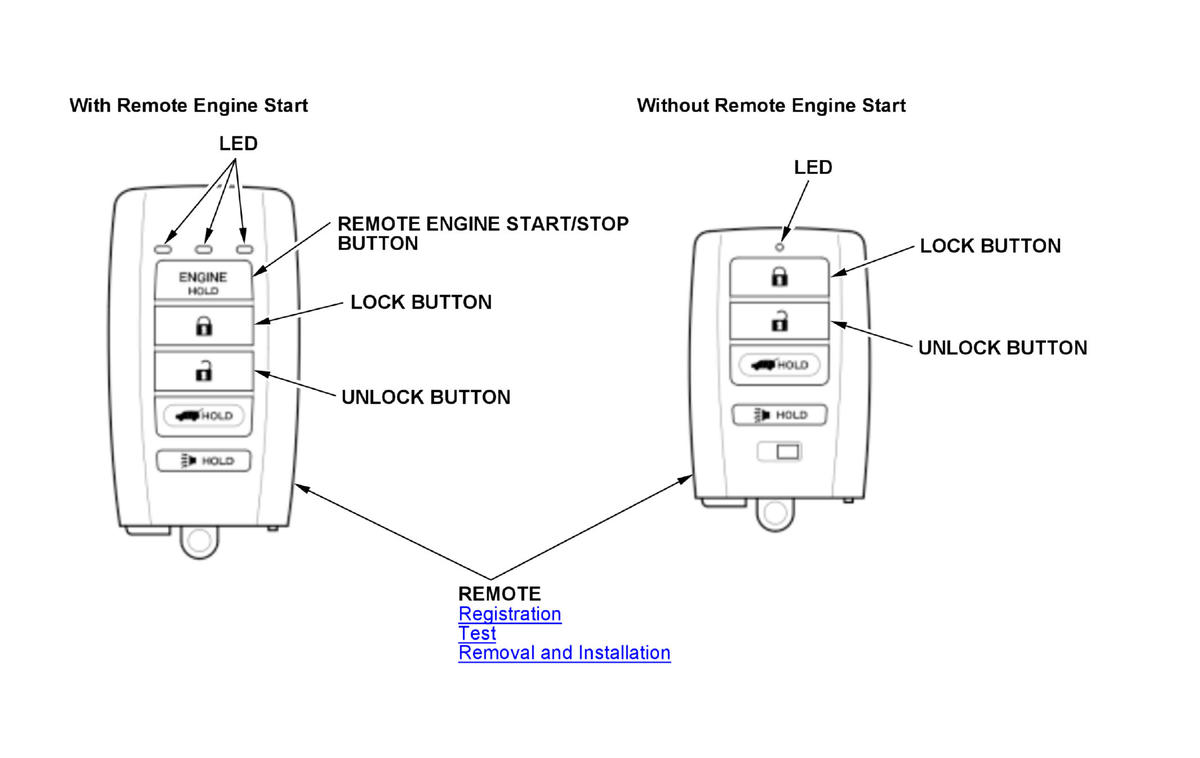

'22-23

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
