Multi View Camera Unit Connector for Inputs and Outputs (2022 2023)

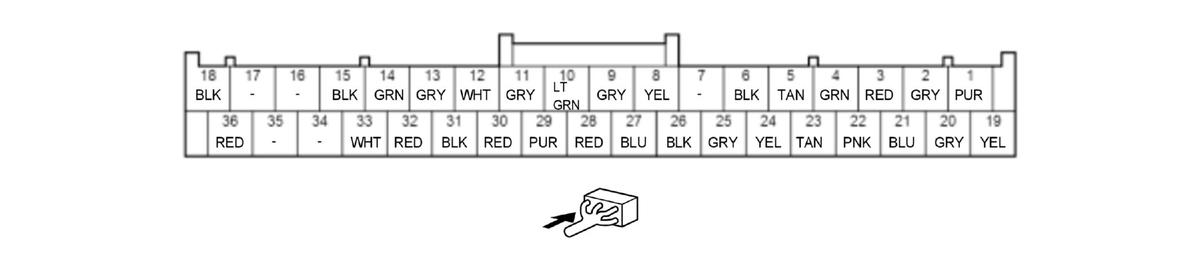

Multi View Camera Unit 36P Connector (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | MVS_CHK | Connection check signal for center display unit |
| 2 | SH_MVS_VID | Shield for terminal No. 3 and 21 |
| 3 | MVS_GND | Ground circuit for multi view camera |
| 4 | F-CAN D_H | F-CAN D communication (high) circuit |
| 5 | F-CAN D_L | F-CAN D communication (low) circuit |
| 6 | SGND | Ground circuit for the multi view camera unit |
| 7 | Not used | - |
| 8 | SL_CAM_GND | Ground circuit for the left side camera |
| 9 | SL_CAM_VID_GND | Ground circuit for left side camera video signal |
| 10 | SR_CAM_GND | Ground circuit for the right side camera |
| 11 | SR_CAM_VID_GND | Ground circuit for right side camera video signal |
| 12 | R_CAM_GND | Ground circuit for the rear view camera |
| 13 | R_CAM_VID_GND | Ground circuit for rearview camera video signal |
| 14 | F_CAM_GND | Ground circuit for the front camera |
| 15 | F_CAM_VID_GND | Ground circuit for front camera video signal |
| 16 | Not used | - |
| 17 | Not used | - |
| 18 | SGND | Ground circuit for the multi view camera unit |
| 19 | +B_AUDIO(VST) | Power supply for backup memory |
| 20 | IG1_METER(VST) | Power supply for the multi view camera unit |
| 21 | MVS_VID | Video signal for the multi view camera |
| 22 | B-CAN_H | B-CAN communication (high) circuit |
| 23 | B-CAN_L | B-CAN communication (low) circuit |
| 24 | RETRA_MVC_SW | Detects power mirror switch signal |
| 25 | MVS_SW | Detects multi view camera switch signal |
| 26 | SL_CAM_VCC | Power source for left side camera |
| 27 | SL_CAM_VID | Video signal for left side camera |
| 28 | SR_CAM_VCC | Power source for right side camera |
| 29 | SR_CAM_VID | Video signal for right side camera |
| 30 | R_CAM_VCC | Power source for rear view camera |
| 31 | R_CAM_VID | Video signal for rear view camera signal |
| 32 | F_CAM_VCC | Power source for front camera |
| 33 | F_CAM_VID | Video signal for front camera |
| 34 | Not used | - |
| 35 | Not used | - |
| 36 | MVS_VID_SW | Multi view camera visual switching signal |
