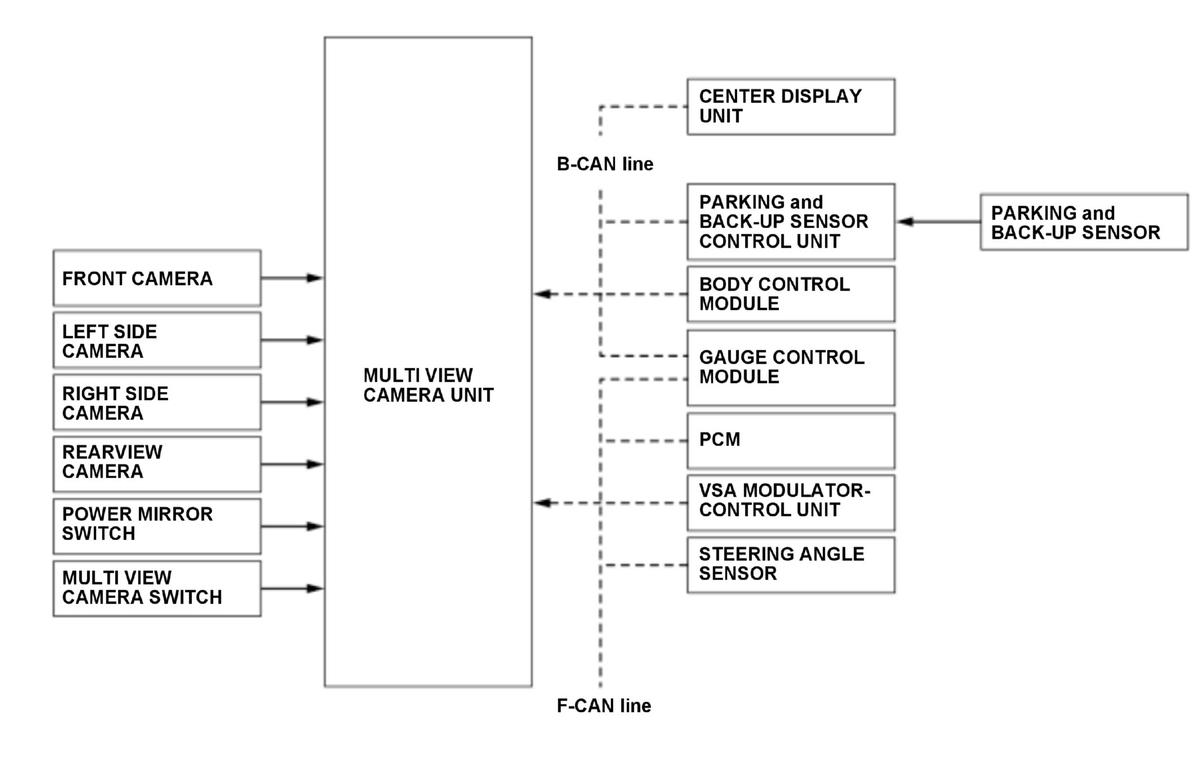

Multi View Camera System (MVCS) Description - System Diagram
The Multi View Camera System's unit first processes the image inputs (from the four wide-angle cameras), steering angle inputs (from the steering angle sensor), vehicle speed inputs (from the F-CAN), and switch inputs (from the related units) to send image signals or change view commands to the center display unit.
For locations of each component on vehicle, refer to Component Location Index:
- Front Camera, Multi View Left Side Camera, Multi View Right Side Camera, Multi View Camera Unit, Multi View Camera Switch
- Center Display Unit, Rearview Camera - Refer to: Audio and Visual System Component Location Index or Audio and Visual System Component Location Index (2022 2023)
- Parking and Back-Up Sensor Control Unit, Parking and Back-Up Sensor
- Power Mirror Switch
- Gauge Control Module
- PCM
- VSA Modulator-Control Unit, Steering Angle Sensor
