Climate Control Panel Component Inspection

Test Procedure

• Preparation
  • Climate control panel 20P connector: disconnected
• Procedure
  • Perform the inspection according to the following table while operate each switch.

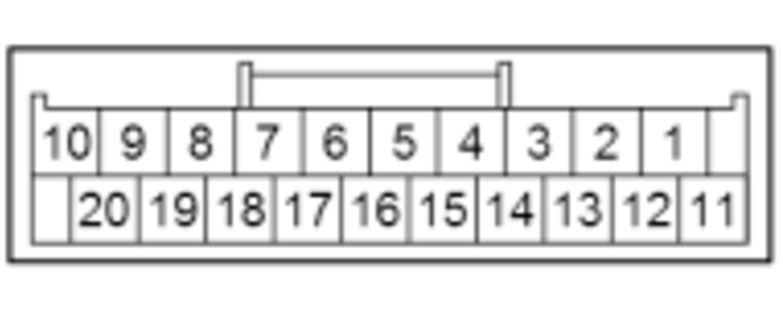

    			(Disconnected) Climate control panel 20P connector male terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	Climate control panel internal circuit inspection	OFF		Not operated: There is no continuity  Volume knob turned to right: There is continuity
    		OFF		Not operated: There is no continuity  Press the power button: There is continuity
    		OFF		Not operated: There is no continuity  Volume knob turned to left: There is continuity
    		OFF		Not operated: There is no continuity  Press the button: There is continuity
    		OFF		Not operated: There is no continuity  Press the button: There is continuity

Results

• If abnormal, there is a problem with the climate control panel.
