HomeLink Unit Connector for Inputs and Outputs

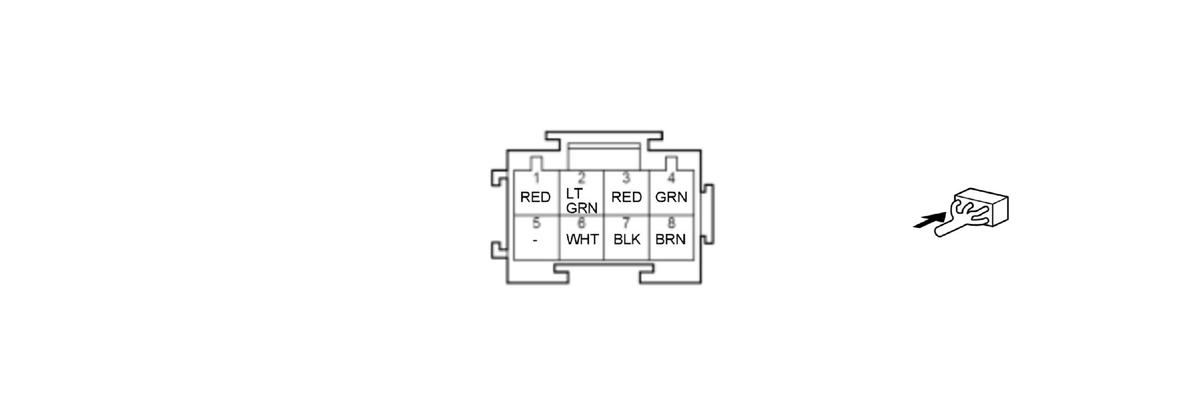

HomeLink Unit 8P Connector (male terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | +B_BACK_UP | Power source for HomeLink control unit |
| 2 | ILL_ROOF+ | Detects ILL_ROOF+ signal |
| 3 * | DR_MIRR_DIMMING_GND | Ground for power mirrors |
| 4 * | DR_MIRR_DIMMING | Outputs DR_MIRR_DIMMING signal |
| 5 | Not used | --- |
| 6 | BACK_LT | Detects BACK_LT signal |
| 7 | PGND | Ground for HomeLink control unit |
| 8 | IG2_OPTION | IG2 power source |
| *: With automatic dimming outside mirror | ||
