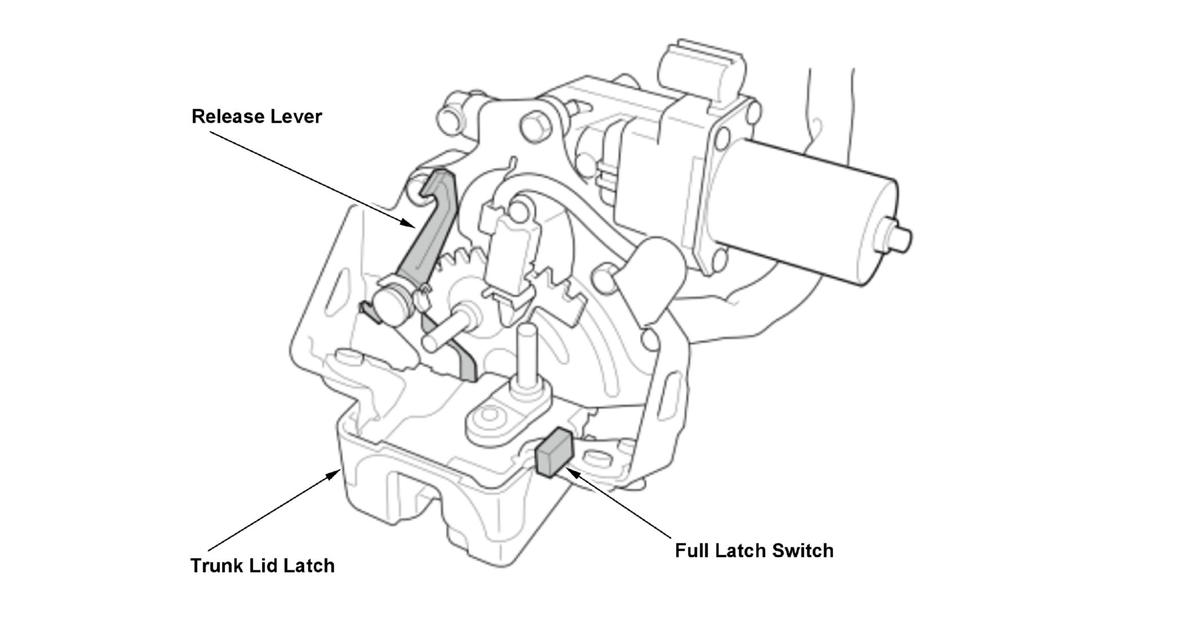

Full Latch Switch
The full latch switch is the ON/OFF switch that detects the opening/closing of the tailgate. If the tailgate closer/release actuator is abnormal, the tailgate may be opened manually with the release lever.
 Courtesy of HONDA, U.S.A., INC.
|
| Tailgate |
Full Latch Switch |
| Open |
ON |
| Close |
OFF |
