Security Control

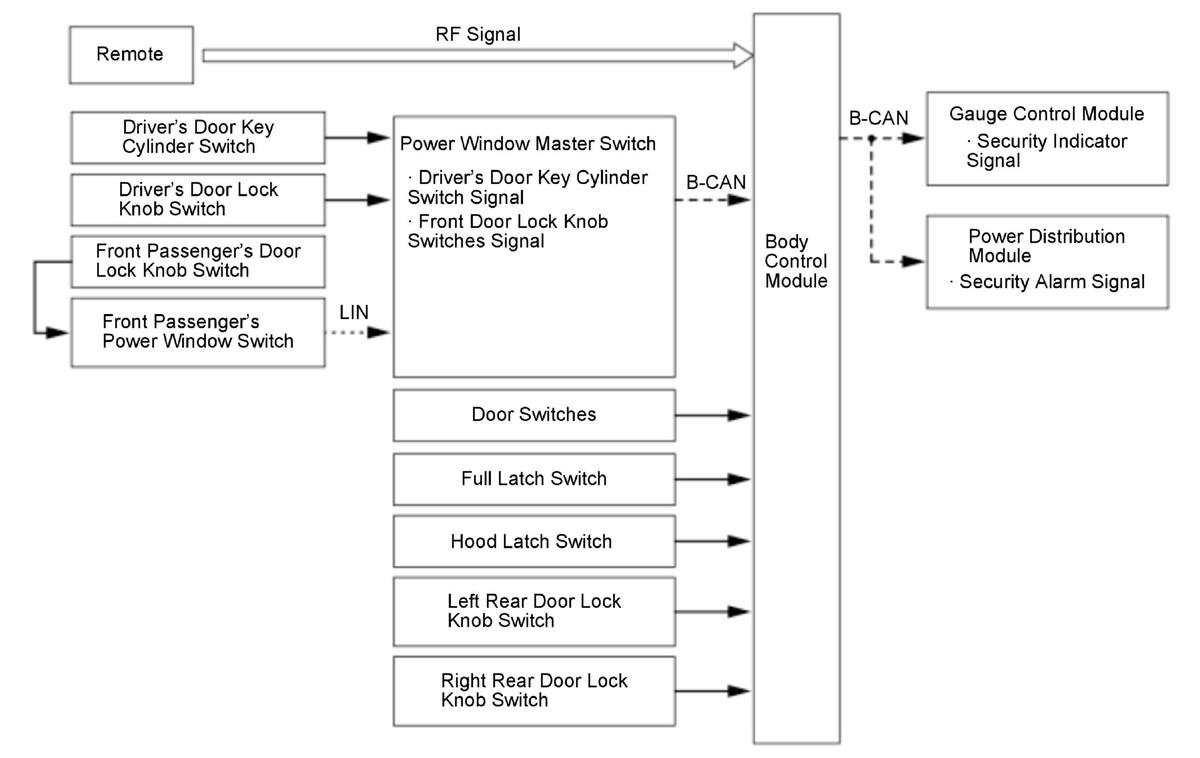

When the security alarm is set, the body control module sends the security set signal using the B-CAN.
 Courtesy of HONDA, U.S.A., INC.
|
Security system operating term
| Start setting |
- Lock the door using a mechanical key
- Lock the door by using the remote
- Lock the door by pressing the door outer handle lock sensor while having the remote
- Operate a keyless relock
|
| Cancellation |
- Unlock the door or tailgate by using the remote
- Unlock the door or tailgate by smart function
- Press the engine start/stop switch button while having the remote
|
| Setting conditions (related systems are normally operated) |
- Door switch OFF (Door close)
- Door unlock knob switch OFF (Lock)
- Full latch switch OFF (Tailgate close)
- Driver's door key cylinder switch OFF
- Hood latch switch ON (Hood close)
- Vehicle OFF (LOCK) mode
|
| Starting the alarm |
When any of the monitoring switch signal inputs are received without the signal for cancelling setting |
| Cancelling the alarm |
Compliant with the conditions for cancelling setting |
