Power Distribution Module Connector for Inputs and Outputs
| Connector Index |
|---|
| Power Distribution Module Connector A (18P) |
| Power Distribution Module Connector B (14P) |
| Power Distribution Module Connector C (10P) |
| Power Distribution Module Connector D (8P) |
| Power Distribution Module Connector E (2P) |
| Power Distribution Module Connector F (8P) |
| Power Distribution Module Connector G (3P) |

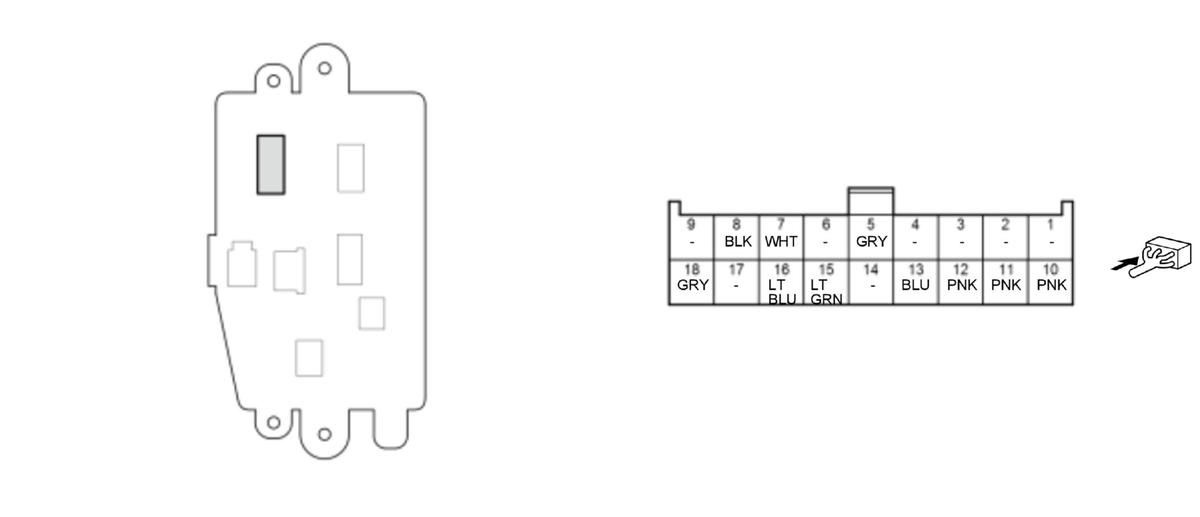

Power Distribution Module Connector A (18P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | Not used | --- |
| 2 | Not used | --- |
| 3 | Not used | --- |
| 4 | Not used | --- |
| 5 | A/C_MG_CLUTCH | Outputs A/C_MG_CLUTCH signal |
| 6 | Not used | --- |
| 7 | +B_HORN | Power source for power distribution module |
| 8 | HORN_RLY_OUT | Outputs HORN_RLY_OUT signal |
| 9 | Not used | --- |
| 10 | FR_H/SEAT_RLY_OUT | Outputs FR_H/SEAT_RLY_OUT signal |
| 11 | FR_H/SEAT_RLY_OUT | Outputs FR_H/SEAT_RLY_OUT signal |
| 12 | FR_H/SEAT_RLY_OUT | Outputs FR_H/SEAT_RLY_OUT signal |
| 13 | FI_MAIN_RLY_CL- | Detects FI_MAIN_RLY_CL- signal |
| 14 | Not used | --- |
| 15 | FI_MAIN_RLY_OUT | Power source for power distribution module |
| 16 | A/C_MG_CLUTCH_RLY_CL- | Detects A/C_MG_CLUTCH_RLY_CL- signal |
| 17 | Not used | --- |
| 18 | FUEL_PUMP_RLY_CL- | Detects FUEL_PUMP_RLY_CL- signal |

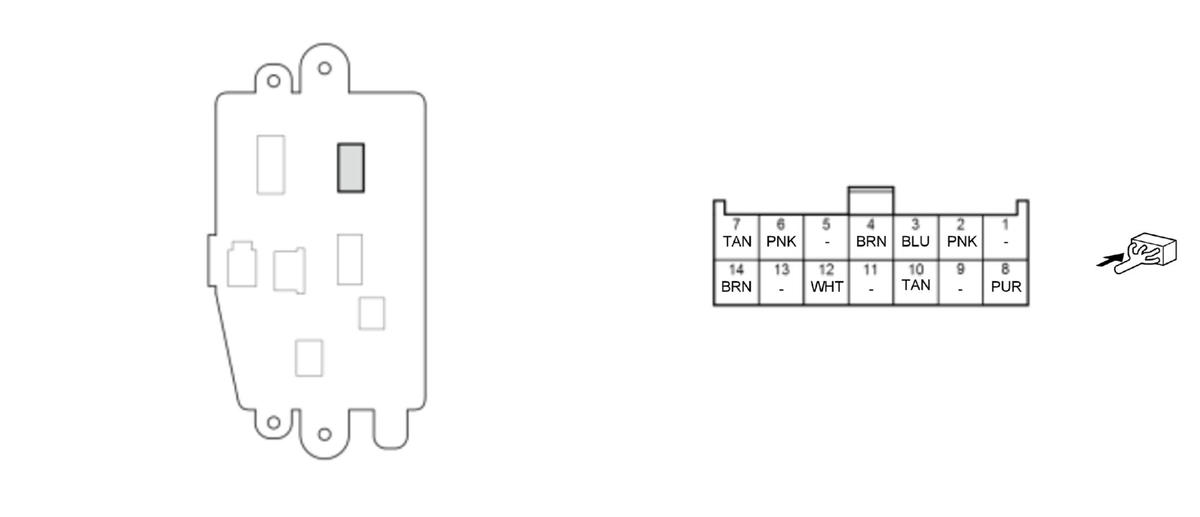

Power Distribution Module Connector B (14P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | Not used | --- |
| 2 | BACK_UP_H/L | Detects BACK_UP_H/L signal |
| 3 | +B_BACKUP(FET) | Power source for power distribution module |
| 4 | IG2_OPTION | IG2 power source |
| 5 | Not used | --- |
| 6 | B-CAN_H | Communication line |
| 7 | B-CAN_L | Communication line |
| 8 | INTR_LT_CUT_RLY_OUT | Outputs INTR_LT_CUT_RLY_OUT signal |
| 9 | Not used | --- |
| 10 | SCTY_HORN_RLY_CL- | Detects SCTY_HORN_RLY_CL- signal |
| 11 | Not used | --- |
| 12 | INTR_LT_CUT_RLY_CL- | Detects INTR_LT_CUT_RLY_CL- signal |
| 13 | Not used | --- |
| 14 | GND | Ground for power distribution module |
Power Distribution Module Connector C (10P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | +B_R_H/L_LO | Outputs +B_R_H/L_LO signal |
| 2 | ILLUMI+ | Outputs ILLUMI+ signal |
| 3 | SMALL_L | Outputs SMALL_L signal |
| 4 | L_DRL | Outputs L_DRL signal |
| 5 * | FR_FOG_LT_L | Outputs FR_FOG_LT_L signal |
| 6 | R_DRL | Outputs R_DRL signal |
| 7 | SMALL_R | Outputs SMALL_R signal |
| 8 | ILL_ROOF+ | Outputs ILL_ROOF+ signal |
| 9 | +B_L_H/L_LO | Outputs +B_L_H/L_LO signal |
| 10 * | FR_FOG_LT_R | Outputs FR_FOG_LT_R signal |
*: With fog light

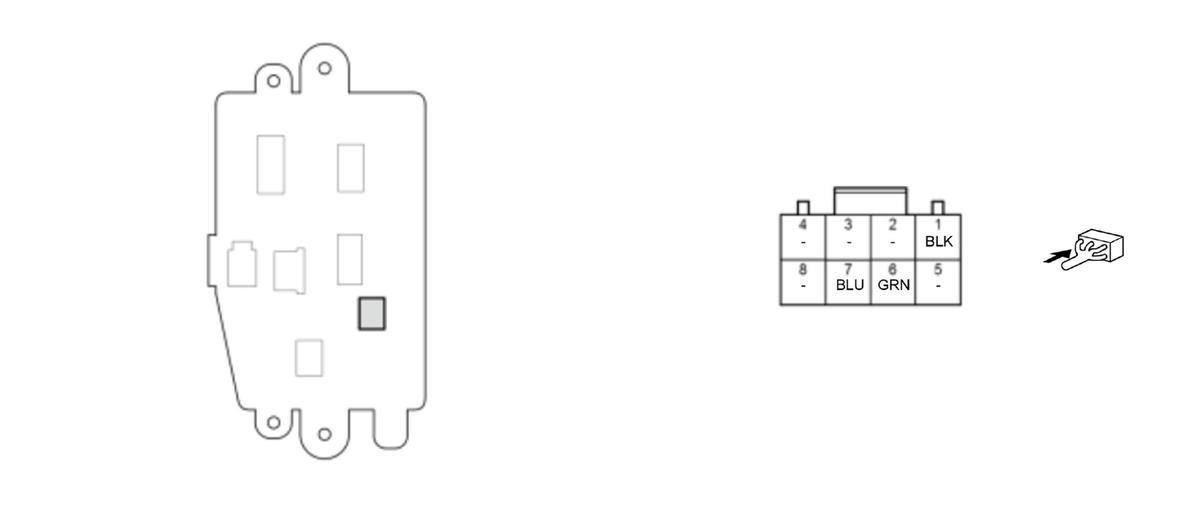

Power Distribution Module Connector D (8P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | GND | Ground for power distribution module |
| 2 | Not used | --- |
| 3 | Not used | --- |
| 4 | Not used | --- |
| 5 | Not used | --- |
| 6 | FUEL_PUMP_RLY_OUT | Outputs FUEL_PUMP_RLY_OUT signal |
| 7 | IG1_FUEL_PUMP | IG1 power source |
| 8 | Not used | --- |

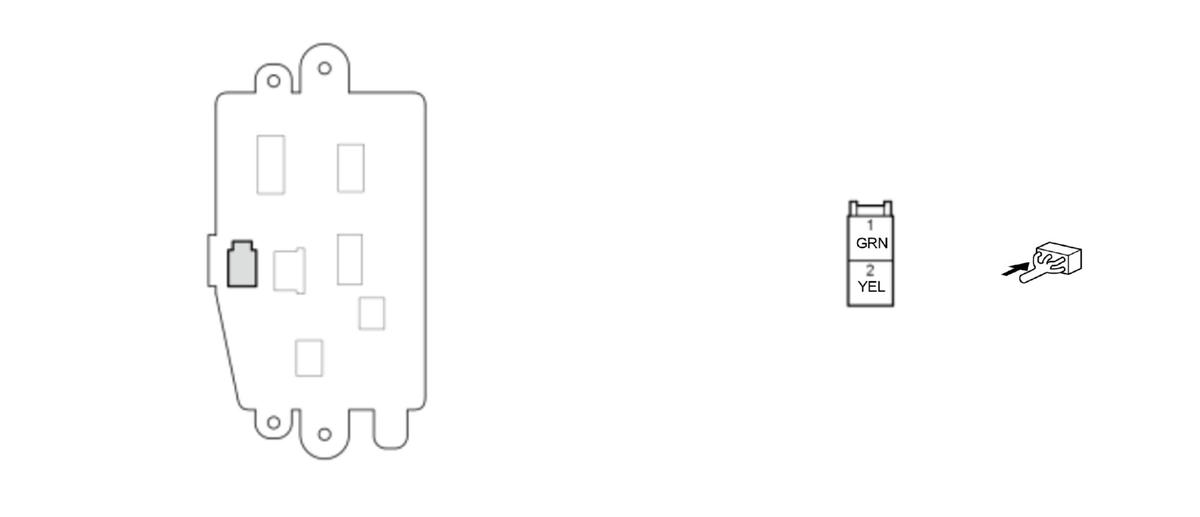

Power Distribution Module Connector E (2P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | +B_F/M3 | Power source for power distribution module |
| 2 | +B_F/M1 | Power source for power distribution module |

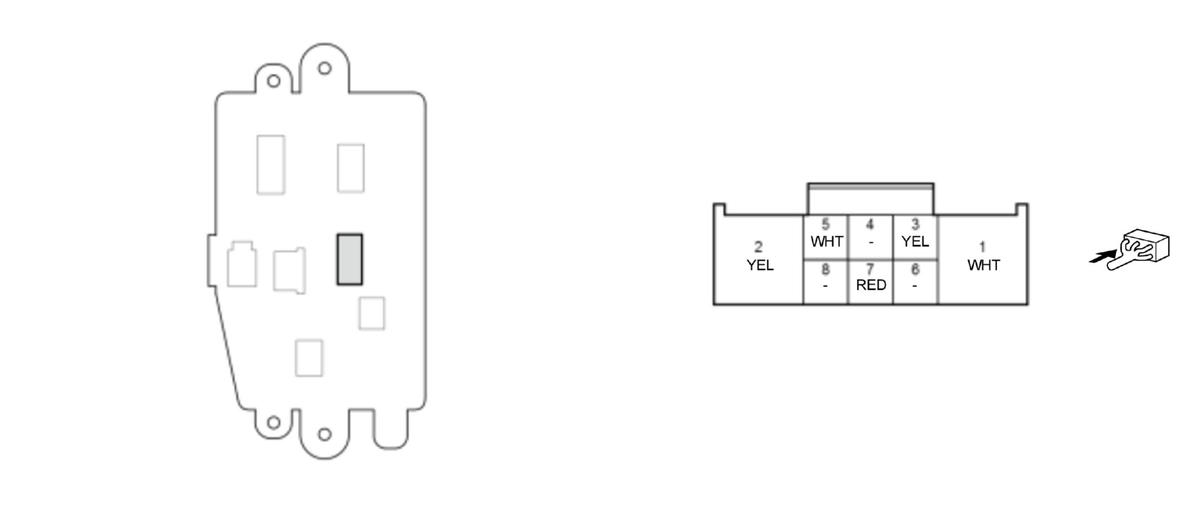

Power Distribution Module Connector F (8P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | BLOWER_MTR | Outputs BLOWER_MTR signal |
| 2 | RR_H/SEAT_RLY_OUT | Outputs RR_H/SEAT_RLY_OUT signal |
| 3 | IG_COIL_RLY_OUT | Outputs IG_COIL_RLY_OUT signal |
| 4 | Not used | --- |
| 5 | +B_IG_COIL | Power source for power distribution module |
| 6 | Not used | --- |
| 7 | IG1_VSA(VST) | IG1 power source |
| 8 | Not used | --- |
Power Distribution Module Connector G (3P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | +B_F/M2 | Power source for power distribution module |
| 2 | +B_RR_H/SEAT | Power source for power distribution module |
| 3 | +B_HTR_MTR | Power source for power distribution module |
