Repair Procedure: Procedure

■ Key Information

Do the following before starting your work.

Remove:

• Rear Engine Undercover (With rear engine undercover)

■ Sub-Procedure

• Removal/Installation

Courtesy of AMERICAN HONDA MOTOR CO., INC.

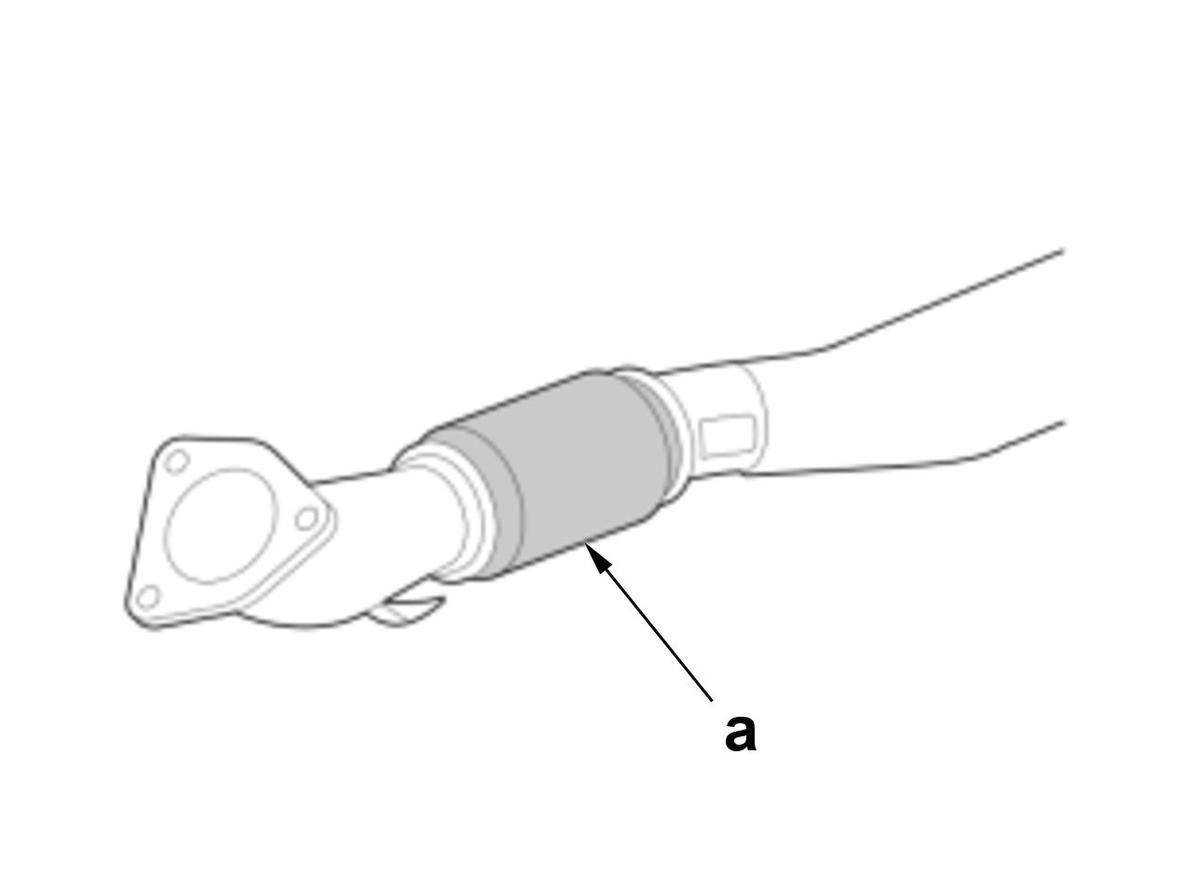

Do not bend the flex tube (a) of exhaust pipe A excessively. (Figure 1)

Figure 1

Courtesy of HONDA, U.S.A., INC.

• Installation

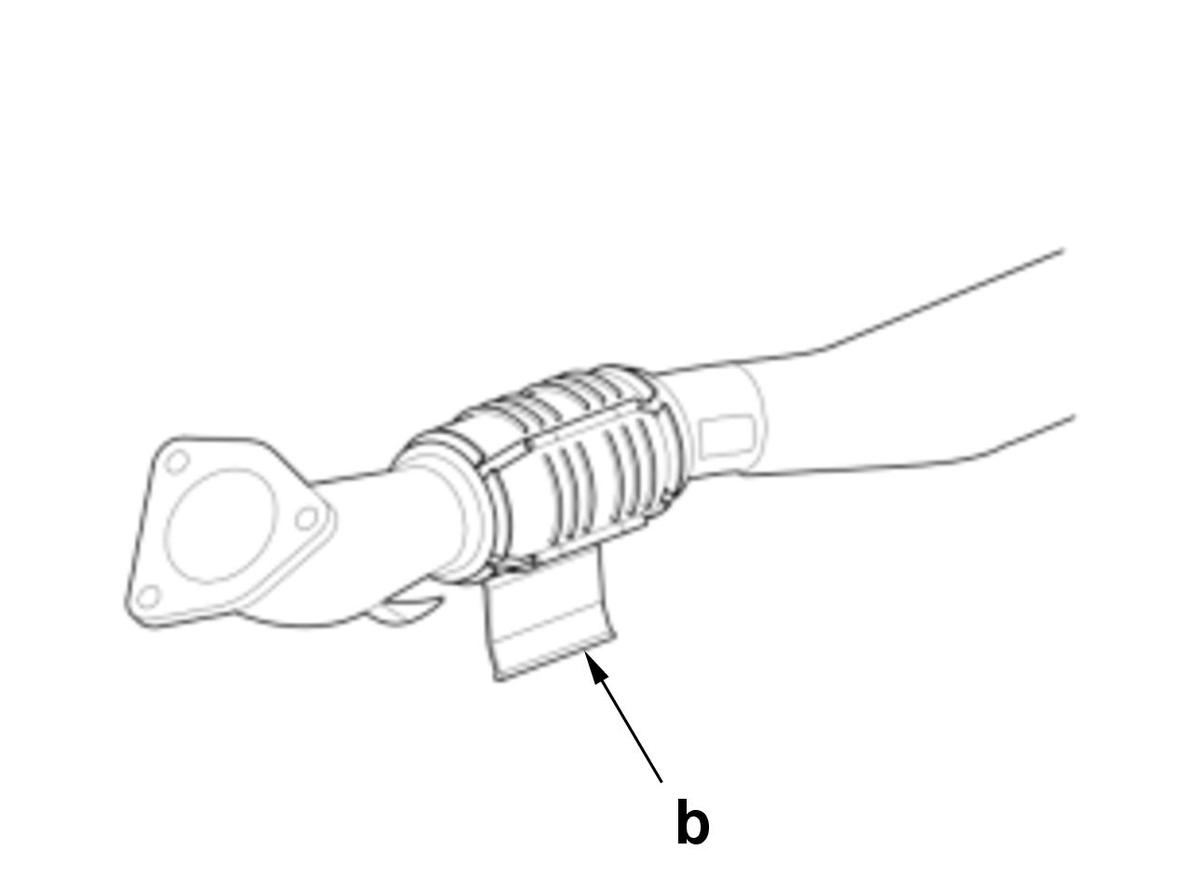

• When replacing exhaust pipe A, remove the protector (b) from new exhaust pipe A after installation. (Figure 2)

Figure 2

Courtesy of HONDA, U.S.A., INC.

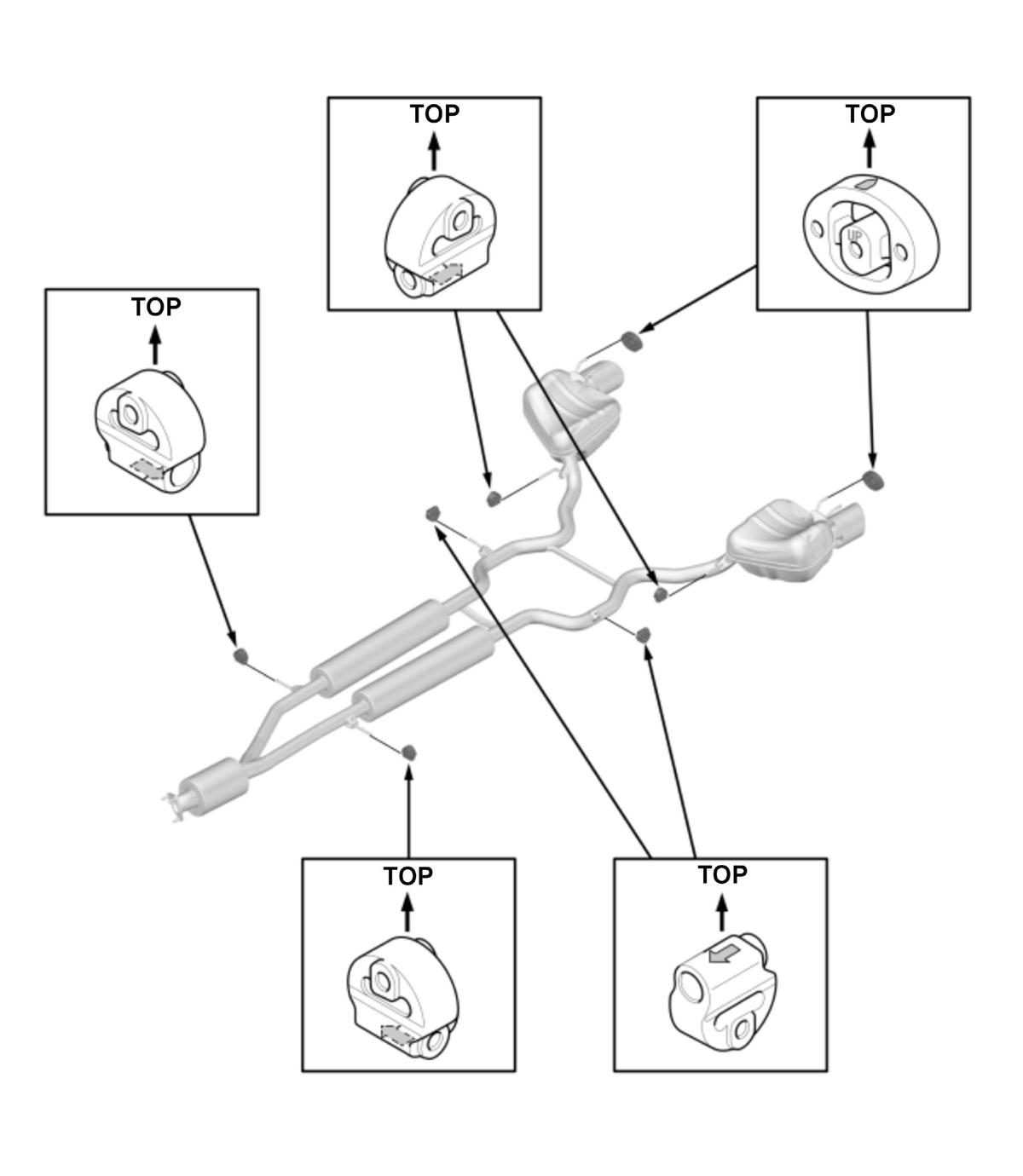

• Install the rubber mount as shown. (Figure 3)

Figure 3

Courtesy of HONDA, U.S.A., INC.

■ Key Information

Do the following before starting your work.

Remove:

• Rear Engine Undercover (With rear engine undercover)
• Propeller Shaft Protector (With AWD)

■ Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

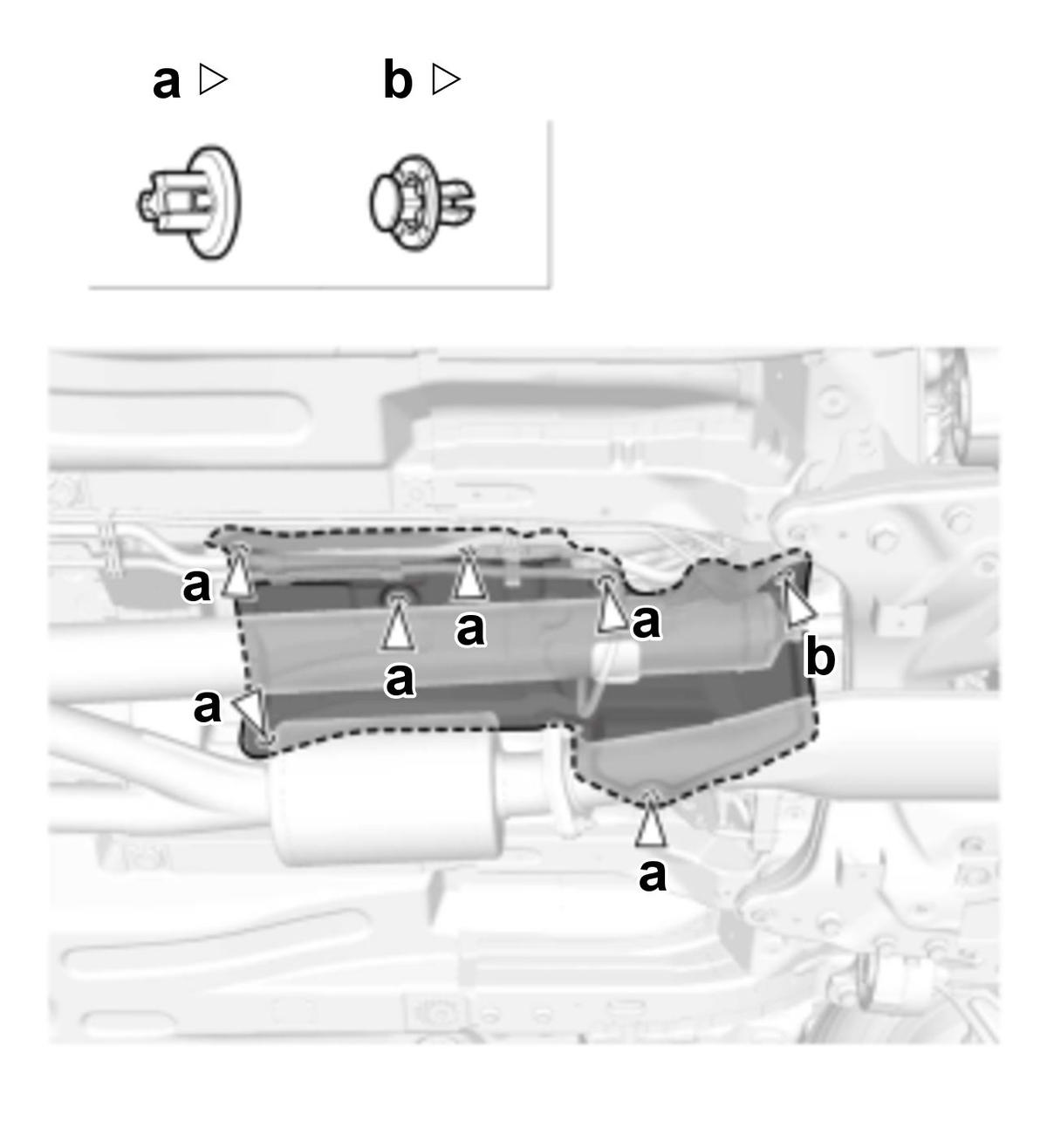

• Removal

• Refer to the figure.

■ Key Information

Do the following before starting your work.

Remove:

• Rear Engine Undercover (With rear engine undercover)

■ Sub-Procedure

• Installation

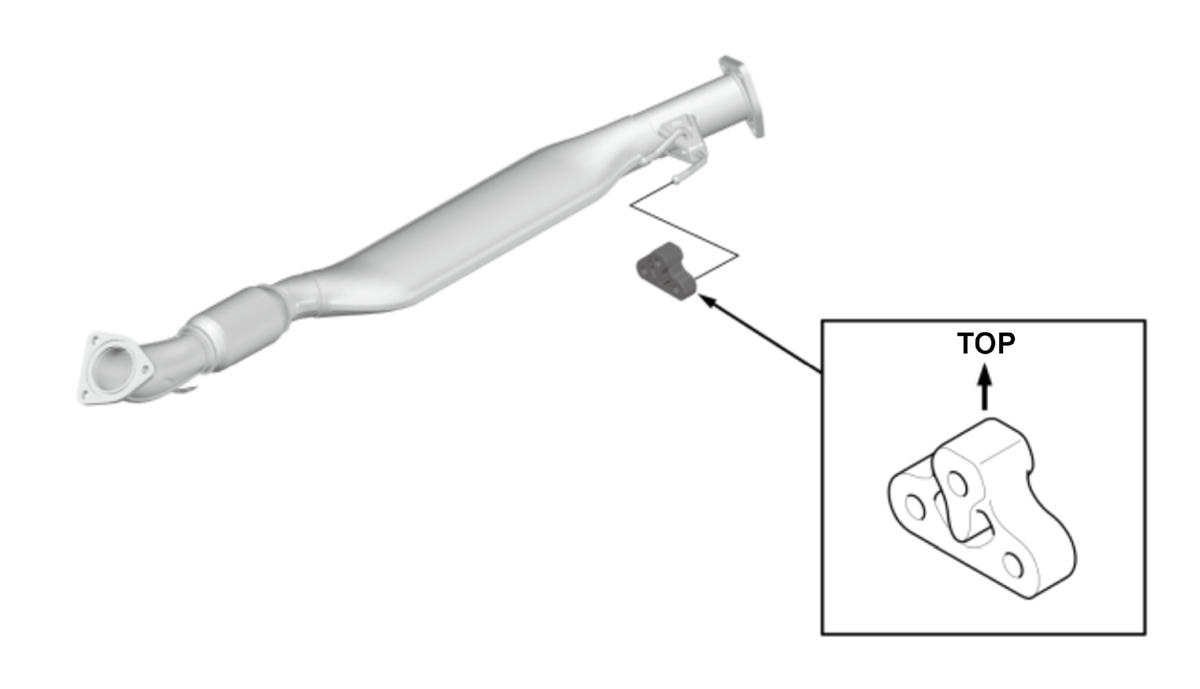

• Install the rubber mount as shown.

Courtesy of HONDA, U.S.A., INC.
