Repair Procedure: Notes

Fig 1: Front Subframe/Steering Gearbox Area Replacement Components With Torque Specifications (1 Of 2)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

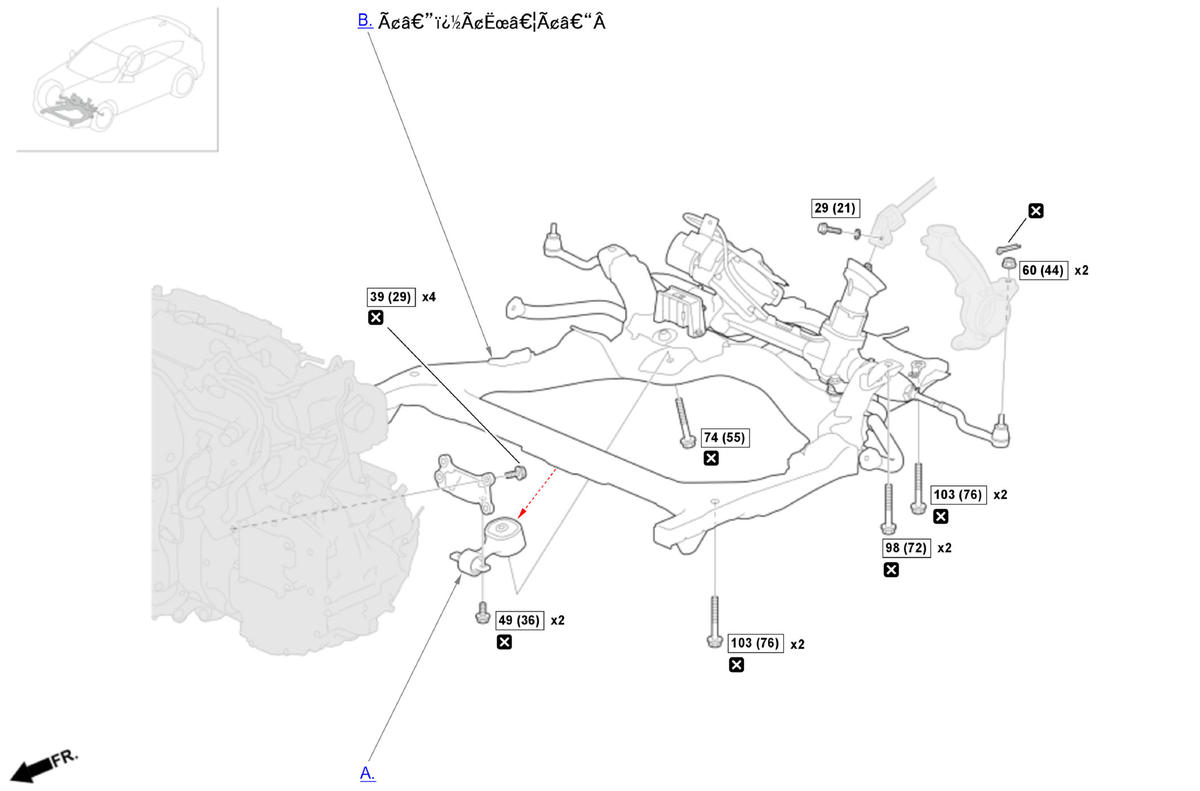

Fig 2: Front Subframe/Steering Gearbox Area Replacement Components With Torque Specifications (2 Of 2)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
