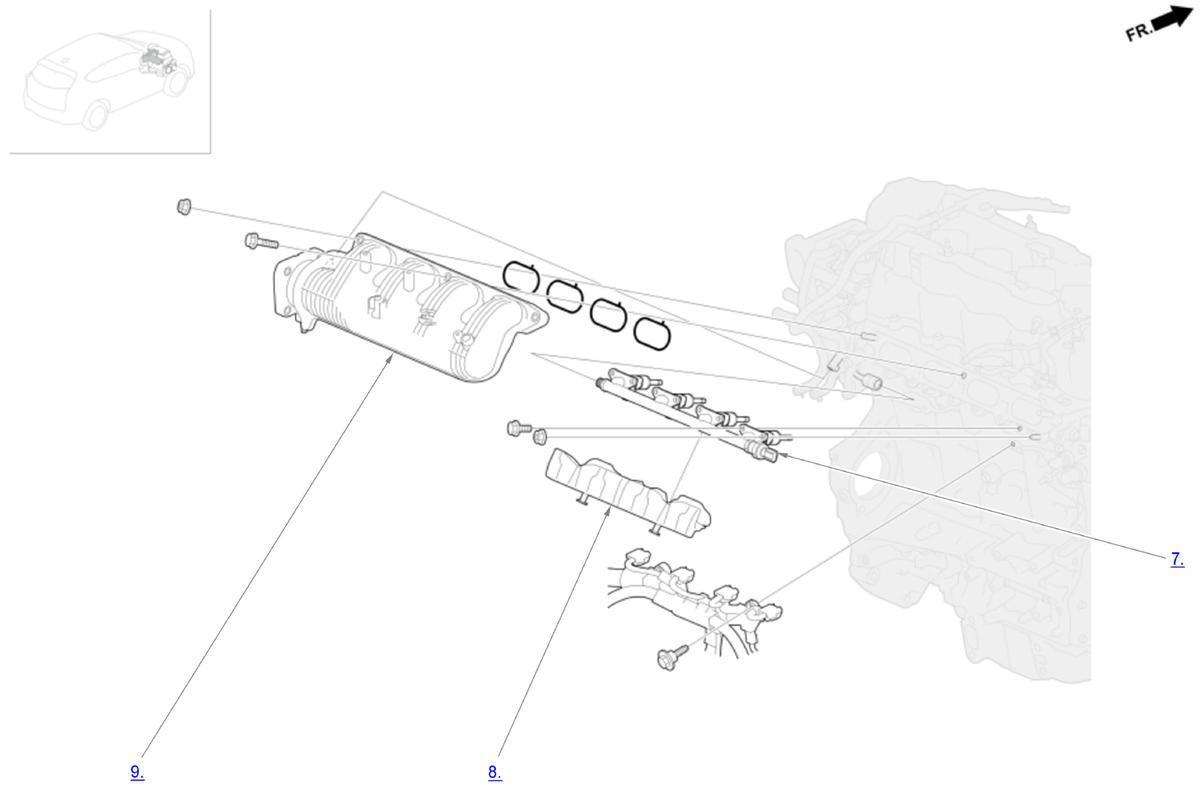

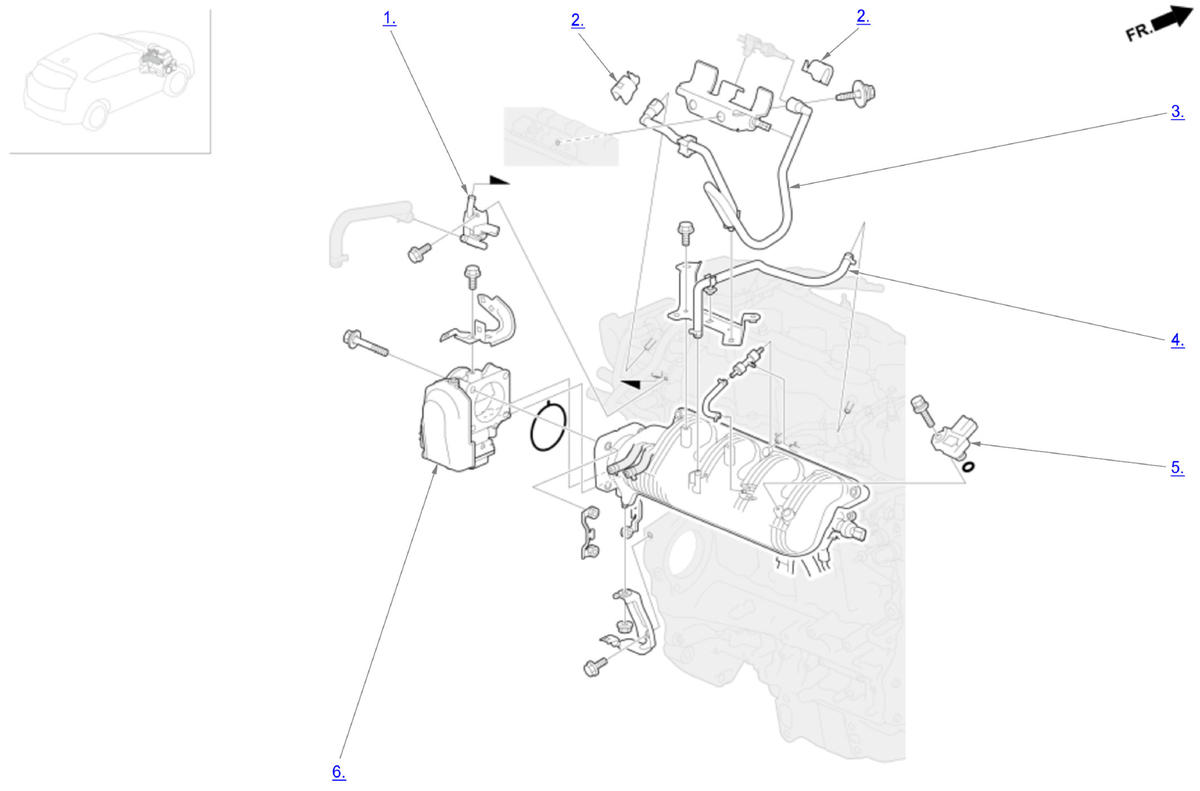

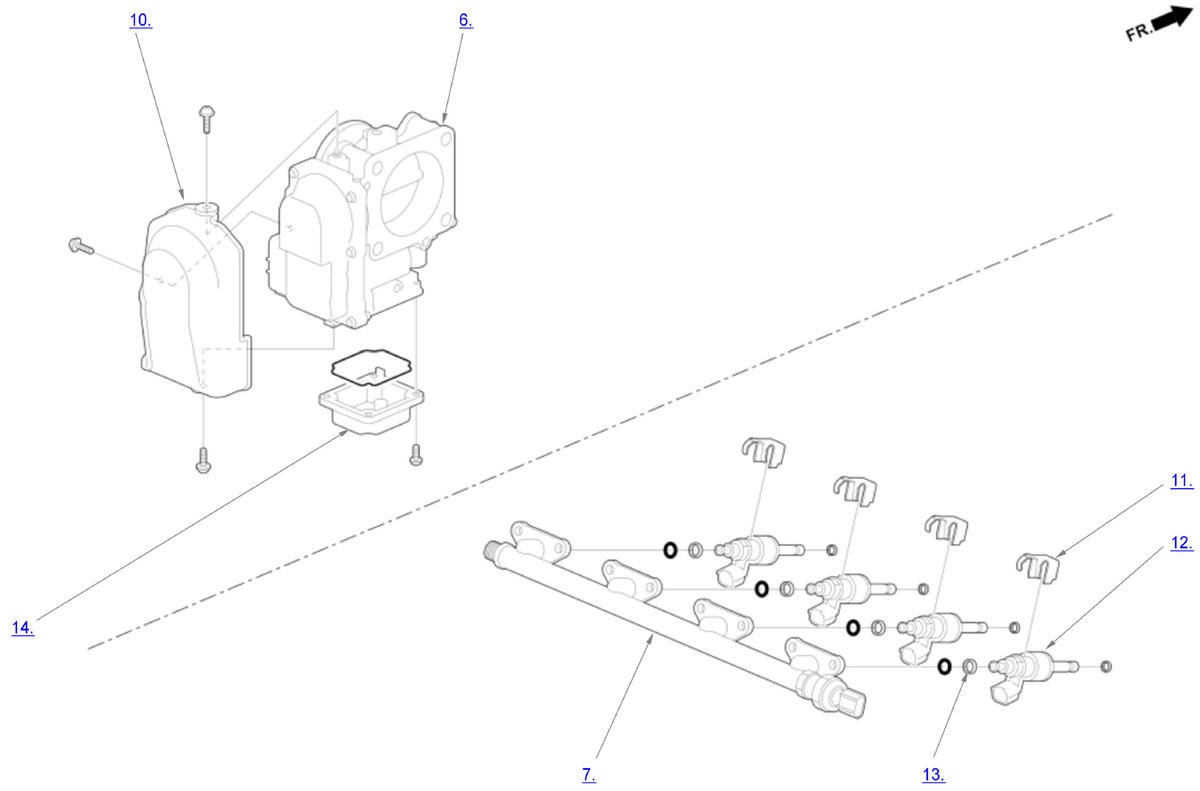

Exploded View
For replacement of components listed below, see Repair Procedure .
Intake Manifold Area Components
| Component Name | Callout |
|---|---|
| Purge Pipe | 1 |
| Quick-Connect Fitting Cover | 2 |
| Fuel Feed Hose | 3 |
| PCV Hose | 4 |
| Manifold Absolute Pressure (MAP) Sensor | 5 |
| Throttle Body | 6 |
| Fuel Rail | 7 |
| Fuel Rail Insulator | 8 |
| Intake Manifold | 9 |
| Throttle Body Cover | 10 |
| Injector Clip | 11 |
| Injector | 12 |
| Back-Up Ring | 13 |
| Throttle Body Lower Case | 14 |
