Repair Procedure: Notes

How to use this Service Information .

WARNING:

SRS components are located in this area. Before doing repairs or service:
- Review the SRS component locations .
- Review the precautions and procedures .

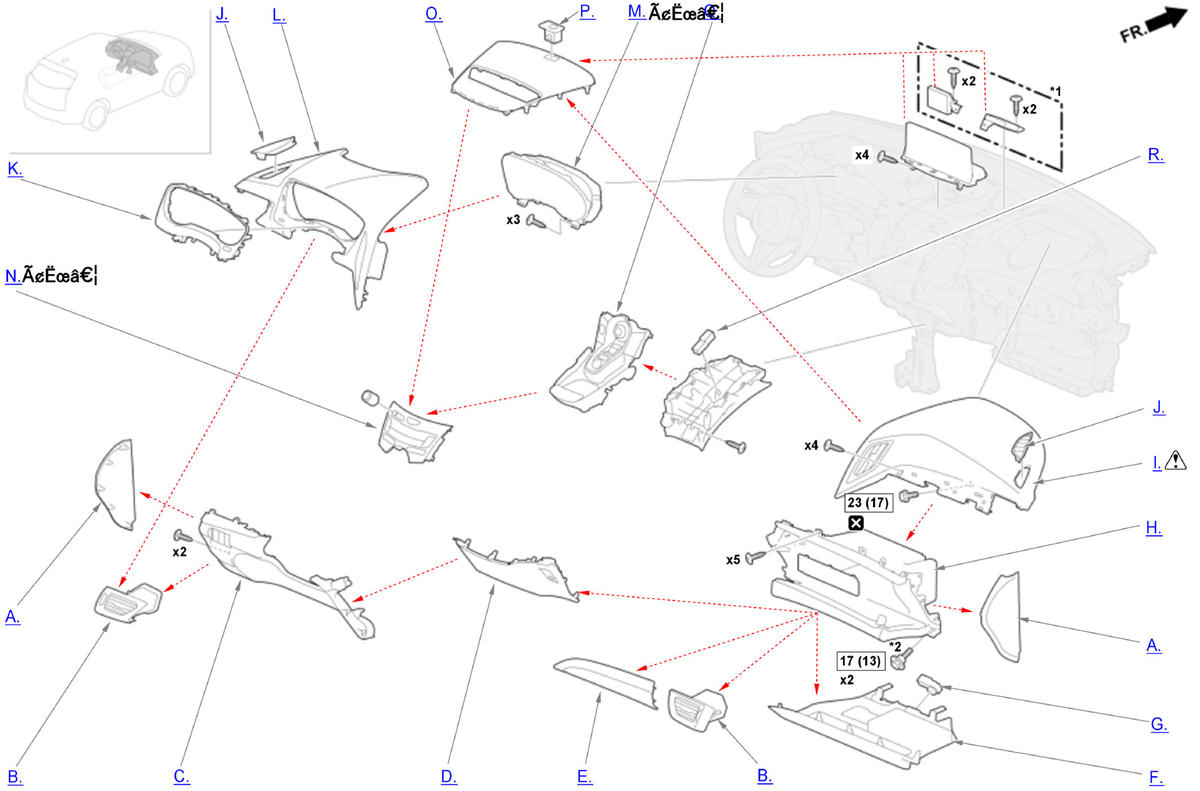

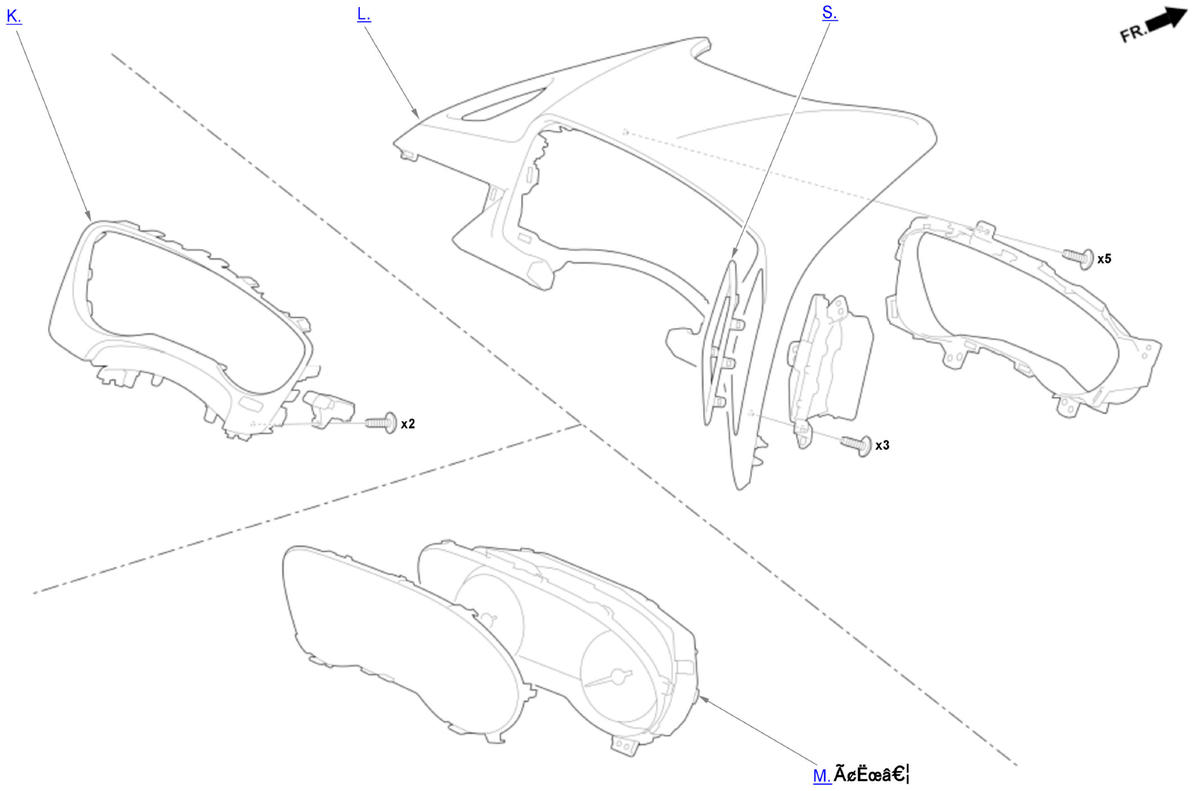

Fig 1: Dashboard/Steering Hanger Beam Area Replacement Components With Torque Specifications (1 Of 6)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
1: With AcuraLink 2: If a Mag-Form® bolt hole is stripped, oversize bolts are available.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

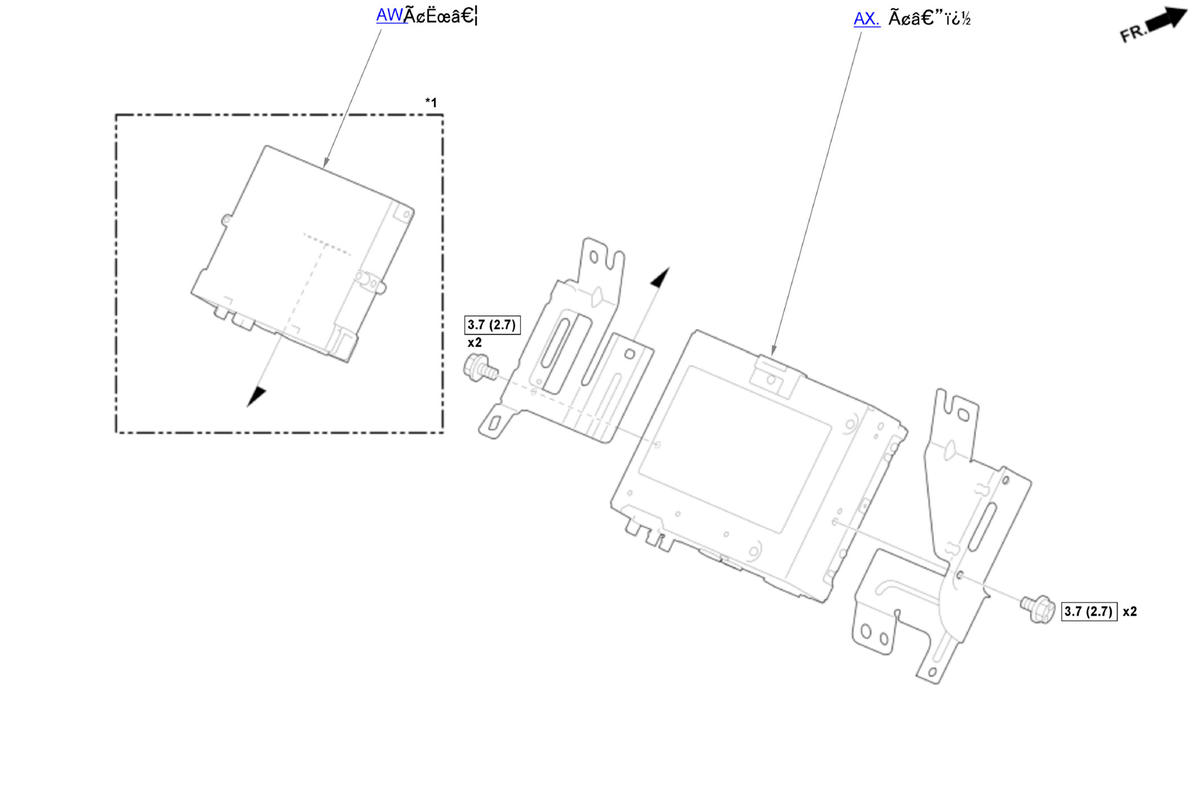

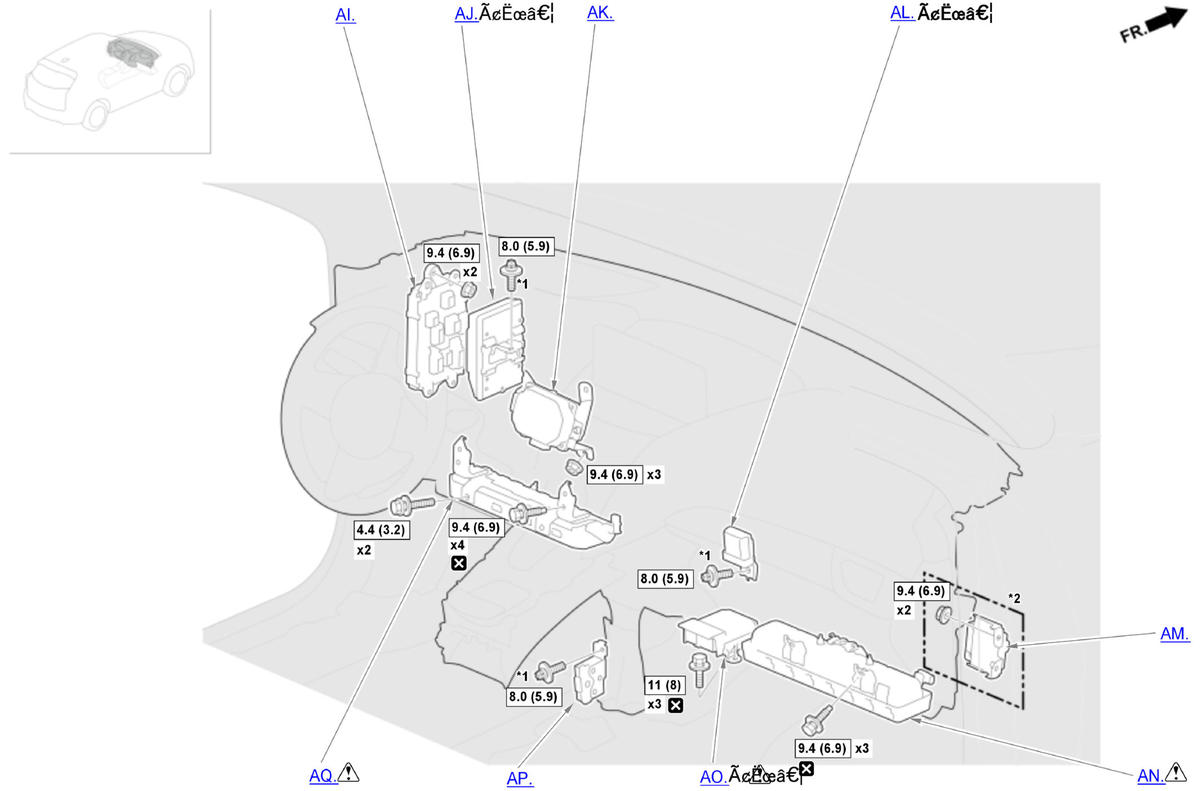

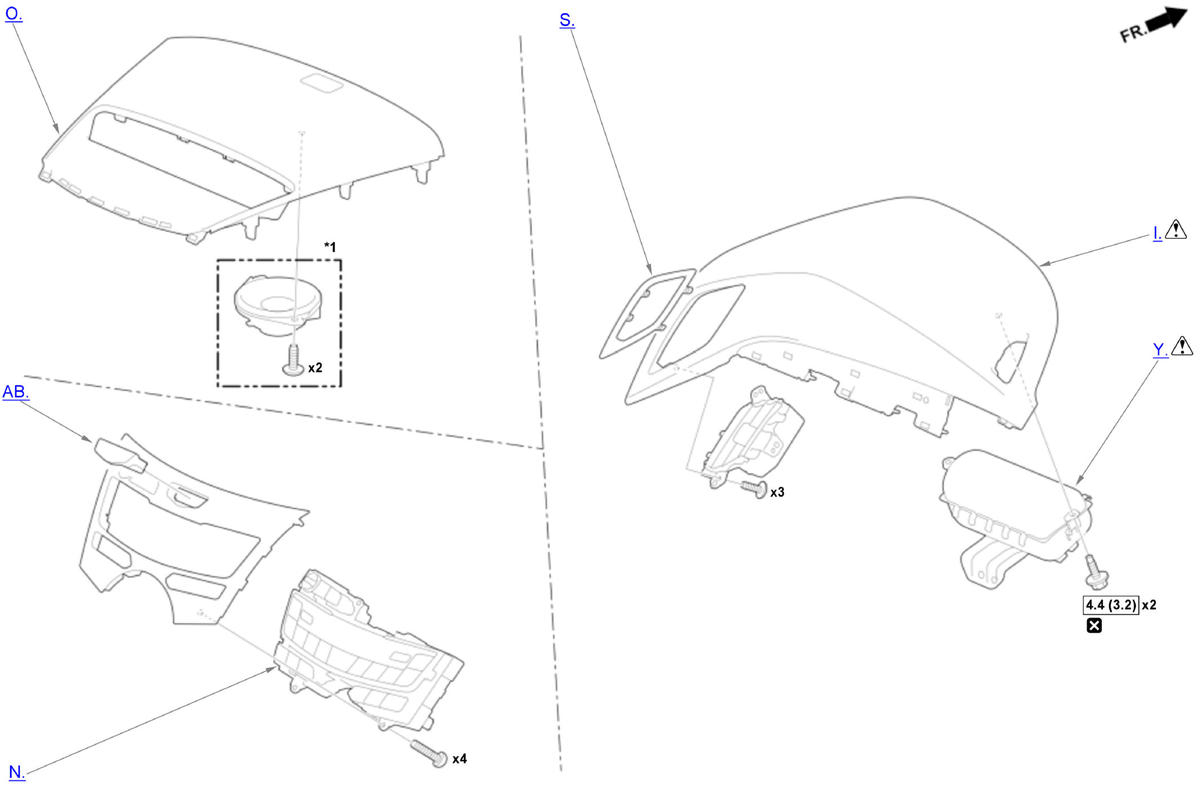

Fig 2: Dashboard/Steering Hanger Beam Area Replacement Components With Torque Specifications (2 Of 6)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
*1: With 16 speakers/With 12 speakers

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
*1: With master lighting control unit

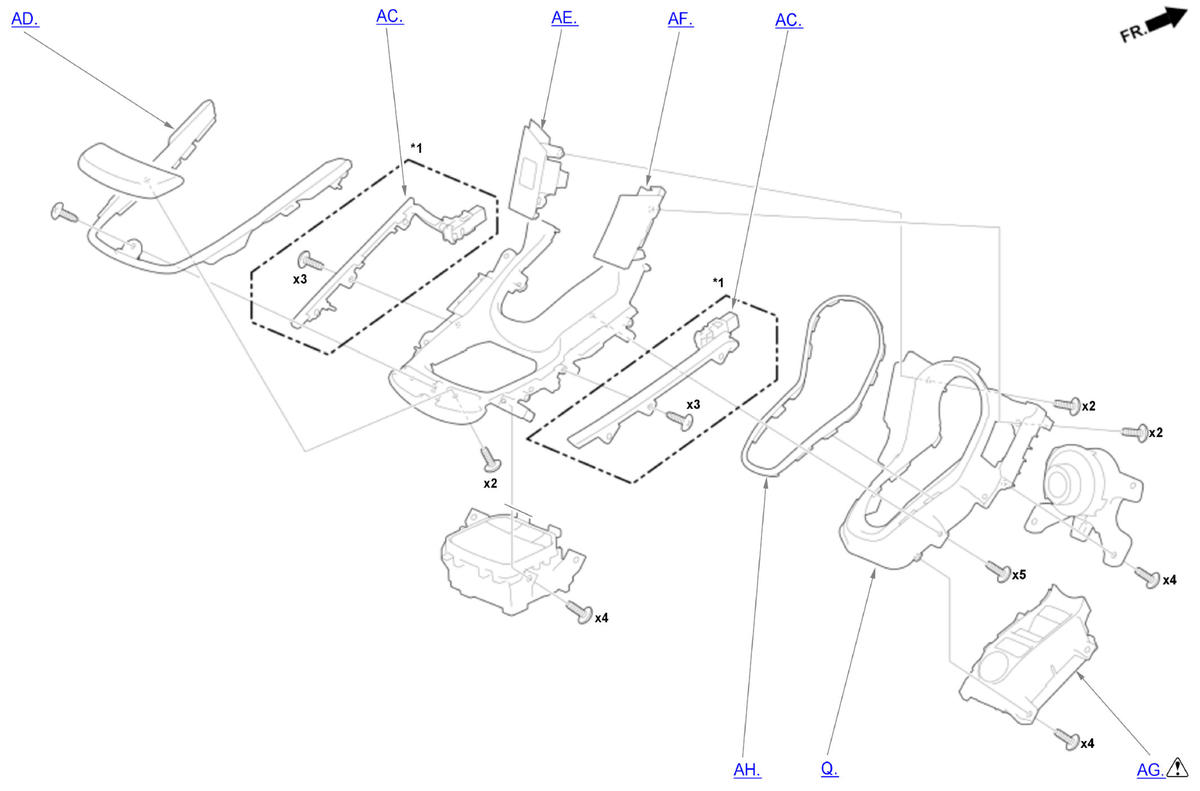

Fig 3: Dashboard/Steering Hanger Beam Area Replacement Components With Torque Specifications (3 Of 6)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
1: If a Mag-Form® bolt hole is stripped, oversize bolts are available. 2: With master lighting control unit

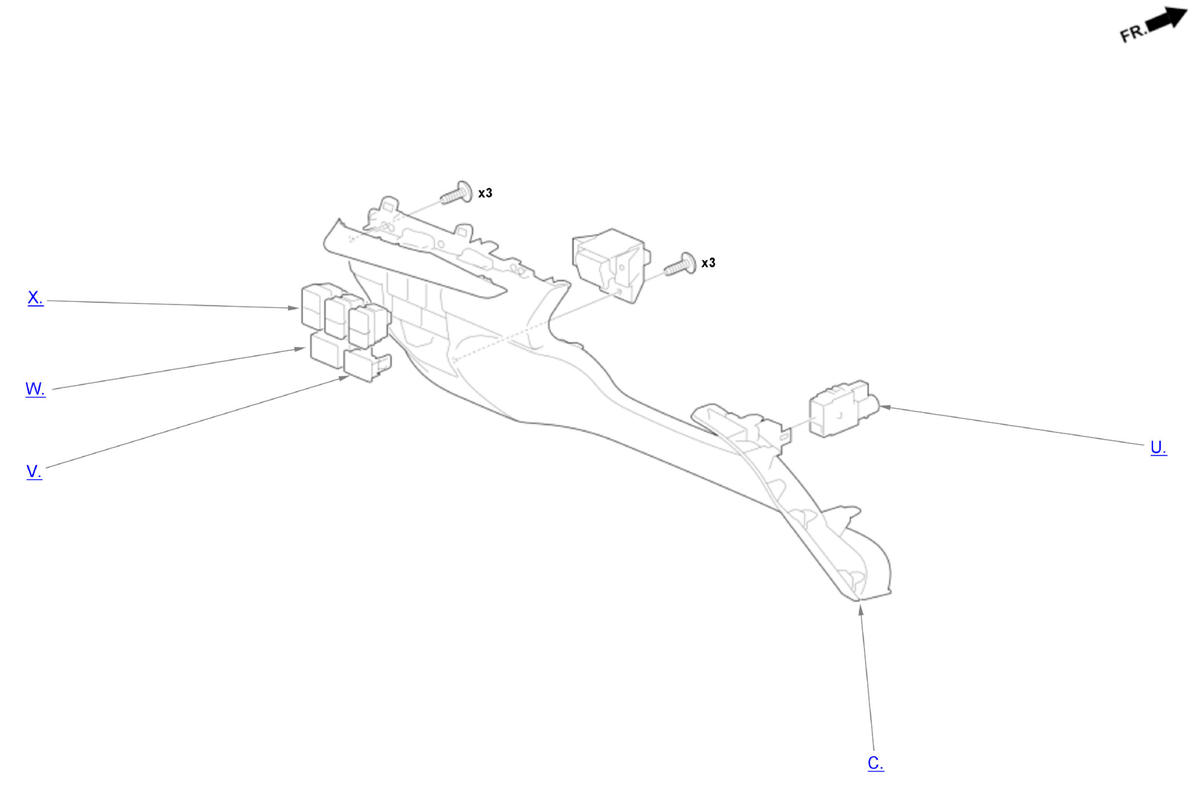

Fig 4: Dashboard/Steering Hanger Beam Area Replacement Components With Torque Specifications (4 Of 6)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
*1: With AcuraLink

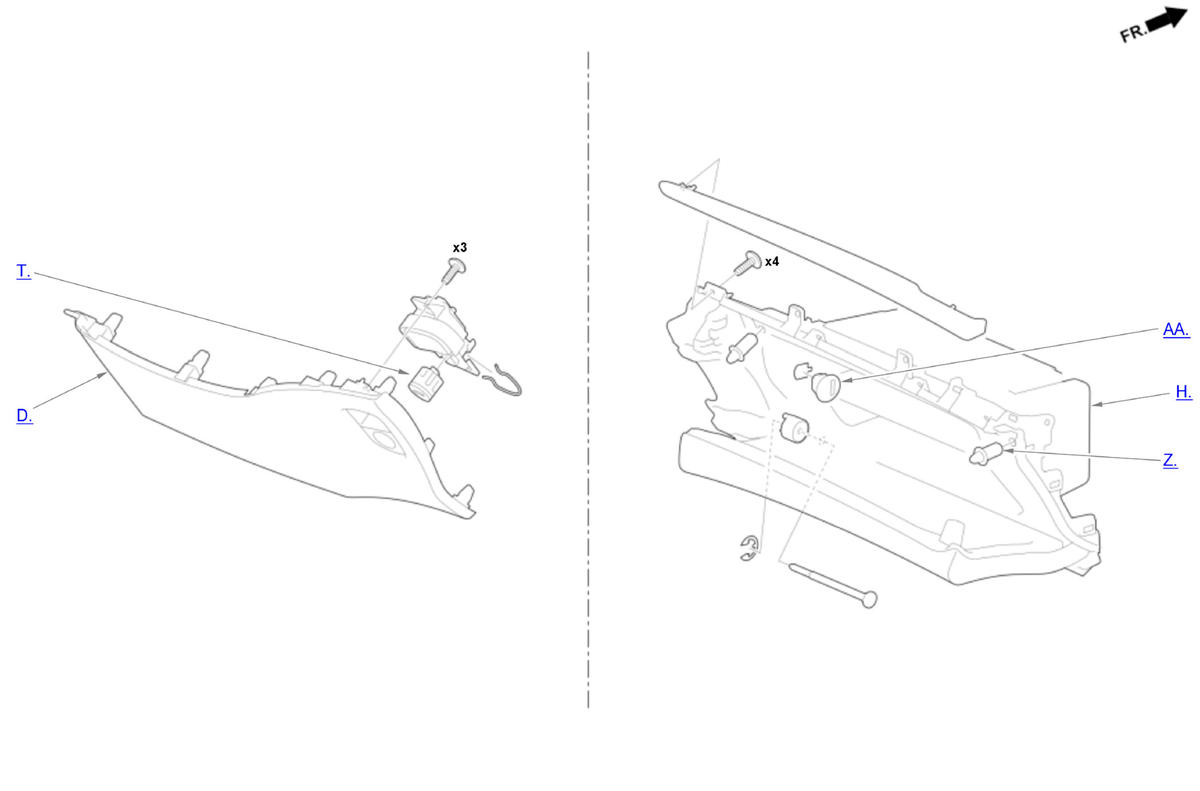

Fig 5: Dashboard/Steering Hanger Beam Area Replacement Components With Torque Specifications (5 Of 6)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
*1: If a Mag-Form® bolt hole is stripped, oversize bolts are available.

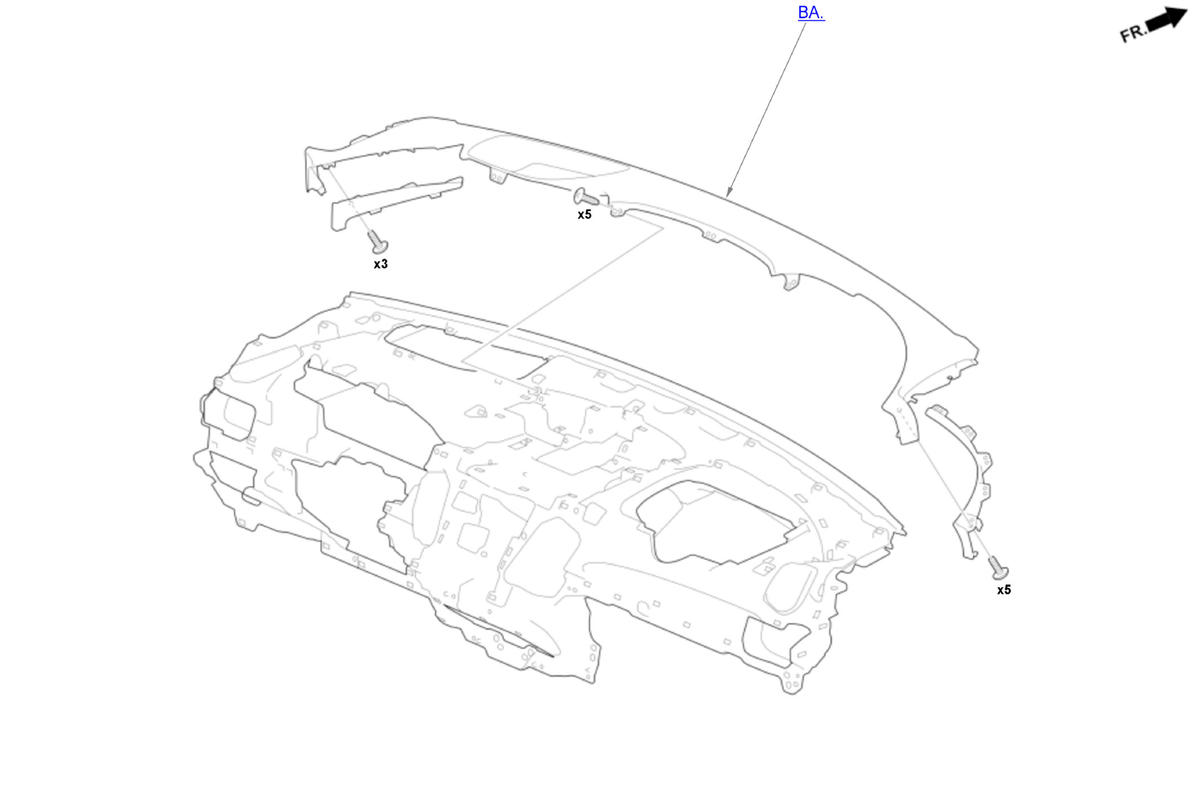

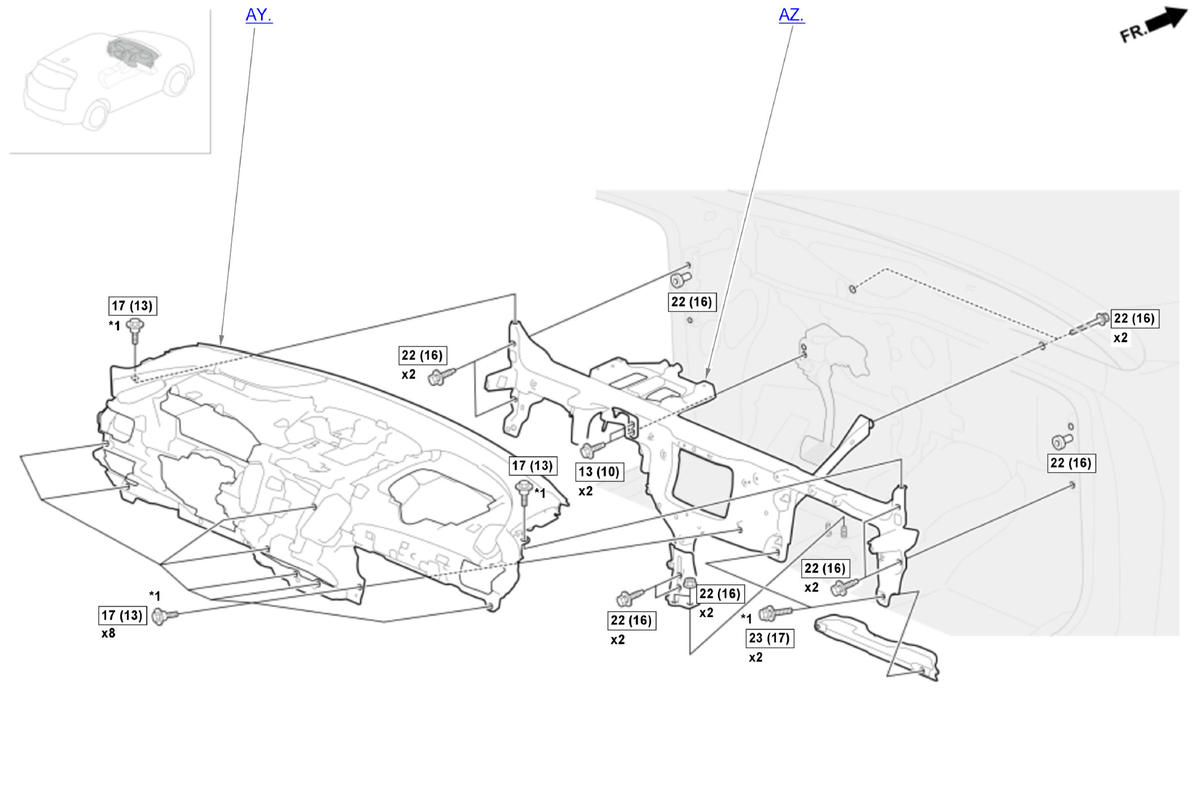

Fig 6: Dashboard/Steering Hanger Beam Area Replacement Components With Torque Specifications (6 Of 6)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal
