Repair Procedure: Notes

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

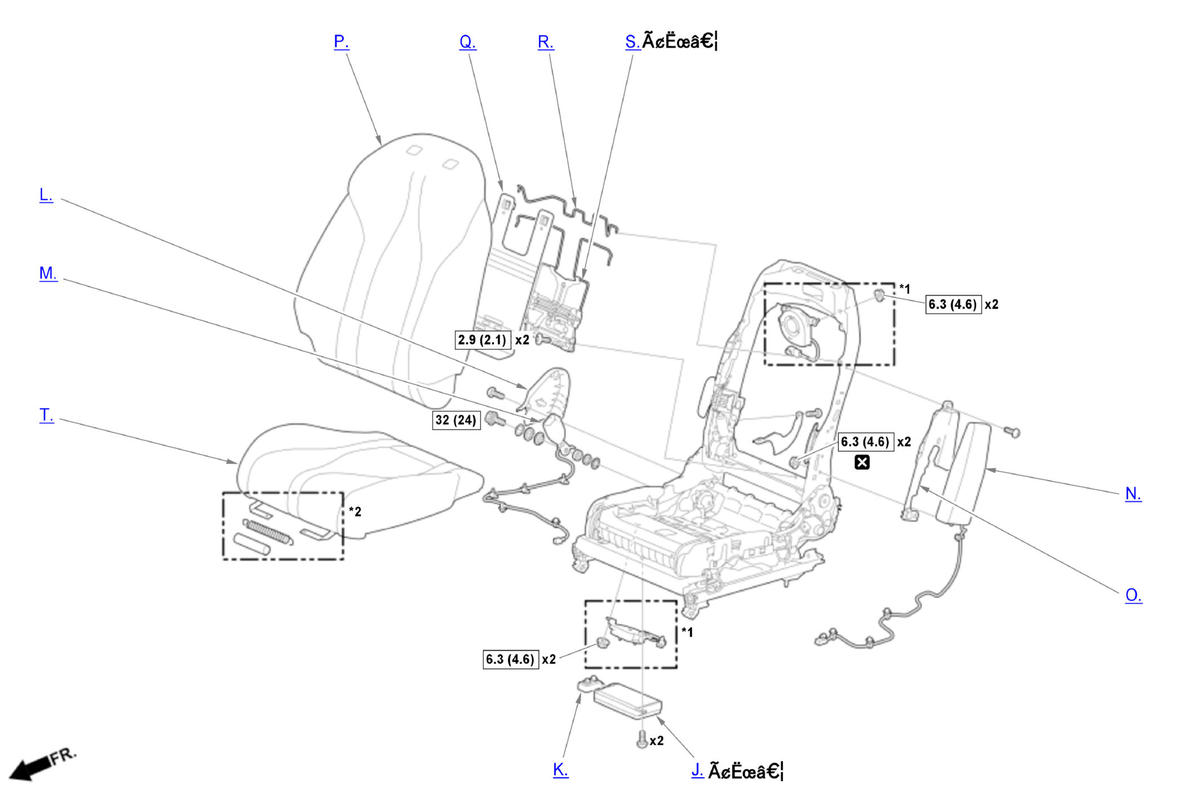

Fig 1: Front Seat Area - Driver's Replacement Components With Torque Specifications (1 Of 3)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
*1: Remove the bolt with a TORX Plus socket, 50 IP.

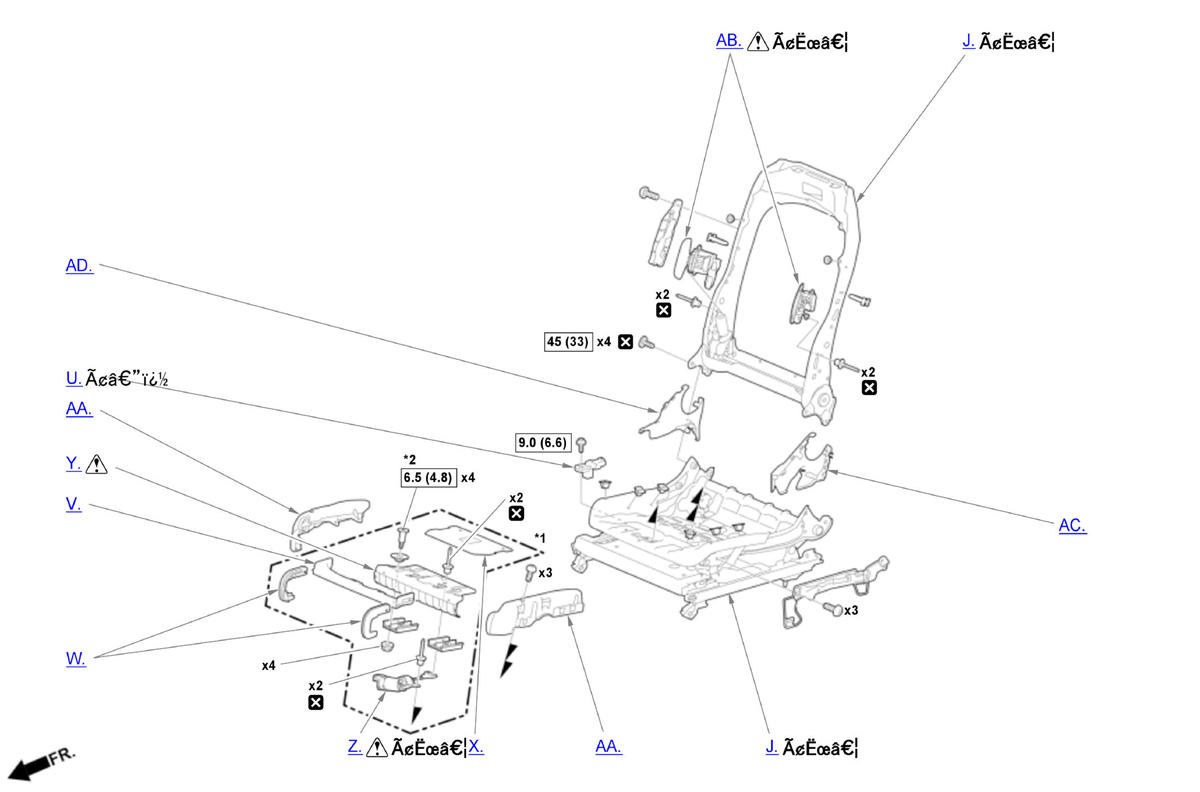

Fig 2: Front Seat Area - Driver's Replacement Components With Torque Specifications (2 Of 3)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
1: With ventilated seat 2: With 16-way power seat

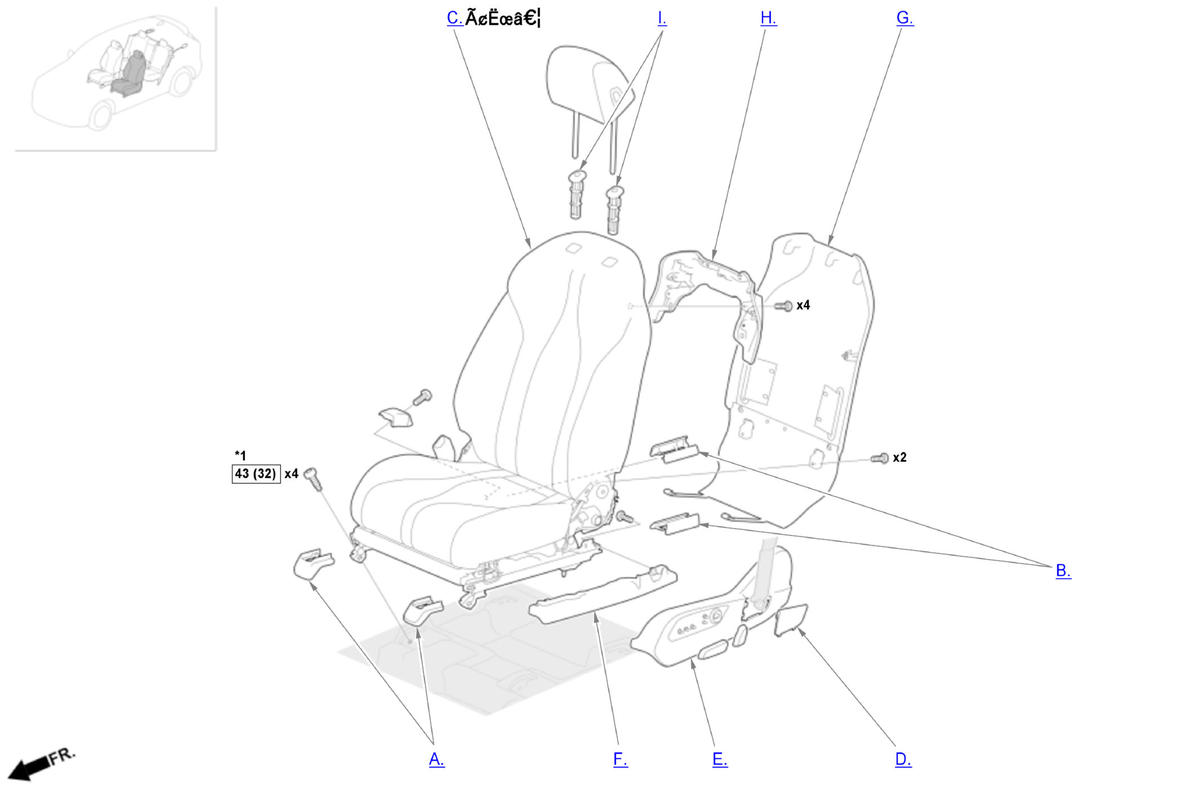

Fig 3: Front Seat Area - Driver's Replacement Components With Torque Specifications (3 Of 3)

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
1: With 16-way power seat 2: Remove the bolt with a TORX Plus socket, 25 IP.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)	: Replace	: Warning/Caution	: Inspection/Adjustment	*: Learning	■: SPL Tool	: Required Removal
*1: With ventilated seat
