EPS Control Unit Connector for Inputs and Outputs (2022, 2023)
EPS Control Unit Connector for Inputs and Outputs
| Connector Index | ||
|---|---|---|
| EPS Control Unit Connector A (2P) | ||
| EPS Control Unit Connector B (6P) | ||
| EPS Control Unit Connector C (4P) |

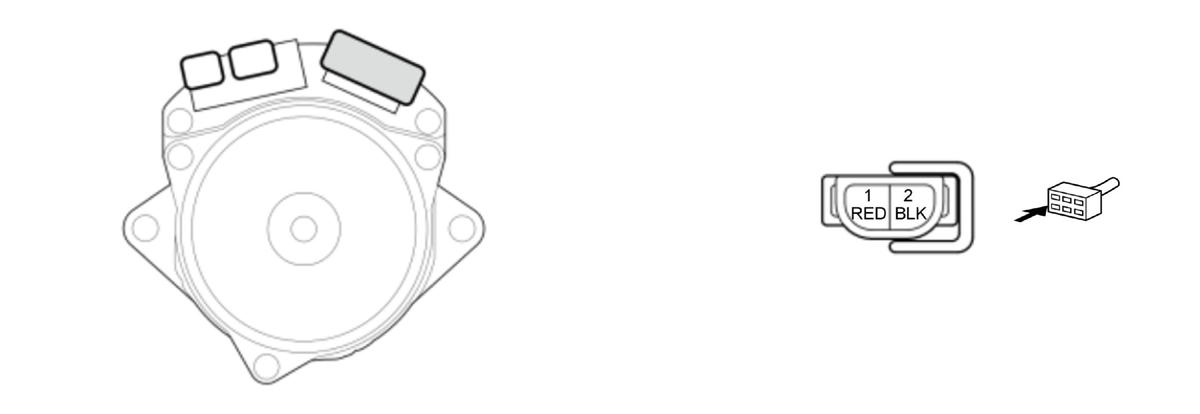

EPS Control Unit Connector A (2P) (female terminals)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | +B_EPS(70A) | Power source for the actuator EPS motor |
| 2 | GND | Ground for the EPS control unit |

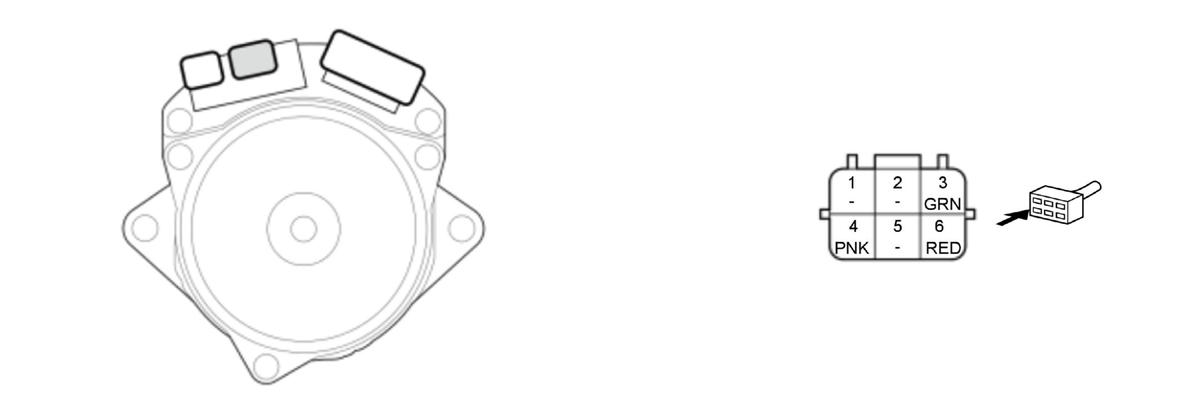

EPS Control Unit Connector B (6P) (female terminals)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | Not used | --- |
| 2 | Not used | --- |
| 3 | F-CAN C_H | F-CAN communication circuit |
| 4 | F-CAN C_L | F-CAN communication circuit |
| 5 | Not used | --- |
| 6 | IG1_VSA(VST) | Power source for activating the system |

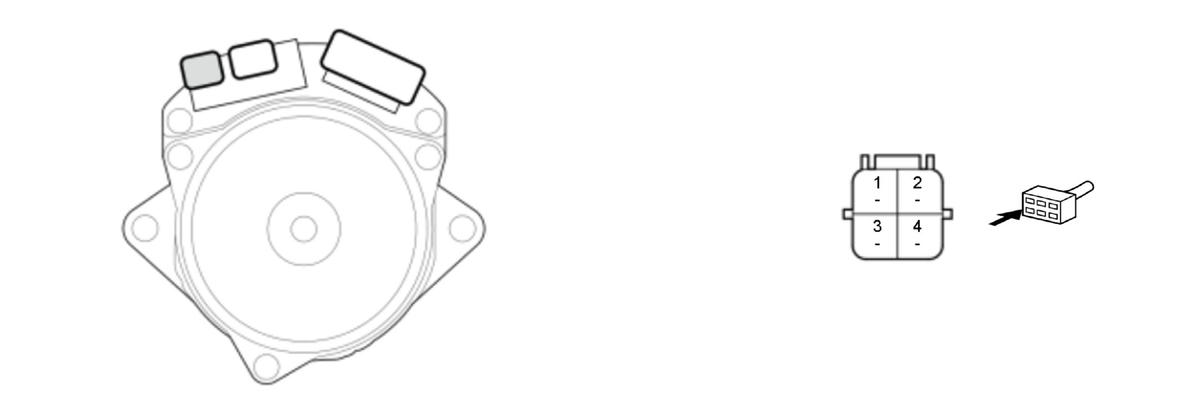

EPS Control Unit Connector C (4P) (female terminals)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | TSV | Power source for torque sensor |
| 2 | TSS | Detects torque sensor sub signal |
| 3 | TSG | Ground for the torque sensor |
| 4 | TSM | Detects torque sensor main signal |
