Repair Procedure: Procedure

  1. A.

    ■ Sub-Procedure

    • Installation

    Lubricant Specifications

    Object Type
    O-Ring Transfer Assembly Fluid
  2. B.

    ■ Sub-Procedure

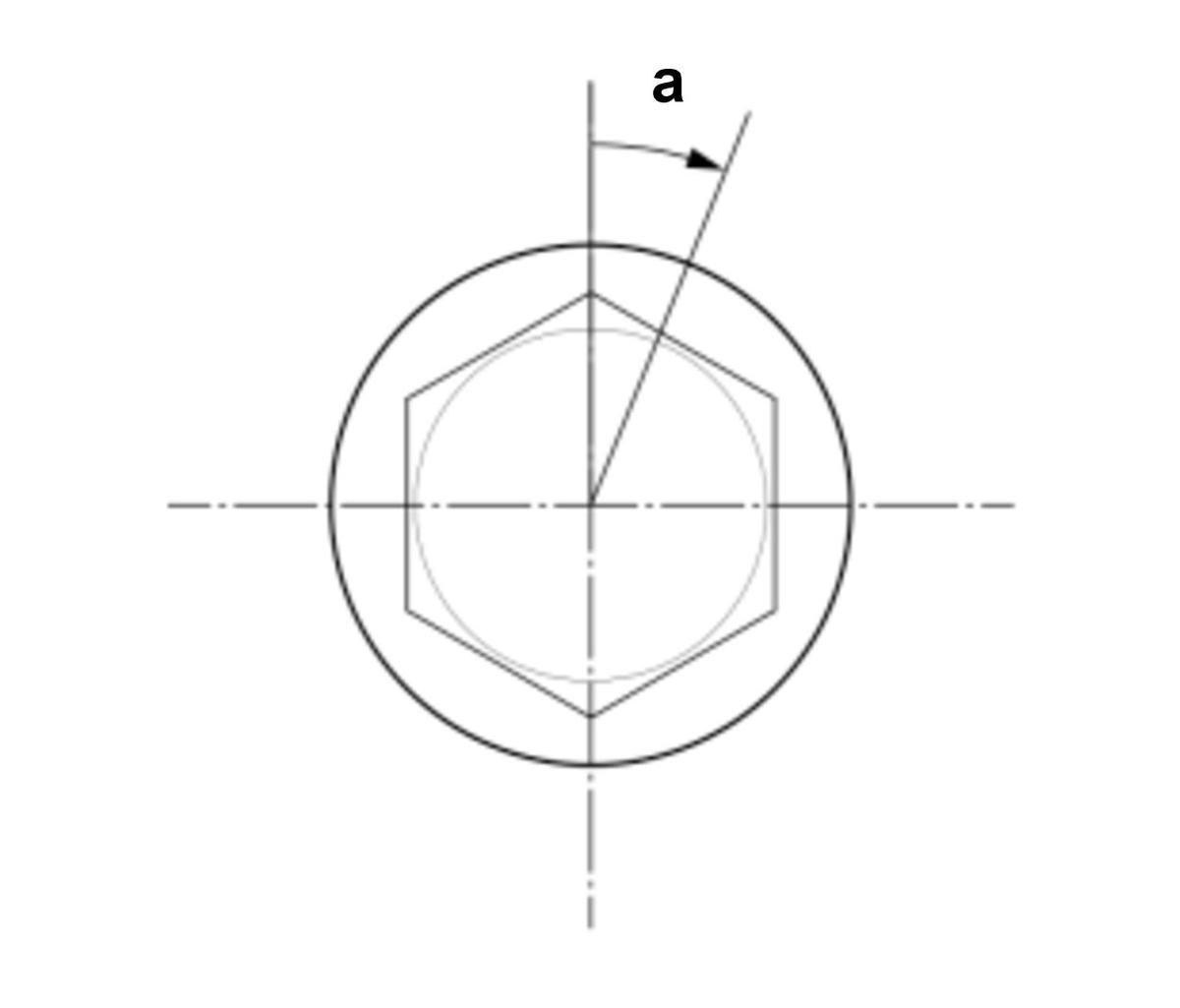

    GHH558155Courtesy of HONDA, U.S.A., INC.

    • Installation

    Lubricant Specifications

    Object Type
    O-Ring Transfer Assembly Fluid

    Tightening Procedure

    Step Operation Standard Value
    1 Temporarily Tighten 10 N.m (7 lbf.ft)
    2 Angle Tighten a 22°
  3. C.

    ■ Sub-Procedure

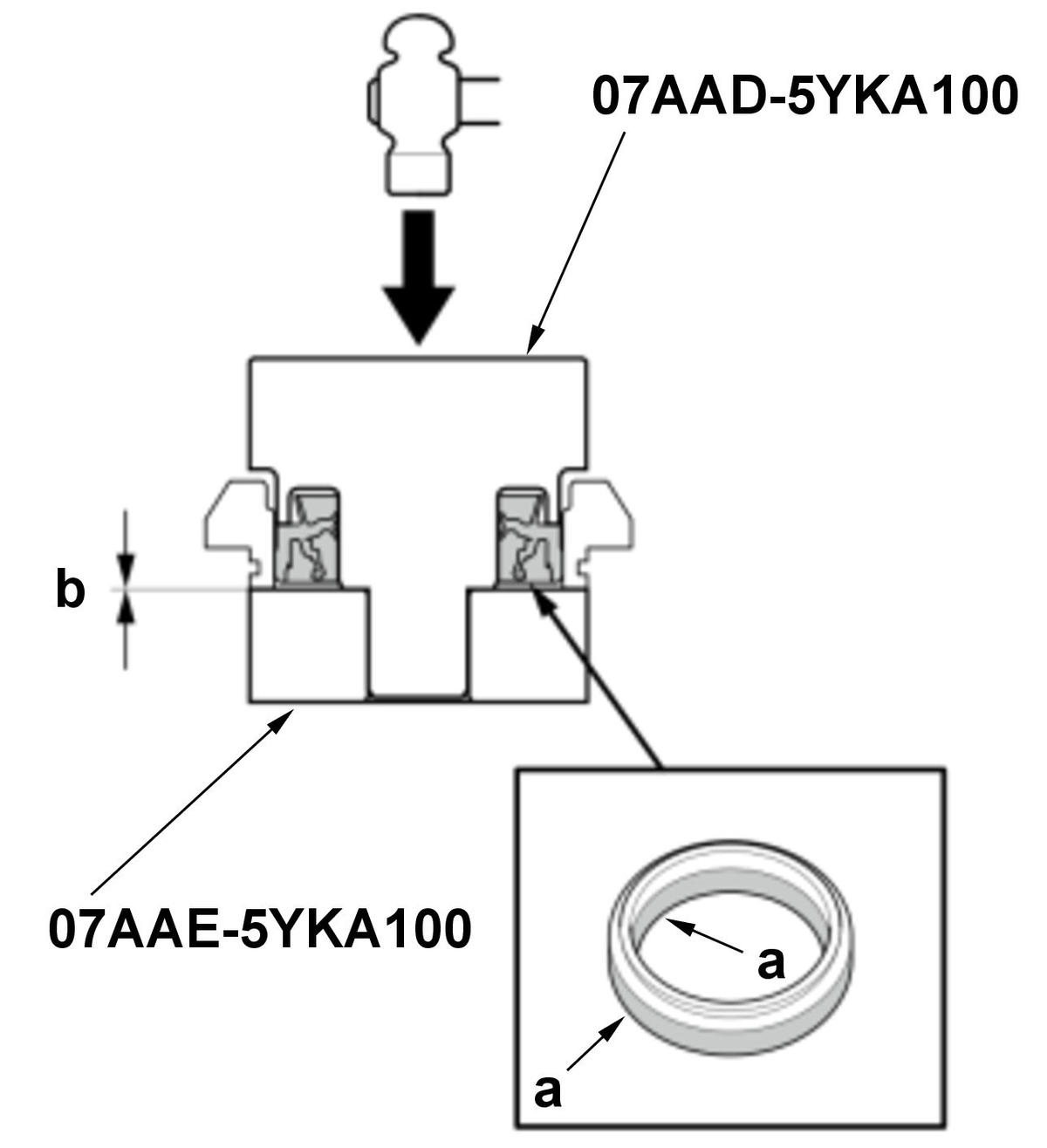

    GHH558156Courtesy of HONDA, U.S.A., INC.

    • Installation

    Lubricant Specifications

    Position Type
    a Transfer Assembly Fluid

    Specifications

    Specification
    b Flush with Housing
    G00574679Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Install the oil seal until the oil seal driver has been fully seated.
