Exploded View Legend

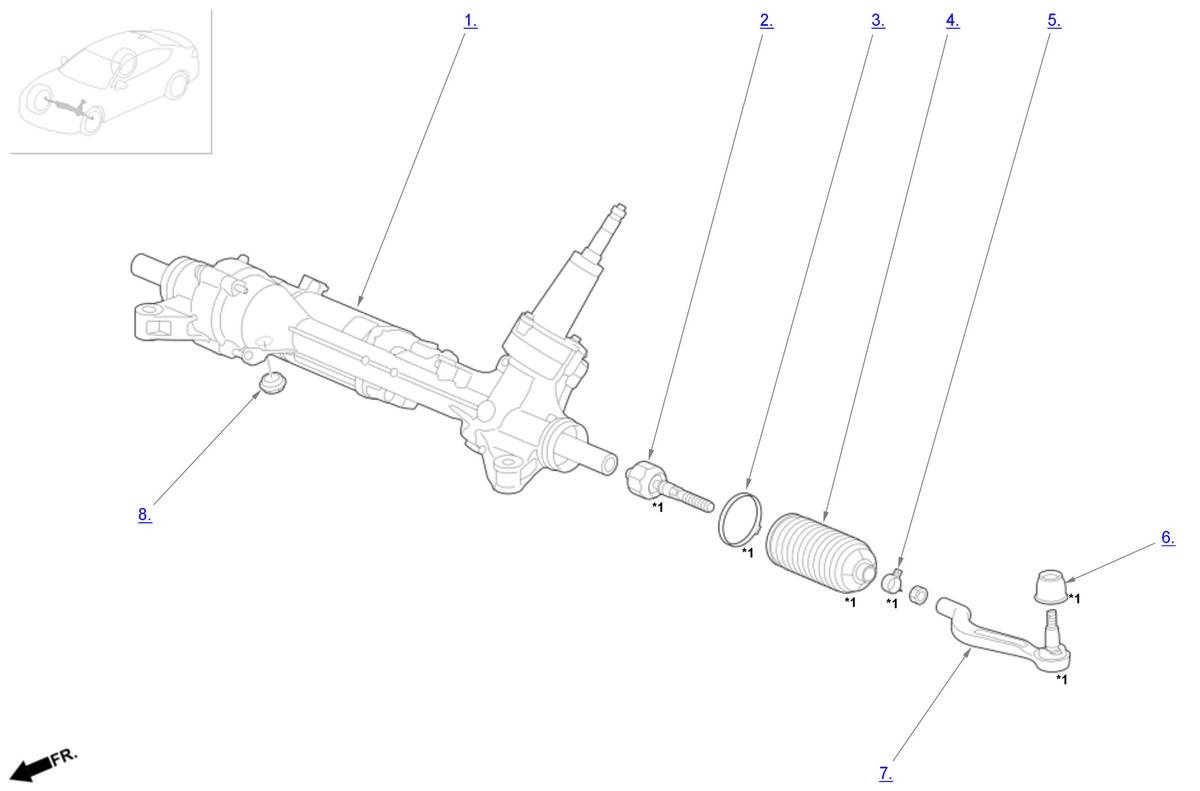

GHH562781Courtesy of HONDA, U.S.A., INC.
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
  1. Steering Gearbox
  2. Rack End
  3. Boot Band
  4. Boot
  5. Tie-Rod Clip
  6. Tie-Rod End Ball Joint Boot
  7. Tie-Rod End
  8. Drain Valve
