Body Control Module Connector for Inputs and Outputs

Connector Index
Body Control Module Connector A (14P)
Body Control Module Connector B (36P)
Body Control Module Connector C (28P)
Body Control Module Connector D (40P)
Body Control Module Connector E (24P)
Body Control Module Connector F (36P)
Body Control Module Connector G (32P)

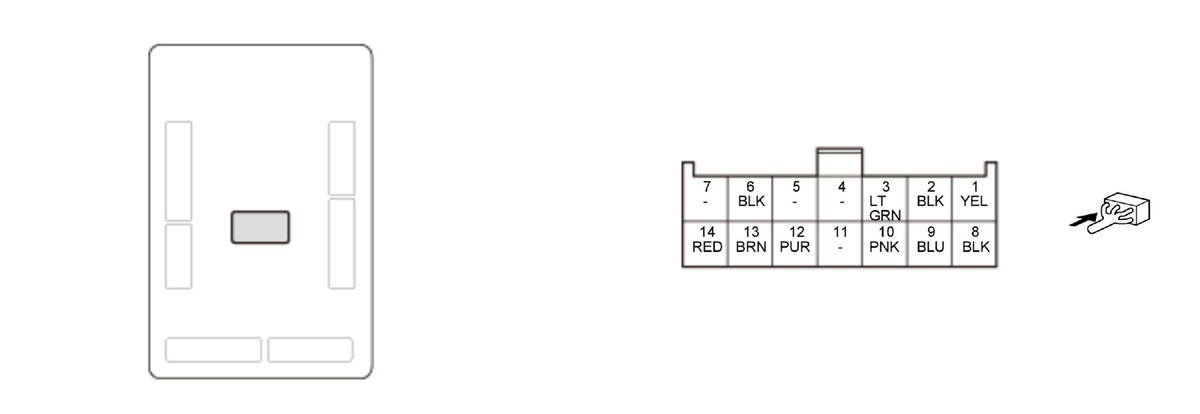

Body Control Module Connector A (14P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	+B_HAZARD	Power source for IPD
2	GND	Ground for body control module
3	INTR_LT_CUT_RLY_CL-	Outputs INTR_LT_CUT_RLY_CL- signal
4	Not used	---
5	Not used	---
6	PGND	Ground for body control module
7	Not used	---
8	SGND	Ground for body control module
9	+B_L_H/L_HI	Power source for headlights (high)
10	L_H/L_HI	Outputs L_H/L_HI signal
11	Not used	---
12	R_H/L_HI	Outputs R_H/L_HI signal
13	INTR_LIGHT-	Outputs INTR_LIGHT- signal
14	+B_R_H/L_HI	Power source for headlights (high)

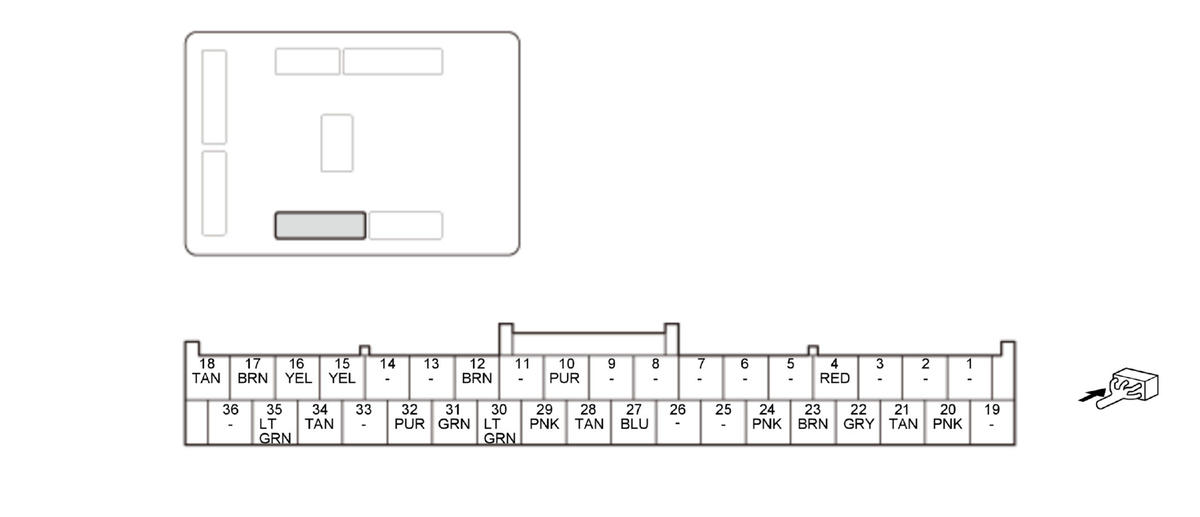

Body Control Module Connector B (36P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	Not used	---
2	Not used	---
3	Not used	---
4 *	FR_DEICER_RLY_CL-	Outputs FR_DEICER_RLY_CL- signal
5	Not used	---
6	Not used	---
7	Not used	---
8	Not used	---
9	Not used	---
10	BACK_UP(WIPER)	Outputs BACK_UP(WIPER) signal
11	Not used	---
12	FR_WASHER_RLY_CL-	Outputs FR_WASHER_RLY_CL- signal
13	Not used	---
14	Not used	---
15	RR_DEF_RLY_CL-	Detects RR_DEF_RLY_CL- signal
16	+B_SMART	Power source for body control module
17	L_TURN	Outputs L_TURN signal
18	L_TURN_RR	Outputs L_TURN_RR signal
19	Not used	---
20	BB-CAN_H	Communication line
21	BB-CAN_L	Communication line
22	BF-CAN_H	Communication line
23	BF-CAN_L	Communication line
24	BACK_UP_H/L	BACK_UP_H/L signal
25	Not used	---
26	Not used	---
27	DOOR_LOCK_RELAY_CL-	Outputs DOOR_LOCK_RELAY_CL- signal
28	SCTY_HORN_RLY_CL-	SCTY_HORN_RLY_CL- signal
29	TRUNK_ACT_RLY_CL-	Outputs TRUNK_ACT_RLY_CL- signal
30	HORN_SW	Detects HORN_SW signal
31 *	DR_DOOR_UNLOCK_RELAY_CL-	Outputs DR_DOOR_UNLOCK_RELAY_CL- signal
32	DOOR_UNLOCK_RELAY_CL-	Outputs DOOR_UNLOCK_RELAY_CL- signal

*: With heated windshield wiper area

Terminal number	Terminal name	Description
33	Not used	---
34	R_TURN	Outputs R_TURN signal
35	R_TURN_RR	Outputs R_TURN_RR signal
36	Not used	---

*: With heated windshield wiper area

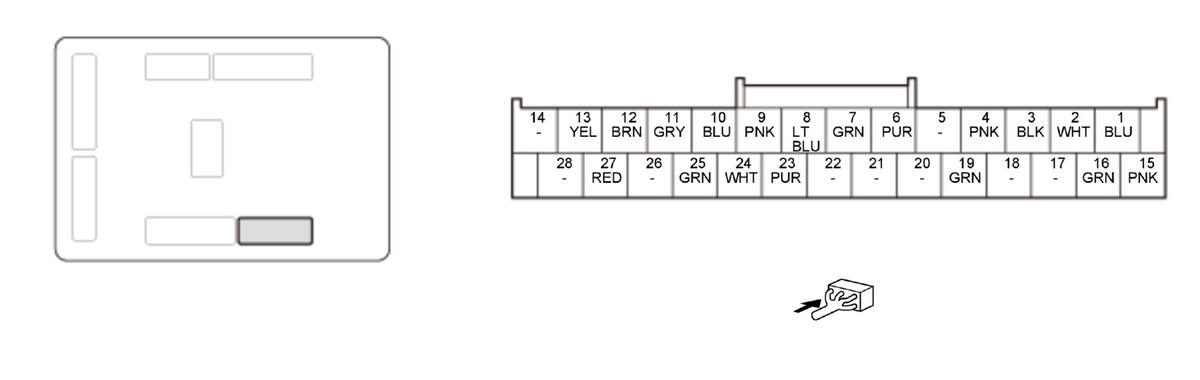

Body Control Module Connector C (28P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	ATP-P	Detects ATP-P signal
2	HAZARD_SW	Detects HAZARD_SW signal
3	COMBI_SW_GND(LT)	Ground for combination light switch
4	TAIL_GATE_OPEN_SW	Detects TAIL_GATE_OPEN_SW signal
5	Not used	---
6 *	FR_FOG_SW	Detects FR_FOG_SW signal
7	PASSING_SW	Detects PASSING_SW signal
8	H/L_HI_SW	Detects H/L_HI_SW signal
9	H/L_ON_SW	Detects H/L_ON_SW signal
10	H/L_OFF_SW	Detects H/L_OFF_SW signal
11	SMALL_LT_SW	Detects SMALL_LT_SW signal
12	IG2_DRL	Detects IG2_DRL signal
13	LIN(FR_WIPER)	Communication line
14	Not used	---
15	RR_L_SILCON_UNLOCK	Detects RR_L_SILCON_UNLOCK signal
16	RR_R_SILCON_UNLOCK	Detects RR_R_SILCON_UNLOCK signal
17	Not used	---
18	Not used	---
19	HOOD_SW	Detects HOOD_SW signal
20	Not used	---
21	Not used	---
22	Not used	---
23	ACC	ACC power source
24	BACK_LT	Detects BACK_LT signal
25	STOP_SW	Detects STOP_SW signal
26	Not used	---
27	+B_BACK_UP	Power source for body control module
28	Not used	---

*: With fog light

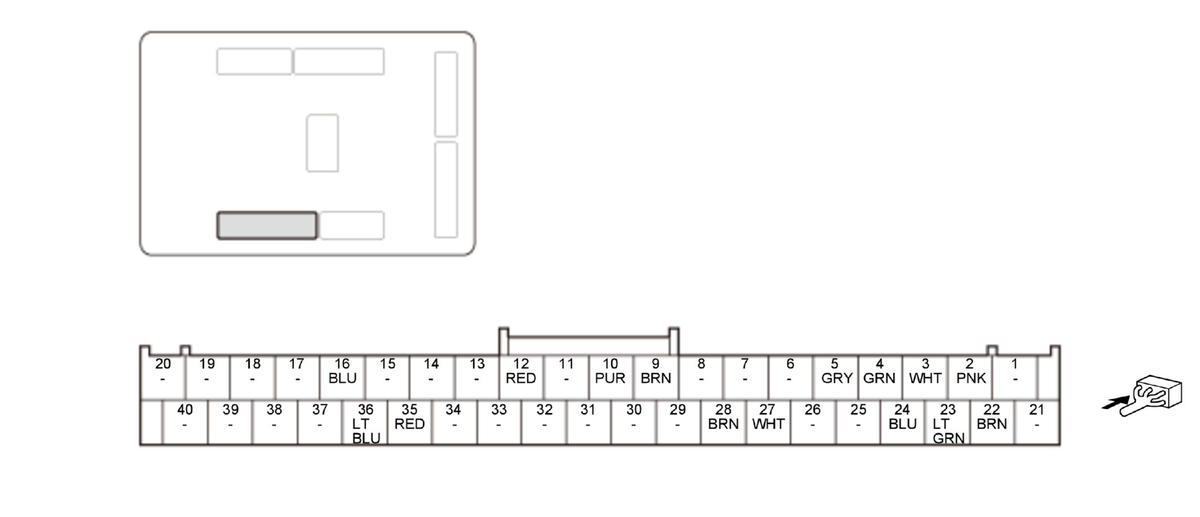

Body Control Module Connector D (40P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	Not used	---
2	FR_WIPER_INT_SW	Detects FR_WIPER_INT_SW signal
3	FR_WIPER_HI_SW	Detects FR_WIPER_HI_SW signal
4	FR_WIPER_MIST_SW	Detects FR_WIPER_MIST_SW signal
5	FR_WASHER_SW	Detects FR_WASHER_SW signal
6	Not used	---
7	Not used	---
8	Not used	---
9	COMBI_SW_GND(WIP)	Ground for wiper/washer switch
10	TRUNK_MAIN_SW(IN)	Detects TRUNK_MAIN_SW(IN) signal
11	Not used	---
12 *	FR_DEICER_SW	Detects FR_DEICER_SW signal
13	Not used	---
14	Not used	---
15	Not used	---
16	H/L_LO_R_SIG	Communication line
17	Not used	---
18	Not used	---
19	Not used	---
20	Not used	---
21	Not used	---
22	FL_DOOR_SW	Detects FL_DOOR_SW signal
23	FR_DOOR_SW	Detects FR_DOOR_SW signal
24	RL_DOOR_SW	Detects RL_DOOR_SW signal
25	Not used	---
26	Not used	---
27	TRUNK_SW	Detects TRUNK_SW signal
28	RR_DOOR_SW	Detects RR_DOOR_SW signal
29	Not used	---
30	Not used	---

*: With heated windshield wiper area

Terminal number	Terminal name	Description
31	Not used	---
32	Not used	---
33	Not used	---
34	Not used	---
35	S-NET	Communication line
36	K-LINE	Communication line
37	Not used	---
38	Not used	---
39	Not used	---
40	Not used	---

*: With heated windshield wiper area

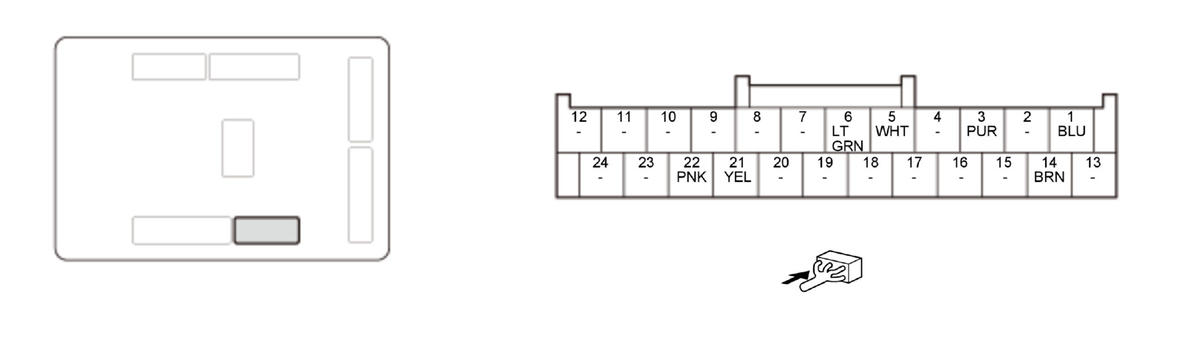

Body Control Module Connector E (24P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	IG1_FUEL_PUMP	IG1 power source
2	Not used	---
3	CARGO_LT	Outputs CARGO_LT signal
4	Not used	---
5	R_TURN_SW	Detects R_TURN_SW signal
6	L_TURN_SW	Detects L_TURN_SW signal
7	Not used	---
8	Not used	---
9	Not used	---
10	Not used	---
11	Not used	---
12	Not used	---
13	Not used	---
14	IG1_MICU(VST)	IG1 power source
15	Not used	---
16	Not used	---
17	Not used	---
18	Not used	---
19	Not used	---
20	Not used	---
21	FR_WIP_INT_VOL	Detects FR_WIP_INT_VOL signal
22	SMART_BUZZER	Outputs SMART_BUZZER signal
23	Not used	---

Terminal number	Terminal name	Description
24	Not used	---

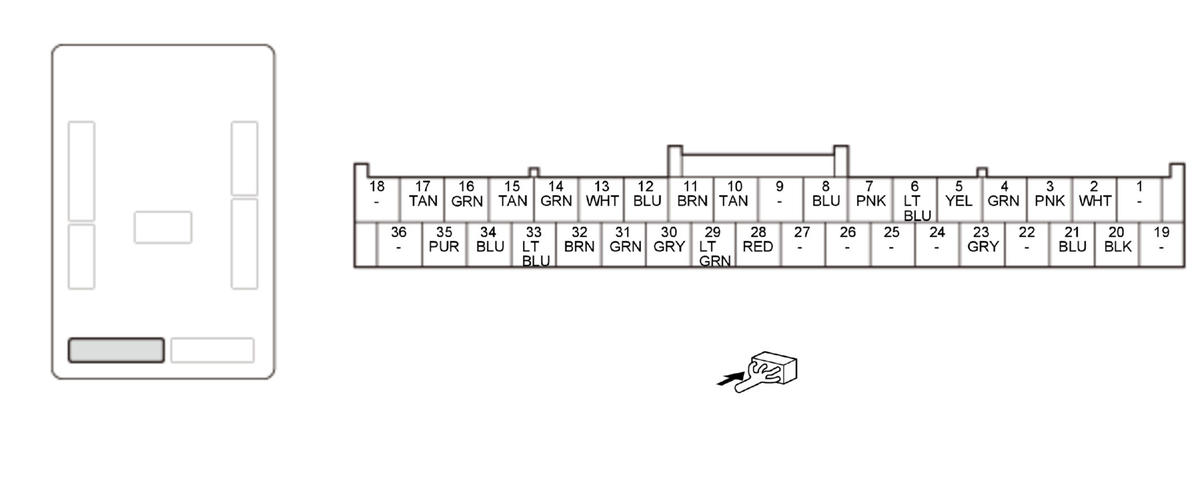

Body Control Module Connector F (36P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	Not used	---
2	IG1_COIL+	Outputs IG1_COIL+ signal
3	START_SW_IND1	Outputs START_SW_IND1 signal
4	START_SW_ILL	Outputs START_SW_ILL signal
5	ESL_PWR	Outputs ESL_PWR signal
6	STS	Outputs STS signal
7 *2	DR_WELCOME_LT	Outputs DR_WELCOME_LT signal
8 *1	RF_GND	RF_GND signal
9	Not used	---
10	EXT_B+	Outputs EXT_B+ signal
11	SSSW_LF_ANT+	Outputs SSSW_LF_ANT+ signal
12	EXT_FR_AS+	Outputs EXT_FR_AS+ signal
13	EXT_FR_DR+	Outputs EXT_FR_DR+ signal
14	EXT_F+	Outputs EXT_F+ signal
15	EXT_RR_R+	Outputs EXT_RR_R+ signal
16	EXT_RR_L+	Outputs EXT_RR_L+ signal
17	EXT_R+	Outputs EXT_R+ signal
18	Not used	---
19	Not used	---
20 *1	RF_DATA1	Communication line
21	L-LINE	Communication line
22	Not used	---
23 *1	RF_VCC1	RF_VCC1 signal
24	Not used	---
25	Not used	---
26	Not used	---
27	Not used	---
28	EXT_B-	Outputs EXT_B- signal

*1: With remote engine start *2: With puddle light

Terminal number	Terminal name	Description
29	SSSW_LF_ANT-	Outputs SSSW_LF_ANT- signal
30	EXT_FR_AS-	Outputs EXT_FR_AS- signal
31	EXT_FR_DR-	Outputs EXT_FR_DR- signal
32	EXT_F-	Outputs EXT_F- signal
33	EXT_RR_R-	Outputs EXT_RR_R- signal
34	EXT_RR_L-	Outputs EXT_RR_L- signal
35	EXT_R-	Outputs EXT_R- signal
36	Not used	---

*1: With remote engine start *2: With puddle light

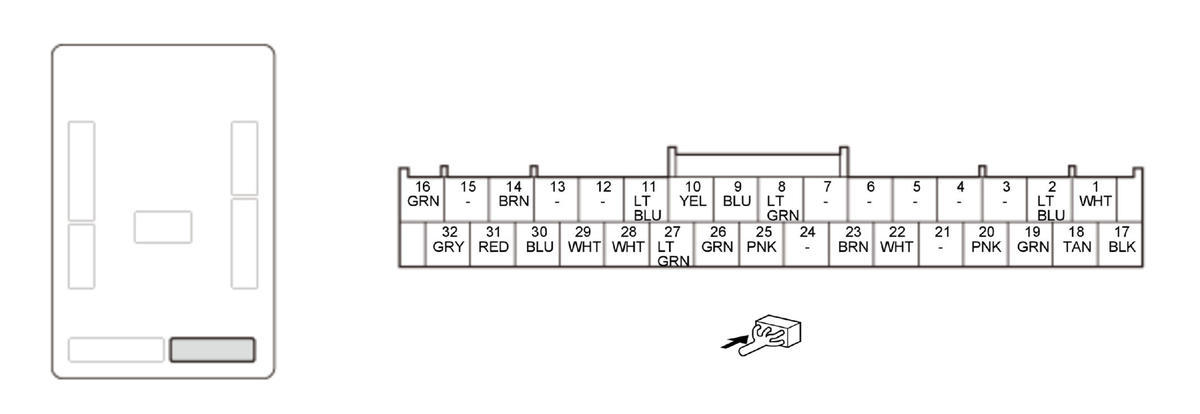

Body Control Module Connector G (32P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	DL_FR_AS	Detects DL_FR_AS signal
2 *	DL_RR_L	Detects DL_RR_L signal
3	Not used	---
4	Not used	---
5	Not used	---
6	Not used	---
7	Not used	---
8 *	TS_RR_R	Detects TS_RR_R signal
9	SS2(-)	Detects SS2(-) signal
10	IG1-B_SIG	Detects IG1-B_SIG signal
11	IG2_SIG	Detects IG2_SIG signal
12	Not used	---
13	Not used	---
14 *	VOUT_RR_R	Outputs VOUT_RR_R signal
15	Not used	---
16	ACC_RLY_CL+	Outputs ACC_RLY_CL+ signal
17	CONT_RLY_GND	Ground for IG1A/IG1B/IG2/ACC relay circuits
18	SS1(+)	Detects SS1(+) signal
19	DL_FR_DR	Detects DL_FR_DR signal
20 *	DL_RR_R	Detects DL_RR_R signal
21	Not used	---
22	TS_FR_DR	Detects TS_FR_DR signal
23	H-BRAKE_SW	Detects H-BRAKE_SW signal

*: With keyless function

Terminal number	Terminal name	Description
24	Not used	---
25	TS_FR_AS	Detects TS_FR_AS signal
26 *	TS_RR_L	Detects TS_RR_L signal
27	IG1-A_SIG	Detects IG1-A_SIG signal
28	IGN_TRX	Communication line
29 *	VOUT_RR_L	Outputs VOUT_RR_L signal
30	VOUT_FR_AS	Outputs VOUT_FR_AS signal
31	VOUT_FR_DR	Outputs VOUT_FR_DR signal
32	IG2_COIL+	Outputs IG2_COIL+ signal

*: With keyless function
