Inspection Outline

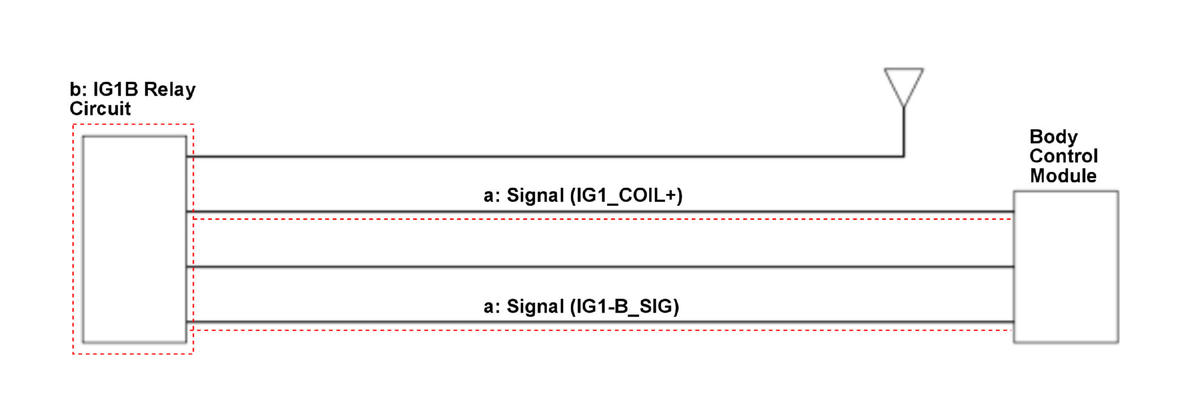

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
IG1-B_SIG, IG1_COIL+ Circuit Inspection
b
IG1B Relay Circuit
Courtesy of HONDA, U.S.A., INC.
