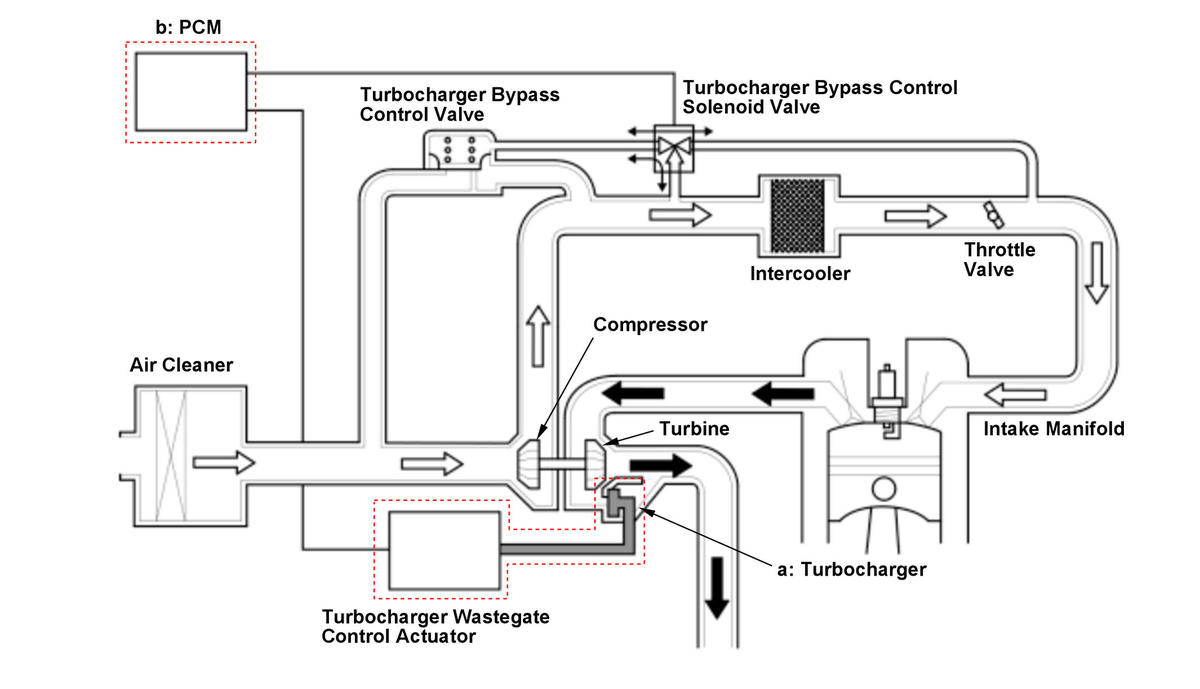

Inspection Outline
- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
| Inspection Items | Work Items | |
|---|---|---|
| a | Turbocharger | Turbocharger Wastegate Control Actuator Link, Turbocharger Cover Visual Inspection |
| Turbocharger Wastegate Control Actuator Functional Inspection | ||
| Turbocharger Wastegate Control Actuator Position Sensor Inspection | ||
| b | PCM | PCM Inspection |
