Engine Oil Monitor System

Construction and Function - General Description .

NOTE:

The actual distance might be much shorter than the remaining distance showing on the Engine Oil Monitor because of driving condition.

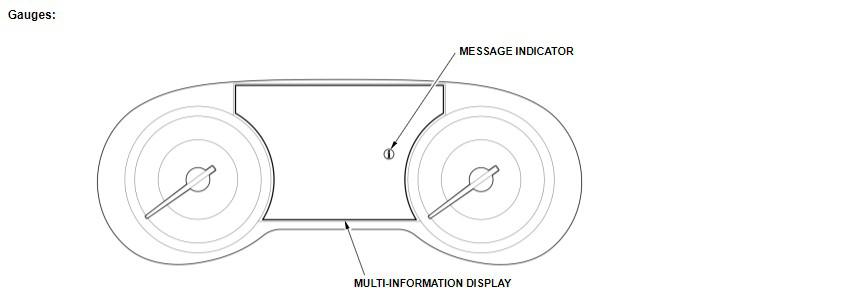

Gauges
G00602707G00602711Courtesy of AMERICAN HONDA MOTOR CO., INC.AMERICAN HONDA MOTOR CO., INC.

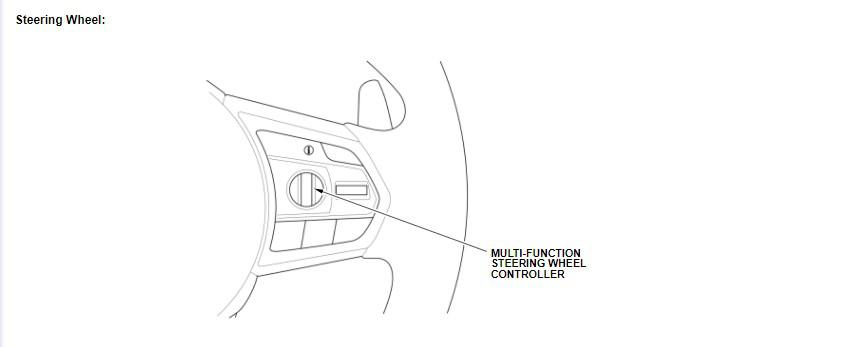

Steering Wheel
G00602707G00602711Courtesy of AMERICAN HONDA MOTOR CO., INC.AMERICAN HONDA MOTOR CO., INC.
