Repair Procedure

How to use this manual .

NOTE:

Keep all foreign particles out of the transmission.

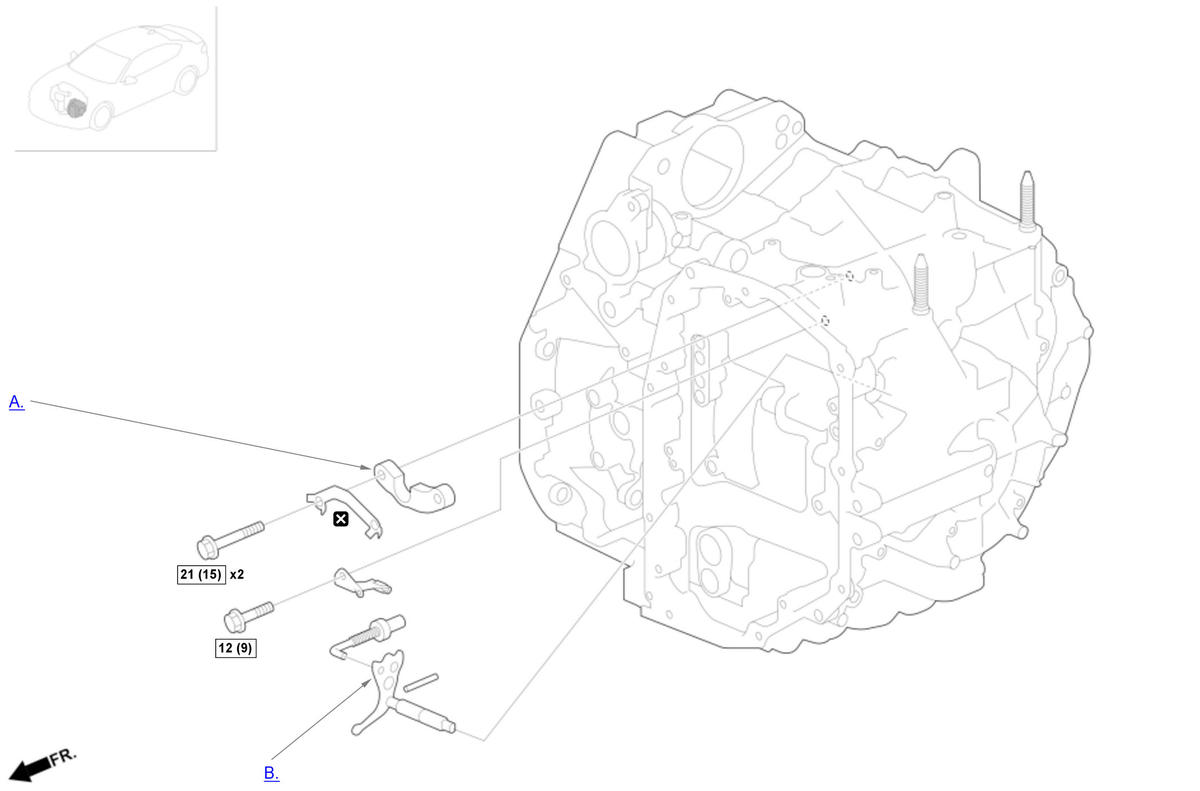

GHH563331

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

A.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Removal

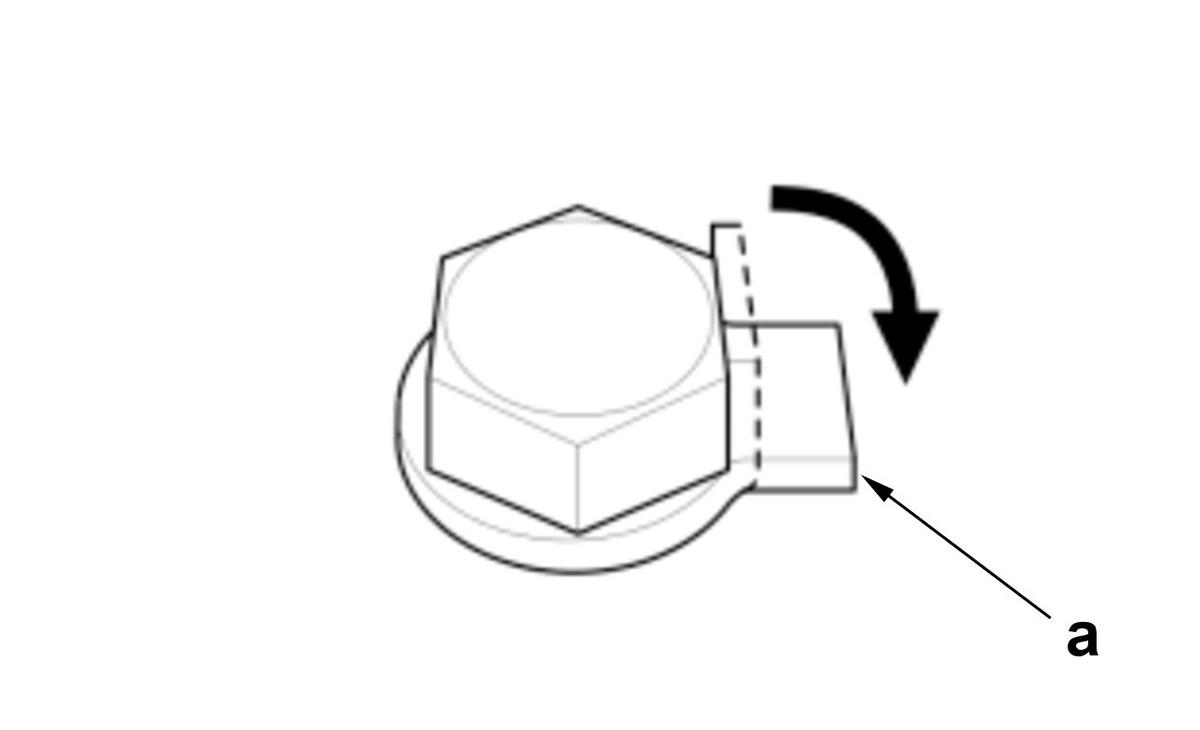

- Pry down the lock tab of the washer (a).
B.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Installation

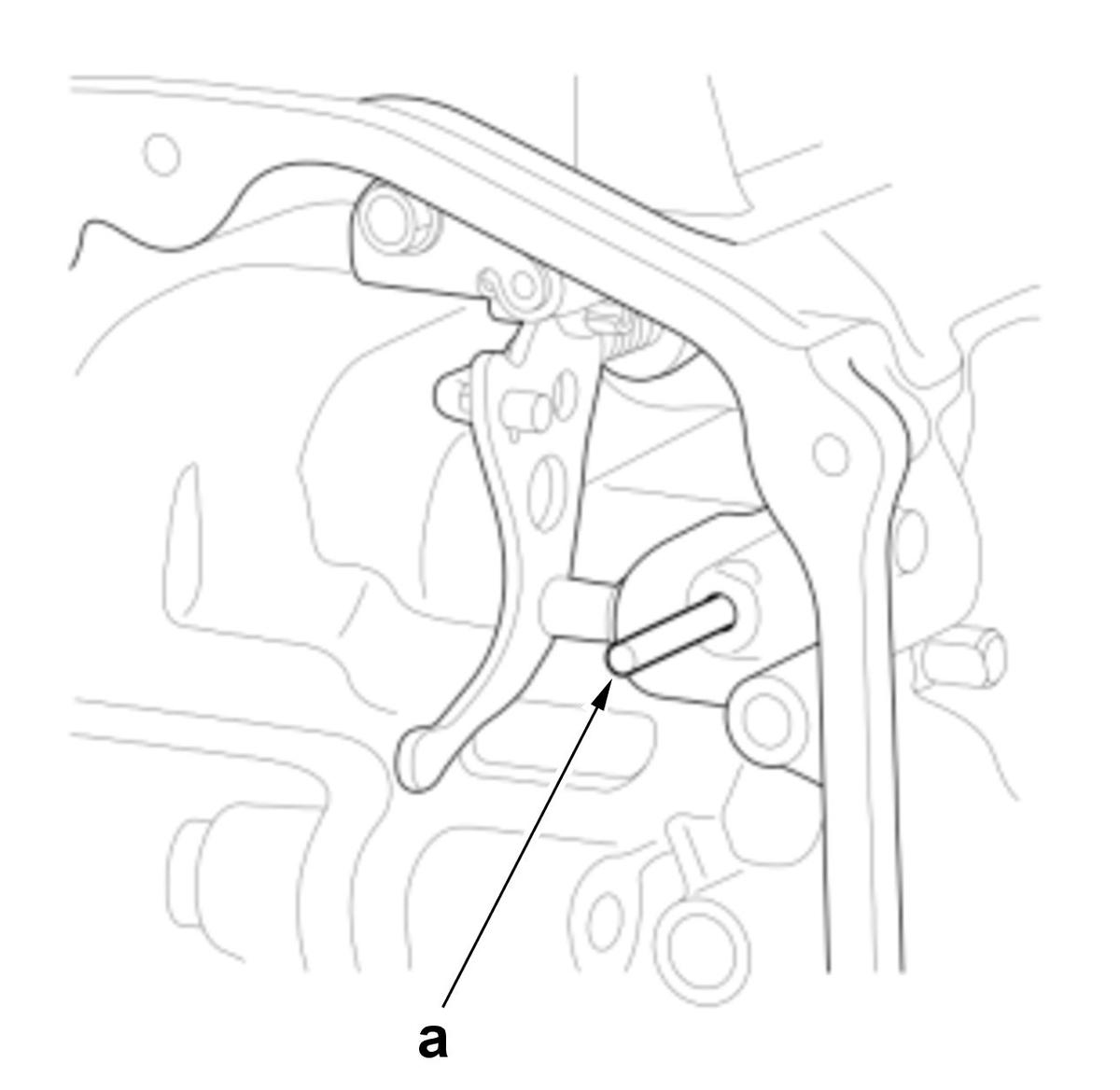

- Make sure the roller (a) is fully installed to the bottom as shown.
