Windshield Wiper Control Unit/Motor Connector for Inputs and Outputs

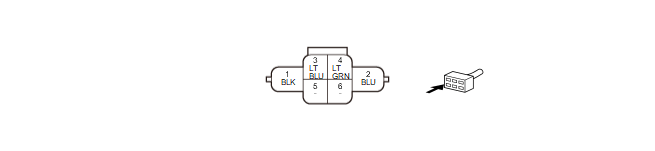

Windshield Wiper Control Unit/Motor 6P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	PGND	Ground for windshield wiper control unit/motor
2	+B_WIPER	Power source for windshield wiper control unit/motor
3	BACK_UP(WIPER)	Detects BACK_UP(WIPER) line
4	LIN(FR_WIPER)	Communication line
5	Not used	---
6	Not used	---
