Relay Locations

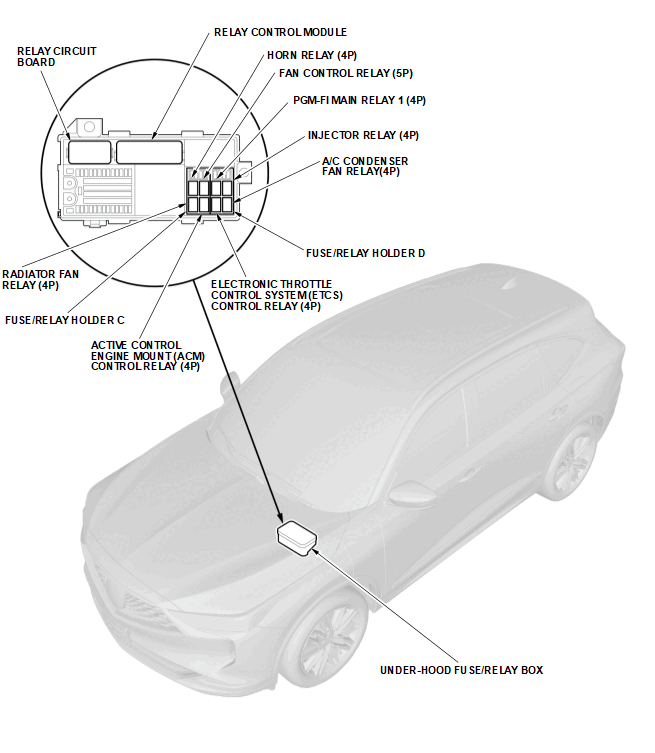

Engine Compartment - 1/23.0 L Engine

Courtesy of HONDA, U.S.A., INC.

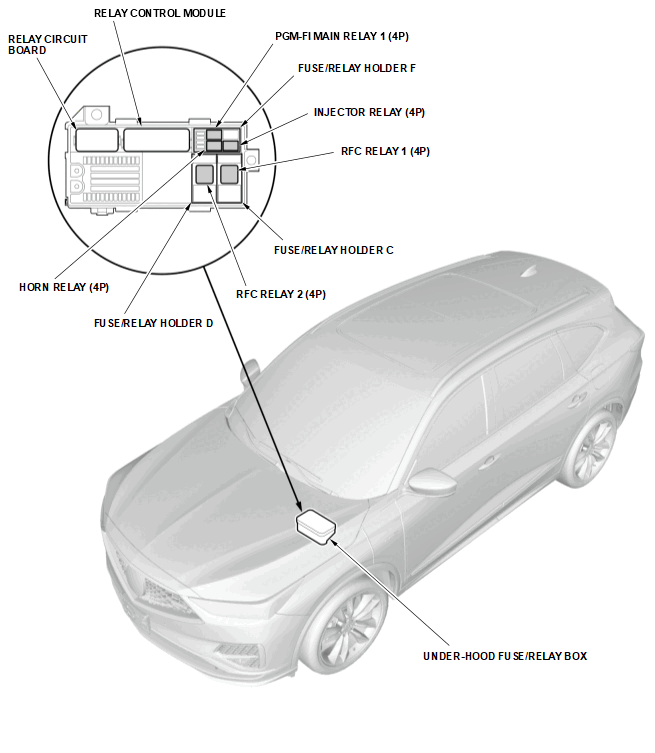

Engine Compartment - 2/2 3.5 L Engine

Courtesy of HONDA, U.S.A., INC.

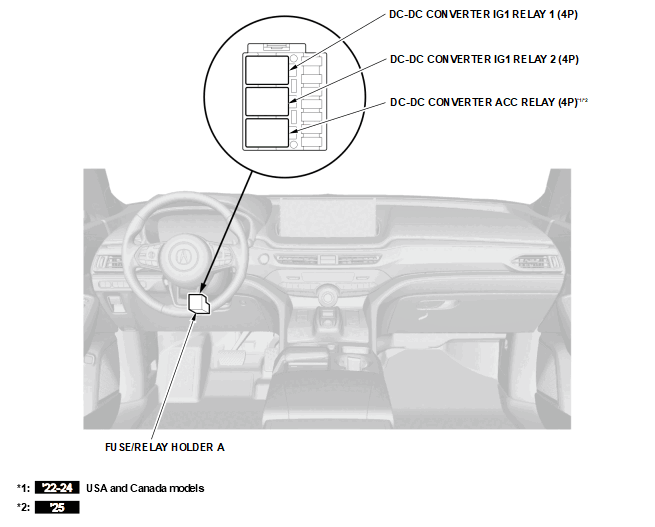

Dashboard - 1/2

Courtesy of HONDA, U.S.A., INC.

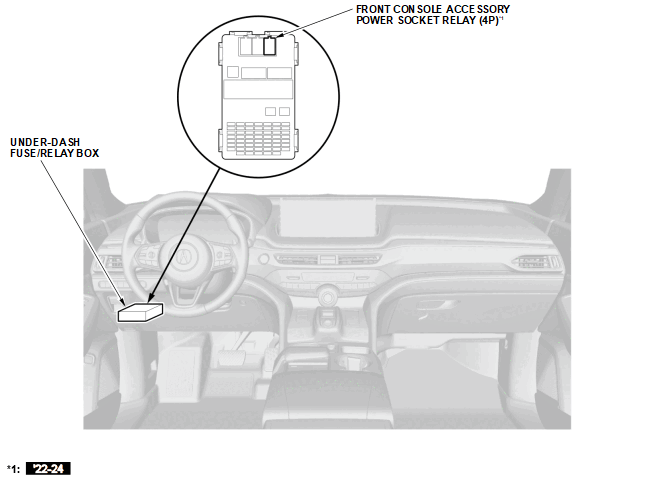

Dashboard - 2/2

Courtesy of HONDA, U.S.A., INC.

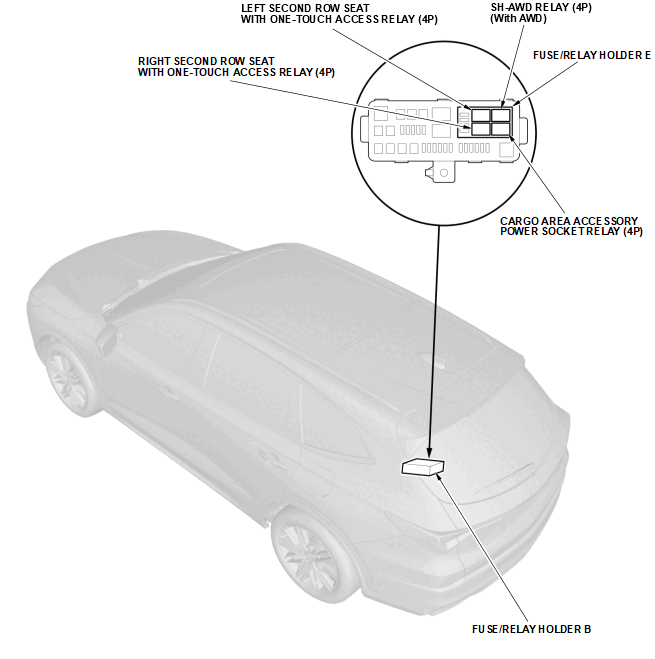

Floor

Courtesy of HONDA, U.S.A., INC.
