Driving Support Function Cancel History (Integrated Driver Support System (Camera and Five Radars)) (2025): Notes
NOTICE:
The following describes the "Function Cancel History" of the Integrated Driver Support System (Camera and Five Radars). If the vehicle is equipped with only one millimeter wave radar, refer to "Function Cancel History - Refer to: Driving Support Function Cancel History(Integrated Driver Support System) (2025) or Driving Support Function Cancel History(Integrated Driver Support System (Camera and Five Radars)) (2025) " of the Integrated Driver Support System.
The radar vision unit cancels or stops the operation of the system in the following cases, and records the cause of cancellation as a code in the unit.
- Even if the system is normal, it cannot operate normally due to factors such as the environment surrounding the vehicle (weather, road conditions, driving conditions, vehicle conditions, road environment) and the operating conditions of related systems.
- When the possibility of temporary failure or failure of each control unit and sensor related to the Integrated Driver Support System (Camera and Five Radars) is detected in advance.

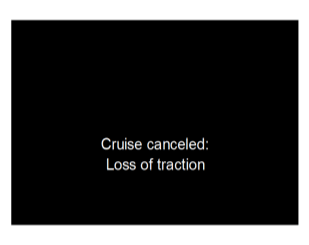

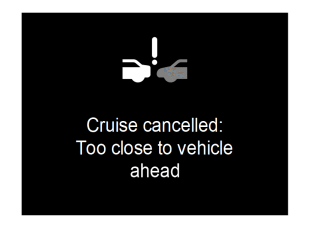

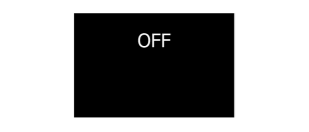

When Integrated Driver Support System (Camera and Five Radars) is automatically cancelled or stops, the following message is displayed on the multi-information display (MID) and a buzzer sounds, and the driver is notified of the cancellation. At this time, the indicator (amber) may come on.
NOTE: When the system is cancelled by user operation (brake, steering, etc.), the function cancellation history is not recorded.
