Front Passenger's Power Seat Motor Test (With Seat Position Memory System): Test

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Slide/Height/Tilt

1. Slide Motor/Height Motor/Tilt Motor - Test

   Preconditions

   • Front Passenger's Seat Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Figure 4

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

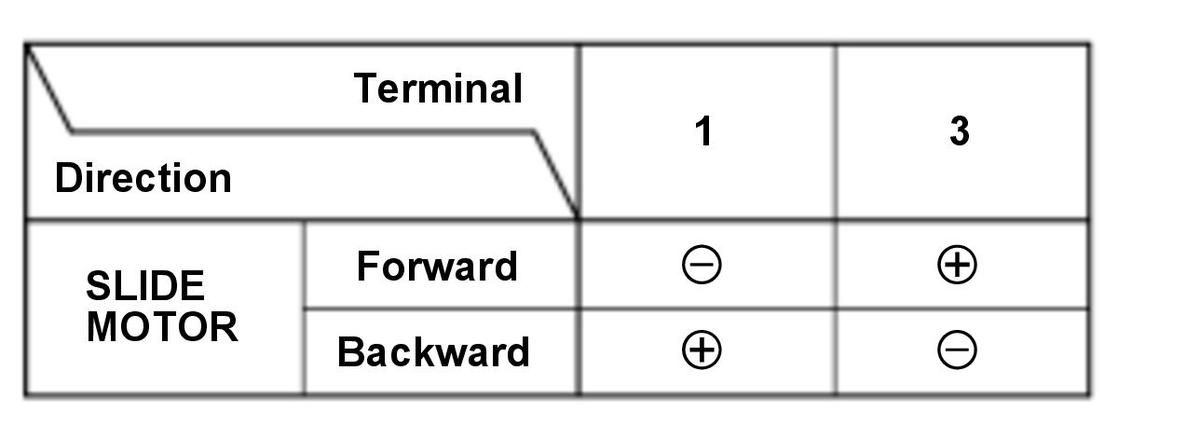

   • Test each motor in each direction by connecting power and ground according to the table. (Figure 1, 2, 3, and 4)

     NOTICE:  To prevent damage to the motor, apply battery voltage only momentarily. (Figure 1, 2, 3, and 4)

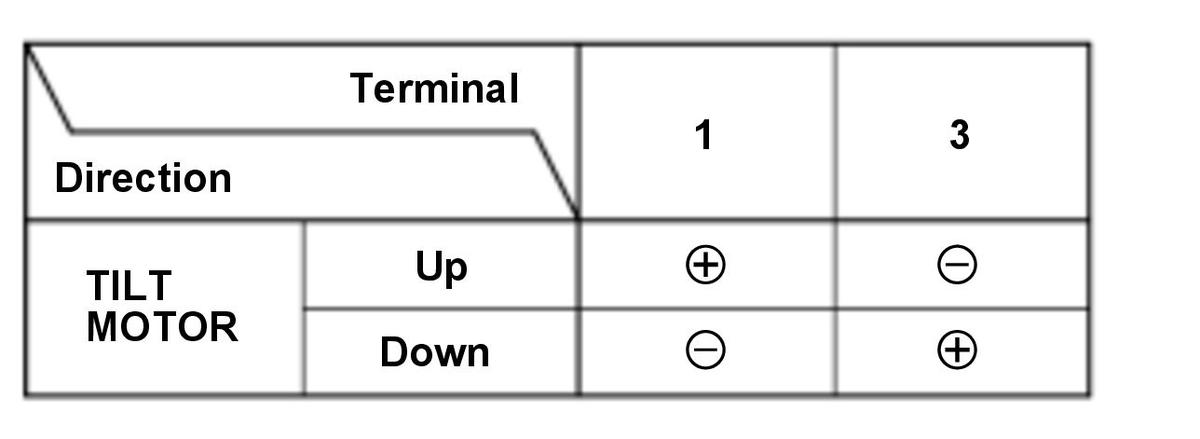

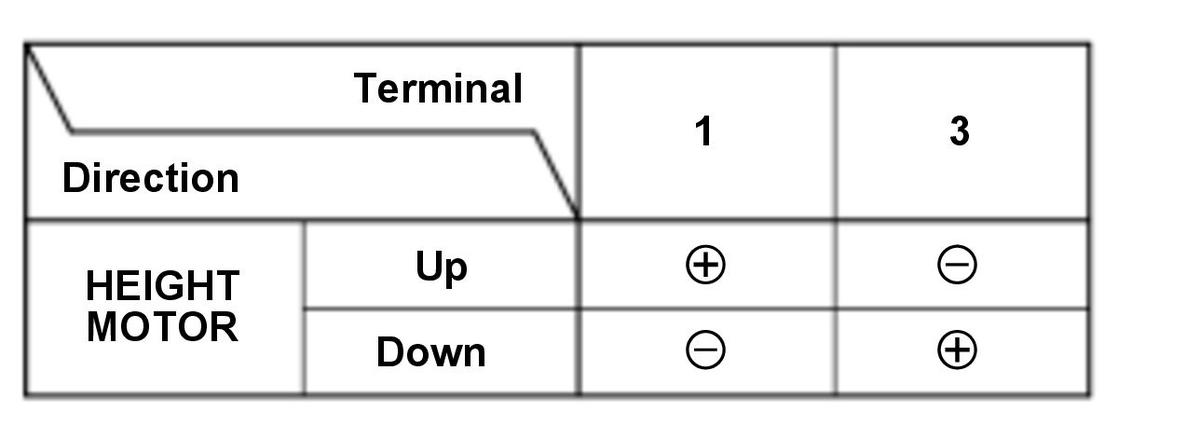

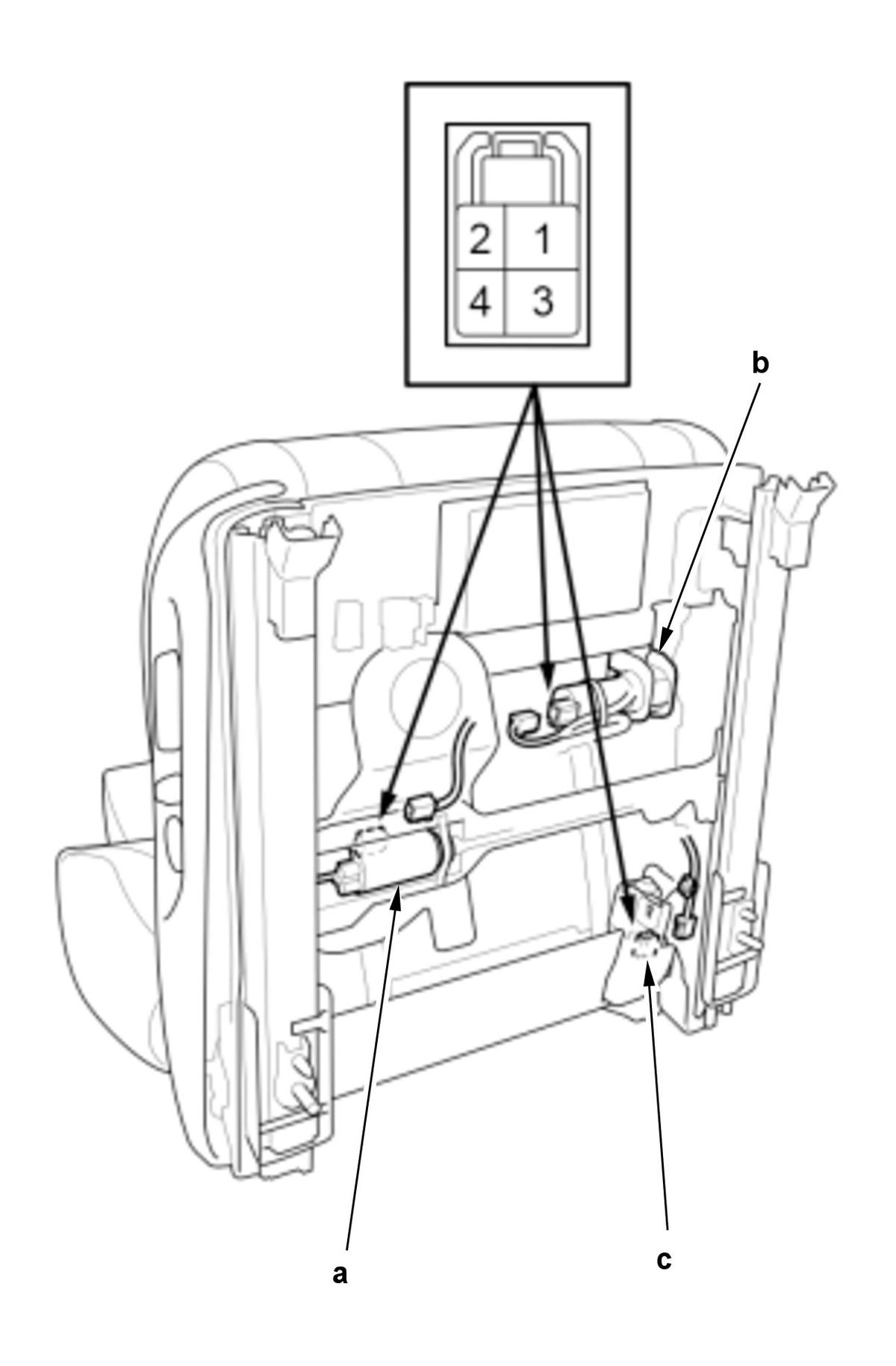

   Motor Details (Figure 1)

   Name
   a	Slide Motor
   b	Height Motor
   c	Tilt Motor

   Result

   • If the motor does not operate as specified, replace the seat cushion frame .

   Recline

2. Recline Motor - Test

   Preconditions

   • Front Passenger's Seat-Back Cover/Pad Removed

   Recline Motor (Figure 1)

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Test each motor in each direction by connecting power and ground according to the table. (Figure 1 and 2)

     NOTICE:  To prevent damage to the motor, apply battery voltage only momentarily. (Figure 1 and 2)

   Result

   • If the motor does not operate as specified, replace the seat-back frame .

   Thigh Support

3. Thigh Support Motor - Test (With 16-Way Power Seat)

   Preconditions

   • Power Thigh Support Carrier Cover Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

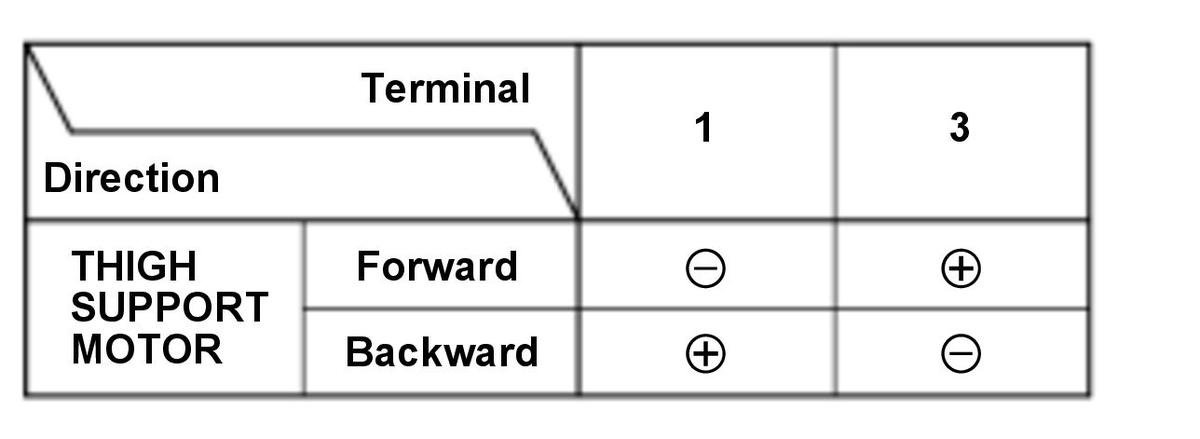

   • Test each motor in each direction by connecting power and ground according to the table. (Figure 1 and 2)

     NOTICE:  To prevent damage to the motor, apply battery voltage only momentarily. (Figure 1 and 2)

   Result

   • If the motor does not operate as specified, replace the thigh support motor assembly .

   Lumbar Support

4. Lumbar Support Motor - Test

   Preconditions

   • Front Passenger's Seat-Back Outer Panel Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Test each motor in each direction by connecting power and ground according to the table. (Figure 1, 2, and 3)

     NOTICE:  To prevent damage to the motor, apply battery voltage only momentarily.

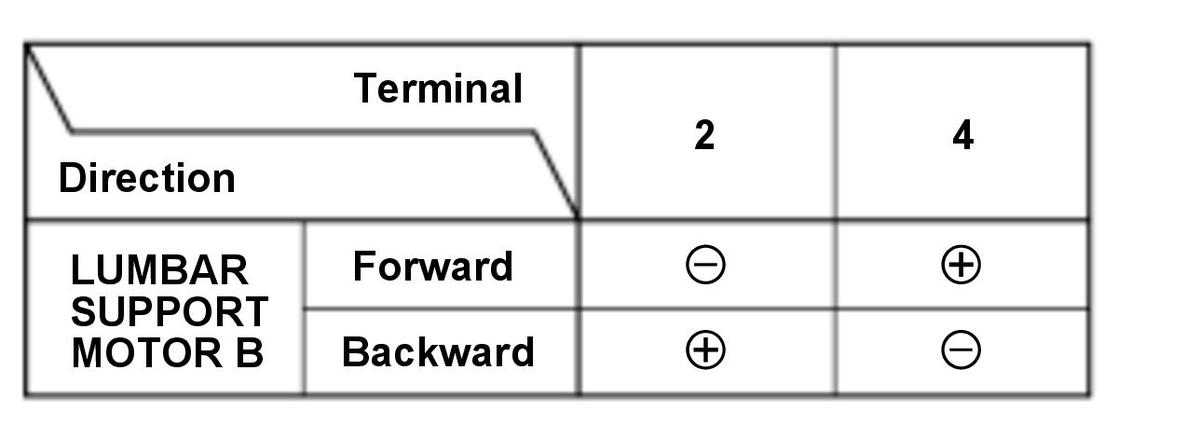

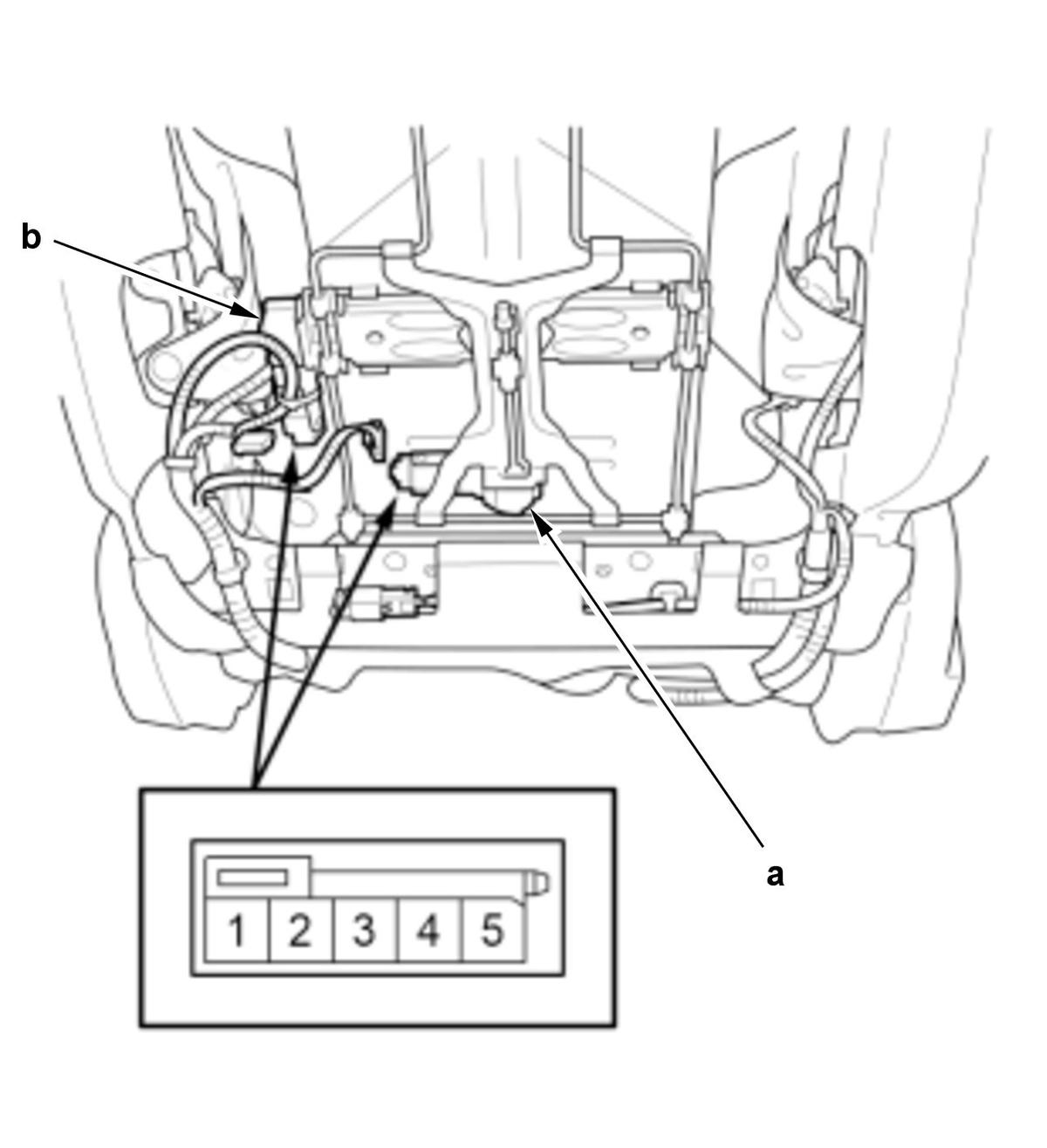

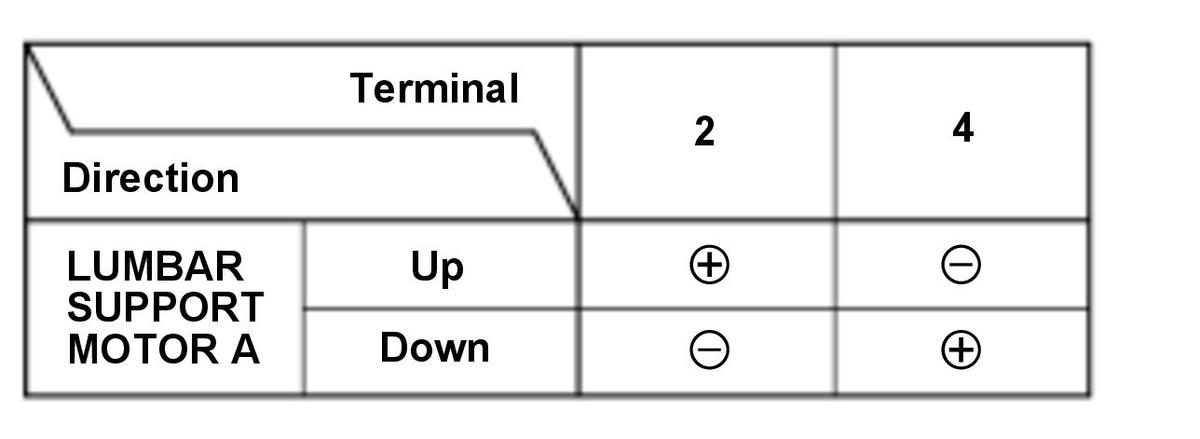

   Motor Details (Figure 1)

   Name
   a	Lumbar Support Motor A
   b	Lumbar Support Motor B

   Result

   • If the motor does not operate as specified, replace the lumbar support assembly .

   Bolster

5. Bolster Motor - Test (With 16-Way Power Seat)

   Preconditions

   • Front Passenger's Seat-Back Outer Panel Removed

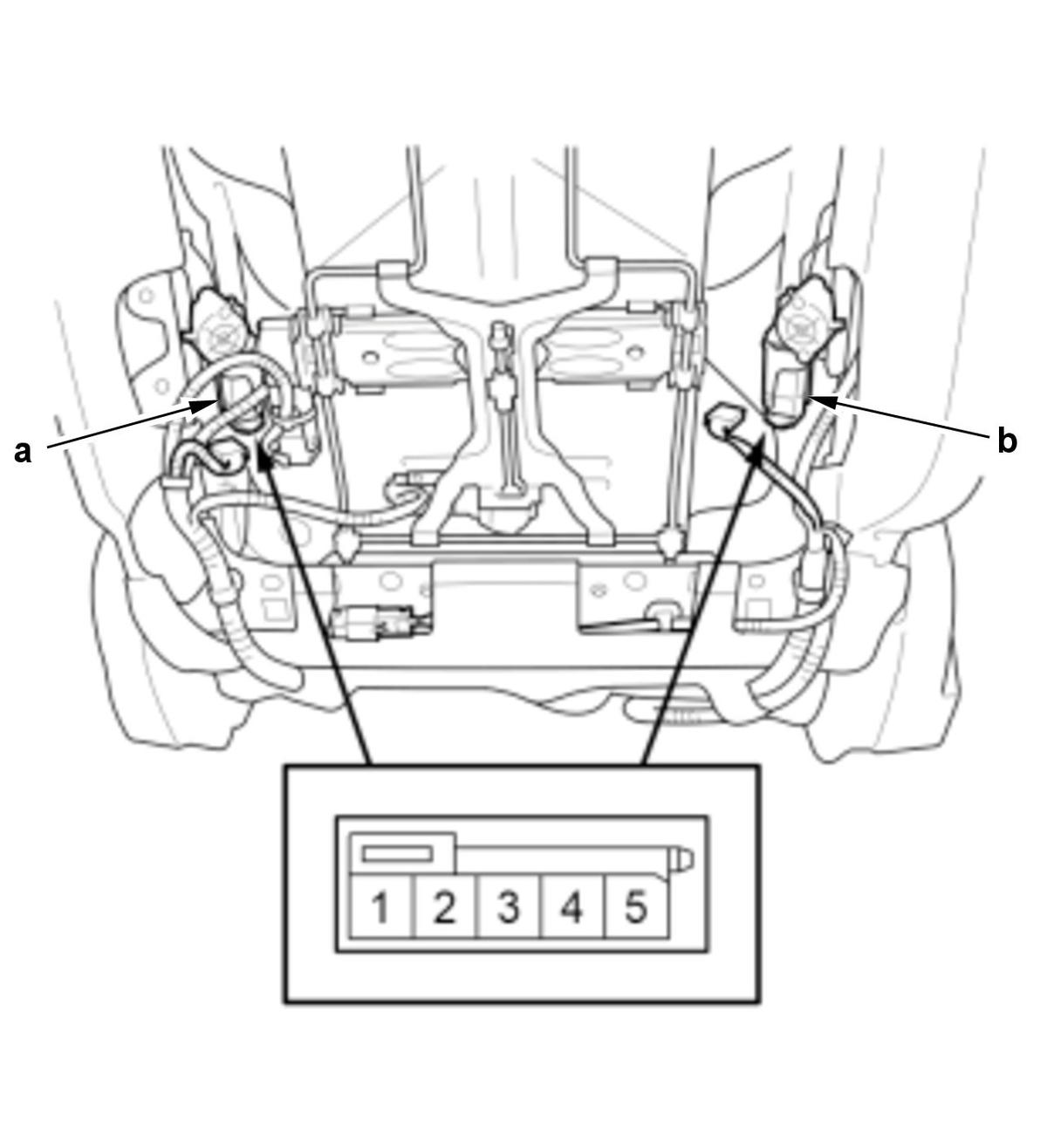

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

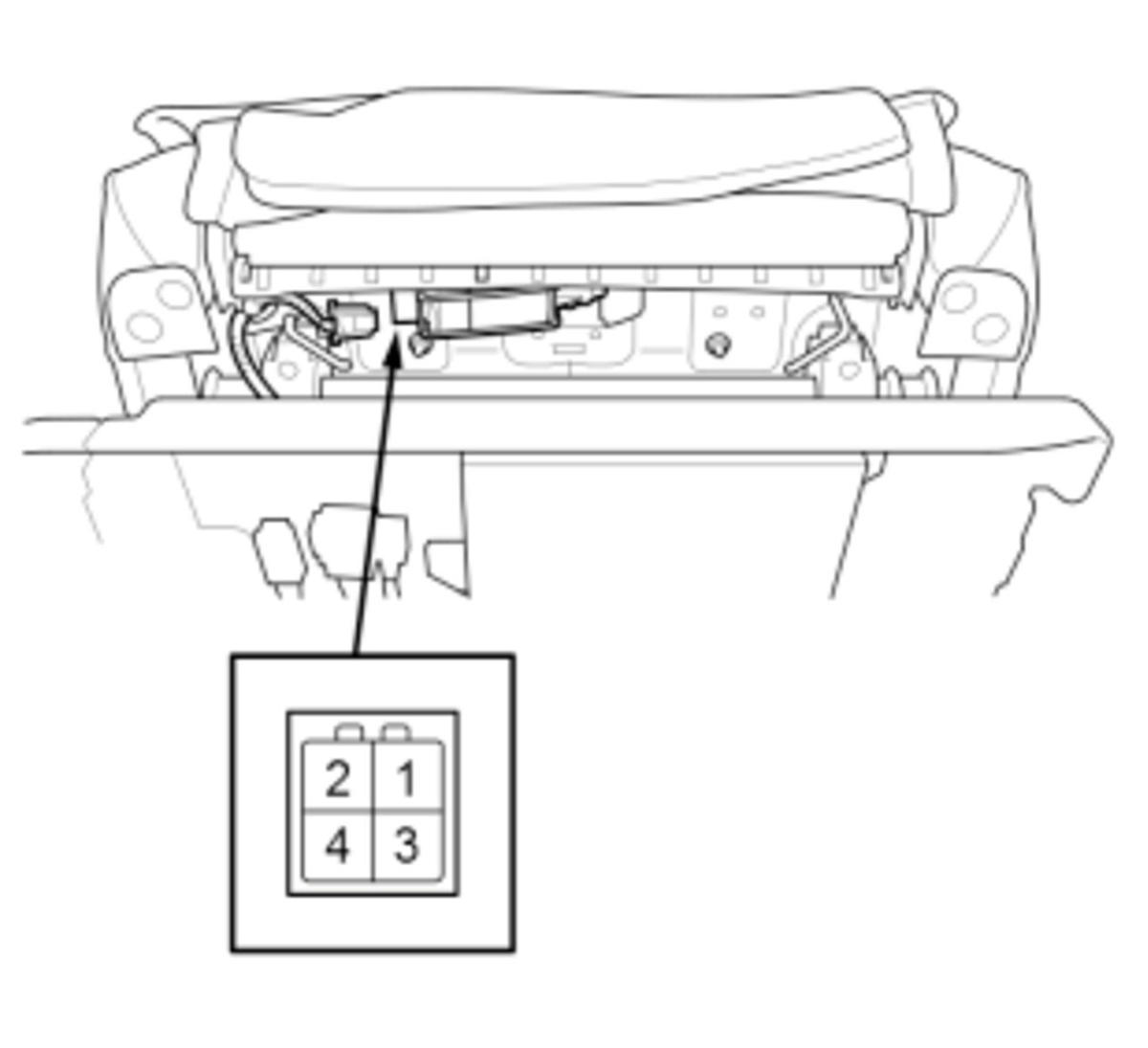

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

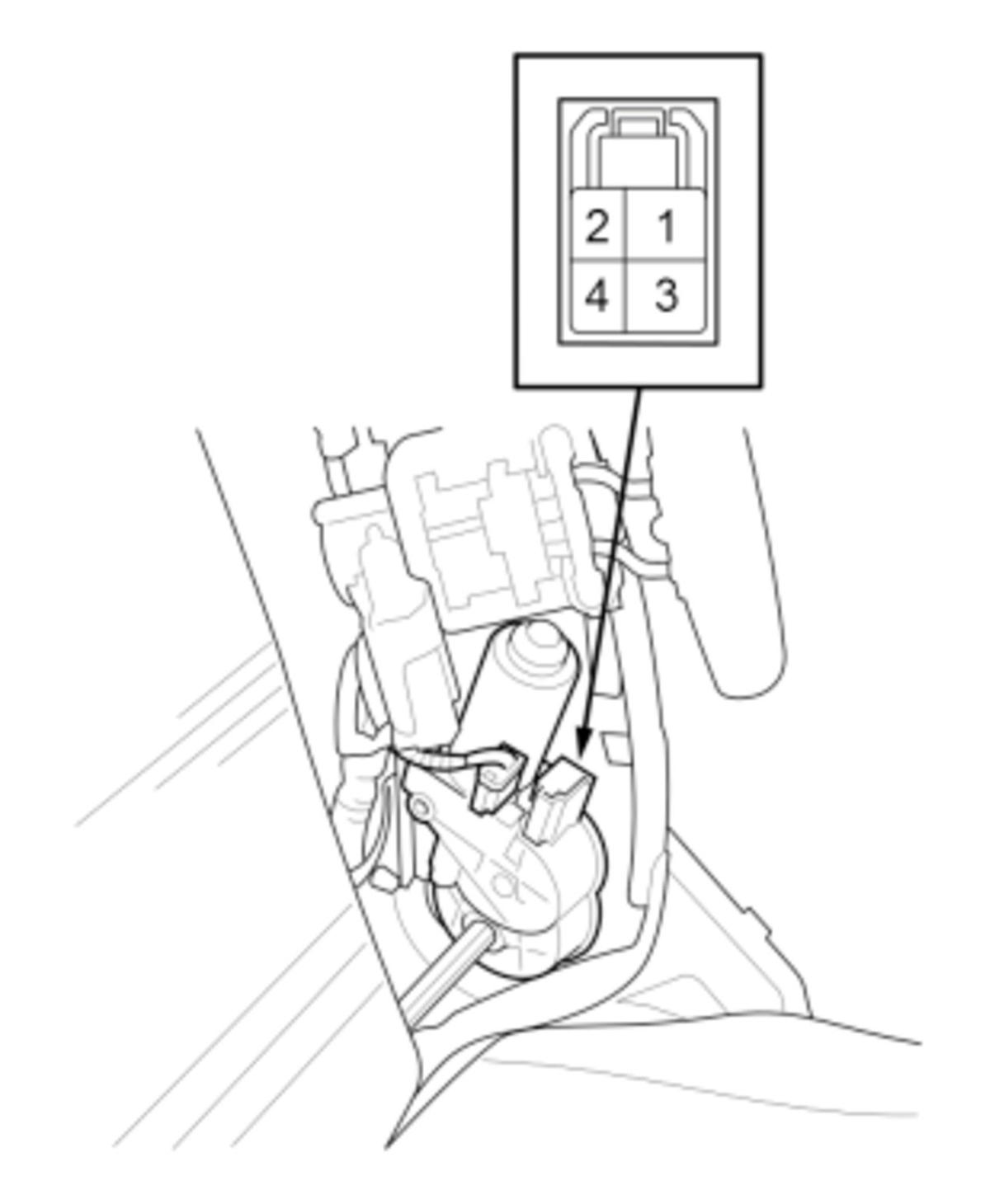

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

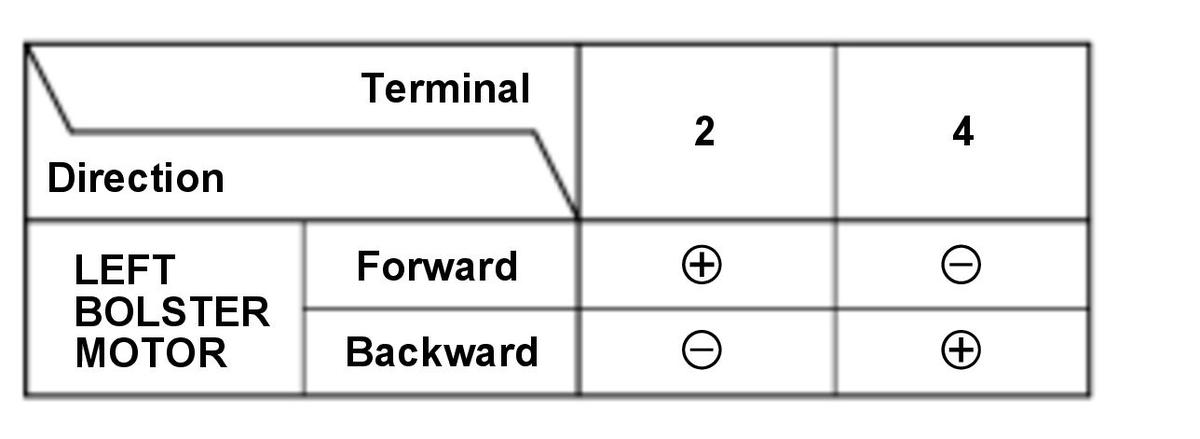

   • Test each motor in each direction by connecting power and ground according to the table. (Figure 1, 2, and 3)

     NOTICE:  To prevent damage to the motor, apply battery voltage only momentarily.

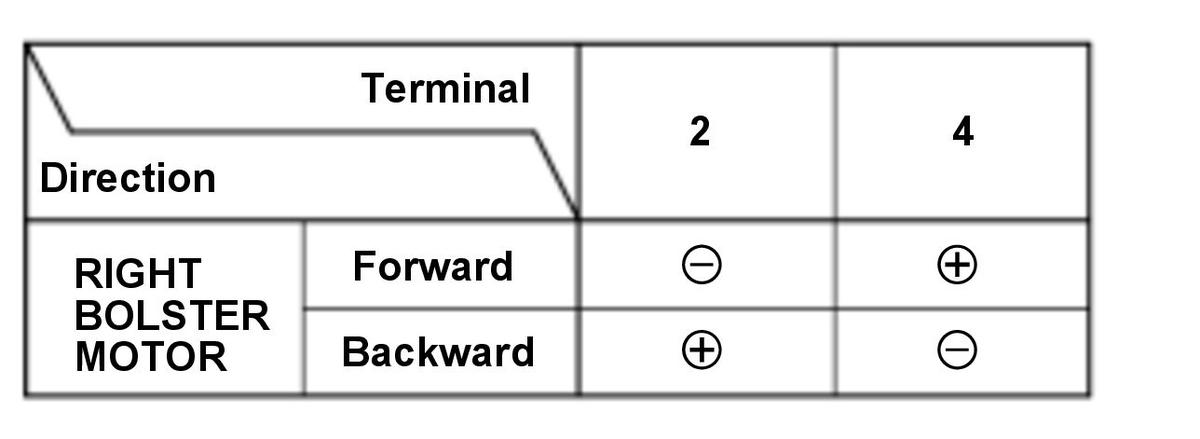

   Motor Details (Figure 1)

   Name
   a	Left Bolster Motor
   b	Right Bolster Motor

   Result

   • If the motor does not operate as specified, replace the bolster motor .
