Inspection Outline

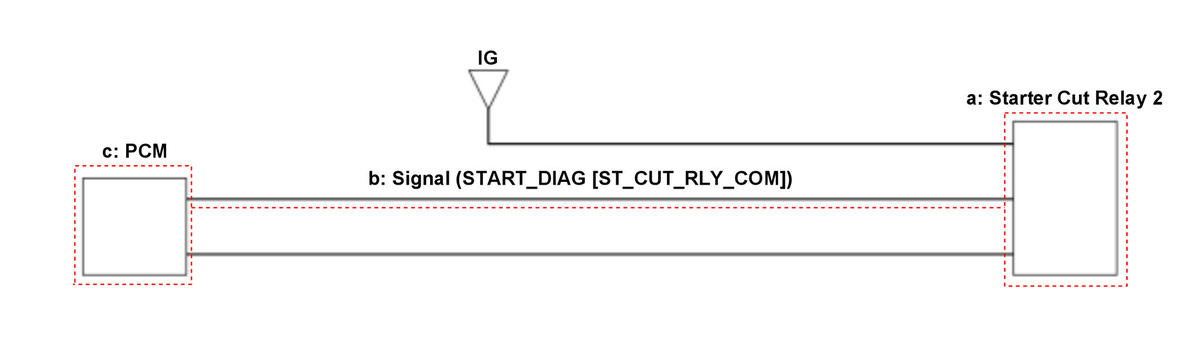

- The components to be tested are indicated by a dotted line.
- Troubleshoot any DTCs listed or indicated systems below first.
-
- Starter Cut Relay 1 [PGM-FI]: DTC P16F3 - Refer to: DTC Troubleshooting: P16F3(2.0L Engine) or DTC Troubleshooting: P16F3(3.0L Engine) .
- Starter Cut Relay 2 [PGM-FI]: DTC P16F4 - Refer to: DTC Troubleshooting: P16F4(3.0L Engine) or DTC Troubleshooting: P16F4(2.0L Engine) .
| Inspection Items | Work Items | |
|---|---|---|
| a | Starter Cut Relay 2 | Do the Starter Cut Relay 2 Test |
| b | External Circuit | START_DIAG [ST_CUT_RLY_COM] Shorted Wire Inspection |
| c | PCM | PCM Inspection |
