ANC/Active Sound Control Unit Connector for Inputs and Outputs

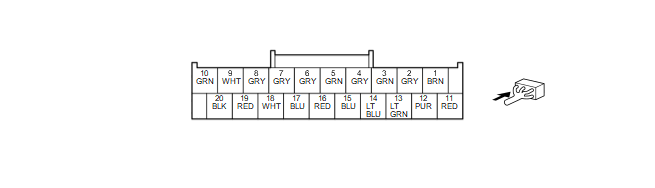

Active Sound Control Unit Connector (20P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | GND | Ground for active sound control unit (G011) |
| 2 | SH_ANC_M_MIC | Shield for terminal No. 13 |
| 3 | SWD+B | Inputs signal for active sound control unit switching on/off |
| 4 | PF-CAN A_H | Communication signal |
| 5 | PF-CAN A_L | Communication signal |
| 6 | SH_ANC_R_MIC | Shield for terminal No. 17 |
| 7 | SH_ANC_F_MIC | Shield for terminal No. 18 |
| 8 | ANC_SH | Shield for terminals No. 9, No. 10, No. 19, and No. 20 |
| 9 | ANC_R- | Outputs signal for acceleration sound enhancement |
| 10 | ANC_F- | Outputs signal for acceleration sound enhancement |
| 11 | +B_BACK_UP | Continuous power source |
| 12 | IG1_METER | IG1 power source |
| 13 | ANC_M_MIC+8V | Inputs sound signal from middle ANC/active sound control microphone |
| 14 | K-LINE | Detects scan tool signal (serial data) |
| 15 | AUD_F_MIX_GND | Ground for audio mixing signal for front channels |
| 16 | AUD_F_MIX | Inputs audio mixing signal for front channels |
| 17 | ANC_R_MIC+8V | Inputs sound signal from rear ANC/active sound control microphone |
| 18 | ANC_F_MIC+8V | Inputs sound signal from front ANC/active sound control microphone |
| 19 | ANC_R+ | Outputs signal for acceleration sound enhancement |
