Telematics Control Unit Connector for Inputs and Outputs
NOTE:
The front HFL-ANC/active sound control microphone and the HFL microphone are the same parts.
| Connector Index |
|---|
| Telematics Control Unit Connector A (32P) |
| Telematics Control Unit Connector B (5P) |

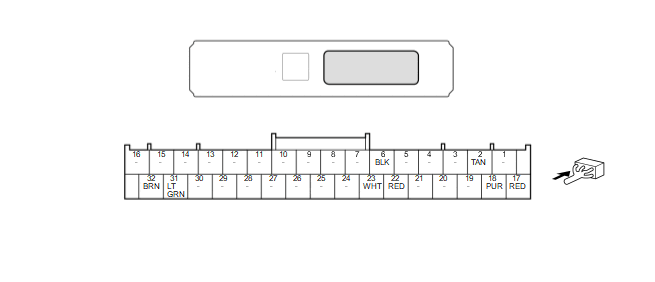

Telematics Control Unit Connector A (32P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| A1 | Not used | --- |
| A2 | ACC | Power source for accessories |
| A3 | Not used | --- |
| A4 | Not used | --- |
| A5 | Not used | --- |
| A6 | GND | Ground for telematics control unit (G015) |
| A7 | Not used | --- |
| A8 | Not used | --- |
| A9 | Not used | --- |
| A10 | Not used | --- |
| A11 | Not used | --- |
| A12 | Not used | --- |
| A13 | Not used | --- |
| A14 | Not used | --- |
| A15 | Not used | --- |
| A16 | Not used | --- |
| A17 | +B_BACKUP | Continuous power source |
| A18 | IG1_METER | IG1 power source |
| A19 | Not used | --- |
| A20 | Not used | --- |
| A21 | Not used | --- |
| A22 | YB-CAN B_L | Communication signal |
| A23 | YB-CAN B_H | Communication signal |
| A24 | Not used | --- |
| Cavity | Terminal Name | Description |
|---|---|---|
| A25 | Not used | --- |
| A26 | Not used | --- |
| A27 | Not used | --- |
| A28 | Not used | --- |
| A29 | Not used | --- |
| A30 | Not used | --- |
| A31 | YF-CAN A_L | Communication signal |
| A32 | YF-CAN A_H | Communication signal |

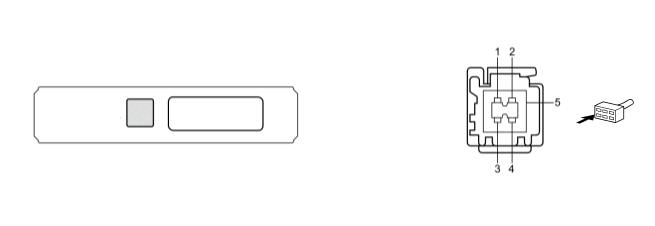

Telematics Control Unit Connector B (5P) (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| B1 | TEL USB GND | Ground for USB |
| B2 | TEL USB VBUS | Outputs power source for USB |
| B3 | TEL USB DATA+ | Communication signal |
| B4 | TEL USB DATA- | Communication signal |
| B5 | TEL USB SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
