Engine Block Assembly Component Location Index (1.5L Engine)

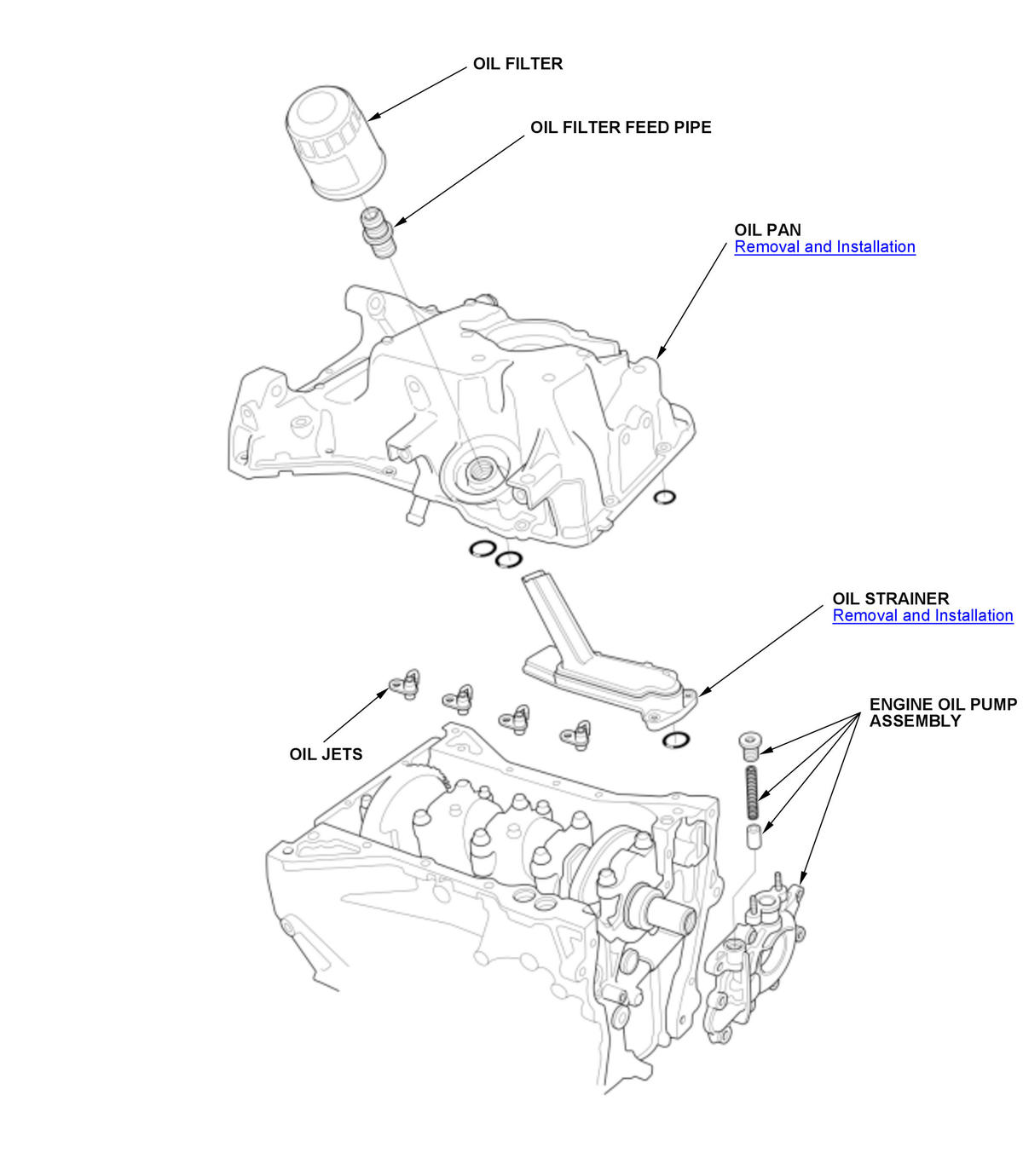

GHH530969Courtesy of HONDA, U.S.A., INC.

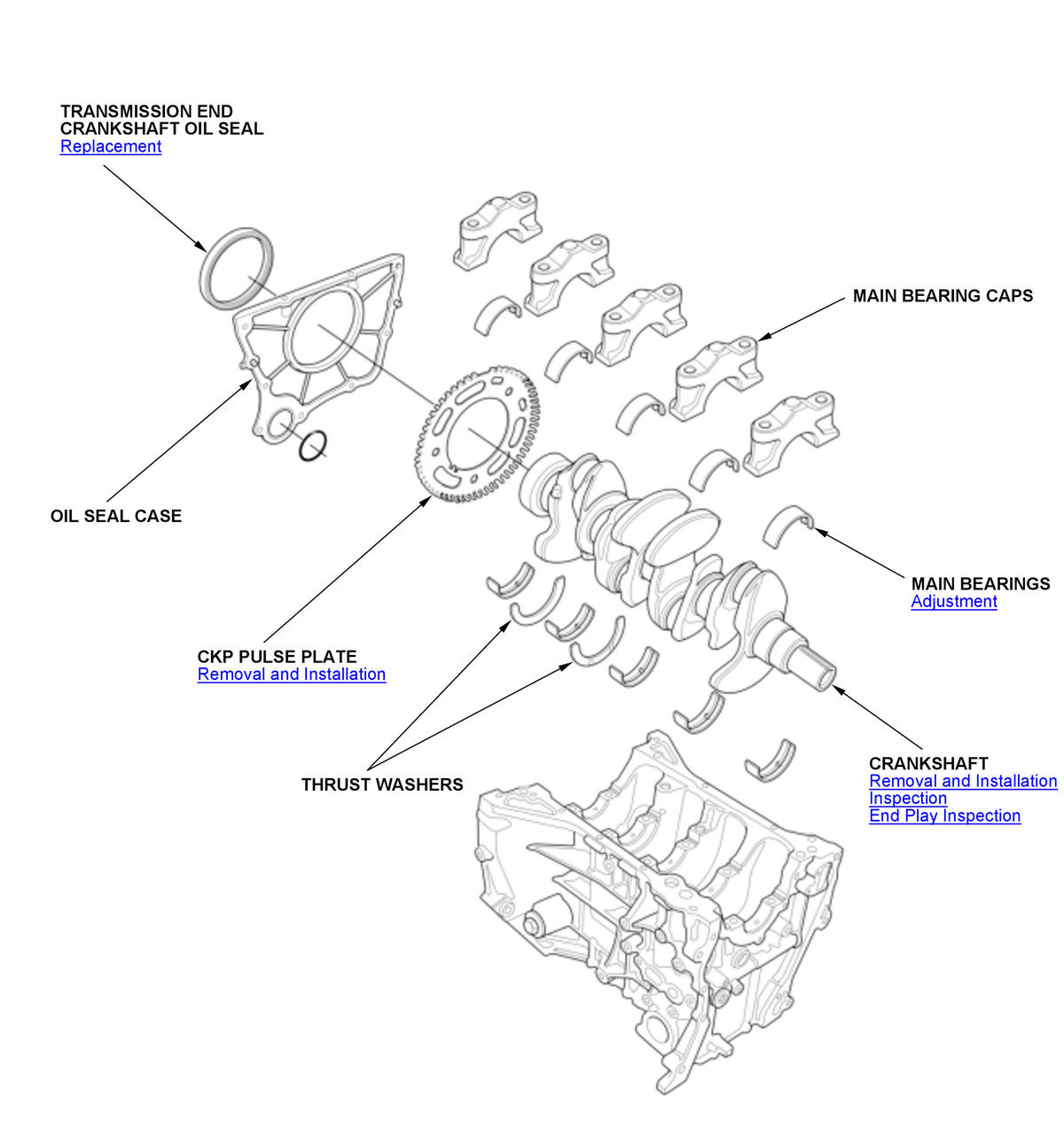

GHH530970Courtesy of HONDA, U.S.A., INC.

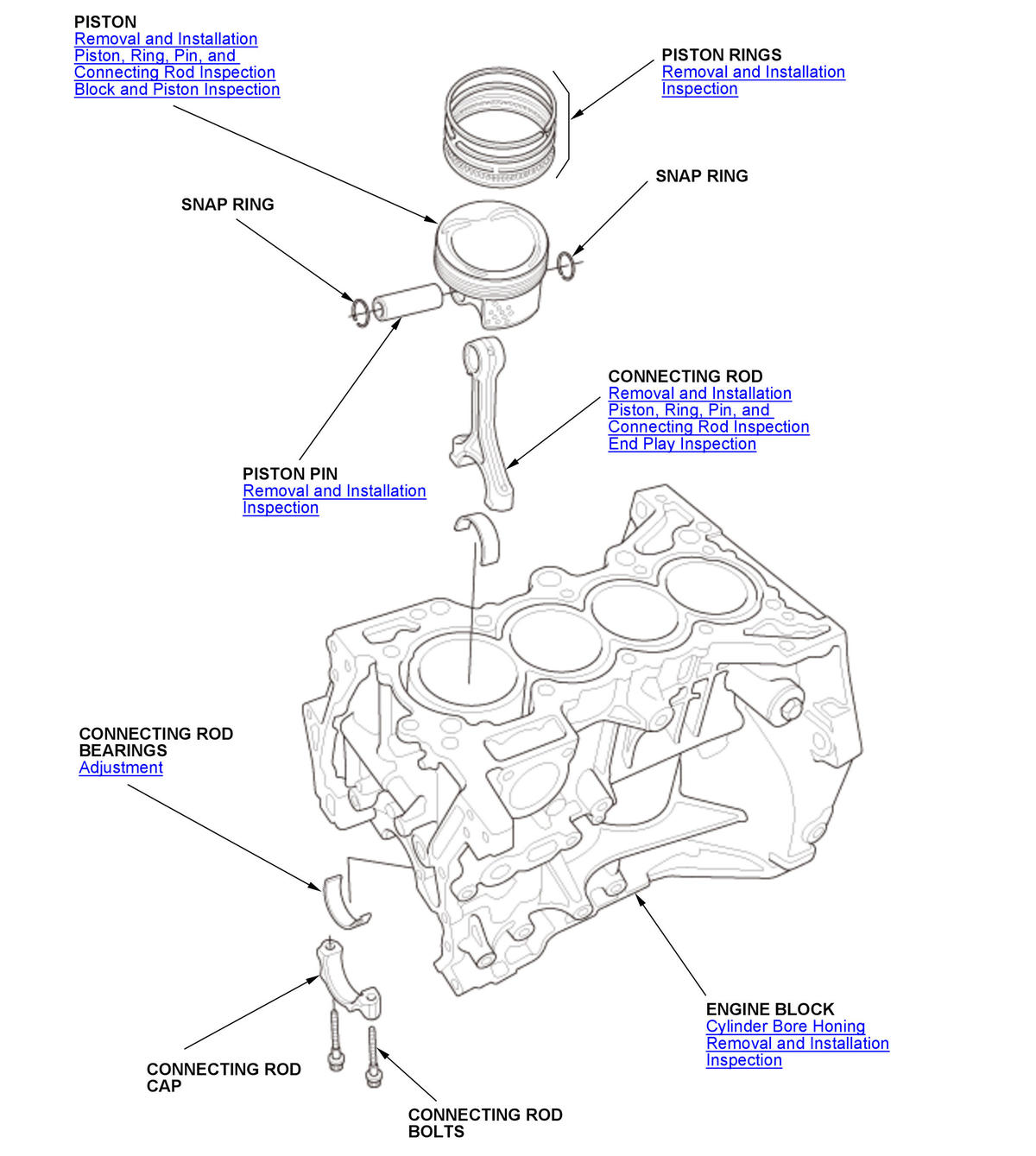

GHH530971Courtesy of HONDA, U.S.A., INC.
