Repair Procedure

WARNING:

• SRS components are located in this area. Before doing repairs or service:
• • -

    Review the SRS component locations .

• • -

    Review the precautions and procedures .

How to use this service information .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

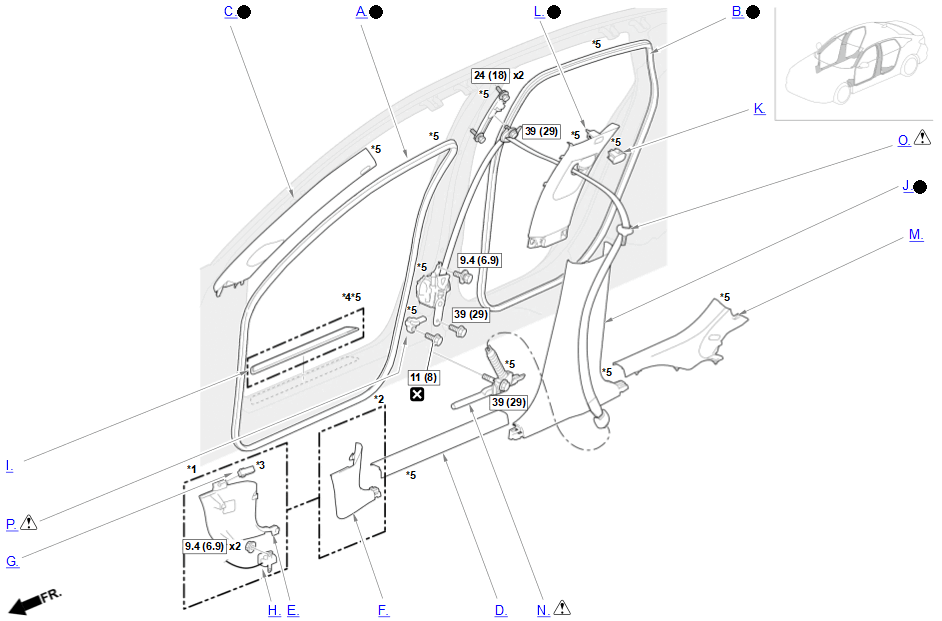

*1: Driver's side*2: Passenger's side*3: With driver's footwell light*4: With front side outer trim*5: Part(s) are shown for one side only as the procedure is the same for both sides.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

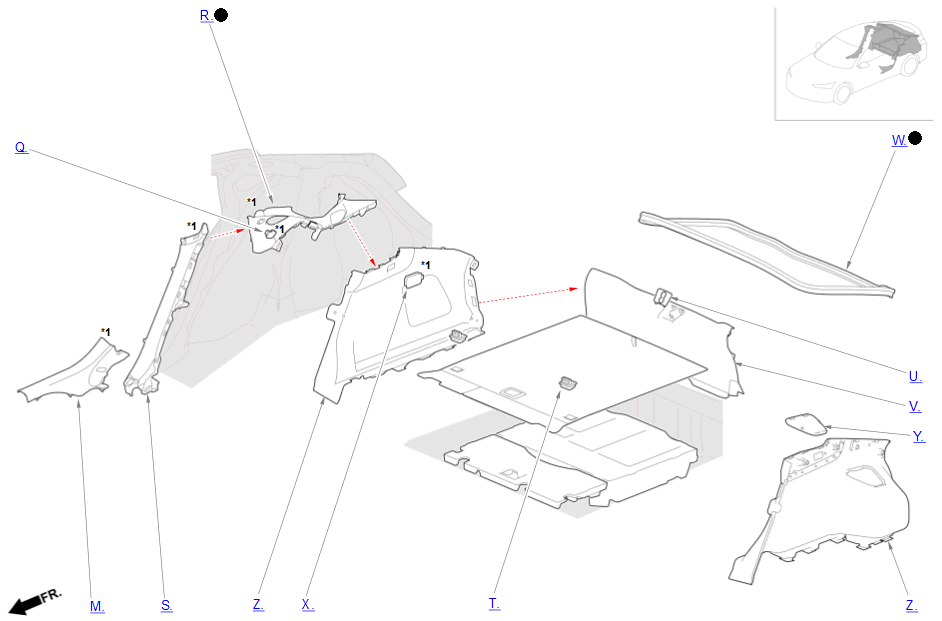

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: Display audio type (9-inch screen)*2: With 2-way transceiver*3: With rear seat heater control unit*4: With parking and back-up sensor control unit*5: With adaptive damper system*6: Type-S*7: Part(s) are shown for one side only as the procedure is the same for both sides.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: Display audio type (9-inch screen)*2: With 2-way transceiver

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: Display audio type (9-inch screen)*2: With 2-way transceiver

1. A.-

   Sub-Procedure

   Installation

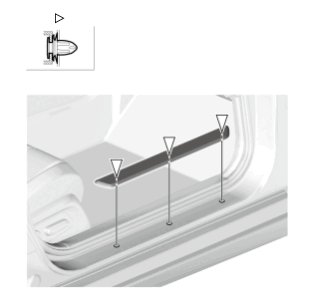

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • Water Leaks Check
2. B.-

   Sub-Procedure

   Installation

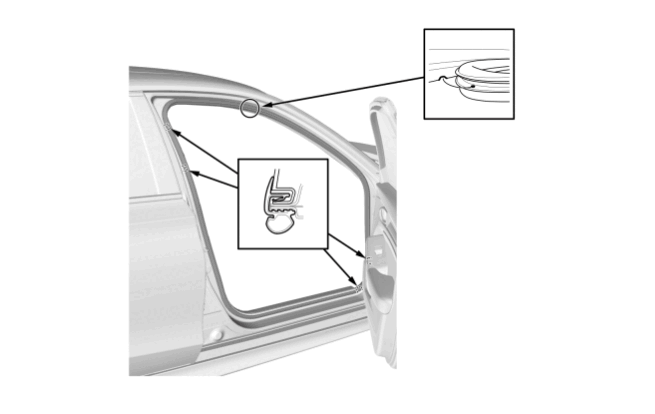

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • Water Leaks Check
3. C.-

   Sub-Procedure

   Removal

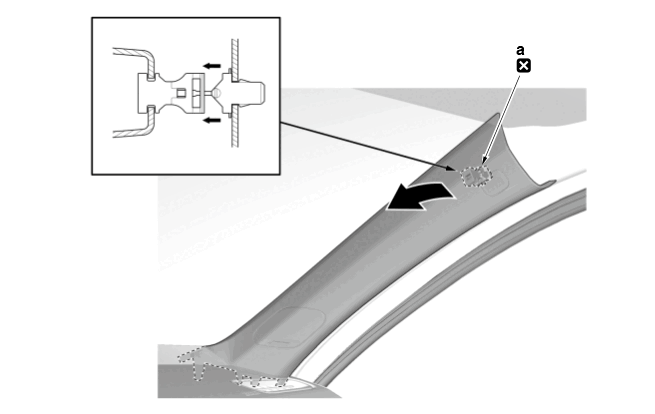

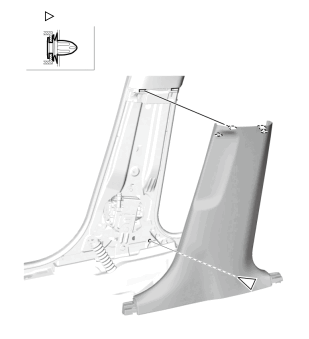

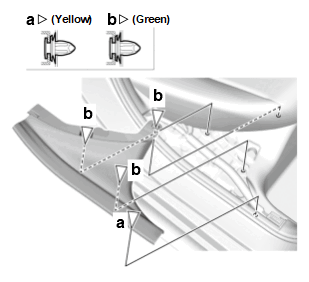

   • Refer to figure 1, 2, and 3.

   NOTE:

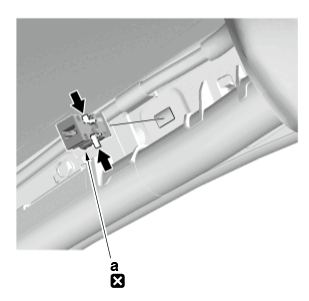

   • Replace the upper clip (a) with a new one.
   • The clips will stay in the body.

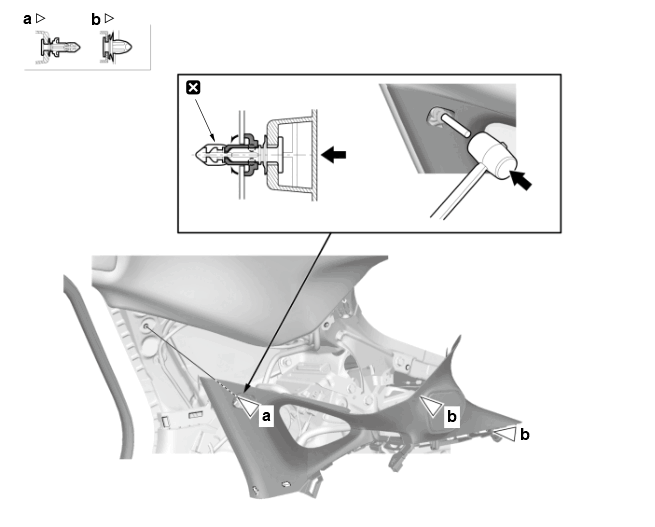

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

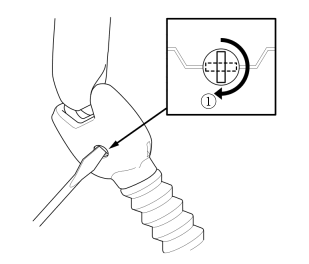

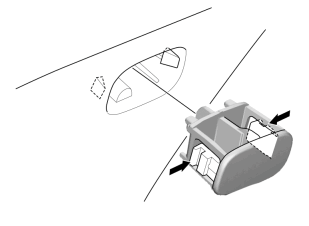

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

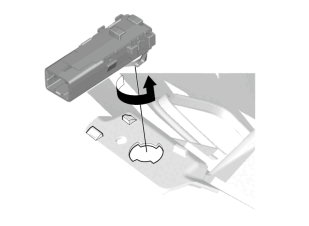

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Before installing the A-pillar trim, install the clips to the A-pillar trim.
   • After inspecting the A-pillar trim, install the A-pillar trim.
4. D.-

   Courtesy of HONDA, U.S.A., INC.

5. E.-

   Courtesy of HONDA, U.S.A., INC.

6. F.-

   Courtesy of HONDA, U.S.A., INC.

7. G.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

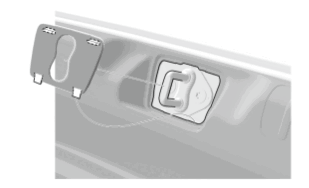

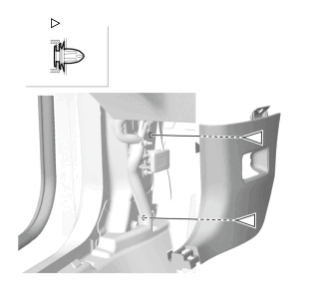

   • Refer to the figure.
8. H.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

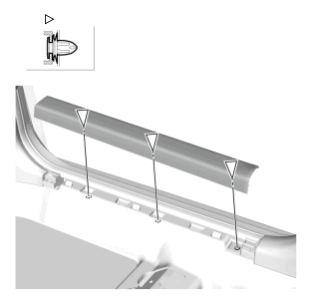

   • Refer to the figure.
9. I.-

   Courtesy of HONDA, U.S.A., INC.

10. J.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.

    Installation

    • After inspecting the B-pillar lower trim then, install the B-pillar lower trim .
11. K.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
12. L.-

    Sub-Procedure

    Removal

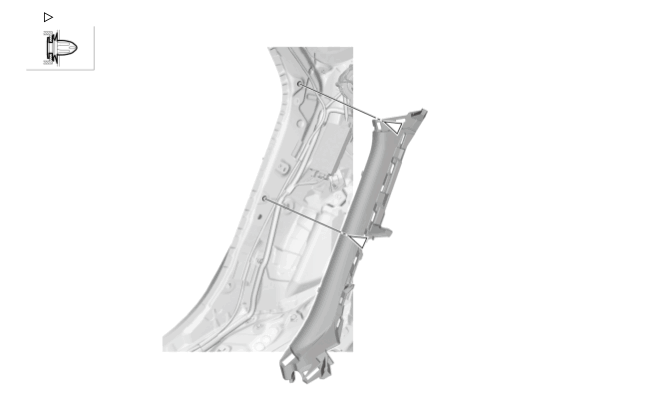

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

    Installation

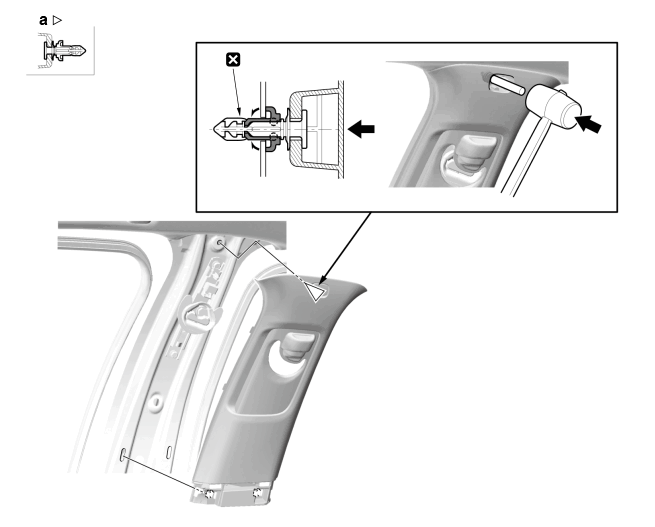

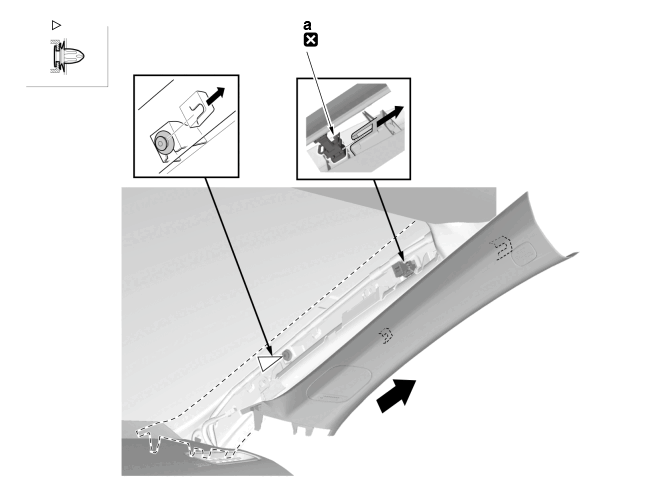

    1. Replace the upper clip (a) with a new one.

    2. After inspecting the B-pillar upper trim then, install the B-pillar upper trim

    .

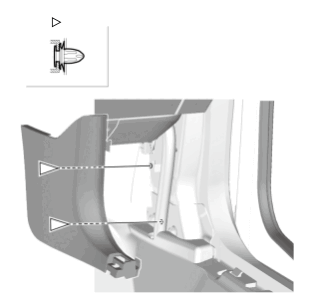

13. M.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Rear Seat Cushion (as needed)

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

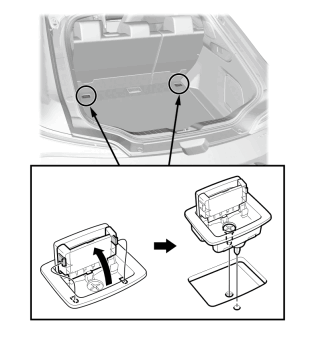

    • Refer to the figure.
14. N.-

    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    NOTICE:

    If you are replacing the front seat belt outer lap tensioner after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Sub-Procedure

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

    Removal

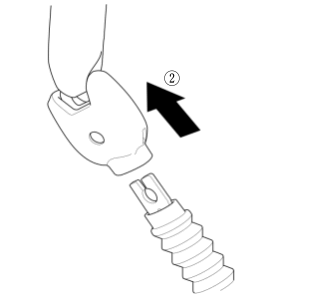

    • Refer to figure 1 and 2.

    Installation

    NOTICE:

    Before installing the B-pillar lower trim, make sure the SRS indicator works normally.

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
15. O.-

    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    NOTE:  If you are replacing the front seat belt after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Sub-Procedure

    Installation

    NOTICE:

    Before installing the B-pillar lower trim, make sure the SRS indicator works normally.

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
16. P.-

    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    NOTICE:

    • If you are replacing the side impact sensor (first) after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.
    • Be careful not to bump (by impact wrench, hammer, etc.) the area around the side impact sensor.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Sub-Procedure

    Installation

    NOTICE:

    Before installing the B-pillar lower trim, make sure the SRS indicator works normally.

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
17. Q.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

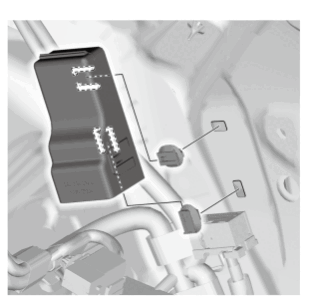

    • Refer to the figure.
18. R.-

    Sub-Procedure

    Removal

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

    Installation

    1. Replace the upper clip (a) with a new one.

    2. After inspecting the C-pillar trim, then install the C-pillar trim.

19. S.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Rear Seat Side Bolster

    Sub-Procedure

    Removal

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

20. T.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.

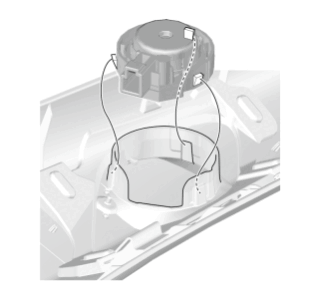

21. U.-

    Courtesy of HONDA, U.S.A., INC.

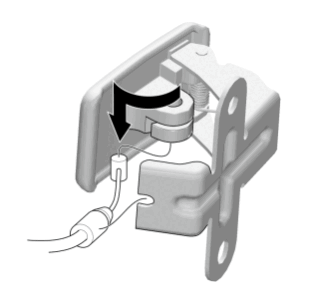

22. V.-

    Courtesy of HONDA, U.S.A., INC.

23. W.-

    Sub-Procedure

    Installation

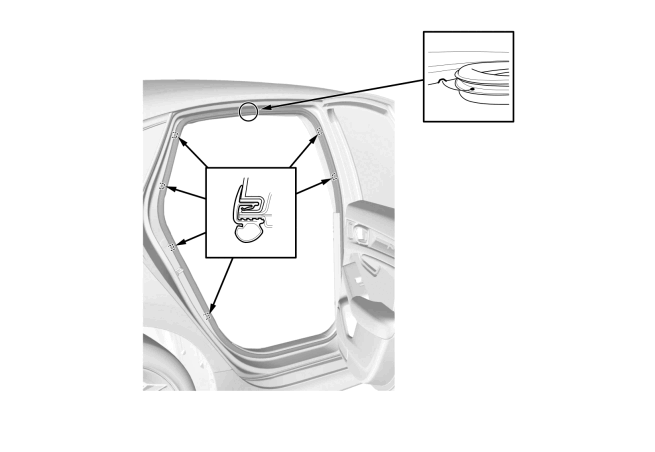

    • Refer to the figure.

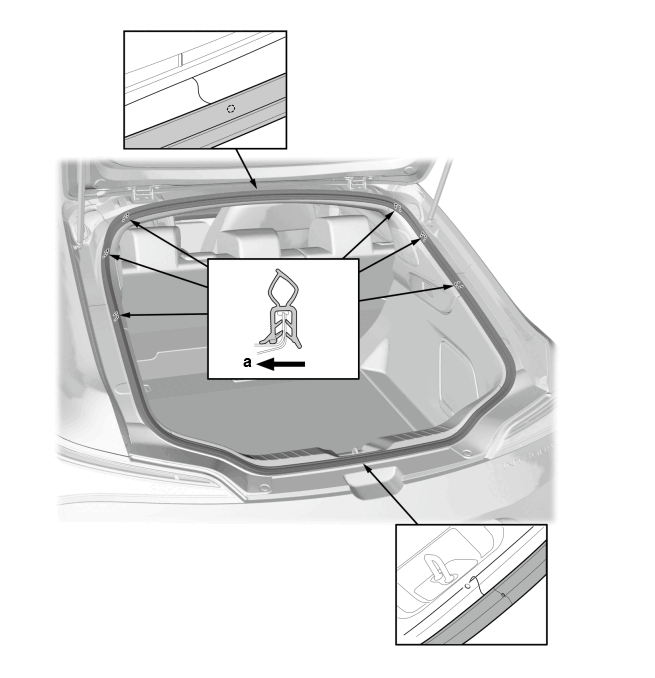

    Installation Directions

    Position	Direction
    a	Out side

    Courtesy of HONDA, U.S.A., INC.

    After Installation

    • Water Leaks Check
24. X.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.

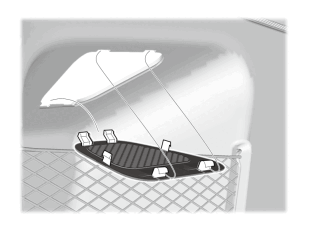

25. Y.-

    Courtesy of HONDA, U.S.A., INC.

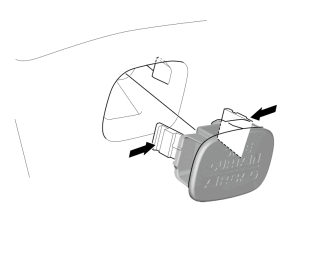

26. Z.-

    Preconditions

    • Rear Seat-Back Folded Down

    Sub-Procedure

    Removal

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

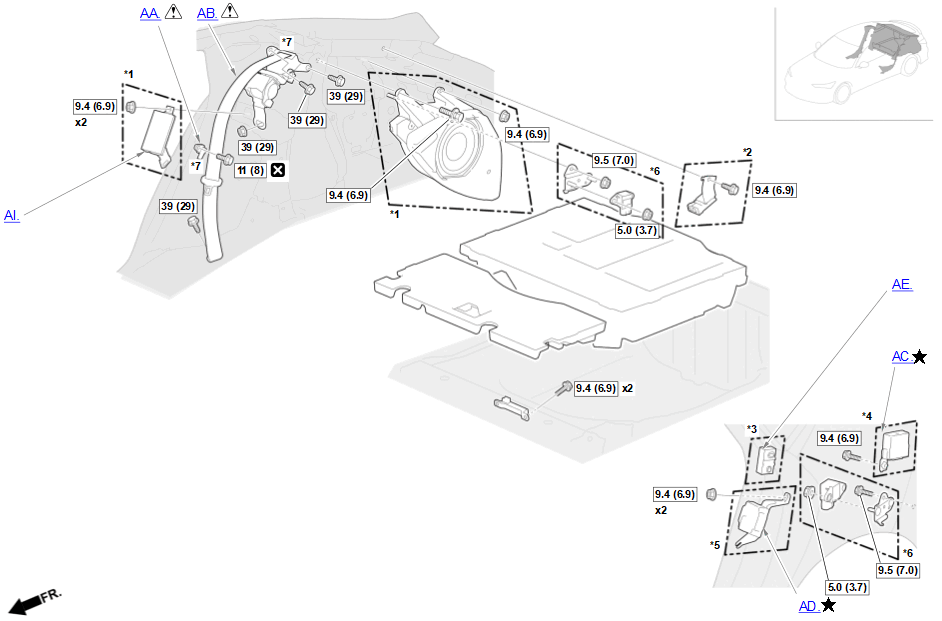

27. AA.-

    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    NOTICE:

    • If you are replacing the side impact sensor (second) after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.
    • Be careful not to bump (by impact wrench, hammer, etc.) the area around the side impact sensor.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Sub-Procedure

    Installation

    NOTICE:

    Before installing the rear seat side trim, make sure the SRS indicator works normally.

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
28. AB.-

    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.

    NOTE:  If you are replacing the rear seat belt after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal or SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

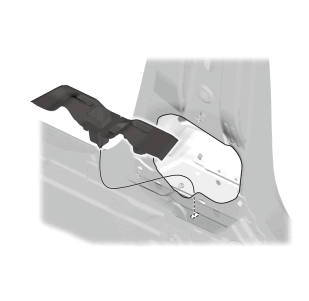

29. AC.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

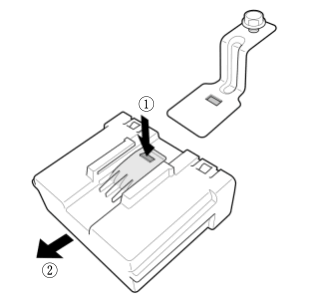

    • Refer to the figure.

    After Installation

    Parking and Back-Up Sensor Control Unit Update - Refer to: Resetting the Parking and Back-Up Sensor Control Unit or Parking and Back-Up Sensor Control Unit Update (When replacing the parking and back-up sensor control unit)

30. AD.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Rear Seat Side Bolster

    After Installation

    • Adaptive Damper Control Unit Update (When replacing the adaptive damper control unit)

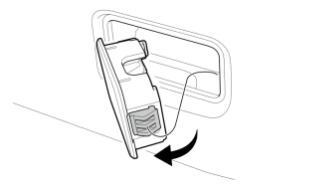

31. AE.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Rear Seat Side Bolster

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

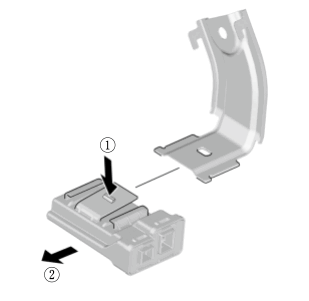

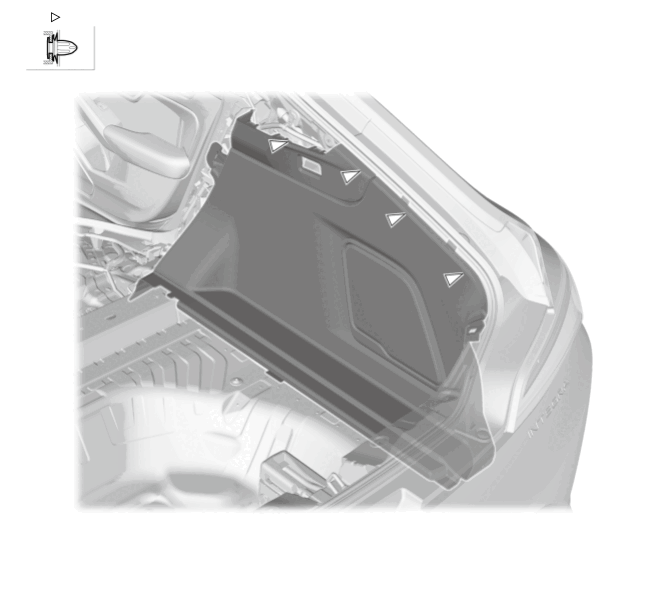

    • Refer to the figure.

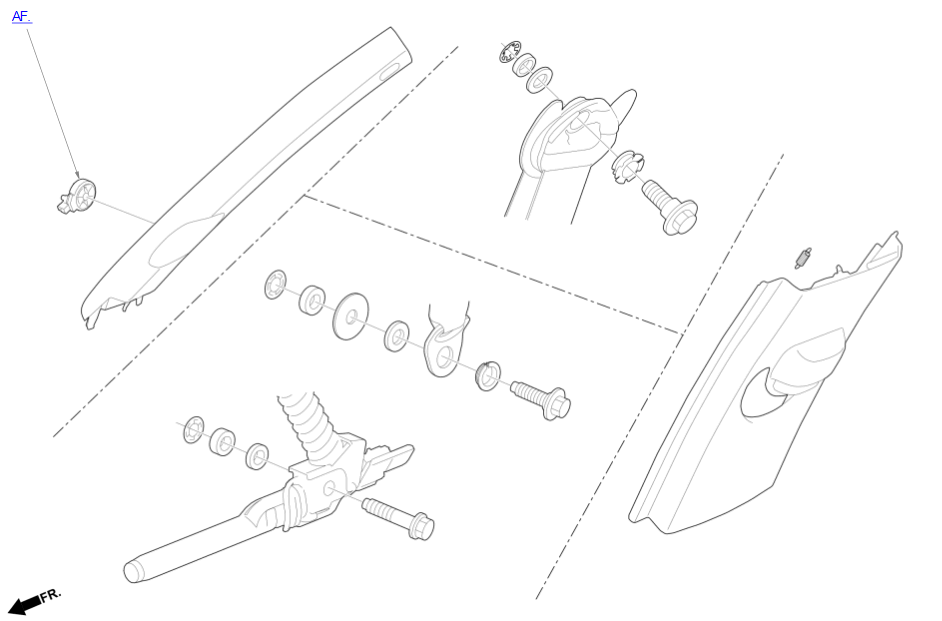

32. AF.-

    Courtesy of HONDA, U.S.A., INC.

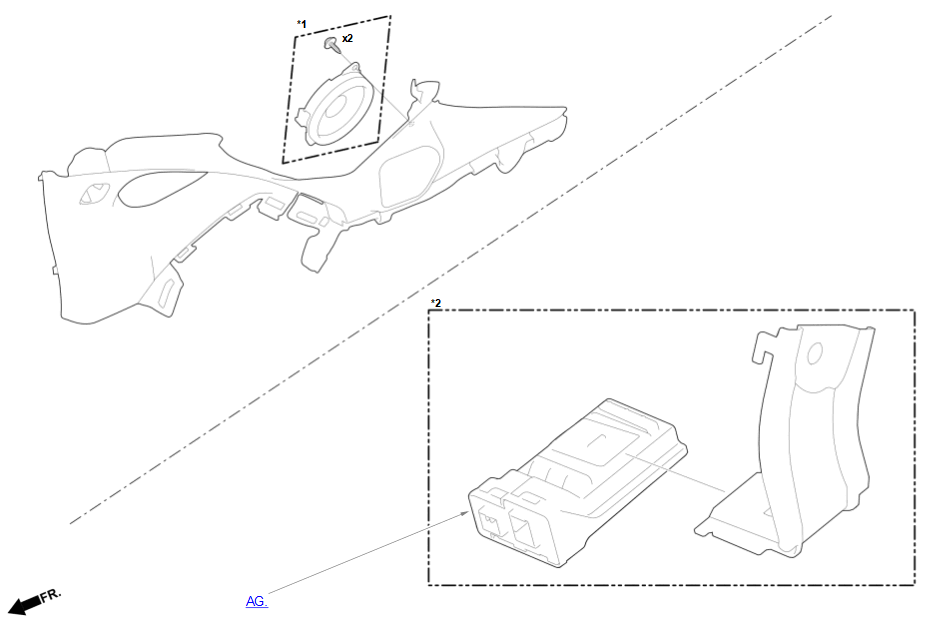

33. AG.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

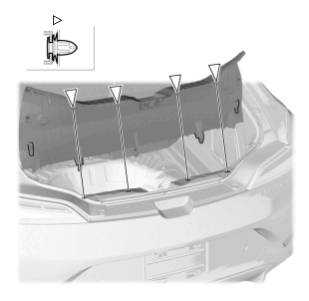

    • Refer to the figure.

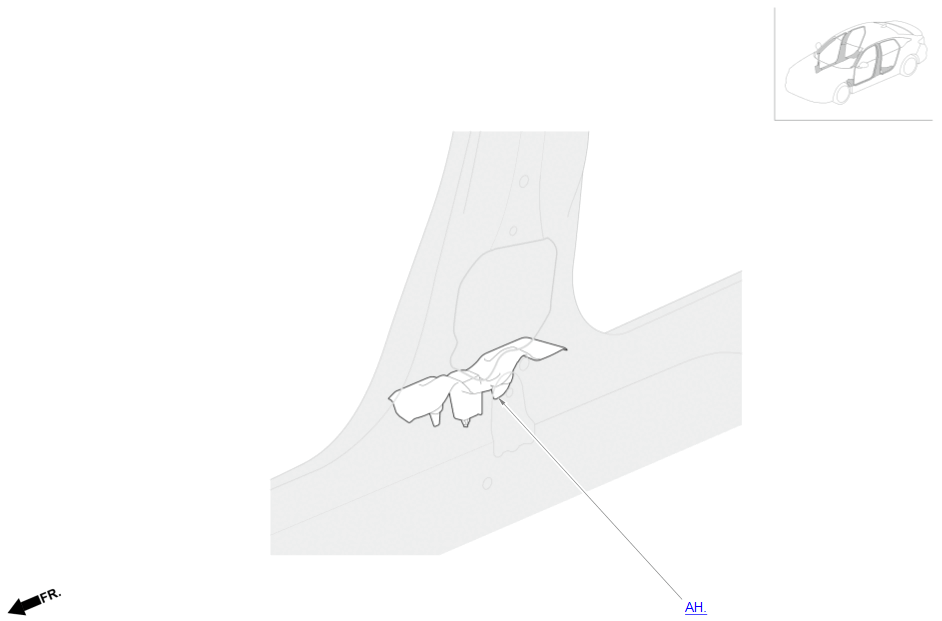

34. AH.-

    Courtesy of HONDA, U.S.A., INC.

35. AI.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Rear Seat Side Bolster
