Repair Procedure

How to use this service information .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

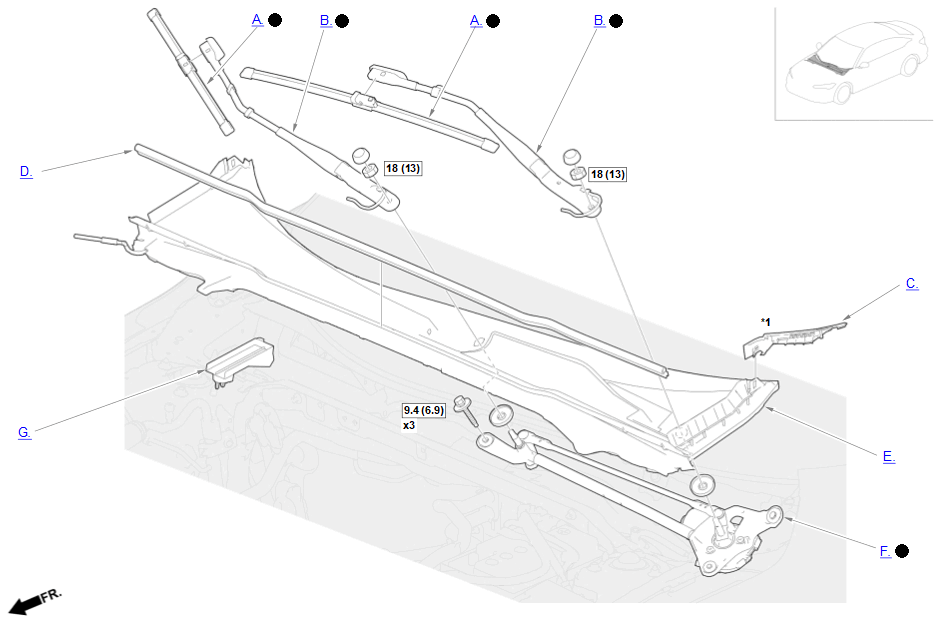

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

1. A.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   ■ Removal

   1. Turn the vehicle to the ON mode.

   2. Turn the vehicle to the OFF mode, then turn and hold the wiper/washer switch to the MIST position within 10 seconds.

   3. Release the wiper/washer switch.

   NOTE:

   The wiper arm stops at the service position.

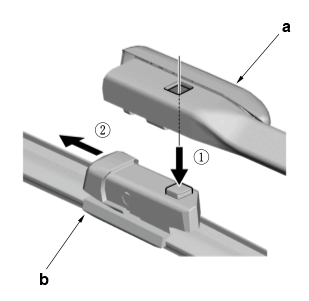

   4. Lift the wiper arm (a) off the windshield.

   5. Remove the wiper blade assembly (b).

2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

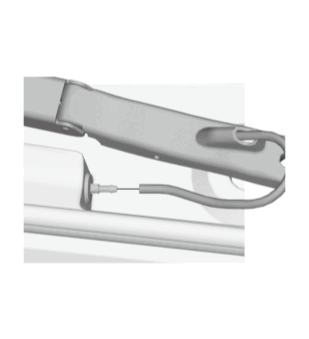

   ■ Removal

   • Refer to the figure.

   ■ Installation

   • Turn the vehicle to the ON mode, then turn the wiper switch ON, and then back OFF.
   • Tighten the nut in the vehicle ON mode.

   After Installation

   • Windshield Wiper Arm/Nozzle Adjustment

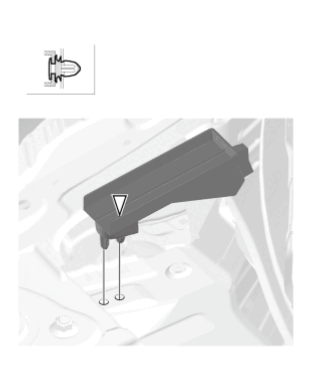

3. C.-

   Courtesy of HONDA, U.S.A., INC.

4. D.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

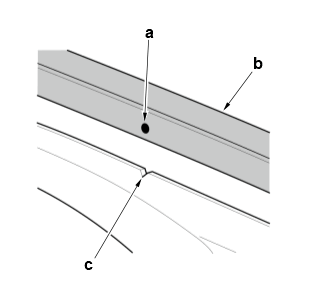

   • Align the painted mark (a) of the seal (b) with the notch (c) on the cowl cover, then push the hood rear seal against the cowl cover.

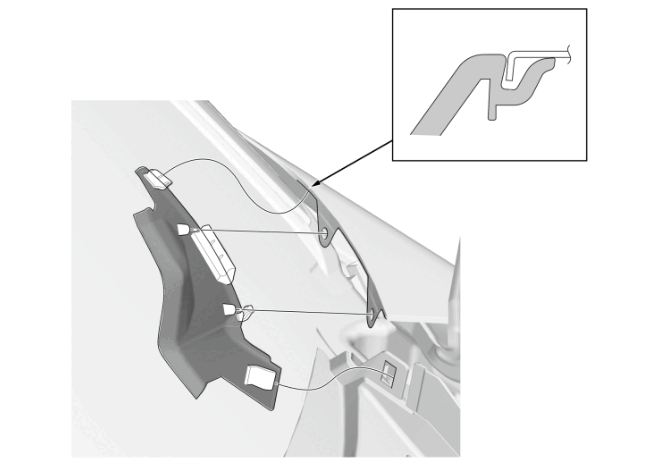

5. E.-

   Sub-Procedure

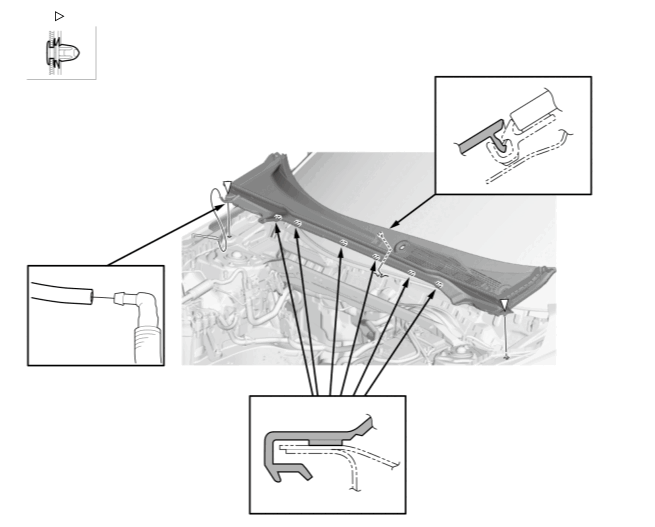

   • Refer to figures 1 and 2.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   ■ Installation

   • Refer to figure 3.
   NOTE:

   • Clean the frame surfaces where the EPT sealers (a, b) will be applied with a shop towel dampened with isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
   • Make sure the EPT sealers line up with the alignment marks (c). (Figure 3)

   NOTICE:

   After cleaning, keep oil, grease, and water from getting on the surface.

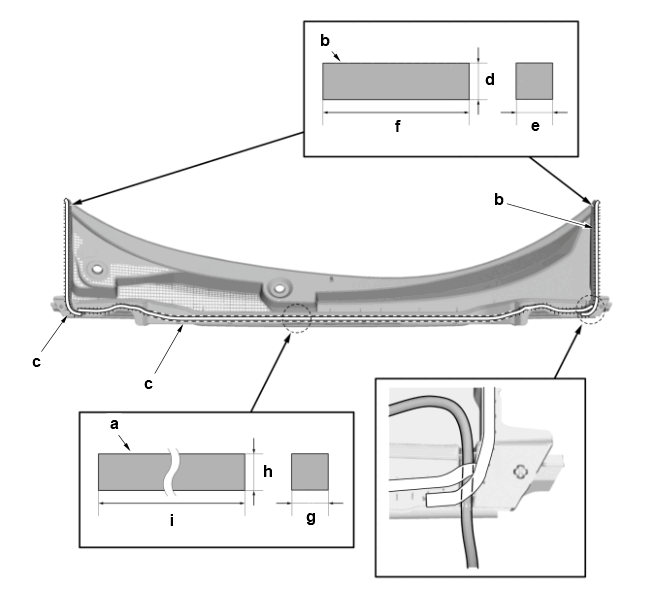

   Specifications (Figure 3)

   Standard Value
   d	8 mm (0.31 in)
   e	8 mm (0.31 in)
   f	348 mm (13.70 in)
   g	4 mm (0.16 in)
   h	8 mm (0.31 in)
   i	1384 mm (54.49 in)

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

6. F.-

   Sub-Procedure

   ■ Installation

   1. Refer to the figure.

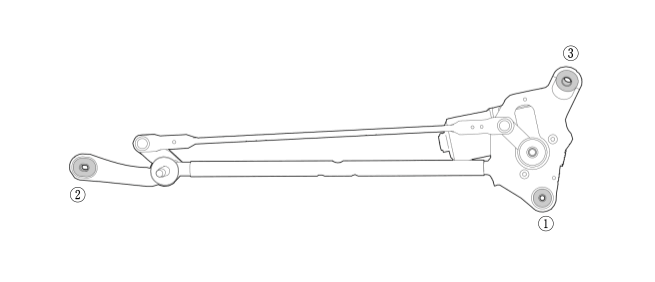

   Tightening Procedure

   Step	Operation	Object	Specification
   1	Loosely Tighten		-
   2	Tighten	Bolts	->
   3	Tighten		-

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • If you replace it with a new windshield wiper control unit/motor, operate the wiper for 100 cycles.
     NOTE:

     When the windshield wiper control unit/motor is replaced with new one, Lip Turn-Over Operation is effective when wiping operates 100 cycles or more after replacing.

   • Windshield Wiper Arm/Nozzle Adjustment
7. G.-

   Courtesy of HONDA, U.S.A., INC.

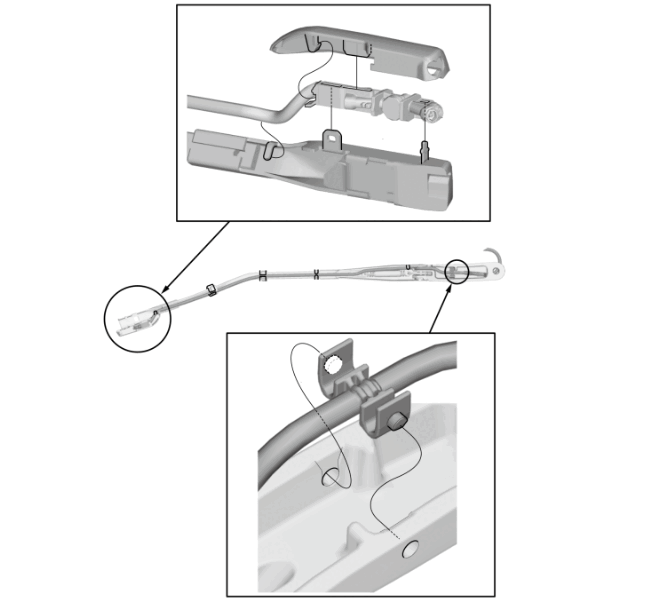

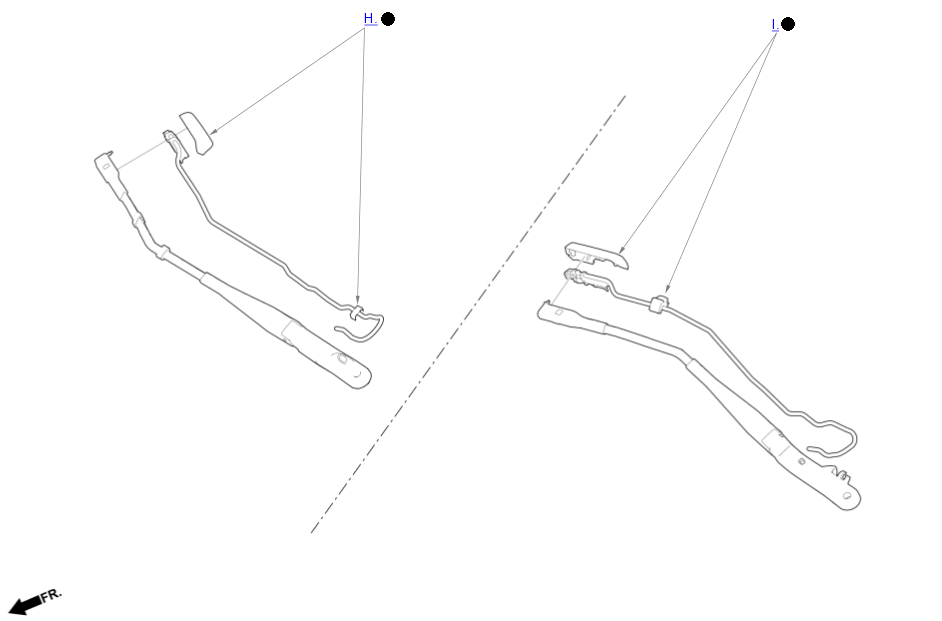

8. H.-

   Sub-Procedure

   ■ Removal

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • Windshield Wiper Arm/Nozzle Adjustment

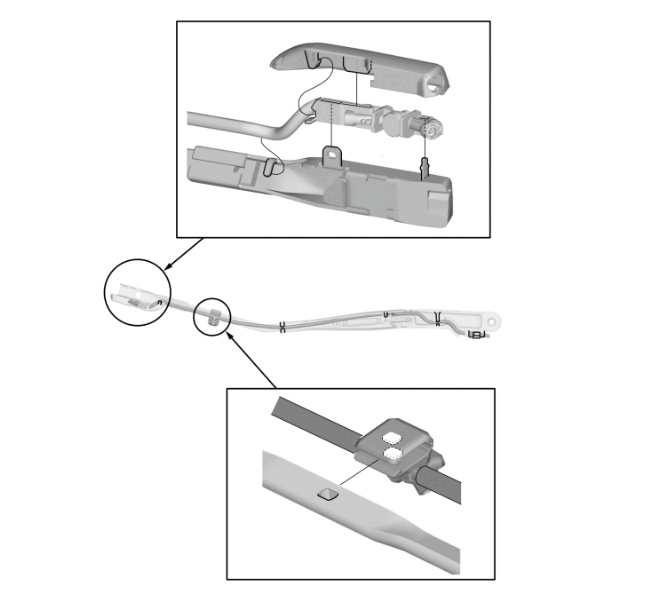

9. I.-

   Sub-Procedure

   ■ Removal

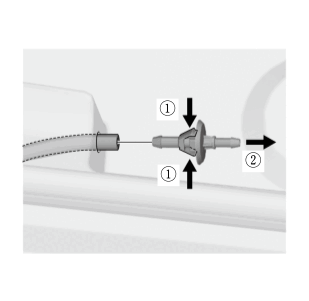

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • Windshield Wiper Arm/Nozzle Adjustment
