Ventilated Seats Component Location Index

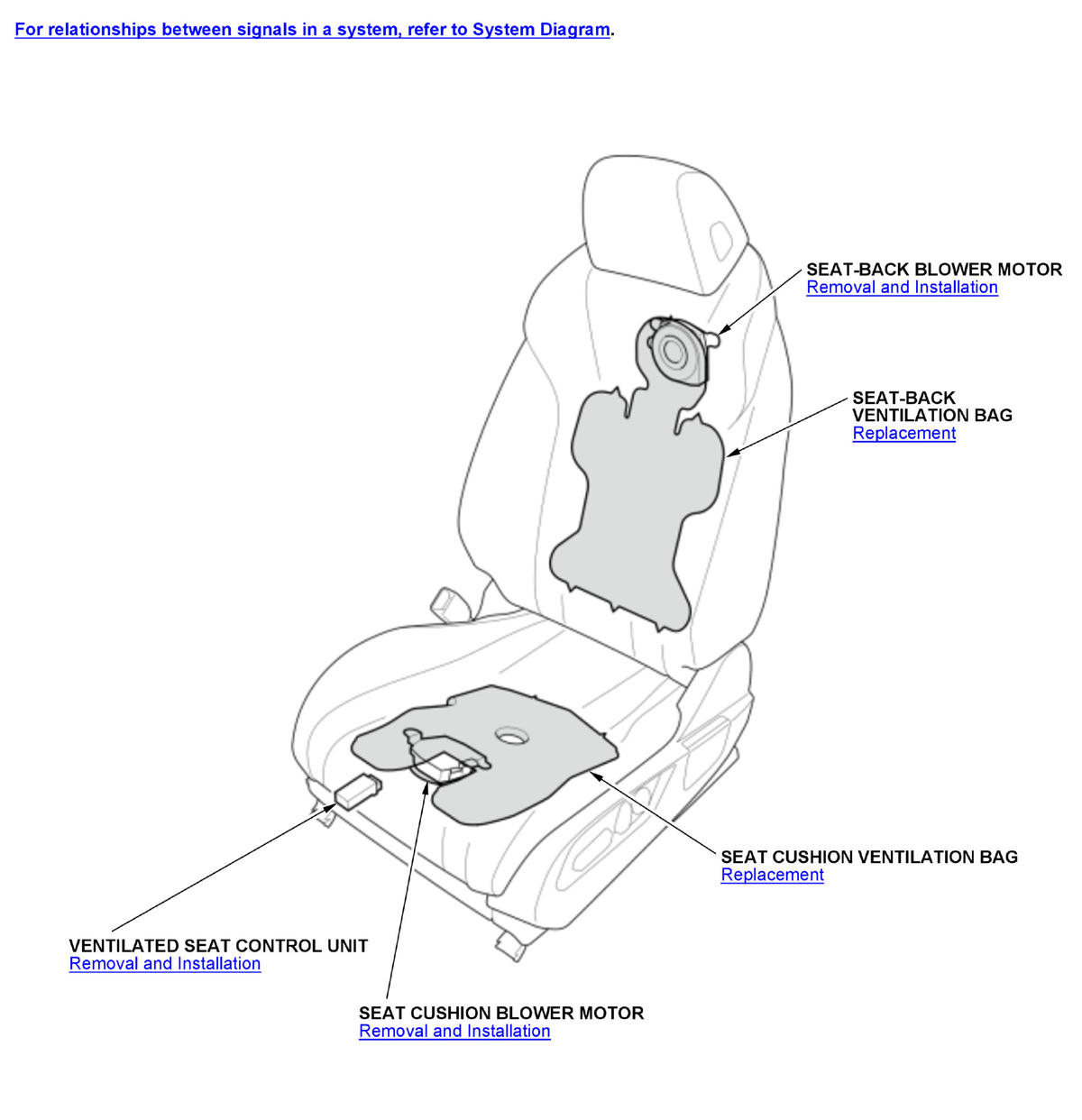

Driver's Seat

GHH524511Courtesy of HONDA, U.S.A., INC.

Front Passenger's Seat

GHH524512Courtesy of HONDA, U.S.A., INC.

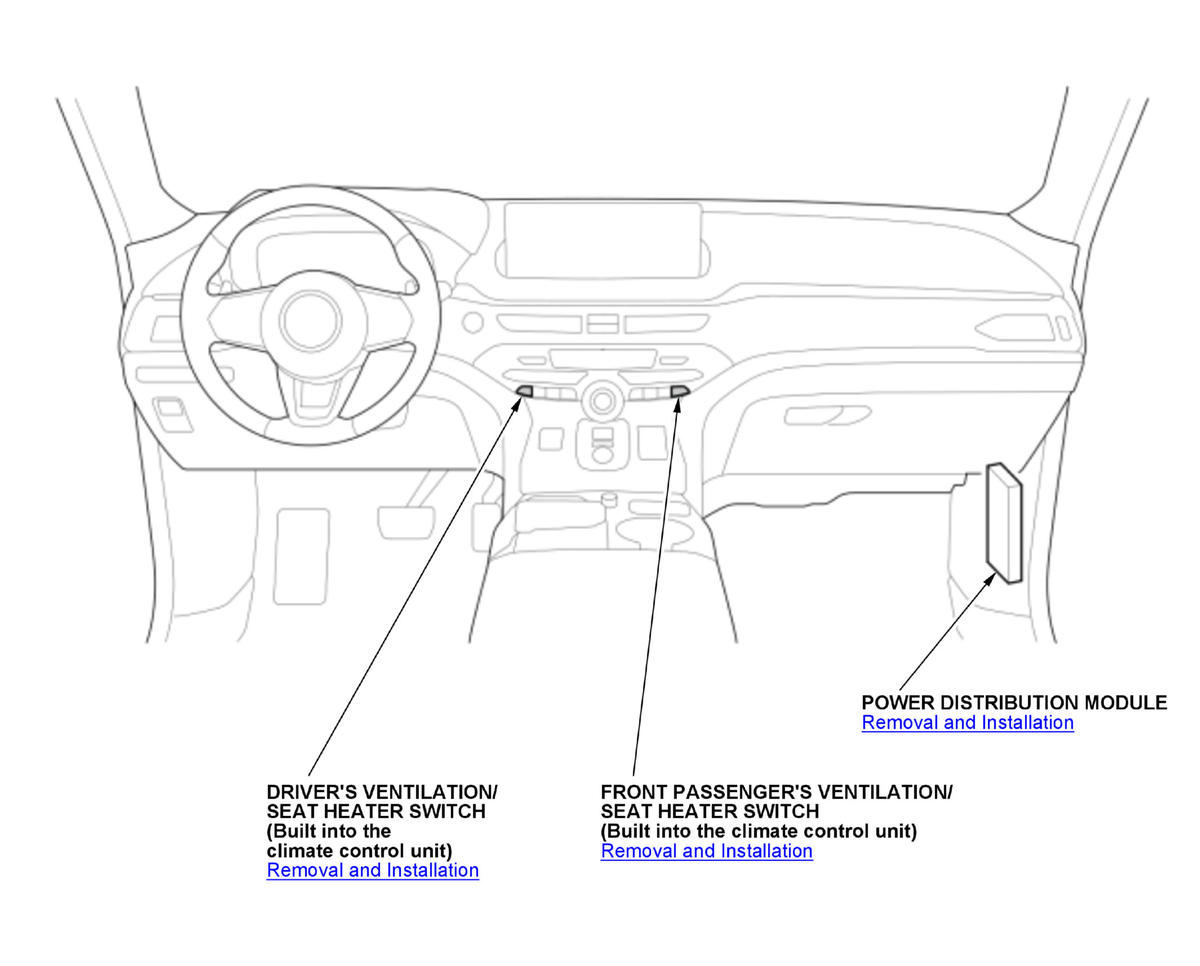

GHH524513Courtesy of HONDA, U.S.A., INC.
