Hands On Detective Control Unit Connector for Inputs and Outputs (Integrated Driver Support System (Camera and Five Radars)) (2025)
The following describes the "Hands on Detective Control Unit Connector for Input and Output" of the Integrated Driver Support System (Camera and Five Radars).

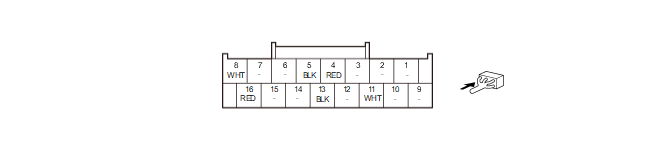

Hands on Detective Control Unit 16P Connector (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | Not used | - |
| 2 | Not used | - |
| 3 | Not used | - |
| 4 | LIN(START_SW) | Communication line |
| 5 | PGND | Ground for hands on detective control unit |
| 6 | Not used | - |
| 7 | Not used | - |
| 8 | HOD_+ | Detects HOD_+ signal |
| 9 | Not used | - |
| 10 | Not used | - |
| 11 | HSW | Power source for hands on detective control unit |
| 12 | Not used | - |
| 13 | GND | Ground for hands on detective control unit |
| 14 | Not used | - |
| 15 | Not used | - |
| 16 | HOD_- | Detects HOD_- signal |
