Millimeter Wave Radar Connector for Inputs and Outputs (Integrated Driver Support System) (2025)
The following describes the "Millimeter Wave Radar Connector for Inputs and Outputs" of the Integrated Driver Support System. If the vehicle is equipped with front center radar and corner radar, refer to "Connector for Inputs and Outputs" of the Integrated Driver Support System (Camera and Five Radars). Front Center Radar Left Front Corner Radar Right Front Corner Radar Left Rear Corner Radar Right Rear Corner Radar

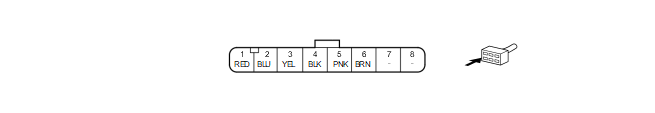

Millimeter Wave Radar 8P Connector (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | IG1_VSA(VST) | Power source for the millimeter wave radar |
| 2 | AF-CAN A_H | F-CAN communication (high) circuit |
| 3 | AF-CAN A_L | F-CAN communication (low) circuit |
| 4 | PGND | Ground circuit for the millimeter wave radar |
| 5 | ACC-CAN_H | ACC-CAN communication (high) circuit |
| 6 | ACC-CAN_L | ACC-CAN communication (low) circuit |
| 7 | Not used | - |
| 8 | Not used | - |
