Multipurpose Camera Unit Connector for Inputs and Outputs (2022 2023 2024)

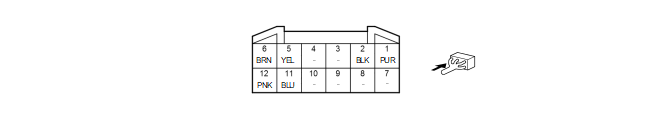

Multipurpose Camera Unit 12P Connector (female terminals)
| Terminal number | Terminal name | Description |
| 1 | IG1_VSA(VST) | Power source for the multipurpose camera unit |
| 2 | GND | Ground circuit for the multipurpose camera unit |
| 3 | Not used | - |
| 4 | Not used | - |
| 5 | AF-CAN A_L | F-CAN communication (low) circuit |
| 6 | ACC-CAN_L | ACC-CAN communication (low) circuit |
| 7 | Not used | - |
| 8 | Not used | - |
| 9 | Not used | - |
| 10 | Not used | - |
| 11 | AF-CAN A_H | F-CAN communication (high) circuit |
| 12 | ACC-CAN_H | ACC-CAN communication (high) circuit |
